LPG

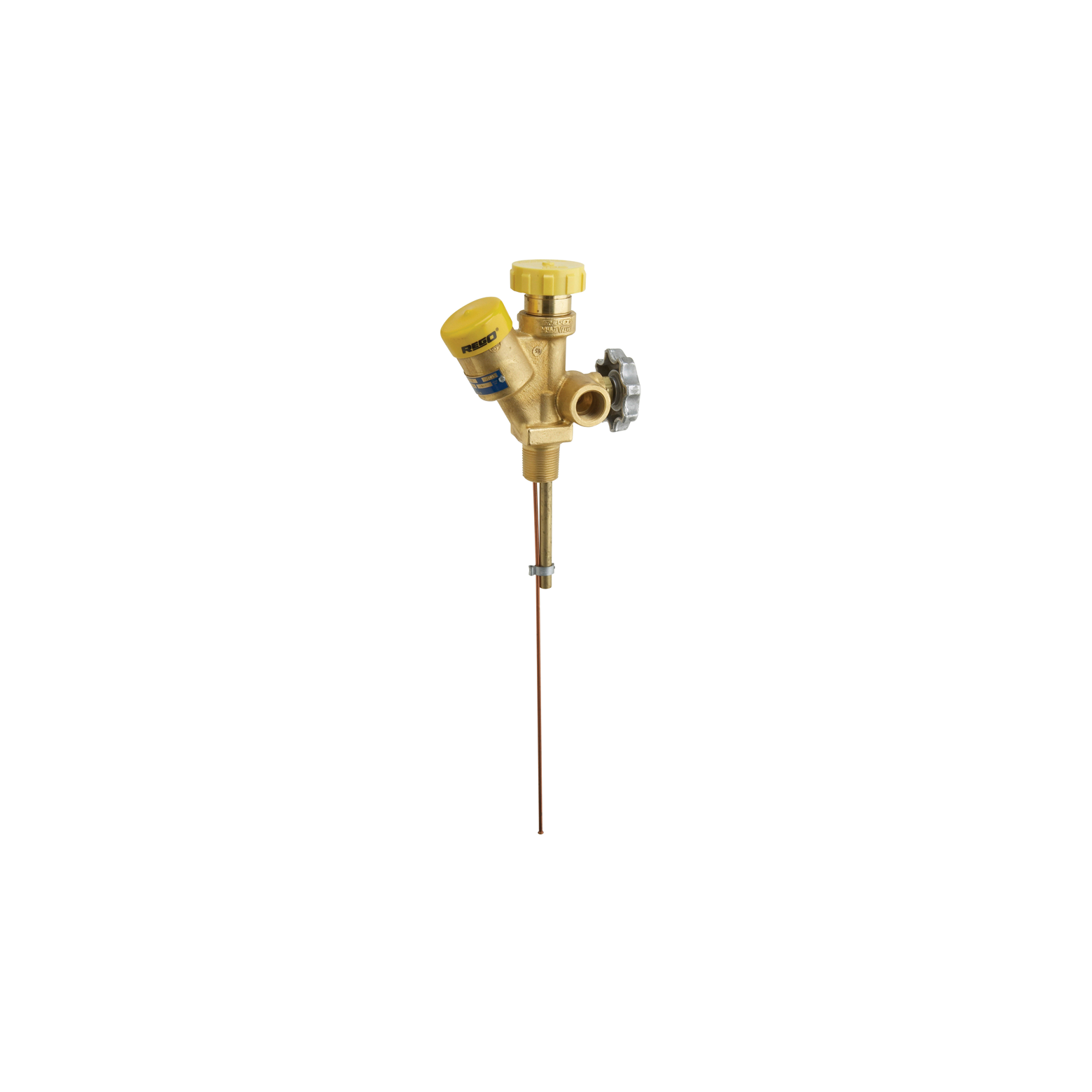

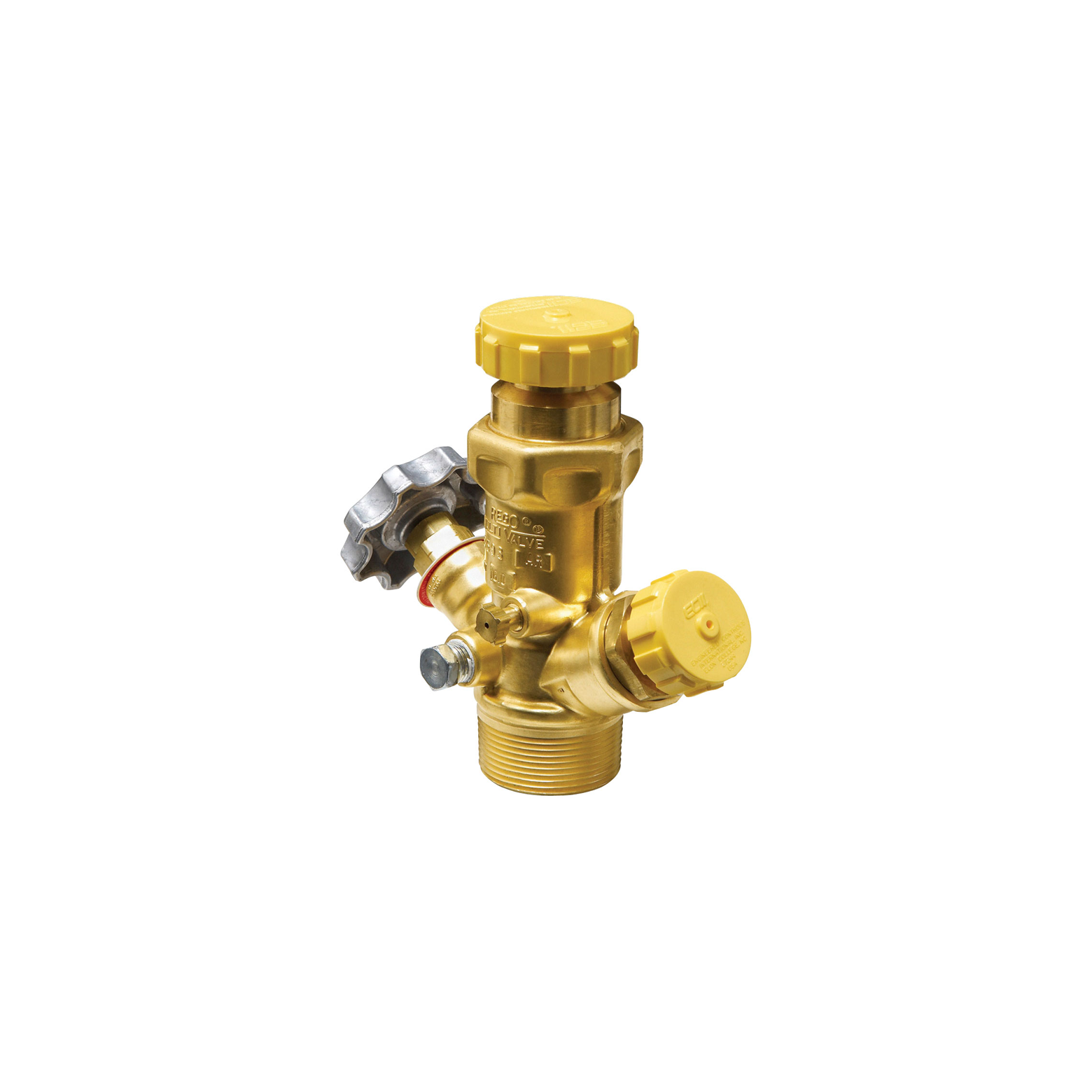

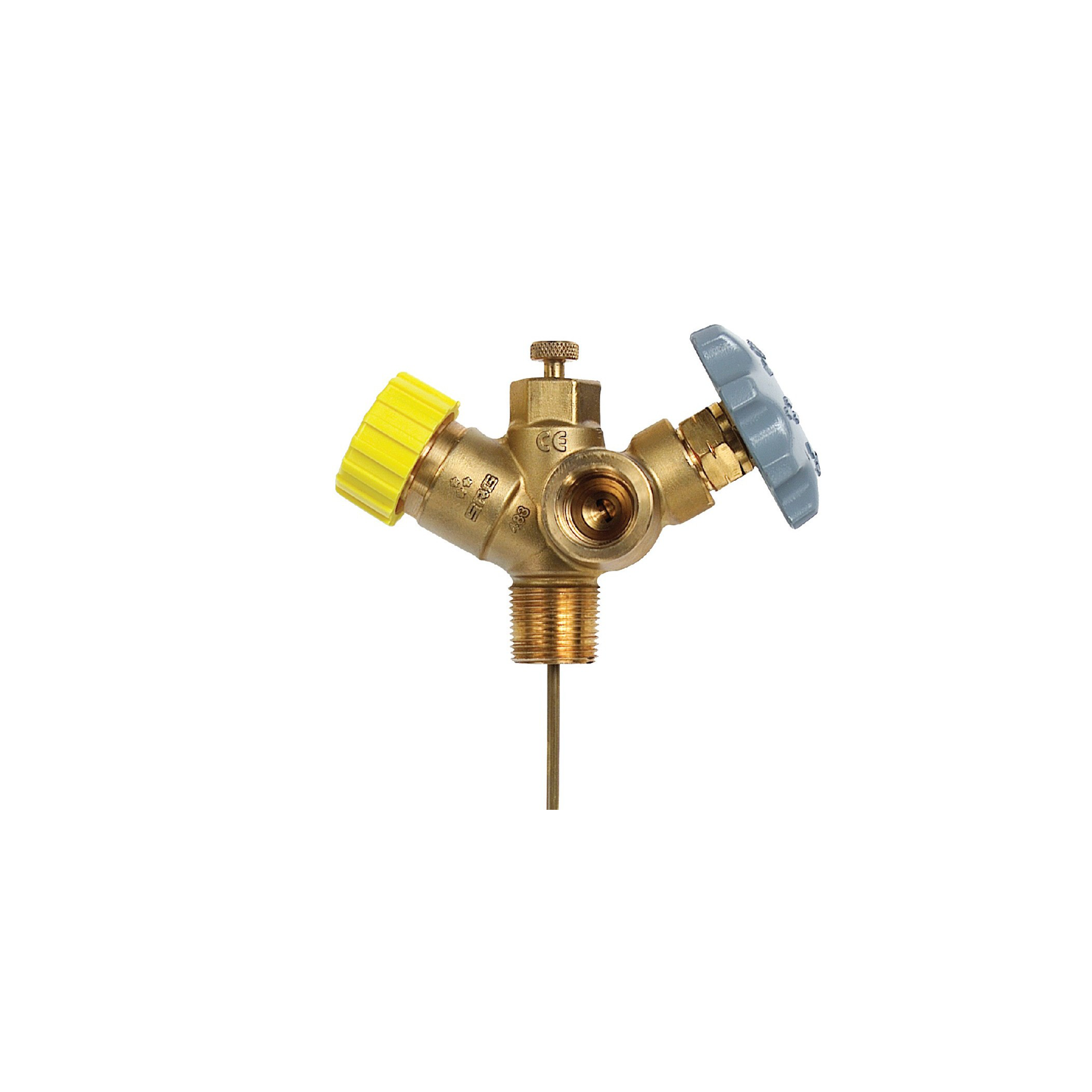

Multi valves for simpler LPG application layout

Multi valves are specifically designed to fit in single opening ASME containers from which they permit vapour or liquid extraction and, in some cases, also filling.

Product description

Multi valves are essentially a body containing many valves and their functionalities. A single device can behave as a filler valve, pressure relief valve, fixed level gauge, service valve, vapour equalisation valve and a gauge plug.

icon 3 squares in front of eachother symbolising material

Material

Body: Forged brass
Handwheel: Aluminium die cast
Stem: Brass
Seat disc (shut-off valve): Nylon
Seat disc (others): Resilient rubber
O-rings: Resilient rubber
Relief springs: Stainless steel

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane)
Connections: Thread, M.POL (service connection), M.ACME (filling connection)
Type: NPT
Pressure range: 25.8 bar (375 psi)
Sizes and ranges: 3/4" to 2½"
Standards: UL listed, ASME

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Includes plugged, ¼” F. NPT gauge boss
  • The most complete Multivalve® assembly in the LP-Gas industry
  • 'Y'-shaped or multiple headed units for easy access
  • Large 21⁄16” hex wrenching boss on center column
  • MultiBonnet allows quick and easy repair of bonnet
  • Simple design

Did you know?

Some of the multi valves can also permit vapor withdrawal

The Multivalves can also permit liquid withdrawal from DOT cylinders with up to 100 lbs. propane capacity

Alternative products

  • Two pieces from a CME hose coupling

    ACME hose couplings

    These couplings are frequently used in LPG and NH3 transfers and provide safe connection and fast filling for the likes of bobtail trucks and anhydrous ammonia nurse tank service.

    See our ACME hose couplings

  • 3 ACME tank couplings

    ACME tank couplings

    ACME tank couplings are male threaded devices that are installed onto tanks to facilitate a secure one directional flow of propane during filling - preventing gas from accidentally escaping.

    See our ACME tank couplings
