ACME tank couplings for LPG

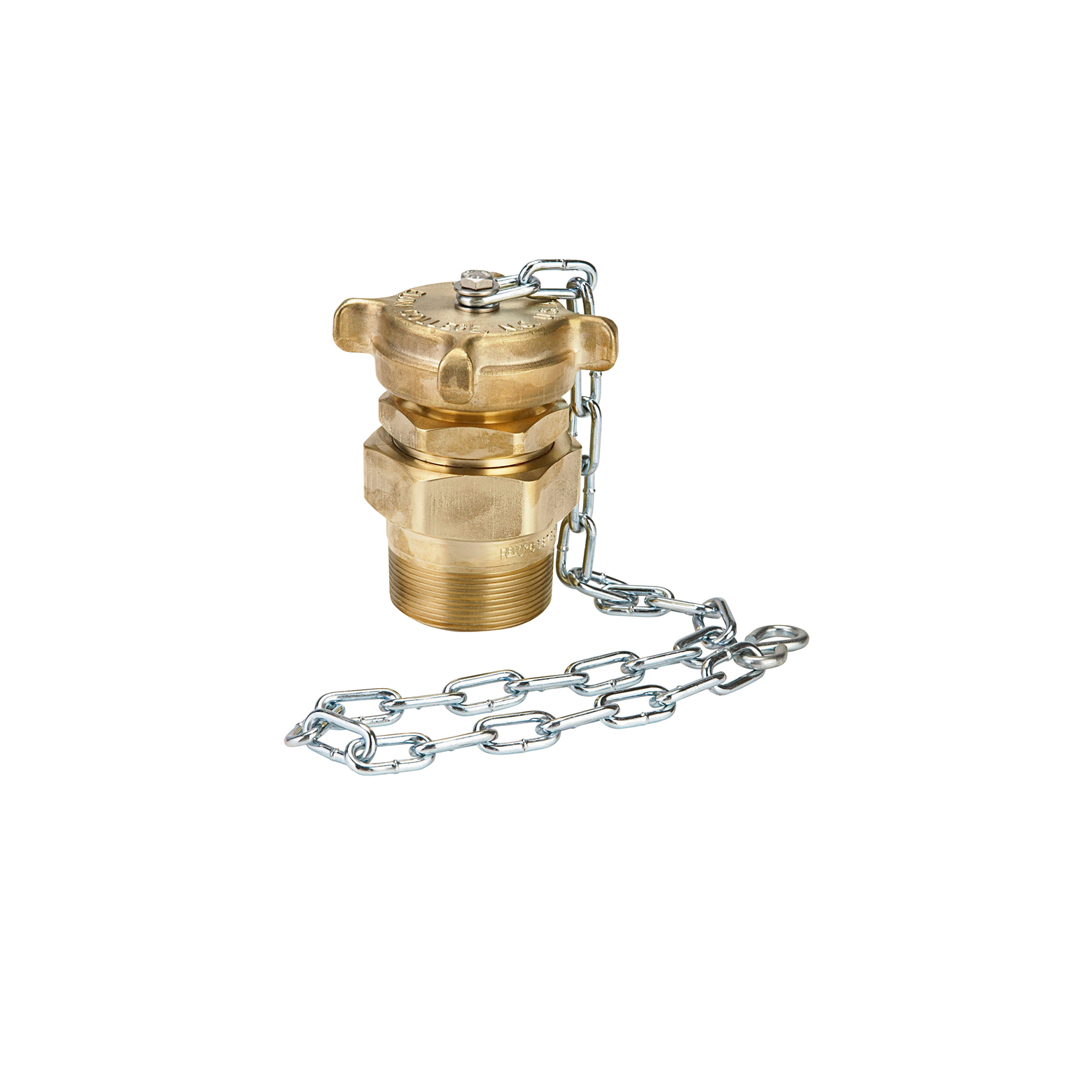

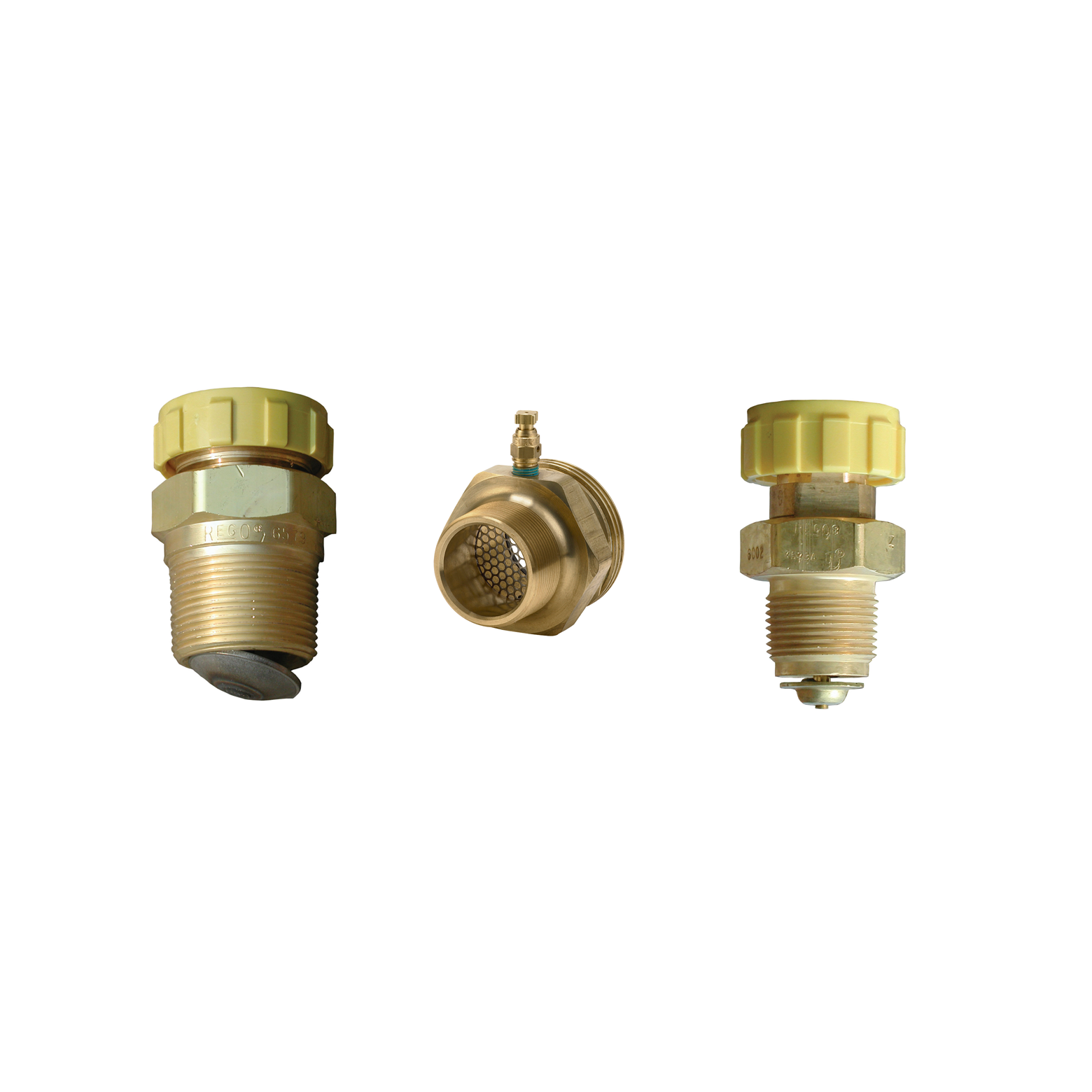

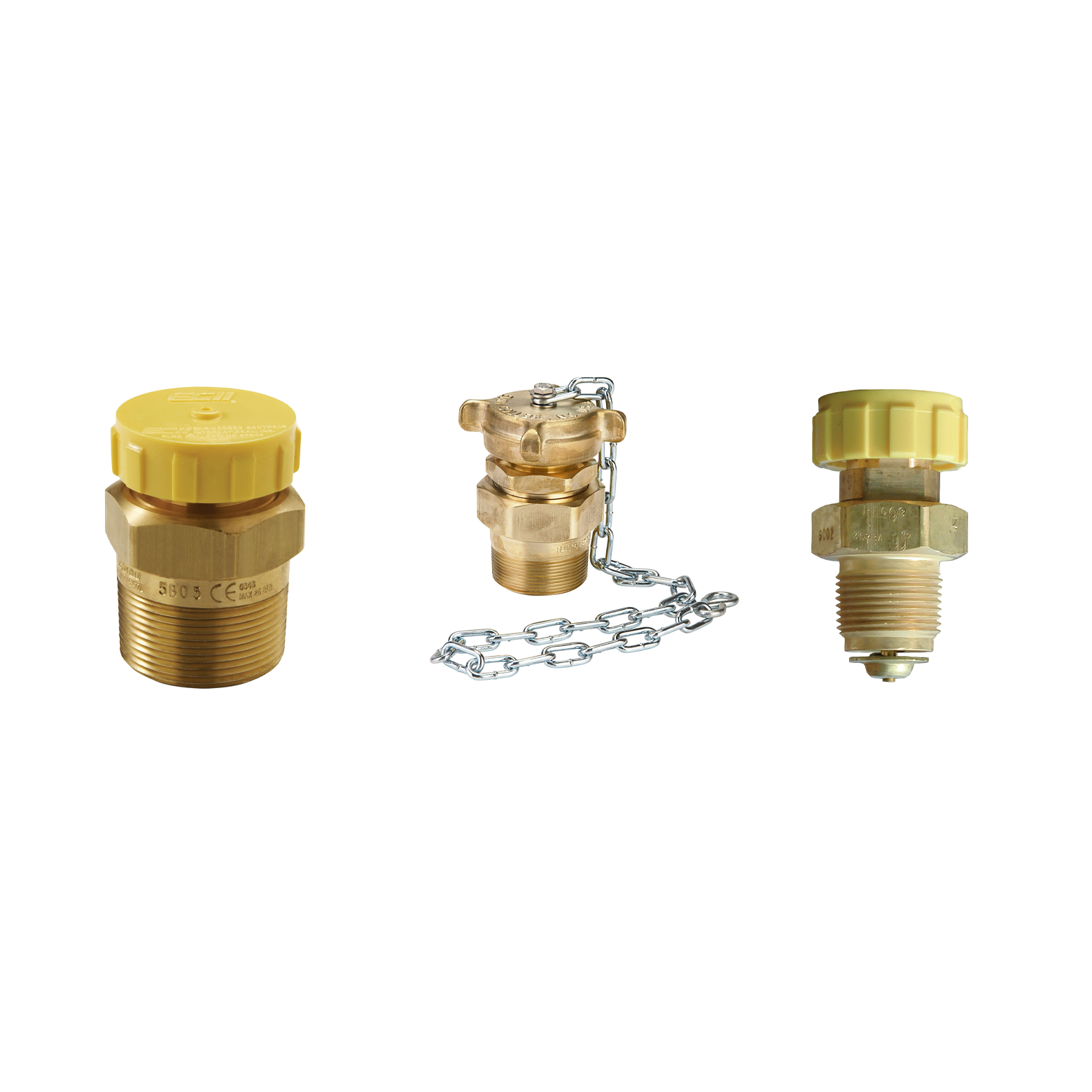

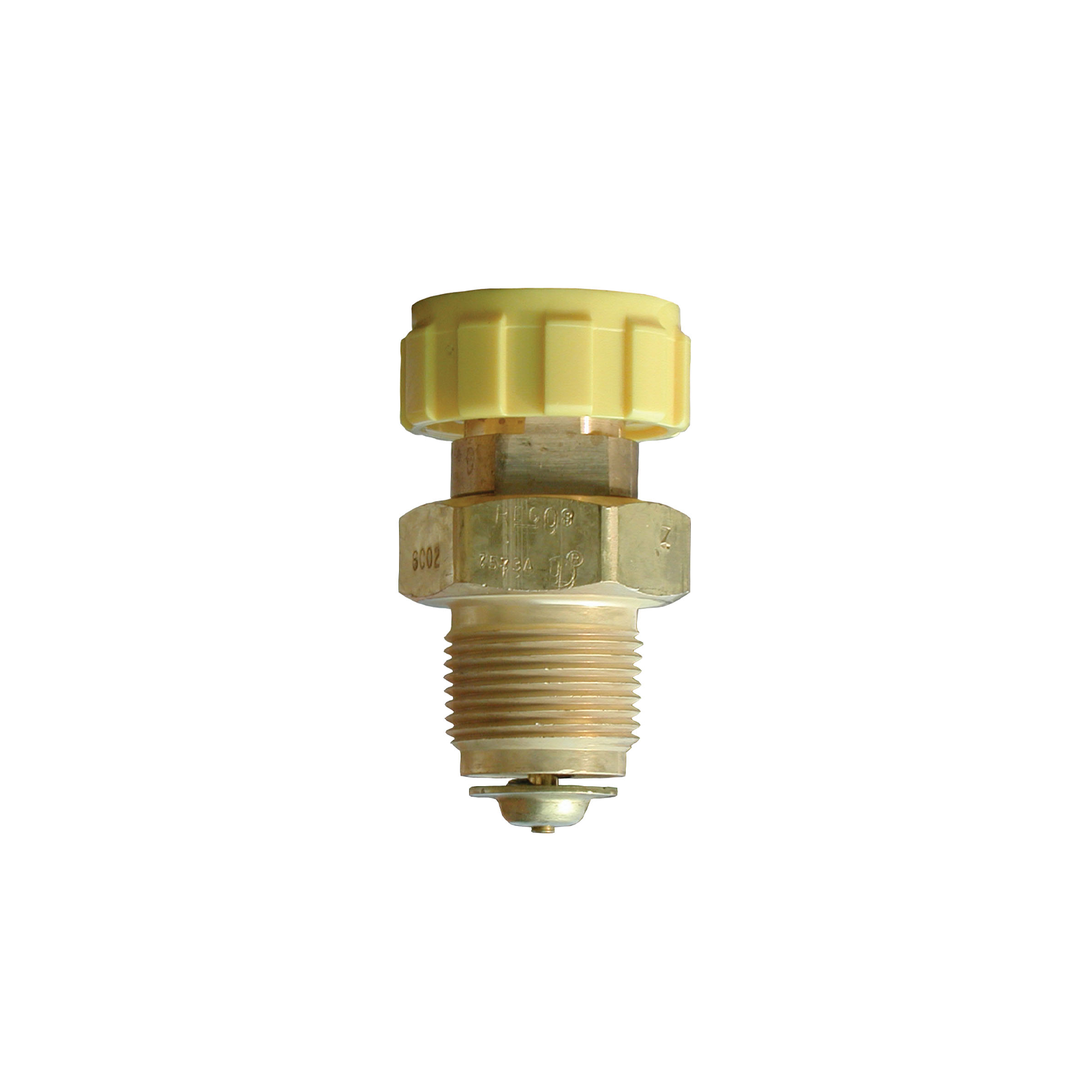

ACME Tank couplings like "Filler Valves" and vapour equalisation valves are frequently used in hose operated LPG transfers and provide fast filling for mobile tanks and above or underground stationary ones.

Product description

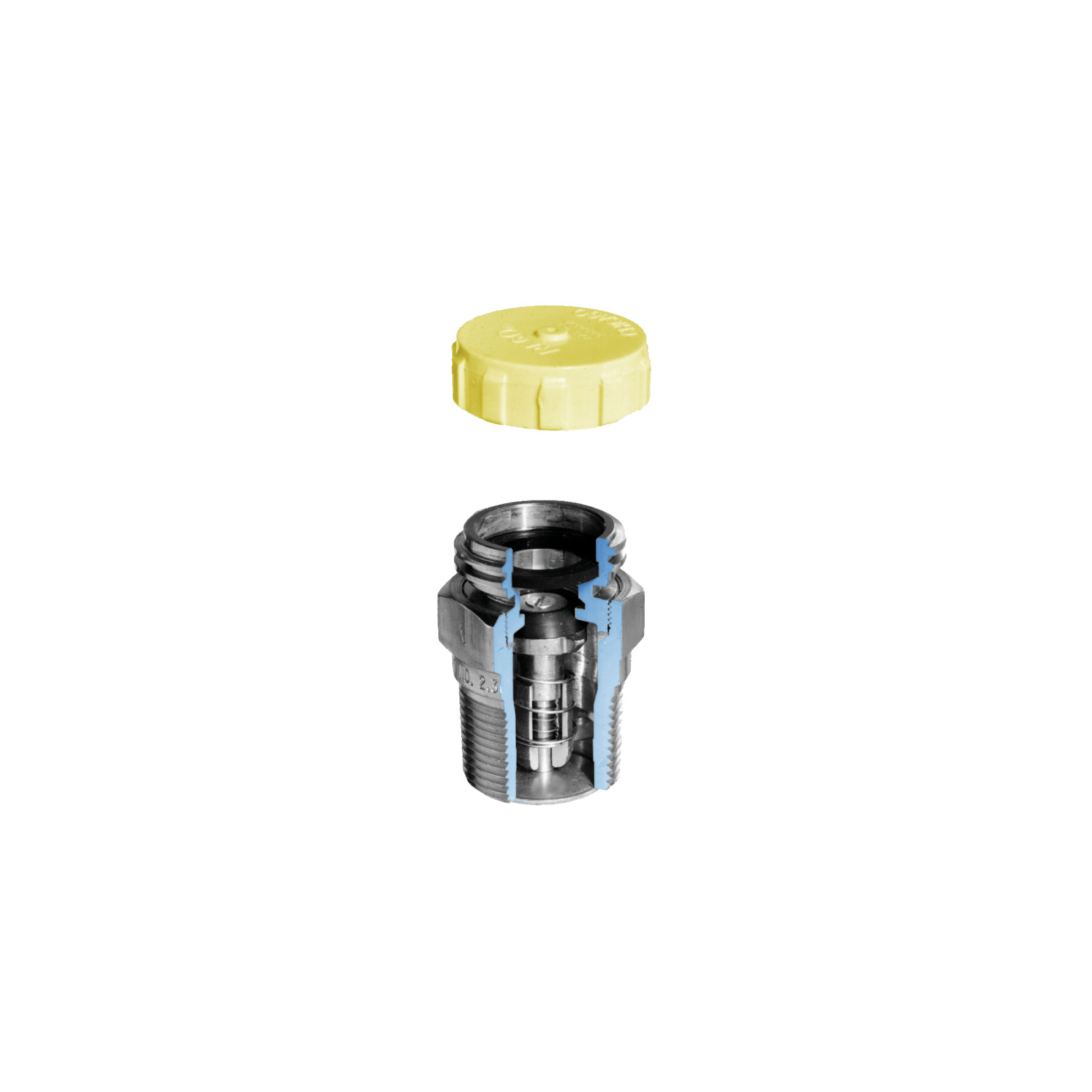

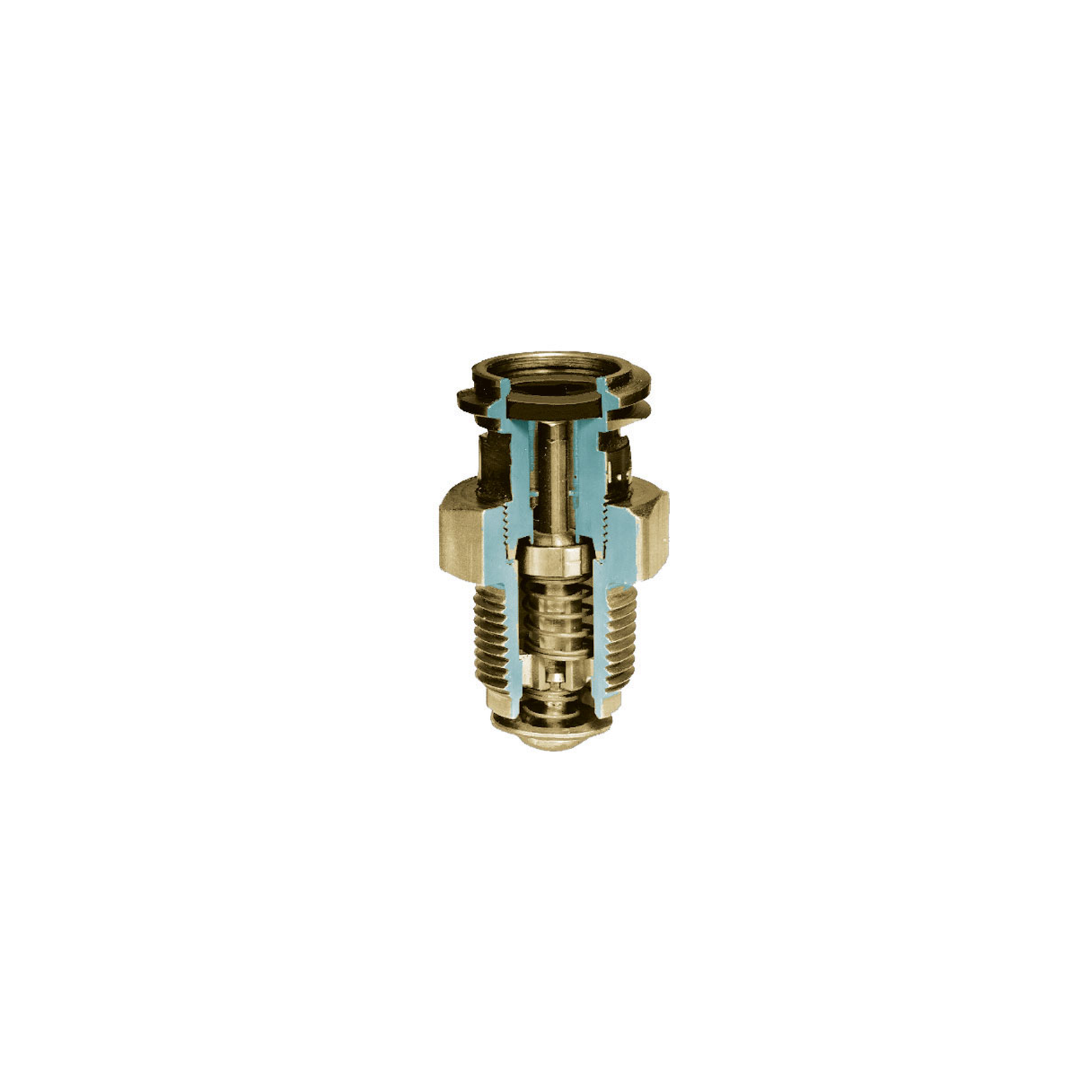

ACME tank couplings are male threaded devices that are installed onto tanks to facilitate a secure one directional flow of media during filling and prevent gasses from exiting unintentionally by the incorporation of a back-flow configuration.

icon 3 squares in front of eachother symbolising material

Material

Body: Steel, brass
Springs: Stainless steel (filler valve)
Washer and seat discs: Synthetic rubber (filler valve)
Cap: Resilient molded plastic (filler valve)

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous ammonia)
Connections: Thread
Type: NPT
Pressure range: Up to 25 bar (362.5 psi)
Sizes and ranges:
Male ACME: 1-1/4" to 3-1/4"
Container connection: 3/4" to 3"

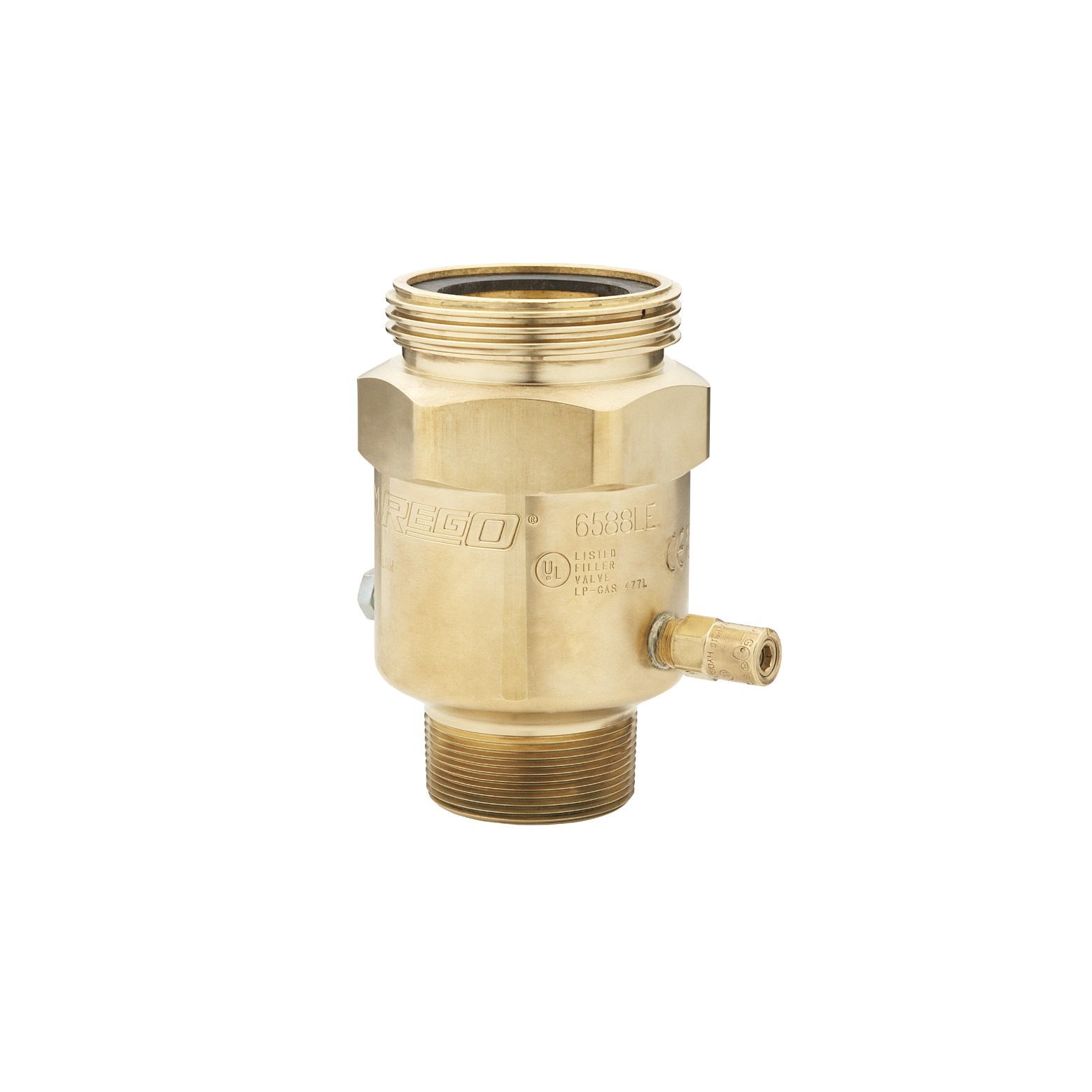

Series available: L7579, L6579, 7500, SFL7579V, SF7647V, 6587EC, 3197C, 7573, 3183AC, 5769, 6588LE and 6589LE
Standards: UL listed, PED, TPED

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

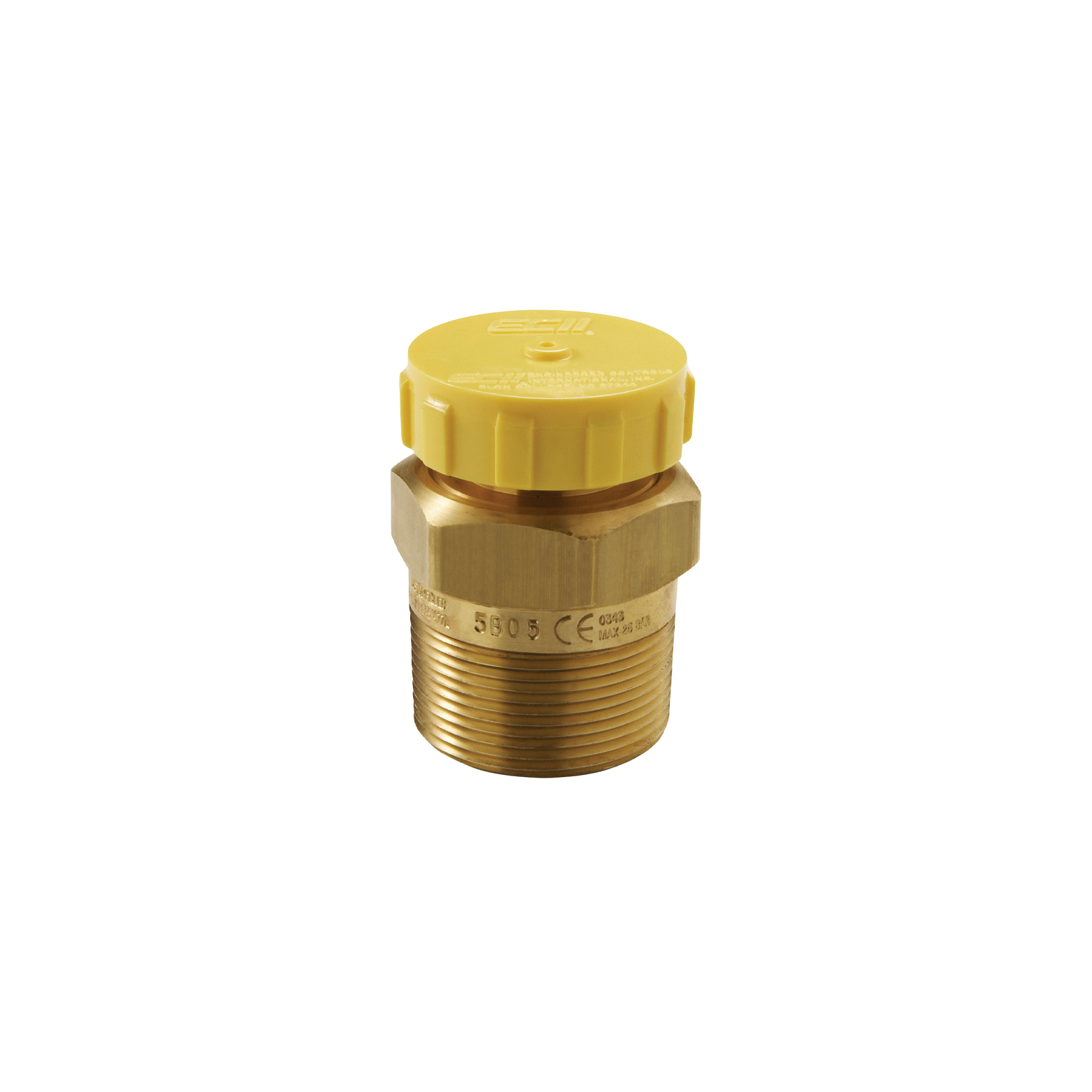

  • Filler cap made of resilient molded plastic to contain the large pressure and protect from water and debris entering the tank
  • Long-wearing gasket permits hand-tight connection
  • Safety groove is designed to sheer below ACME thread, leaving the seat assembly intact and unaffected in the case of pull-away
  • Seat disc is made in an extra thick synthetic rubber to extend the life span
  • Precision machined guide to assure a positive seal that meets the NFPA 58 requirements for liquid transfer
  • Double-check valves provides added system protection
  • Specify vapour equalizing valves on all original tanks purchases to ensure quality and dependable performance
  • Bi-directional flow couplings can be delivered on request

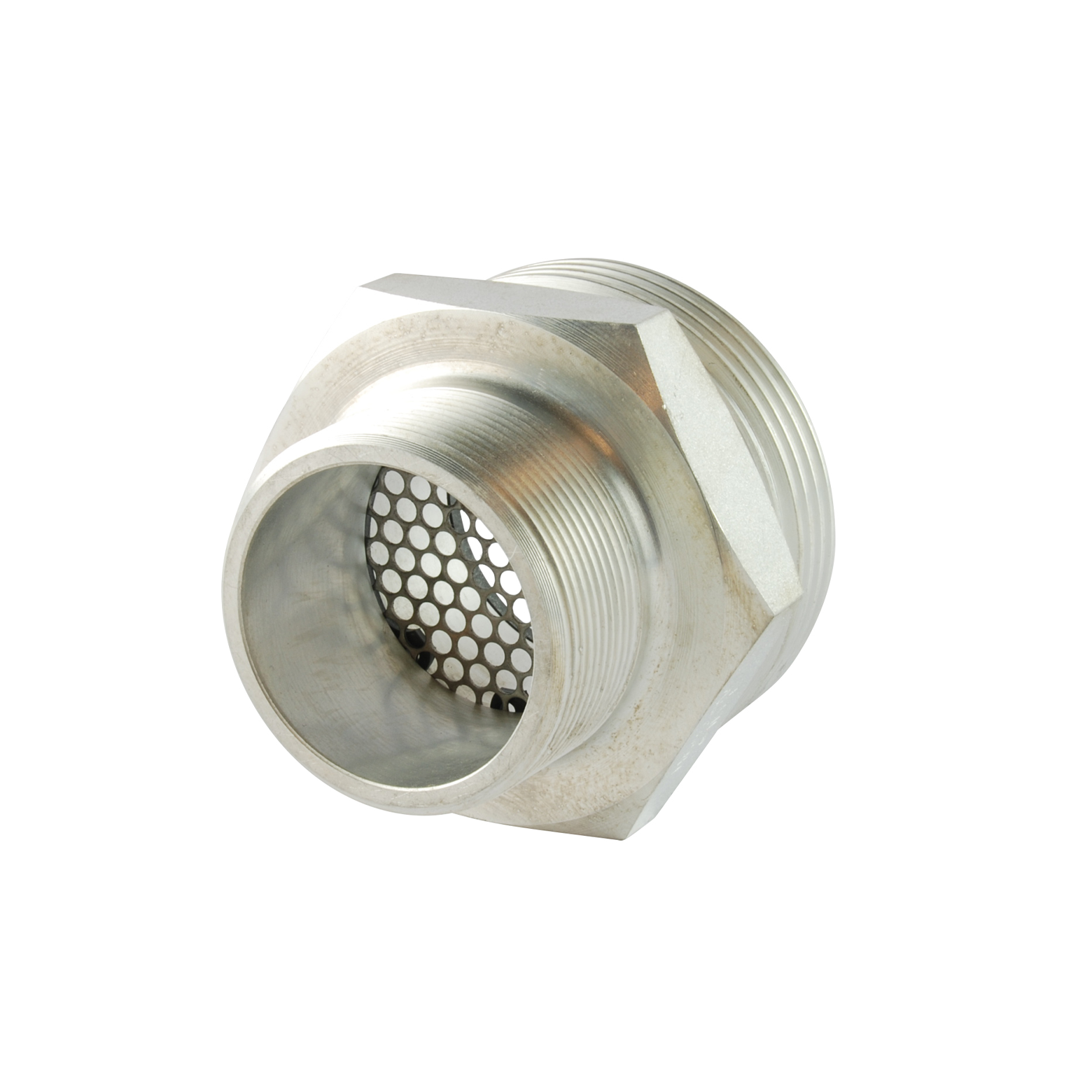

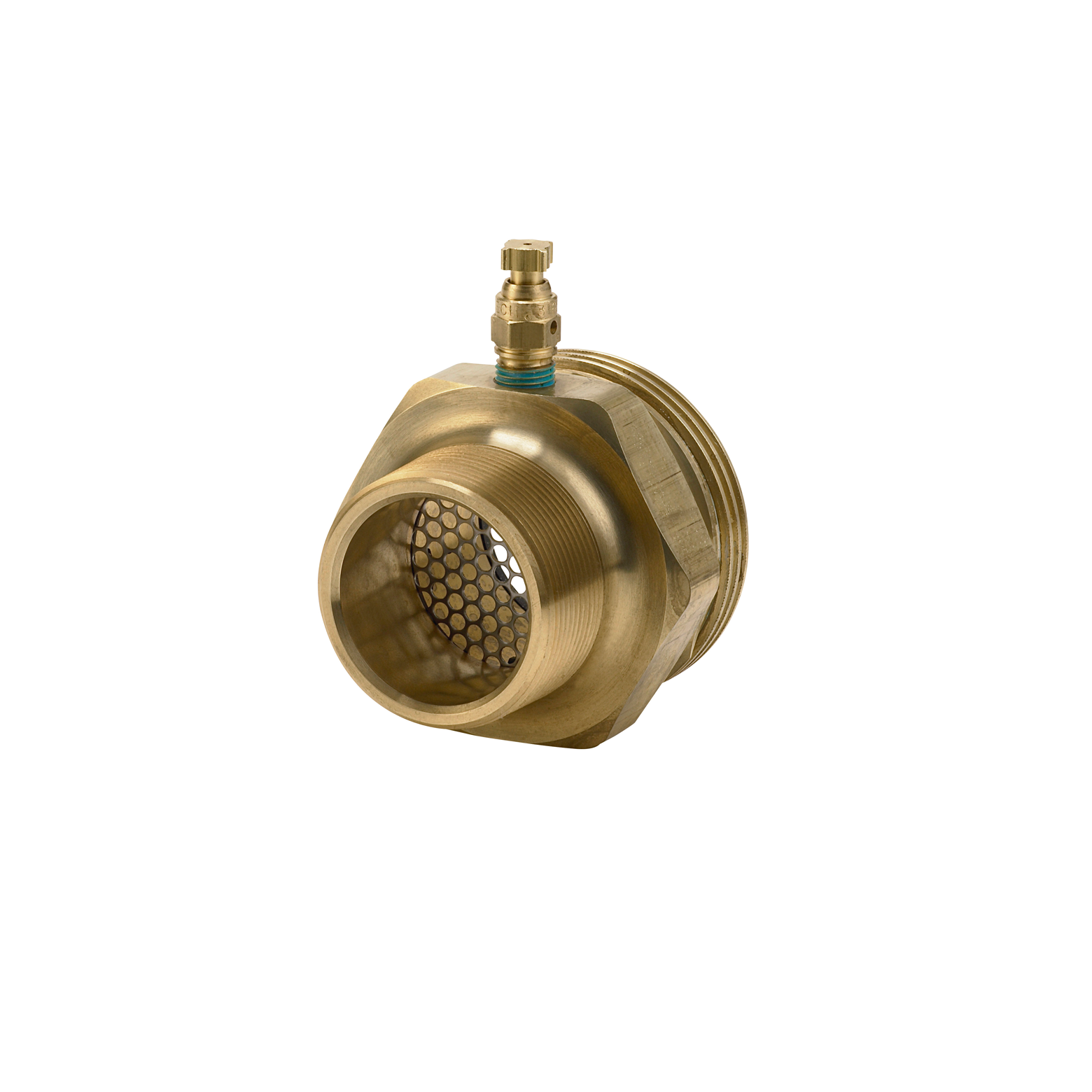

  • Integrated systems with MESH screens and safety relief valves are available

Did you know?

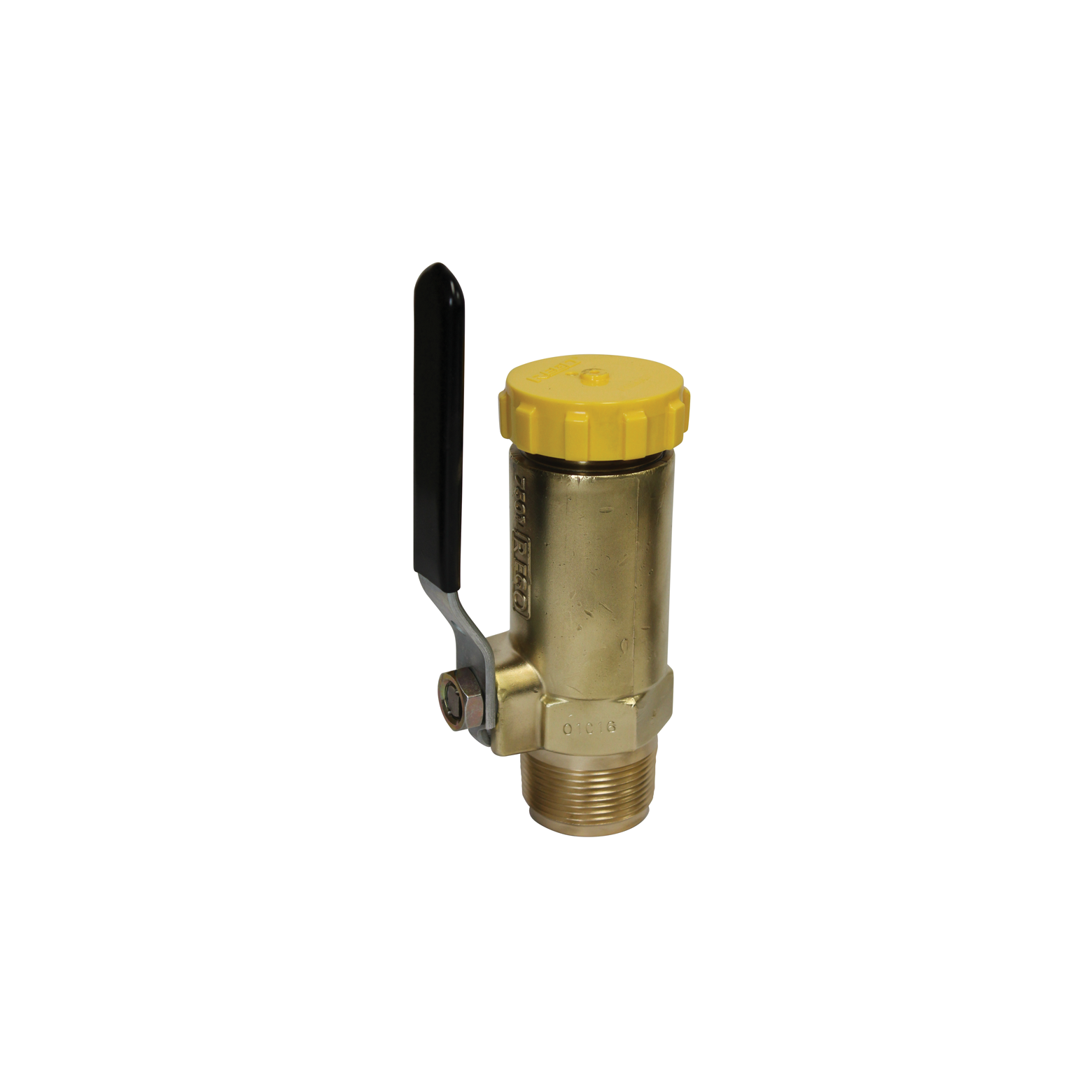

7500 series: low emission filler valve with manual shut-off

SFL7579V & SF7647V series: low emission filler & overfill protection device

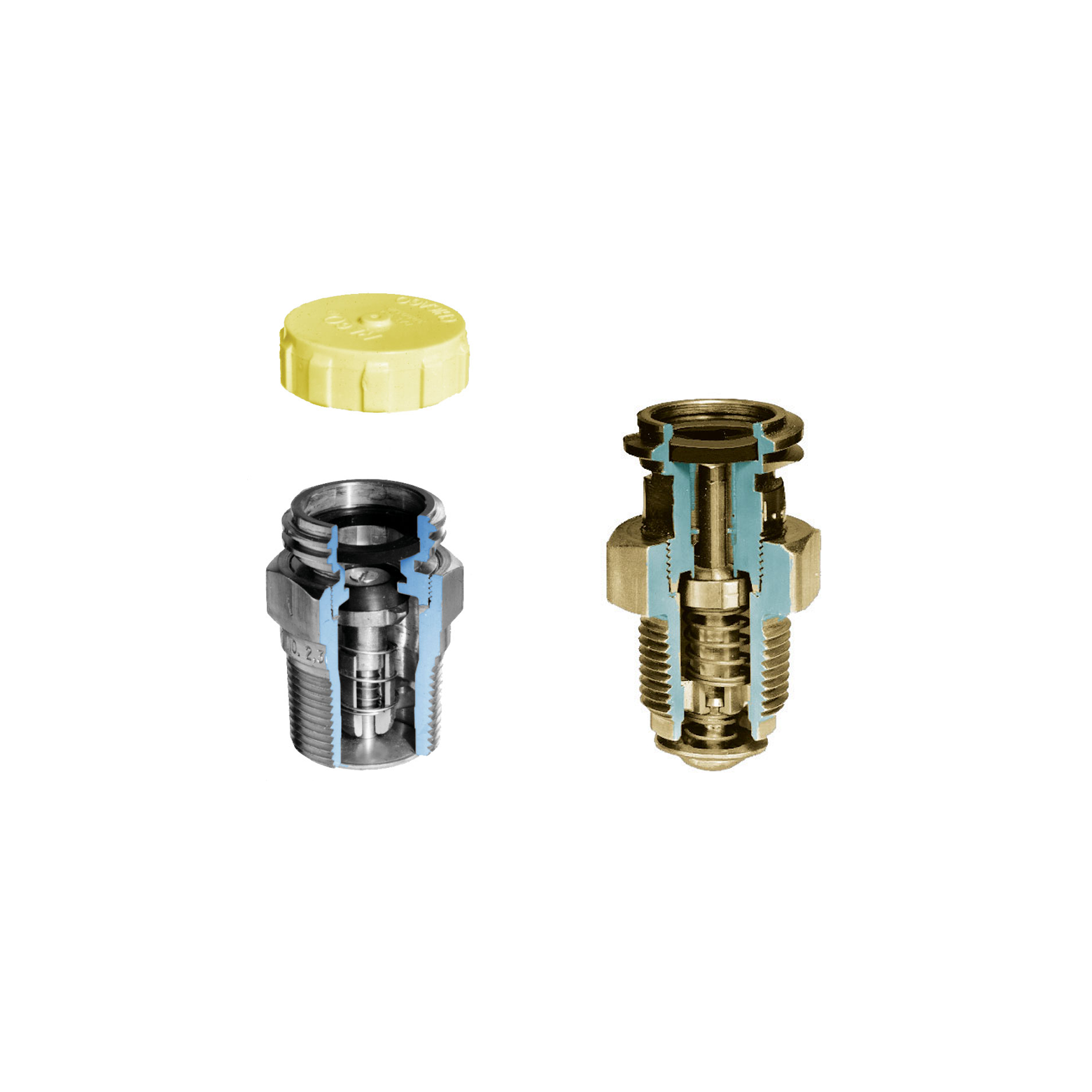

If vapour equalisation is necessary, a double-check vapour equalisation valve is installed, instead which has an added 'nose' that opens the check valve and allows the equalisation of pressure in the supply and storage container
