Product description

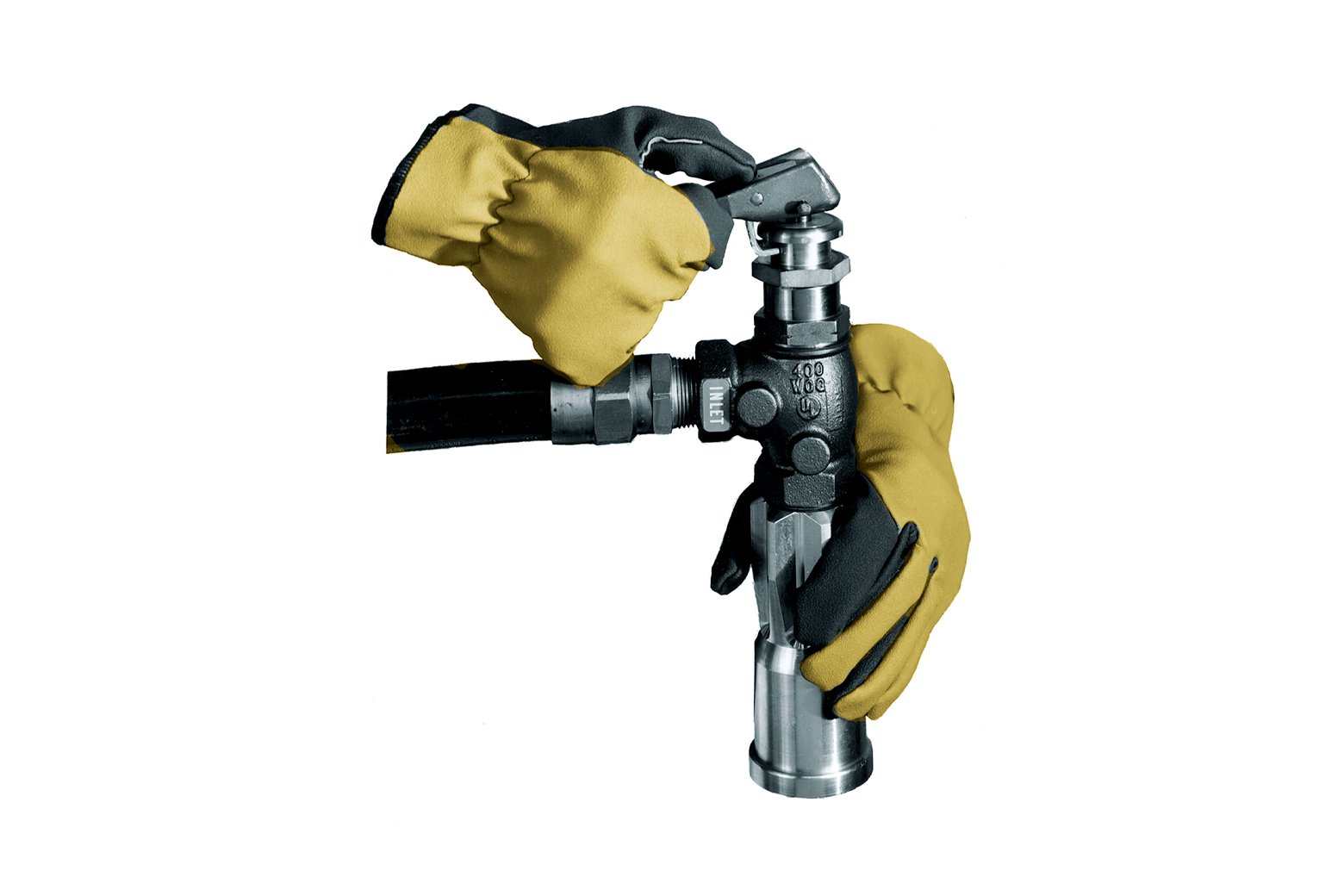

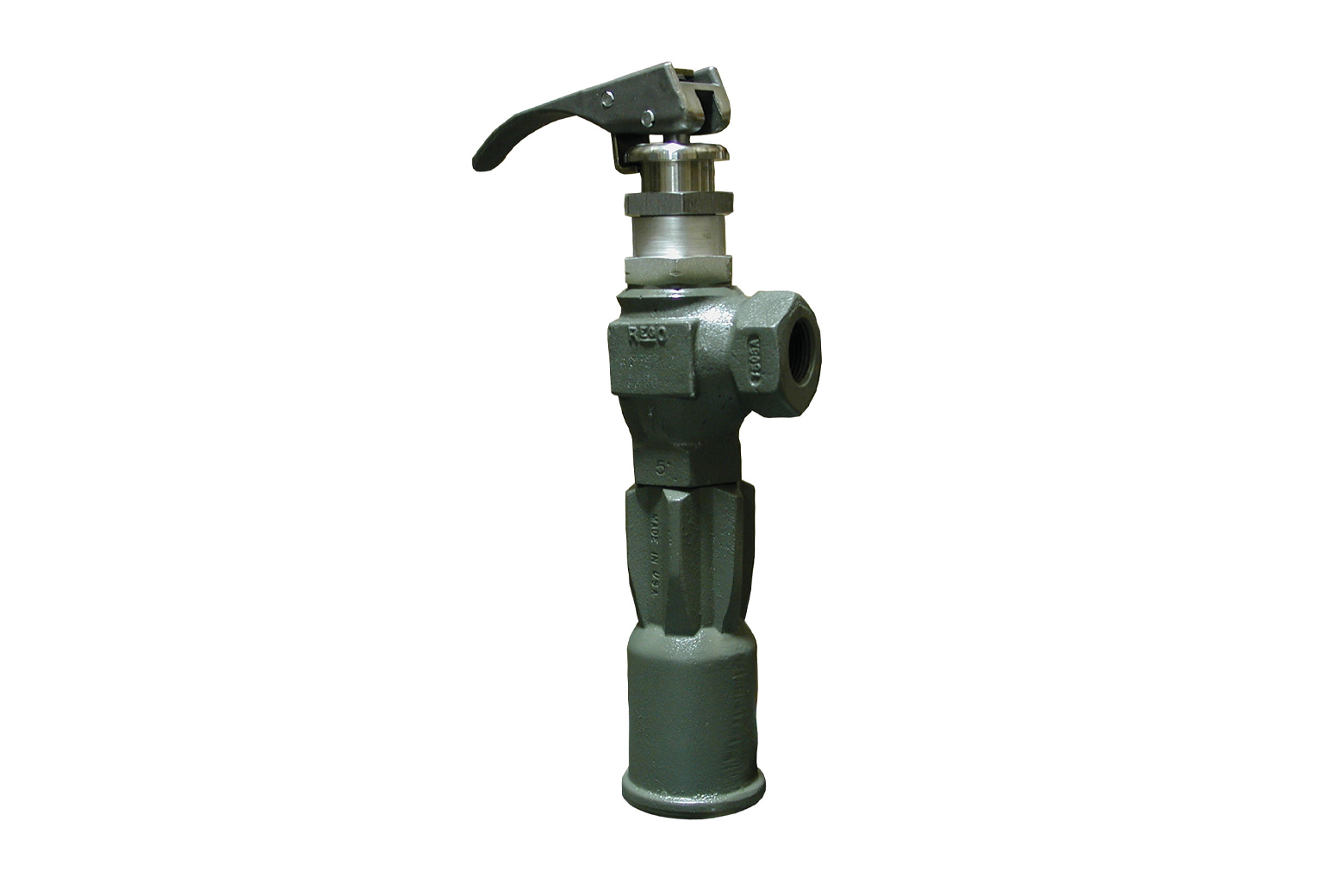

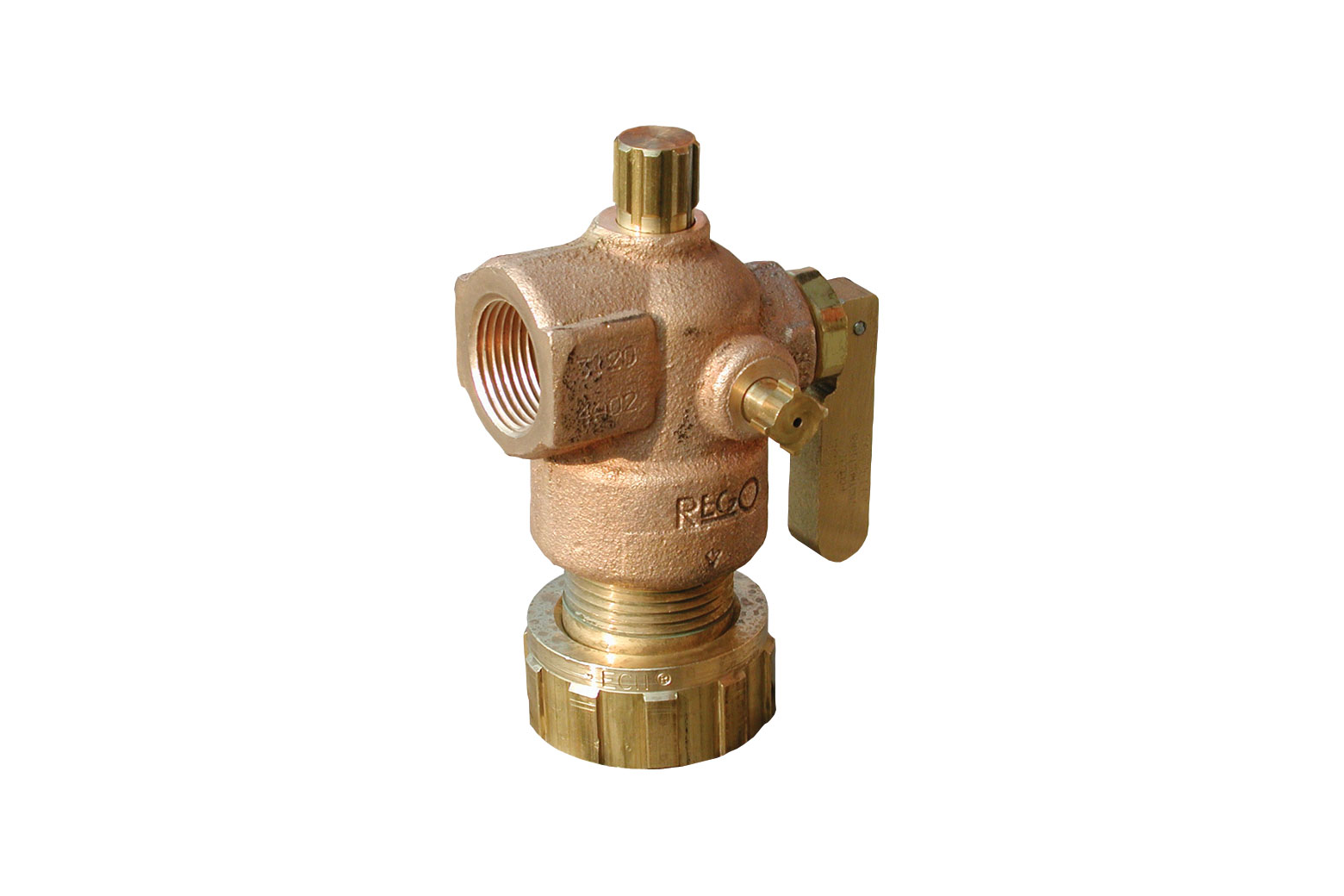

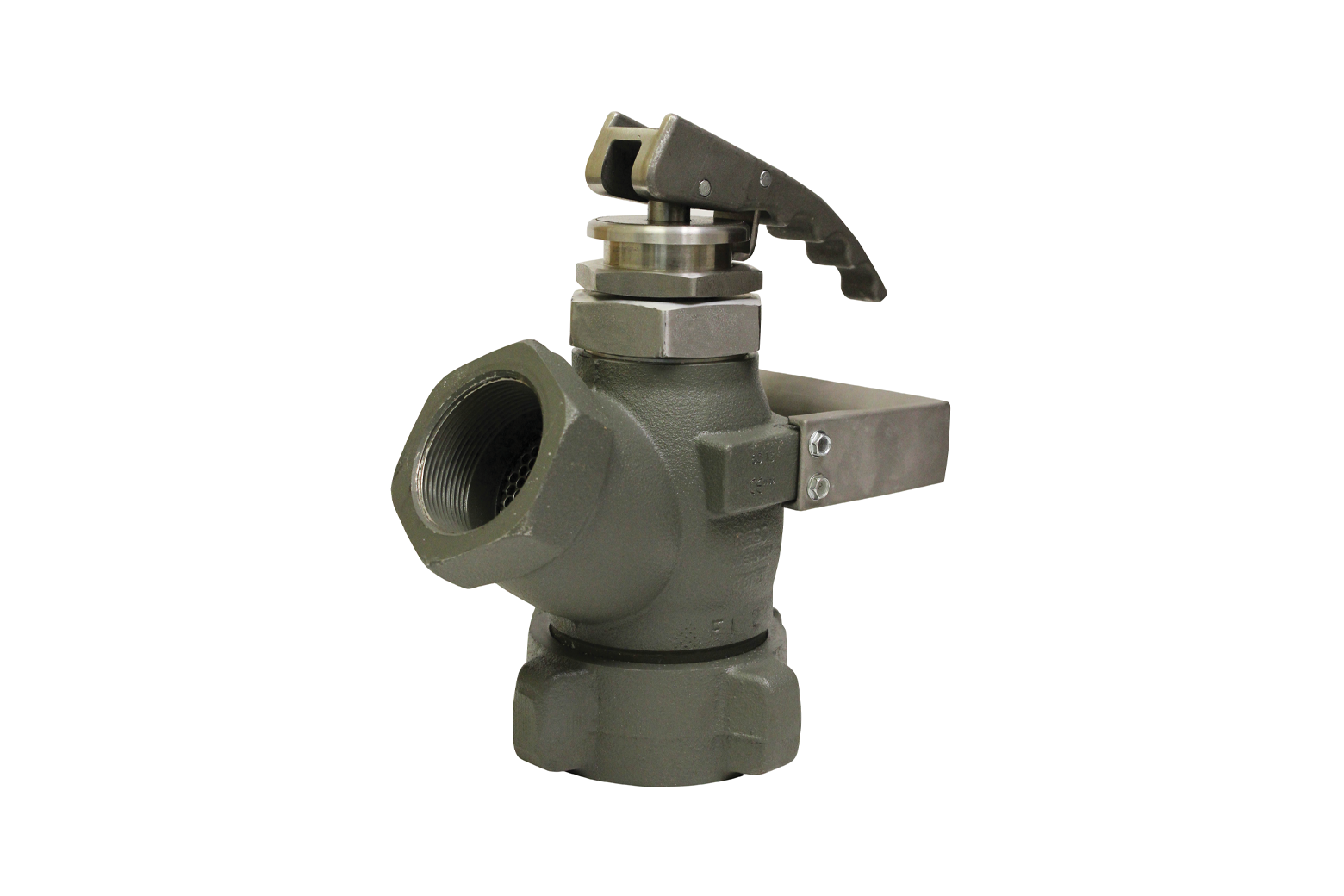

The handle on the quick-acting valve provides a full flow when the handle is flipped and instant and complete shut-off when returned to starting position. Once closed, the handle locks for added protection and does not require additional filling adaptors or connectors as they are fully contained units.

icon 3 squares in front of eachother symbolising material

Material

Body: Steel, brass, aluminium, stainless steel
"V"-ring: Teflon (hose end valve)
Stem: Stainless steel (hose end valve)
Seat discs: Synthetic elastomer (hose end valve)

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous ammonia)
Connections: Thread
Type: NPT, ACME
Pressure range: Up to 25 bar (362.5 psi)
Sizes and ranges:

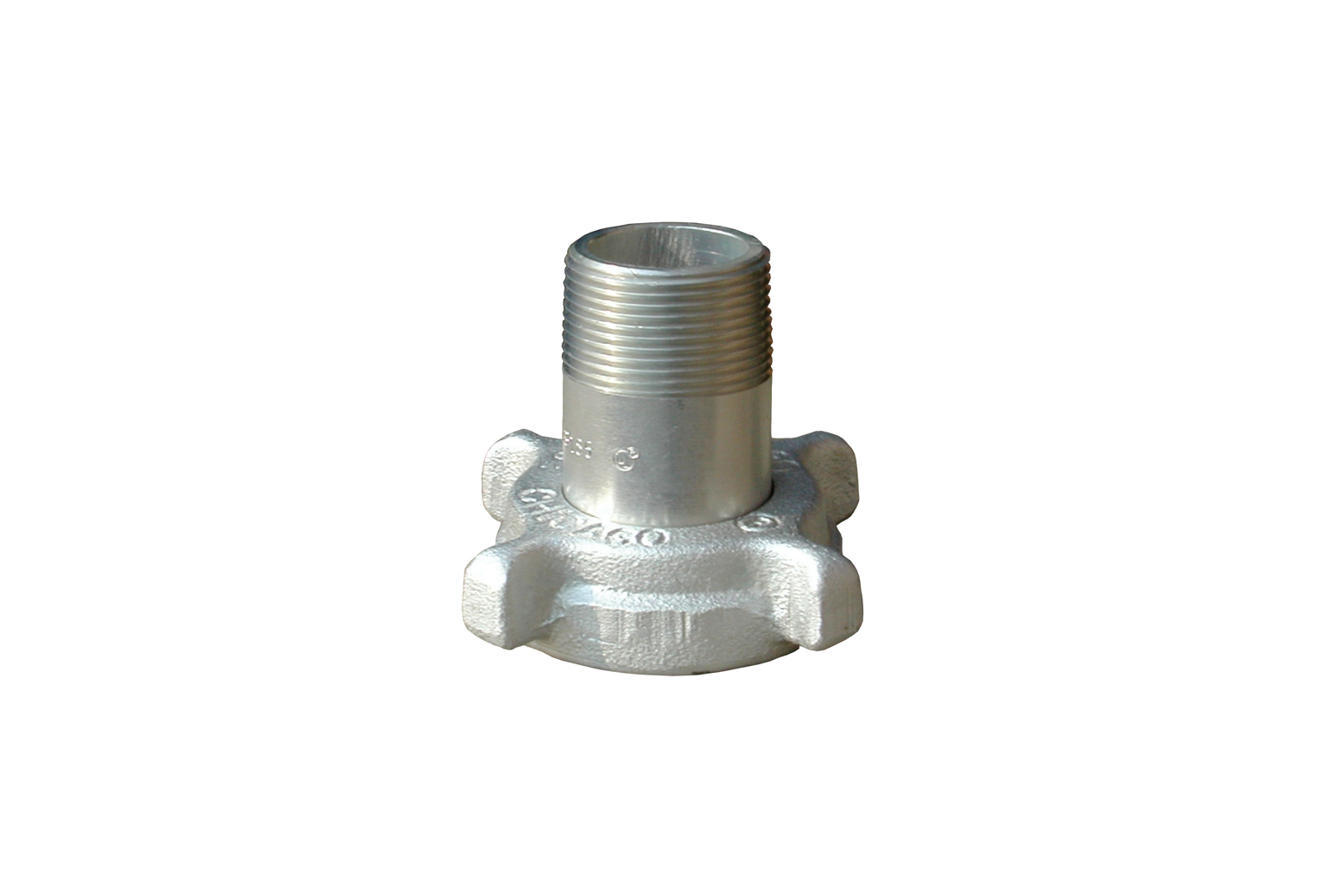

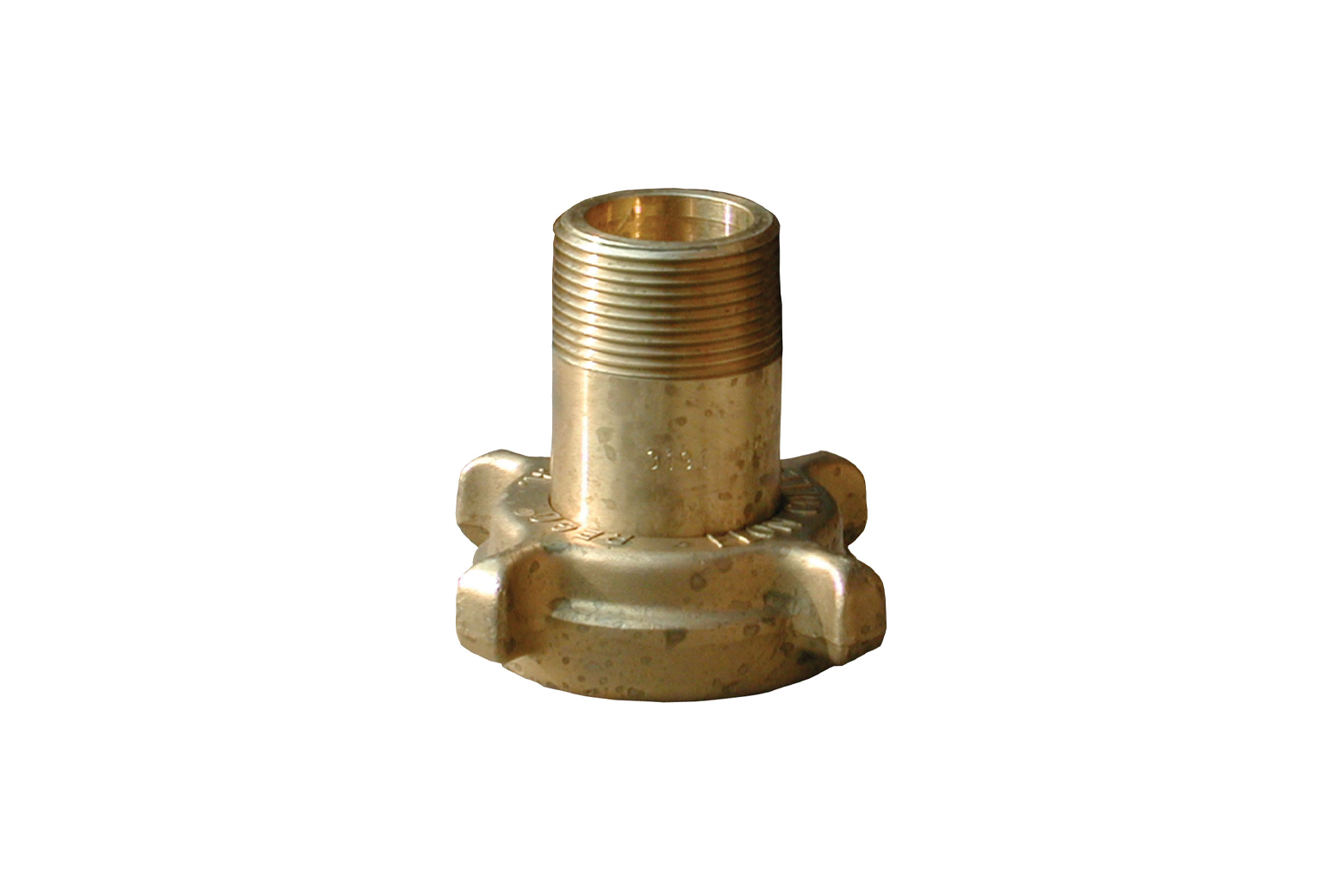

Female ACME: 1-1/4" to 3-1/4"
Hose connection: 3/4" to 2"
Series available: A7914A, A7797A, A7793A, A7707L, A7708L, A7571, A7575, 3171, 3175, 3181, 3185, 3195, 3179B, 7577V and 7576
Standards: UL listed, PED

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Minimised product venting loss on disconnection by instantly housing the seat disc at the bottom of the built-in ACME filling connector
  • Vents less than 2cc spin-off during uncoupling
  • "V"-ring spring-loaded pressure seal design provides for dependable, leak-free operation. No packing to retighten or replace
  • Operator friendly - The 360rotating swivel handle permits a more flexible use and the large, easy-to-grip filling connector makes the valve easy to handle
  • Self locking handle prevents accidental opening of the valve
  • Bi-directional hose couplings are available

Did you know?

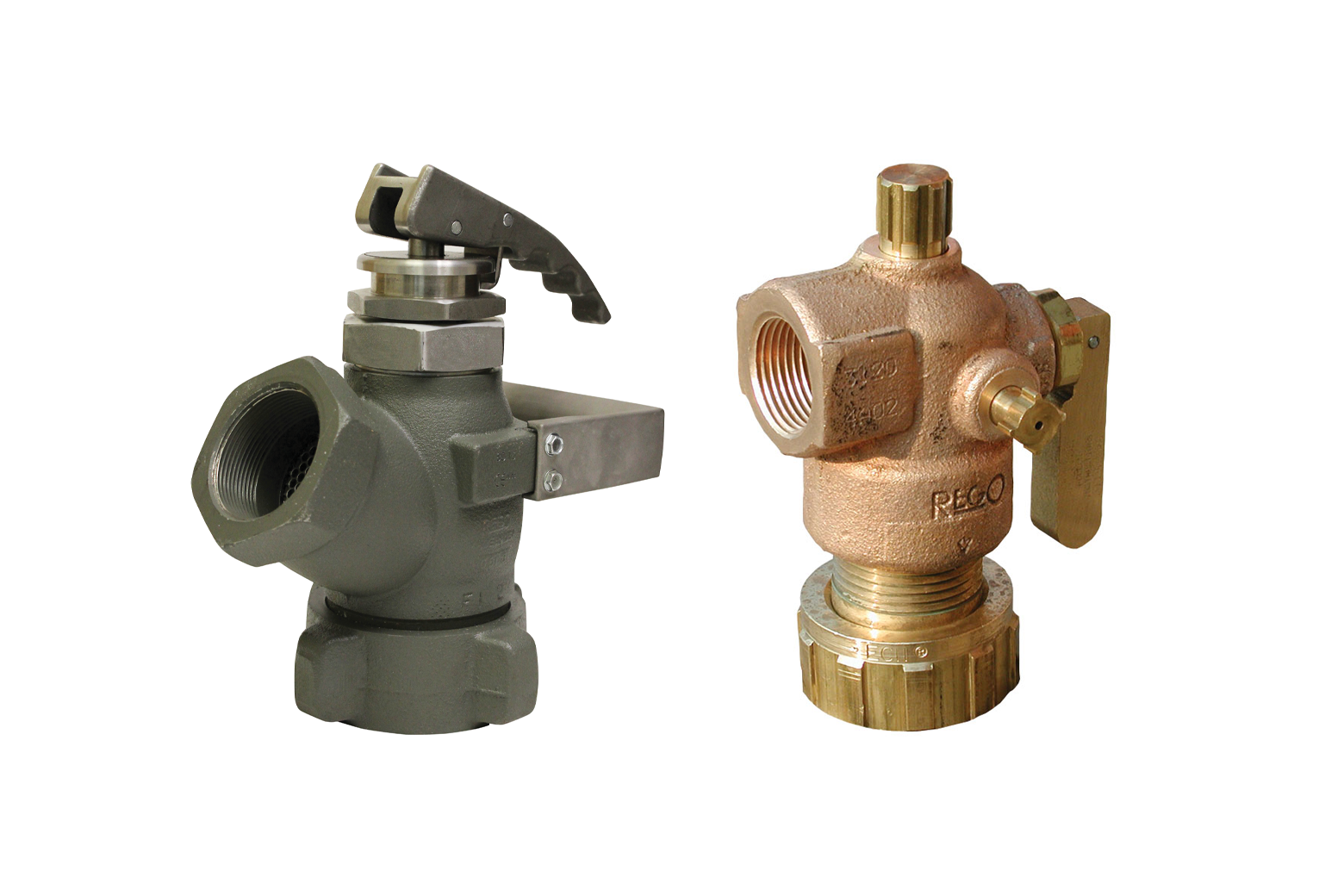

MAKEEN Gas Equipment also has complete units with integrated valves and check devices

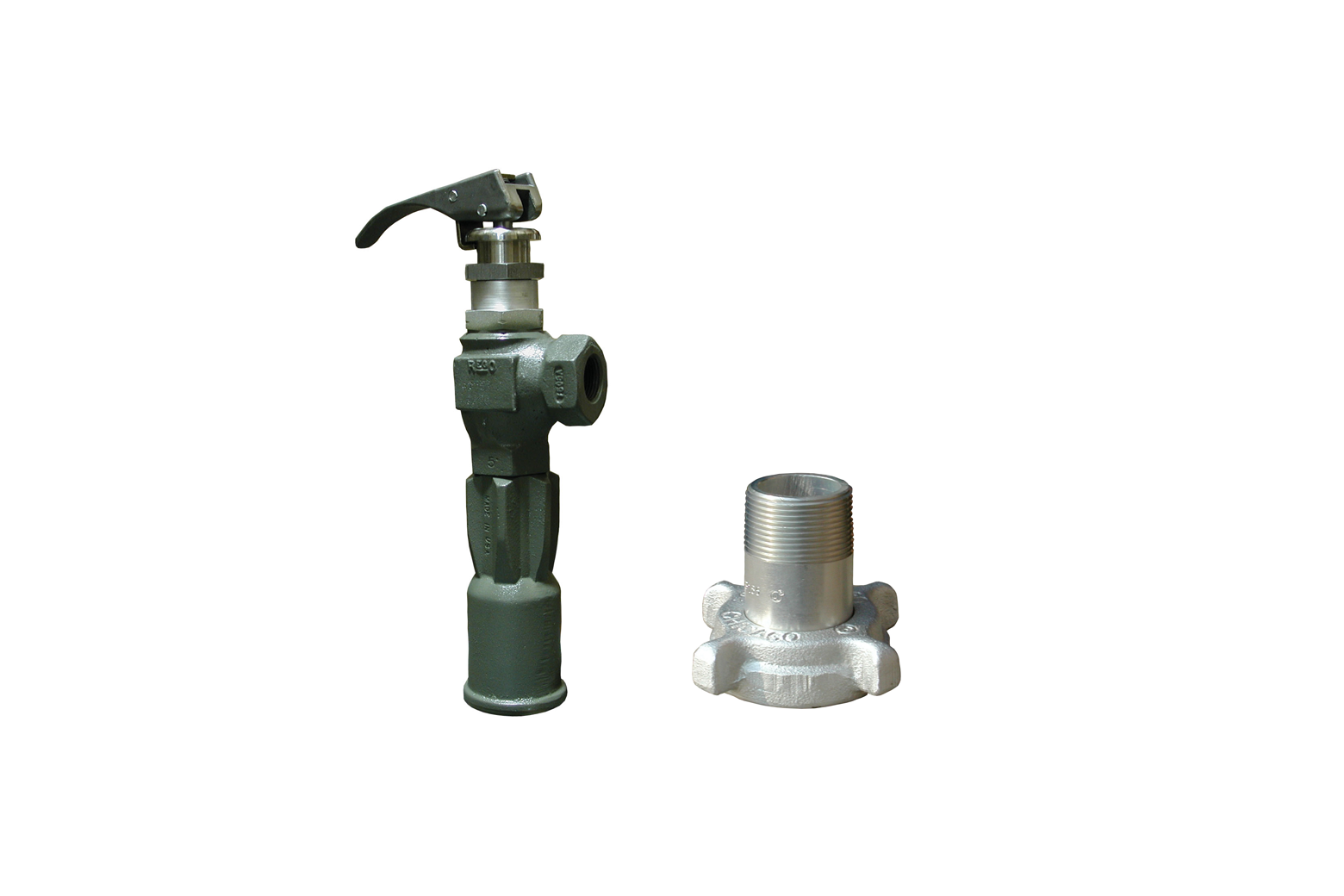

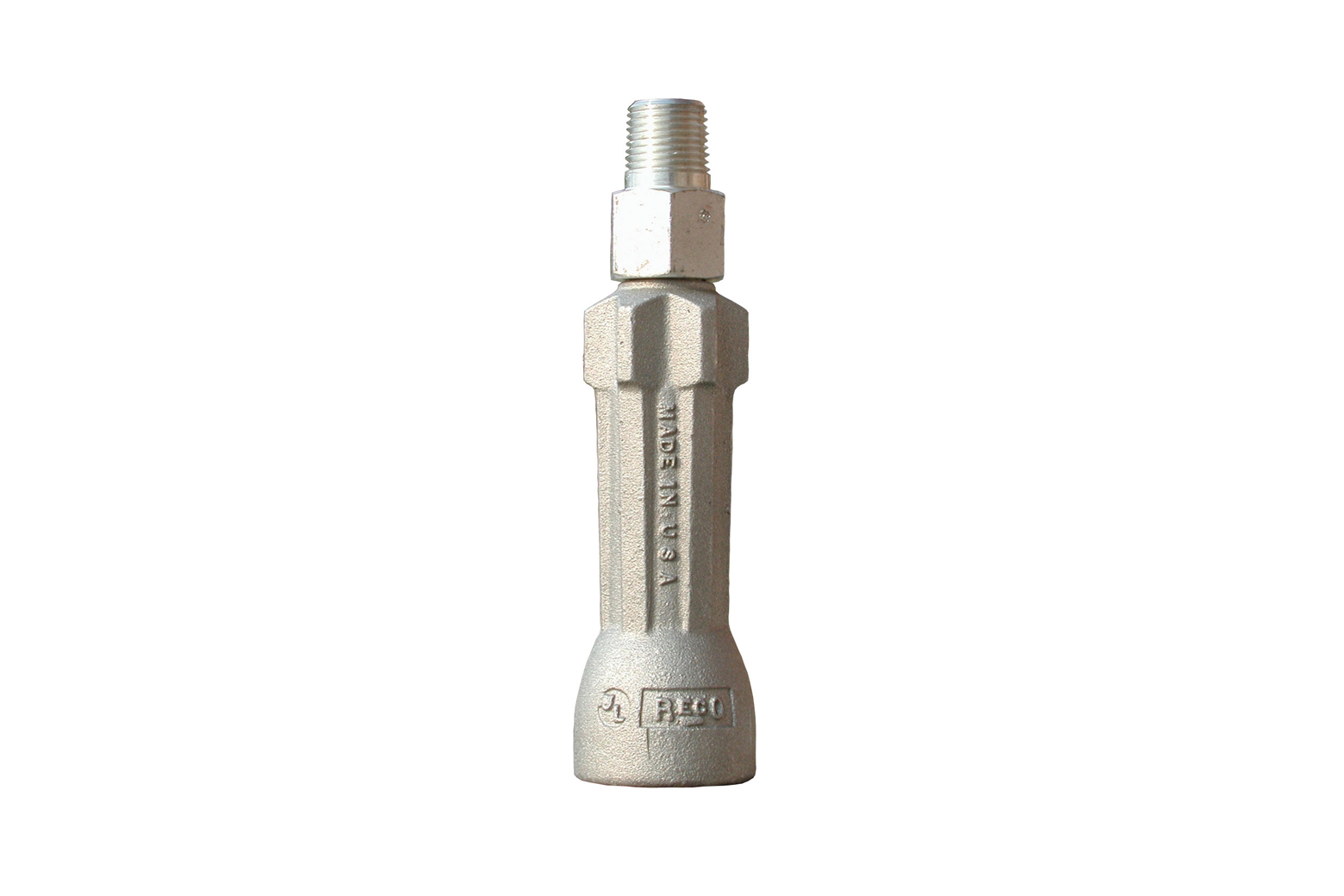

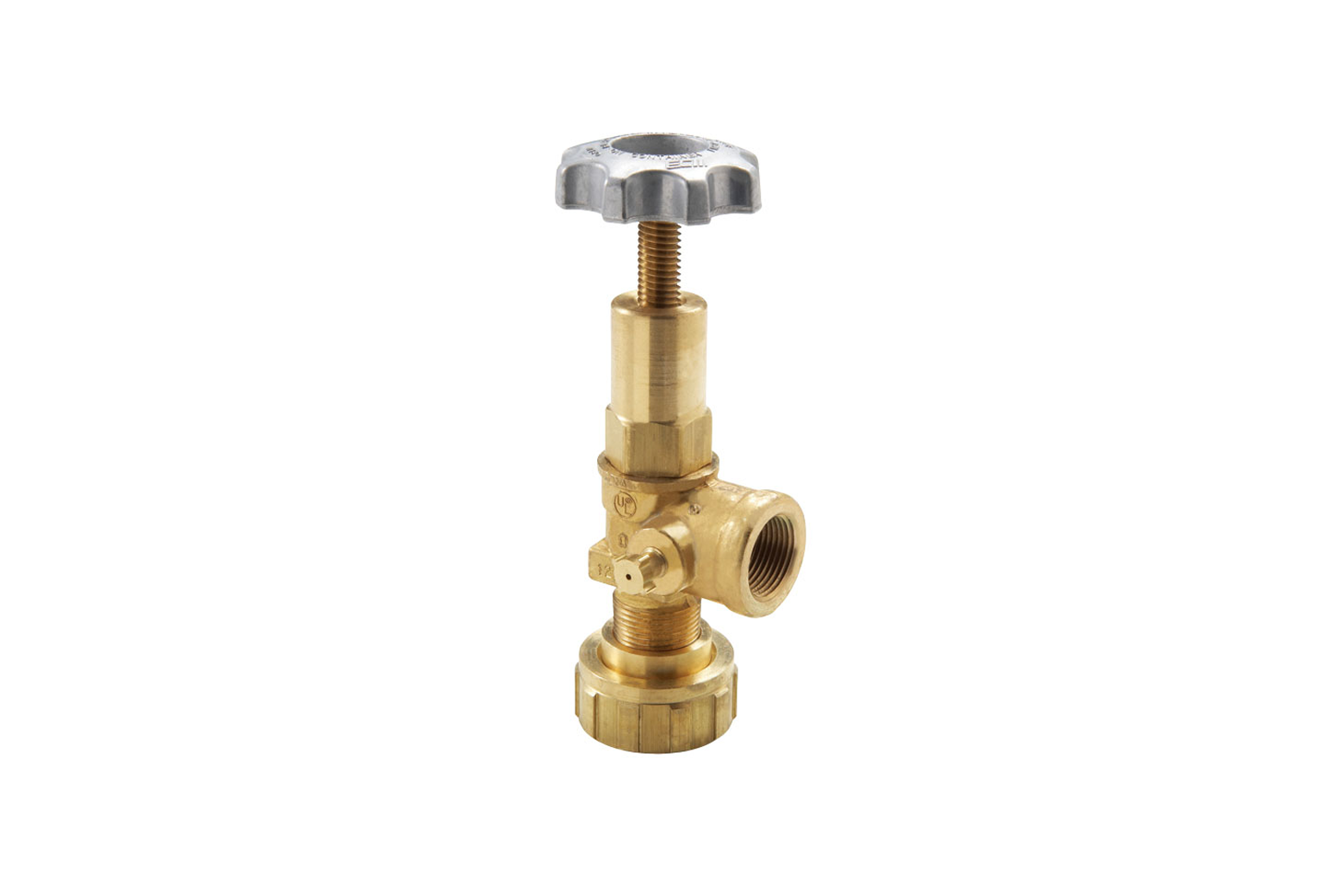

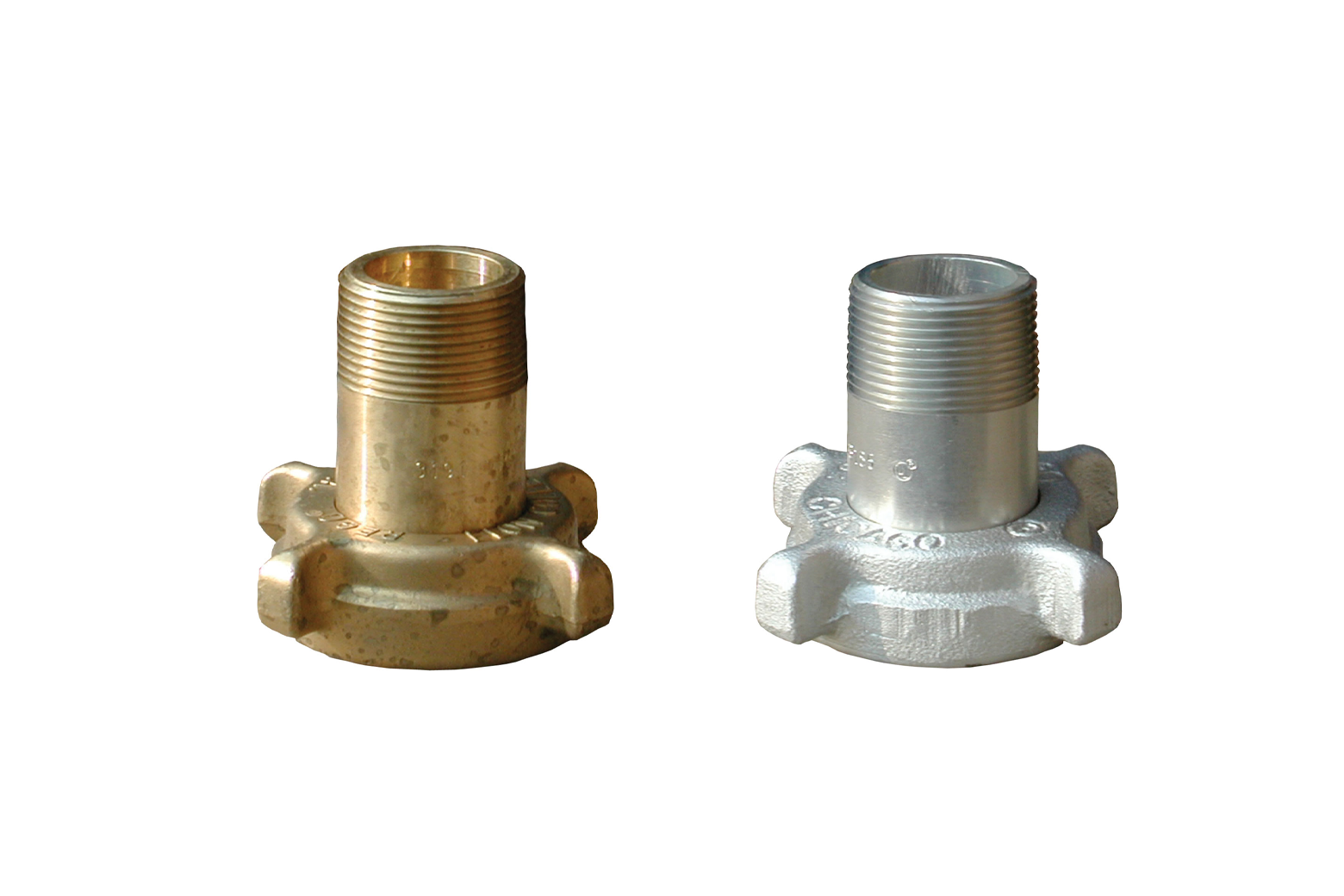

Hose end couplings come in many variations with extended type, short type and quick-close valves being the most commonly used ones

Left handed version are available

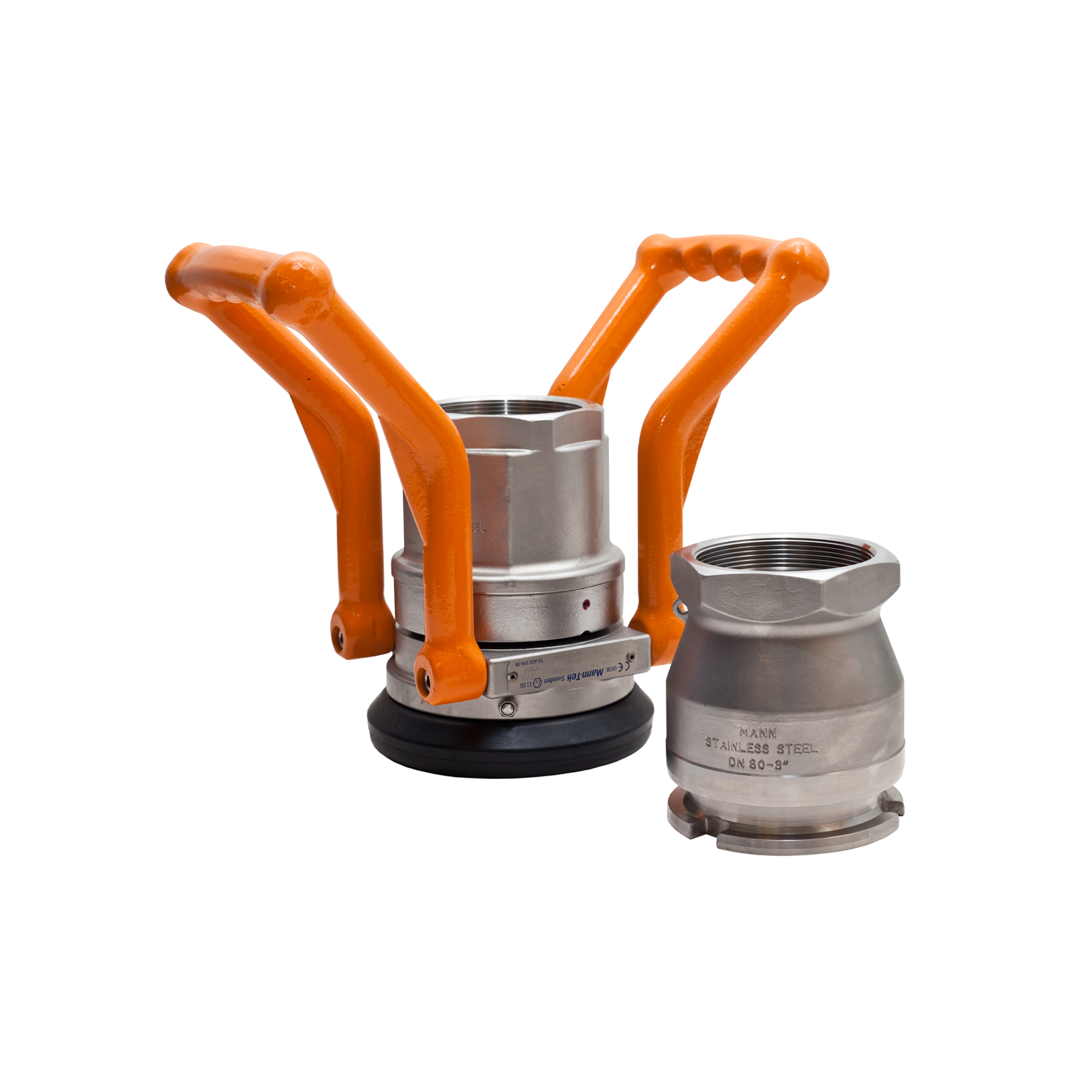

  • A dry coupling with orange handle

    Dry couplings

    Dry couplings provide a greater degree of control over hazardous vapours and liquids. This ensures risk-free handling for people and protects properties from contamination.
