Globe and angle valves for regulating or stopping LPG and NH3 flow

Globe and angle valves are designed to regulate or completely shut-off LPG and NH3 flow in service pipelines of different applications like cylinder filling plants, bobtails, transports and bulk storage containers.

Product description

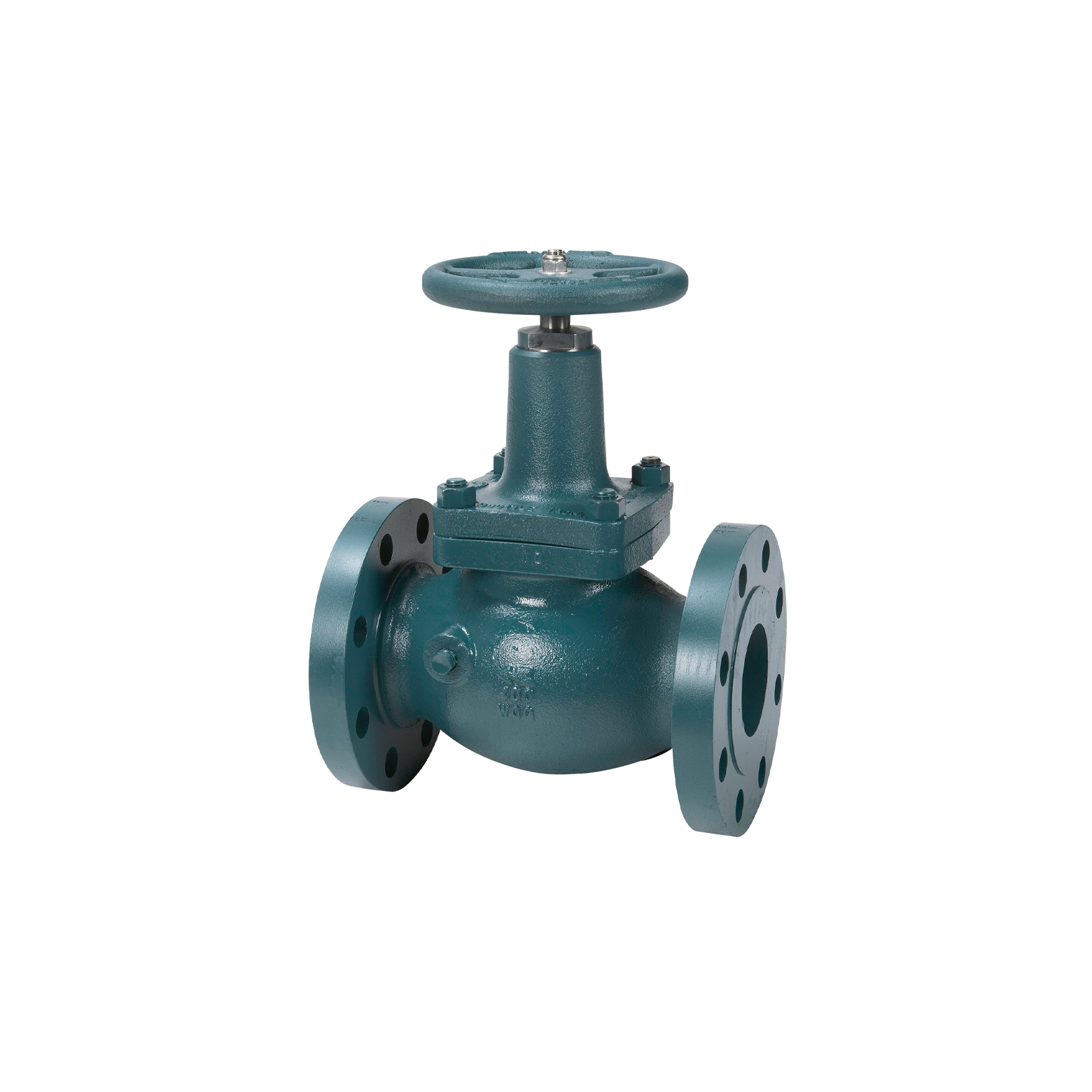

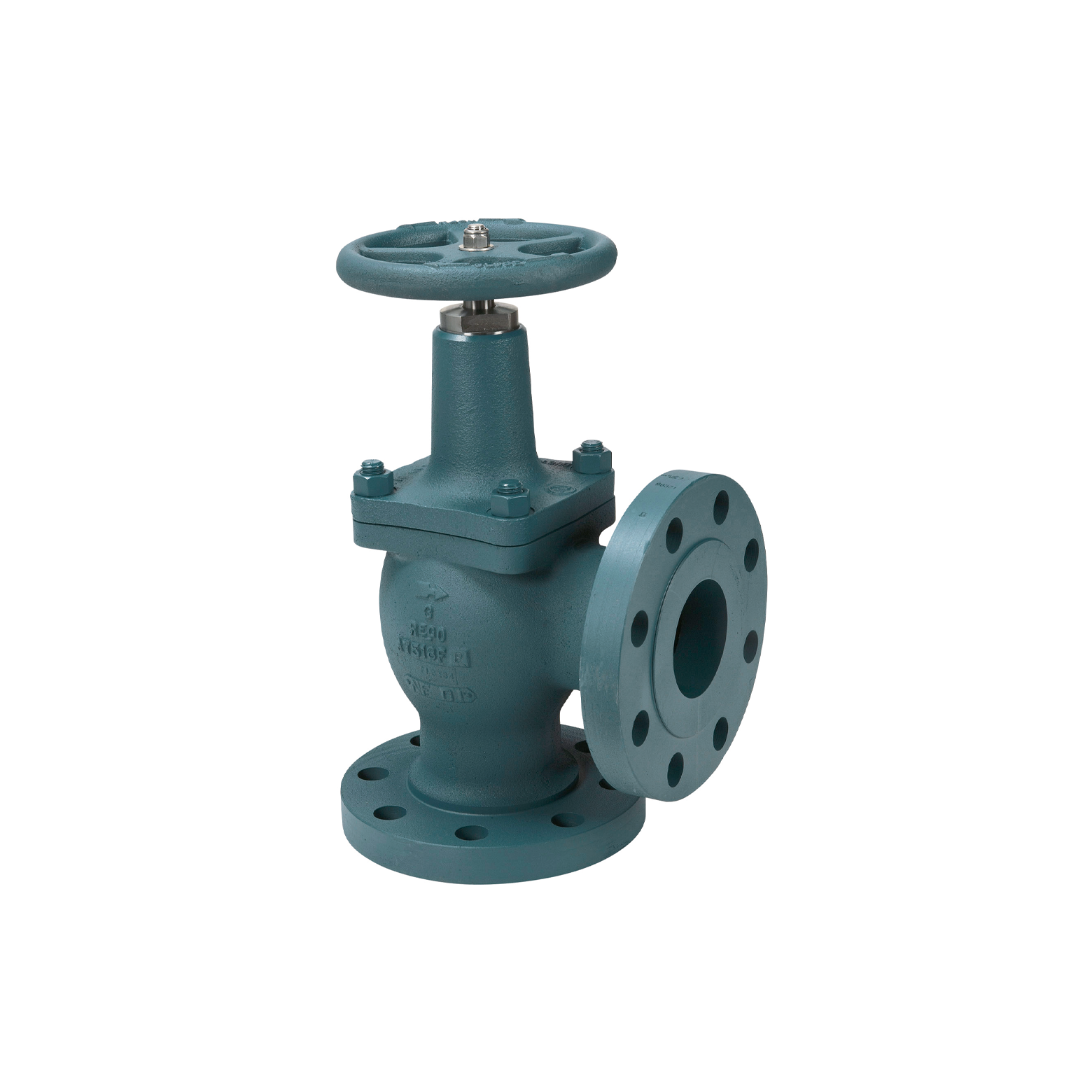

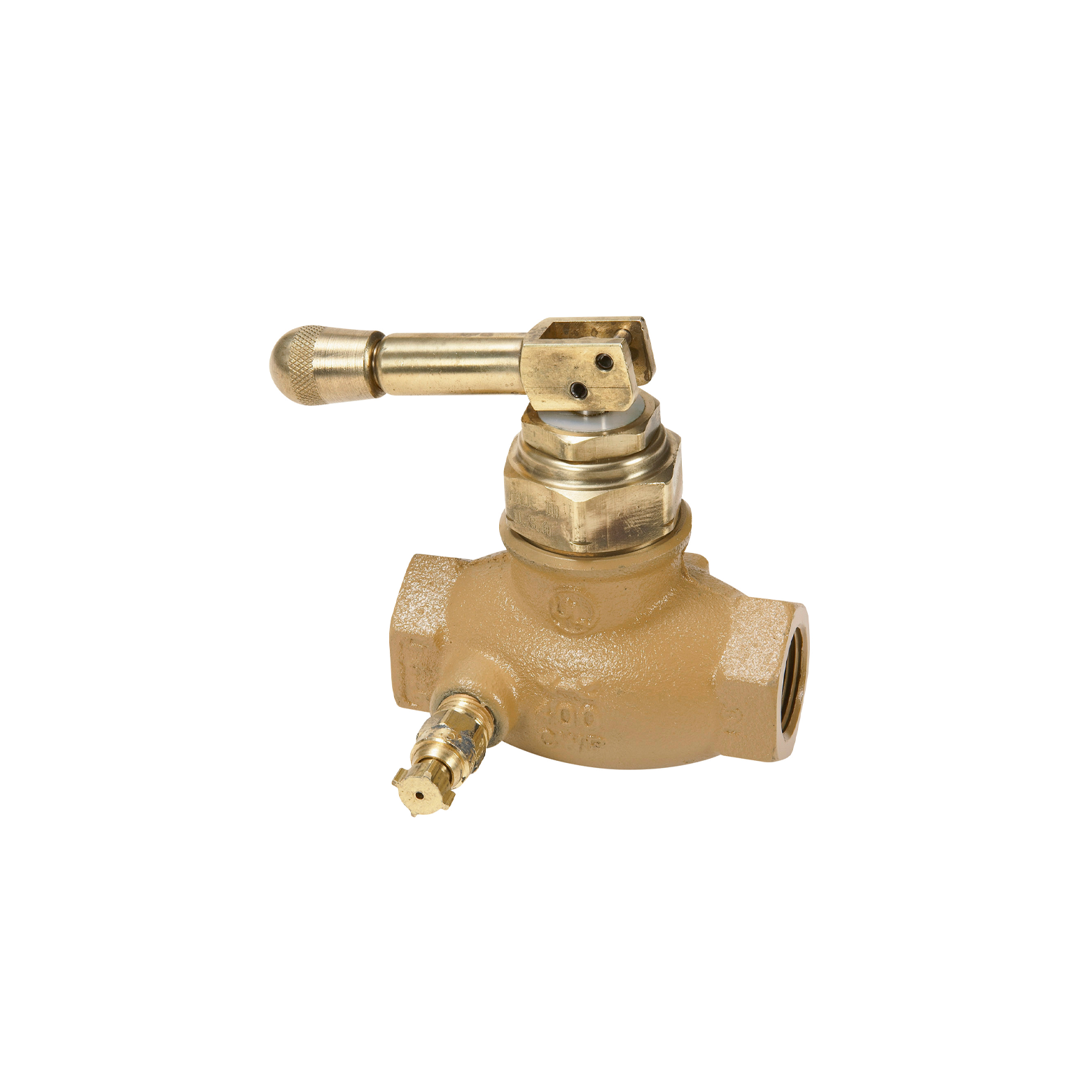

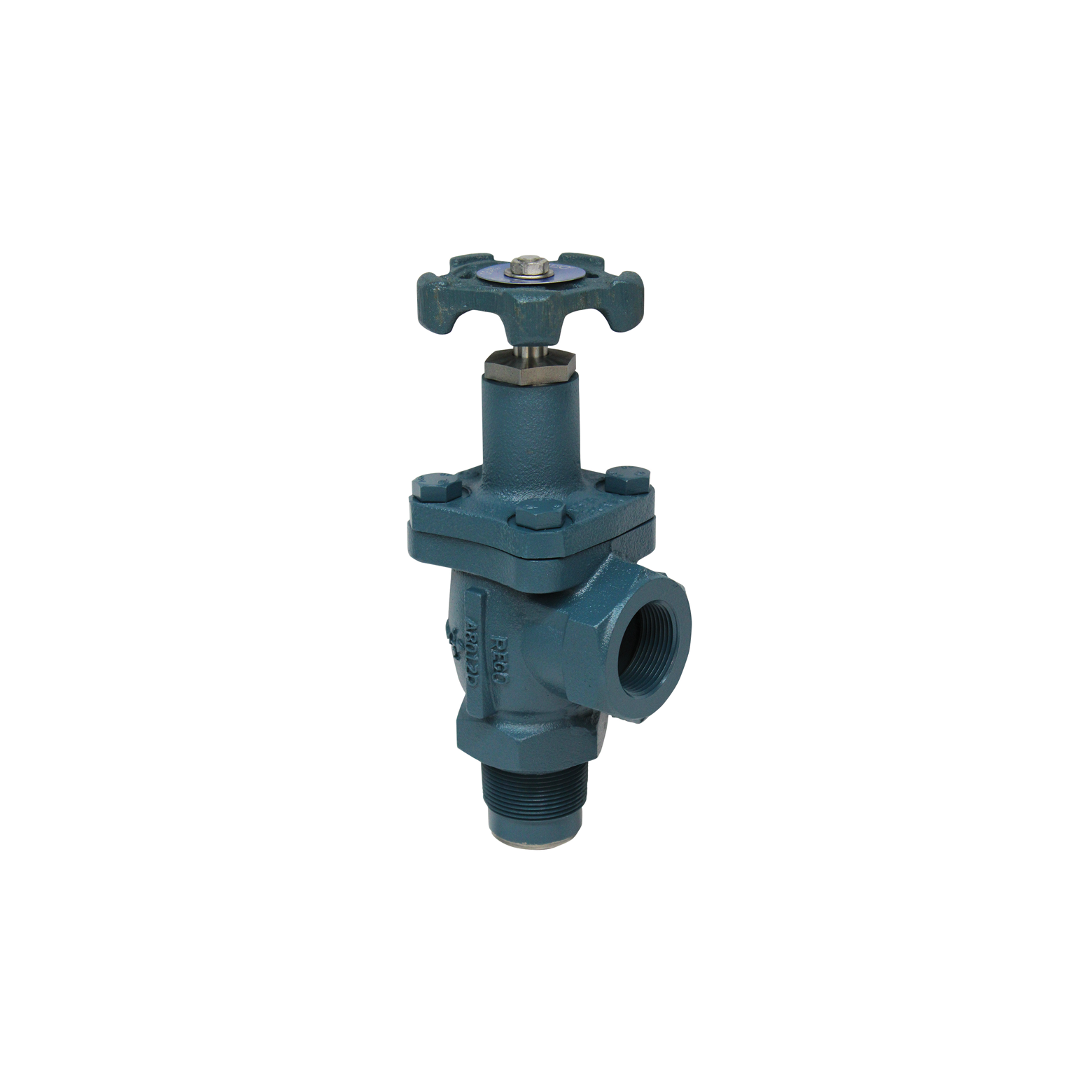

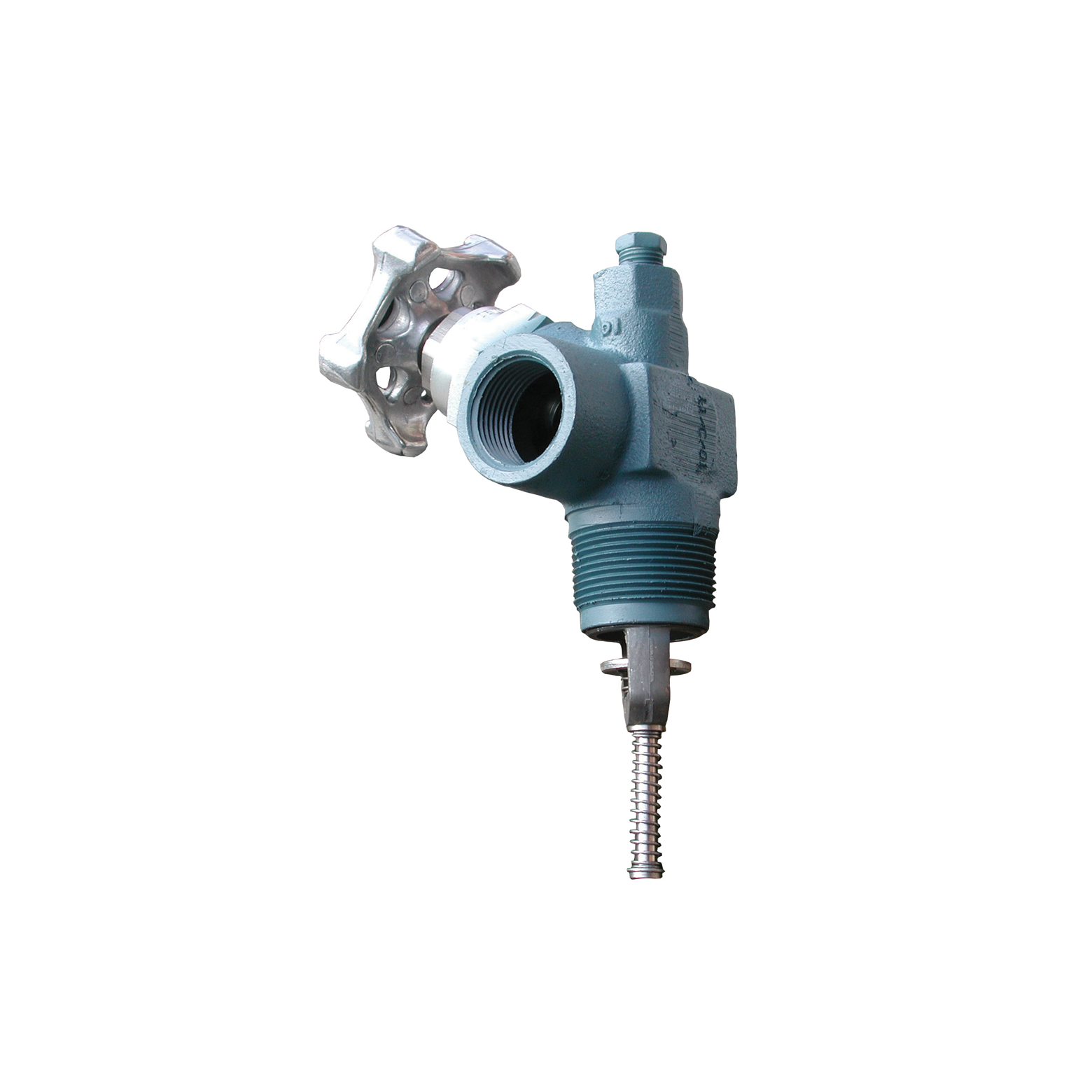

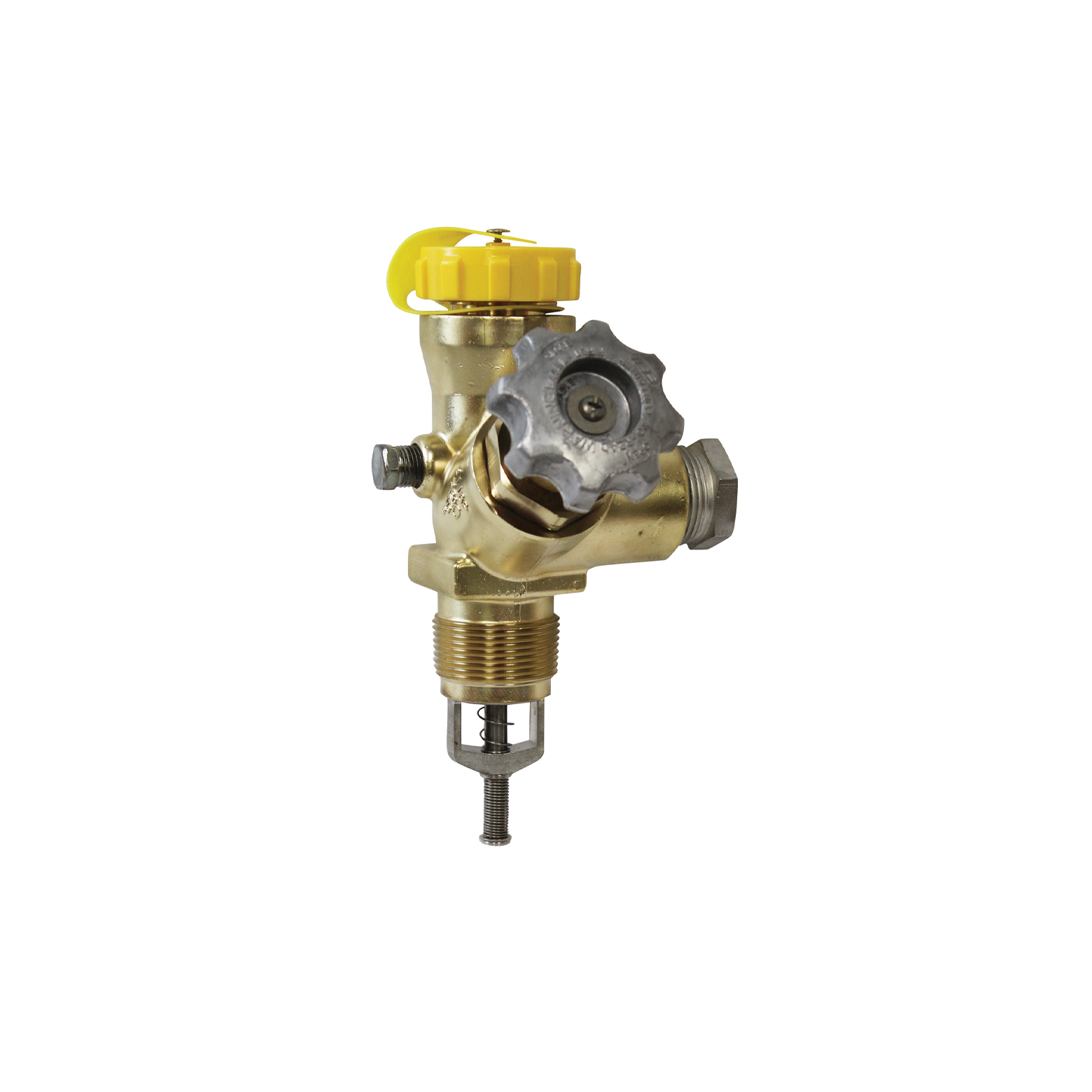

Globe valves come in the standard 'T' type, 'Y' and angle pattern. The designs feature differences in pressure drop and individual spatial advantages with the angle globe valve proving most ideal where pulsatile flow occurs. Some series provide automatic back-check with others having built-in excess flow valves and certain types being for multipurpose use.

icon 3 squares in front of eachother symbolising material

Material

Body: Ductile iron
Bonnet: Steel, ductile iron
Valves stem: Stainless steel
Wiper ring: Synthetic rubber
"V"-rings: Teflon
Handwheel: Ductile iron
Spring: Stainless steel

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NH3(Ammonia, Anhydrous Ammonia)
Connections: Thread, flange
Types: NPT, ANSI
Sizes and range: 1/4" to 3" (NPT) and 1½" to 3" (ANSI)
Operating Pressure range: Max. 27.5 bar (400 psi)
Temperature range: -40˚C to +71˚C (-40˚F to +160˚F)
Series: 7554, 7053T, 7901T, A7500, TA7500, HA7513AP, HA7514AP, HA7517AP, HA7518AP, 7704, 7705, 7706, 7550, 7551, TA7894P, A8012, A8016DBC, A8016DP, A8017D, A8020D, A8018DP, 8118P, 8117
Standards: UL listed

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • "V"-ring spring-loaded pressure stem seal - leak-proof with no replacement or retightening
  • Greater flow with reduced head loss
  • Long seat life due to minimised seat disc grinding on the body seat.
  • Hydrostatic relief or vent valve can easily be attached to the 1/4" F-NPT plug
  • No hard-to-turn-handles thanks to the "V"-ring
  • Heavy-duty rolled ACME stem threads provide quick action and long service life

Did you know?

Globe and Angle valves have built-in slots for vent valves and safety relief valves without any modification on the pipeline before or after

Alternative products

  • A ball valve with yellow handle

    Ball valves

    Operated by a simple 90˚ turn of a lever, ball valves can either fully permit or restrict flow. They are simple and fast acting valves for on/off operations.

    See our Ball valves
