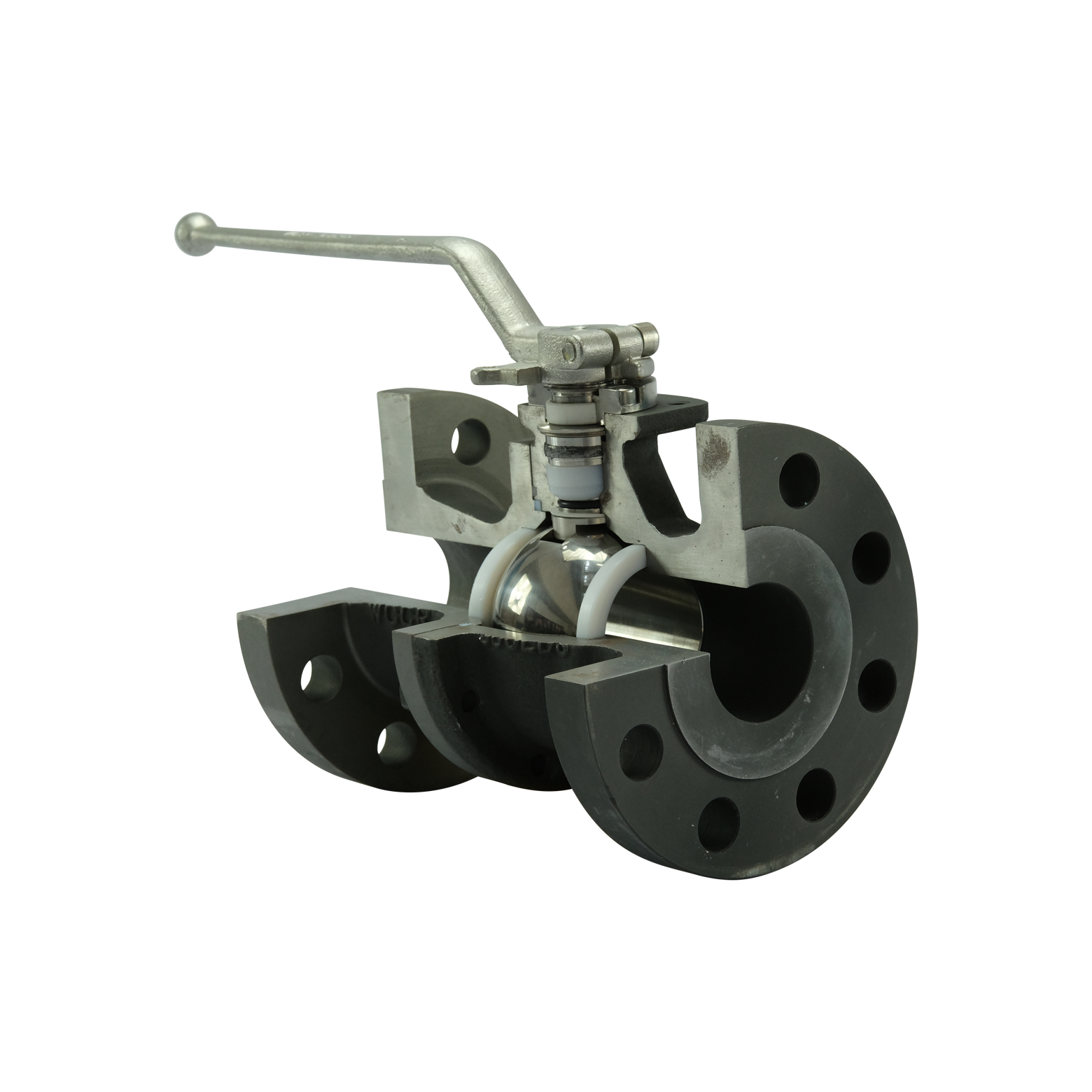

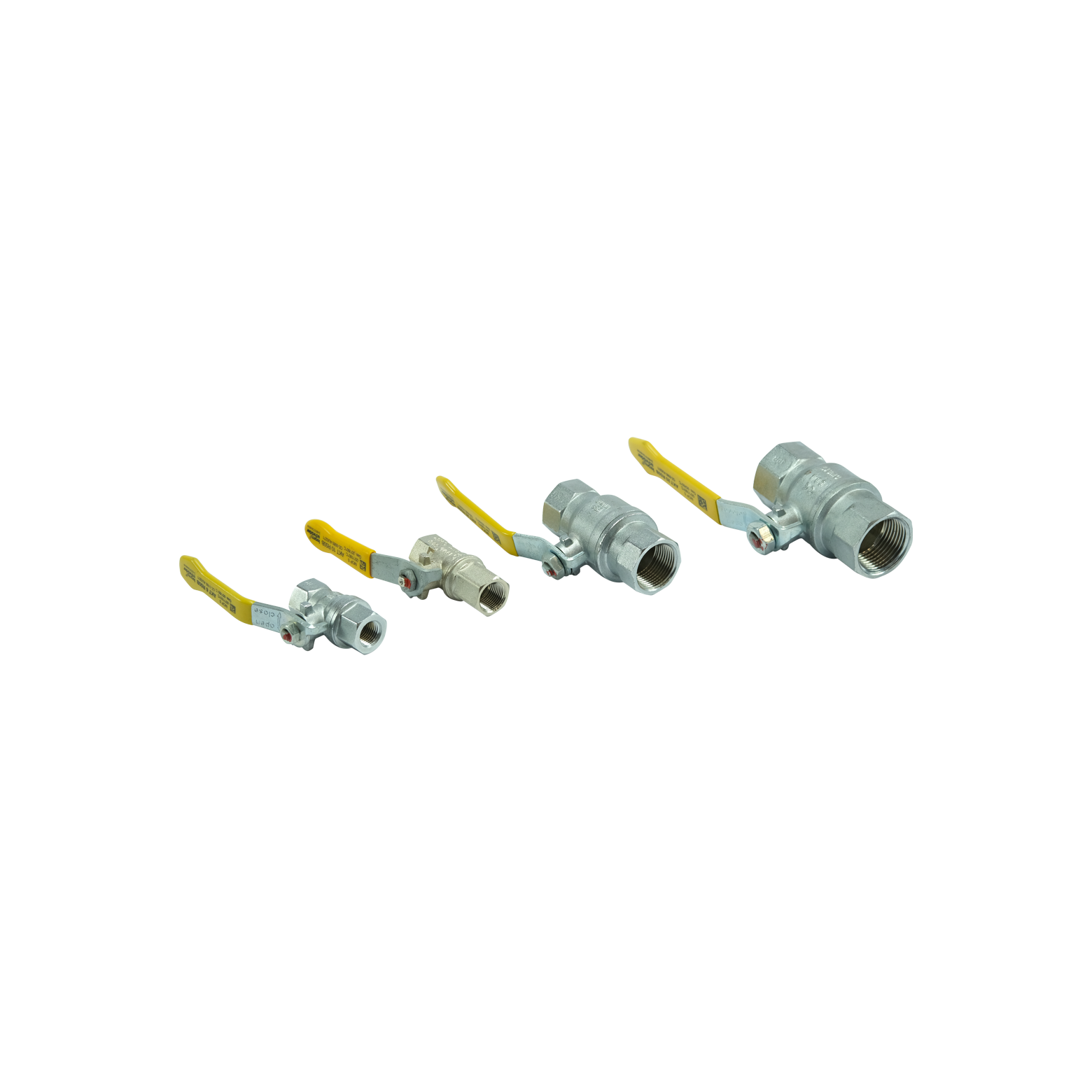

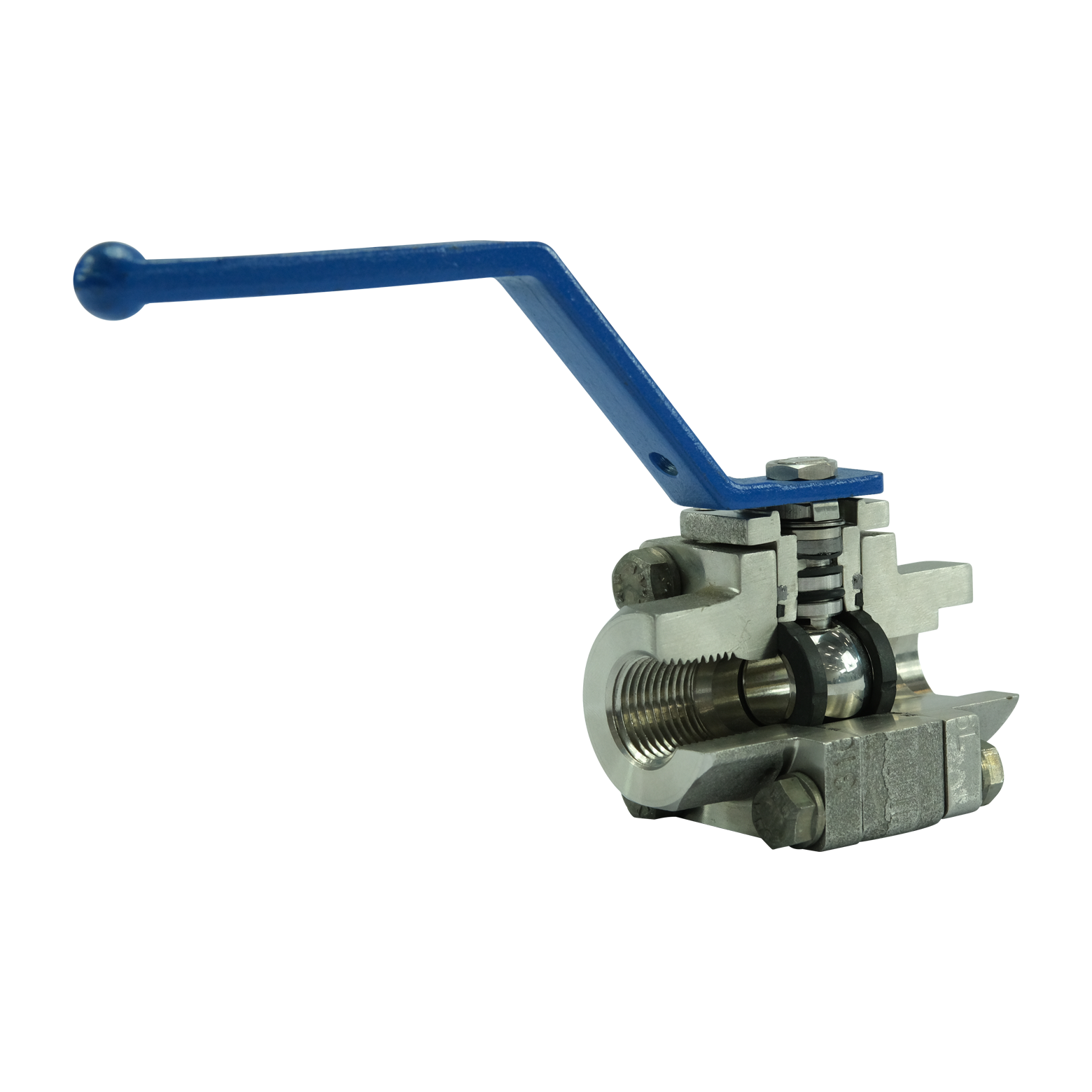

Product description

Ball valves are also known as quarter-turn valves, making them fast acting valves as they fully permit or restrict flow by a simple 90˚ turn of the lever. They are commonly actuated manually, however actuation can also be done pneumatically or electrically.

icon 3 squares in front of eachother symbolising material

Material

Body: Carbon steel, stainless steel
Ball: Stainless steel, duplex stainless steel
Stem: Stainless steel, duplex stainless steel
Seat: PTFE, Carbon Graphite (CG), DEVLON V
Handle: Carbon steel
Spring: Stainless steel

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous Ammonia) and many others
Connections: Thread, flange, weld
Type: ANSI, DIN, NPT, BSP, socket, butt
Temperature range: -196˚C to +700˚C (-320˚F to +1292˚F)
Sizes and range: 1/4" to 24", DN15 to DN600
Series: Z TTTGV, Z SSSGV, ZGTTTGV, ZG SSSGV, ZRB TTGVV, ZRB SSGVV, ZGRB SSGVV, ZGRB TTGVV, ZGS SSSGV, K SGSGV, KRB SGSGV, GKS SGSGV, GKS NGGVV, ZG TTTG and Z TTTG
Standards: UL listed, CE-PED, IEC 61508, API Monogram Standard API 6D. certi­ficate number: 6D-0363, EAC, EN 161/EN 23553, ATEX, Lloyd’s Type Approval

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Fast acting and reliable
  • No lubrication
  • Minimal chance of leakage
  • Fire proof
  • Bi-directional flow
  • Full or reduced bore
  • Double block or bleed
  • low emission design
  • Split body
  • In-line packing maintenance
  • Spring-loaded seat system
  • Self-relief seats
  • Floating, guided or trunnion ball construction

Did you know?

Ball valves are very product versatile and additionally function with: CNG, LNG, NG, cryogenics, industrial gasses, Oxygen, Nitrogen, CO2, DME, diesel, gasoline, Hydrogen, biogas, bioLPG and Kerosene amongst several others

Ball valves are available in 2, 3 or 4-way types depending on requirements

There are multiple configuration options available for the valves

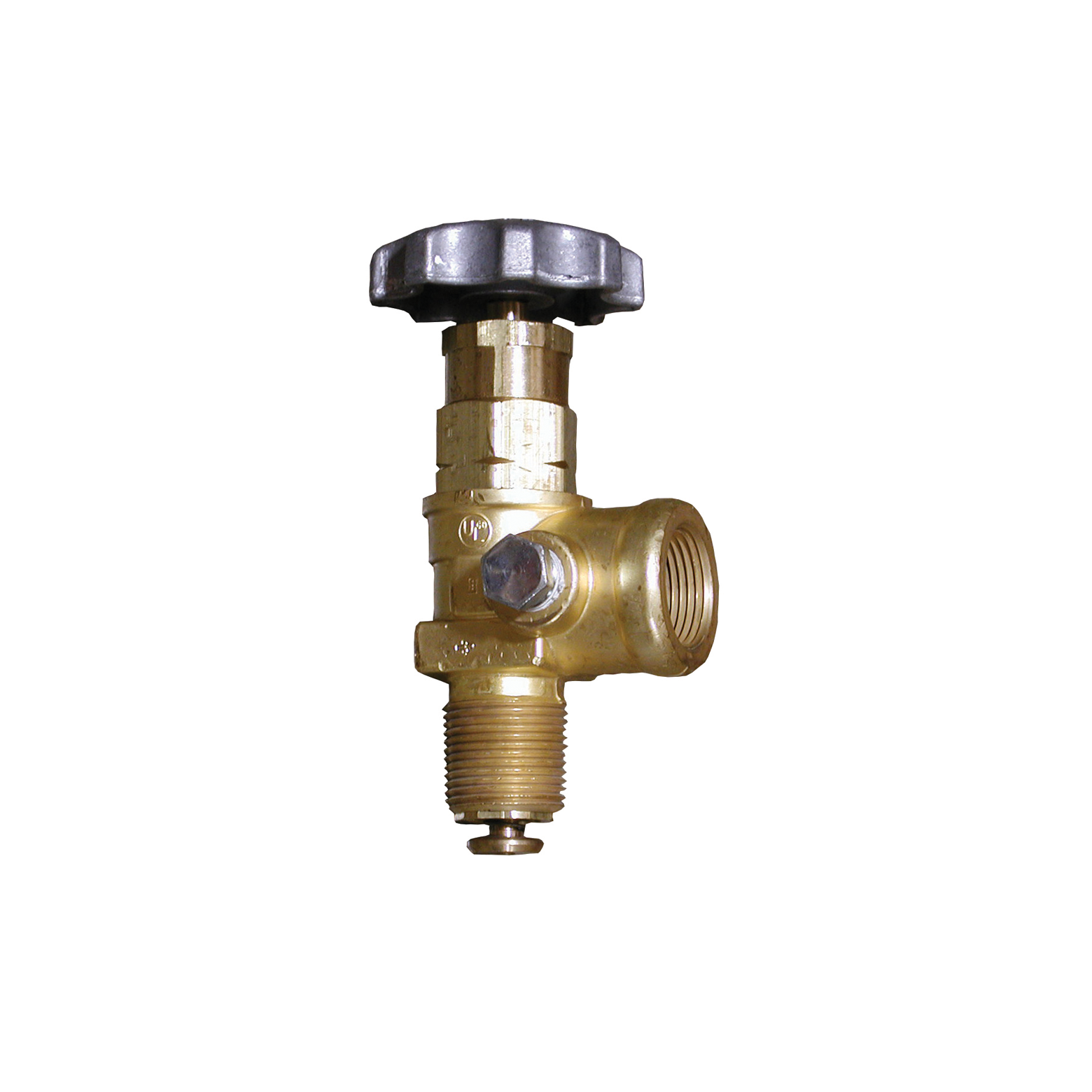

  • A gold globe and angle valve
