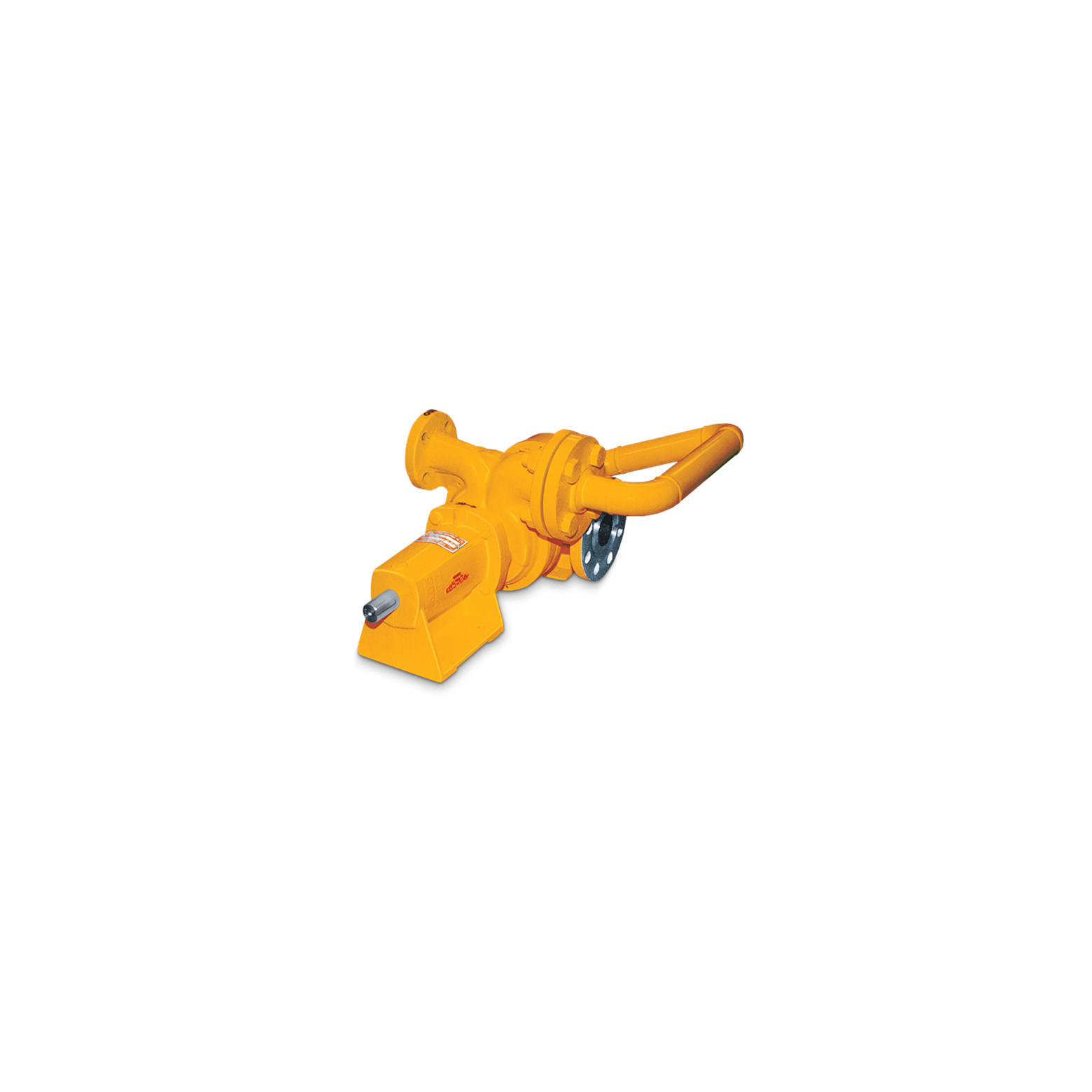

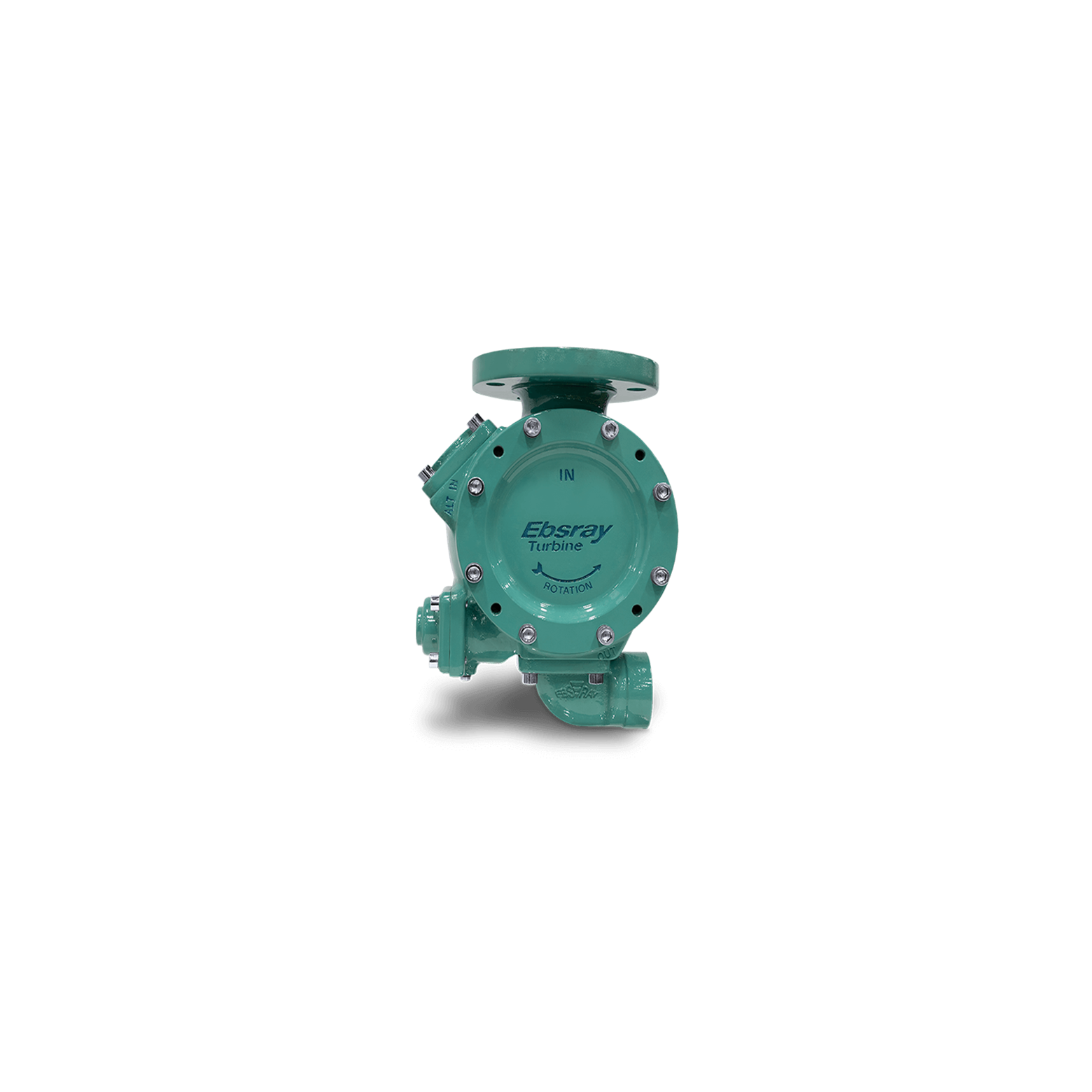

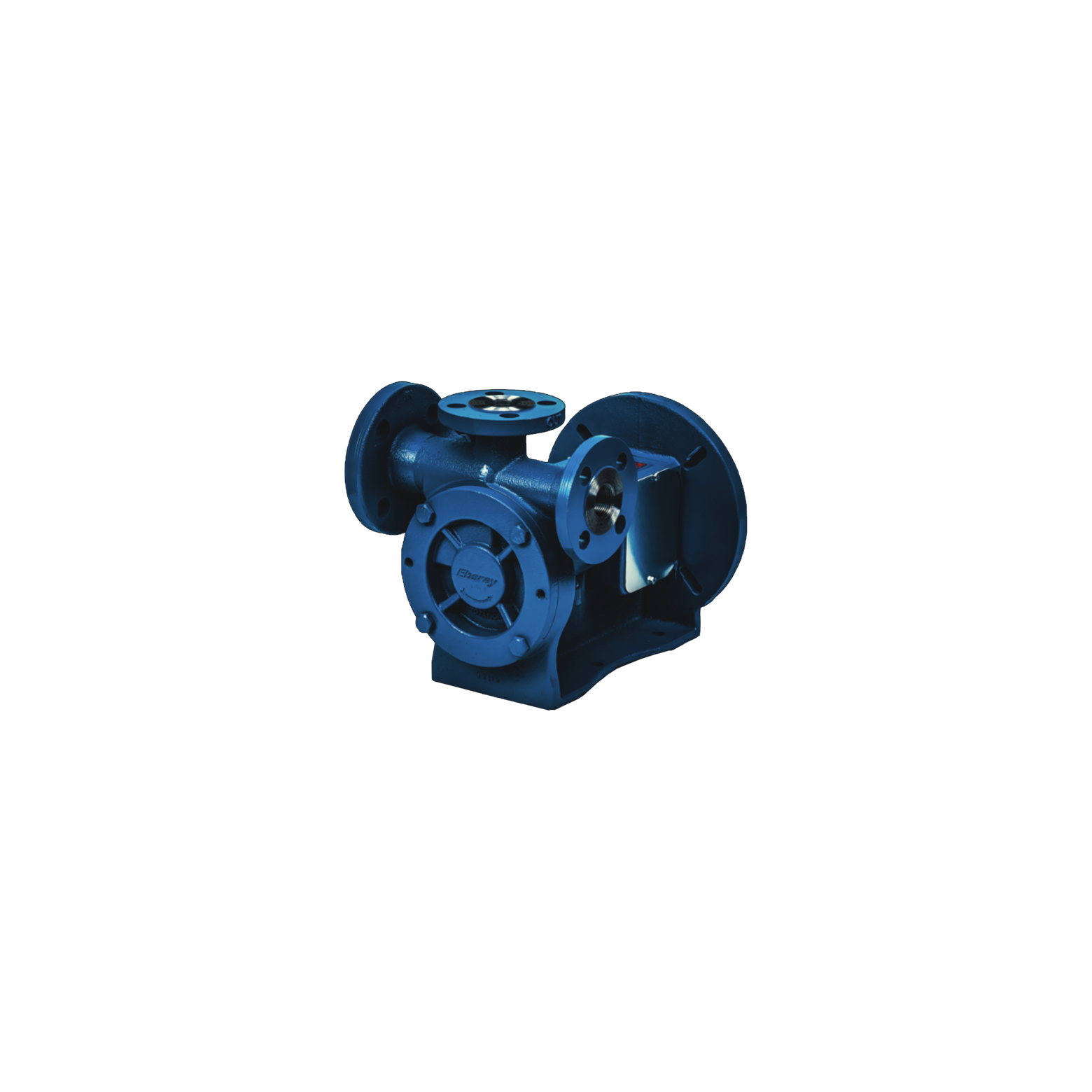

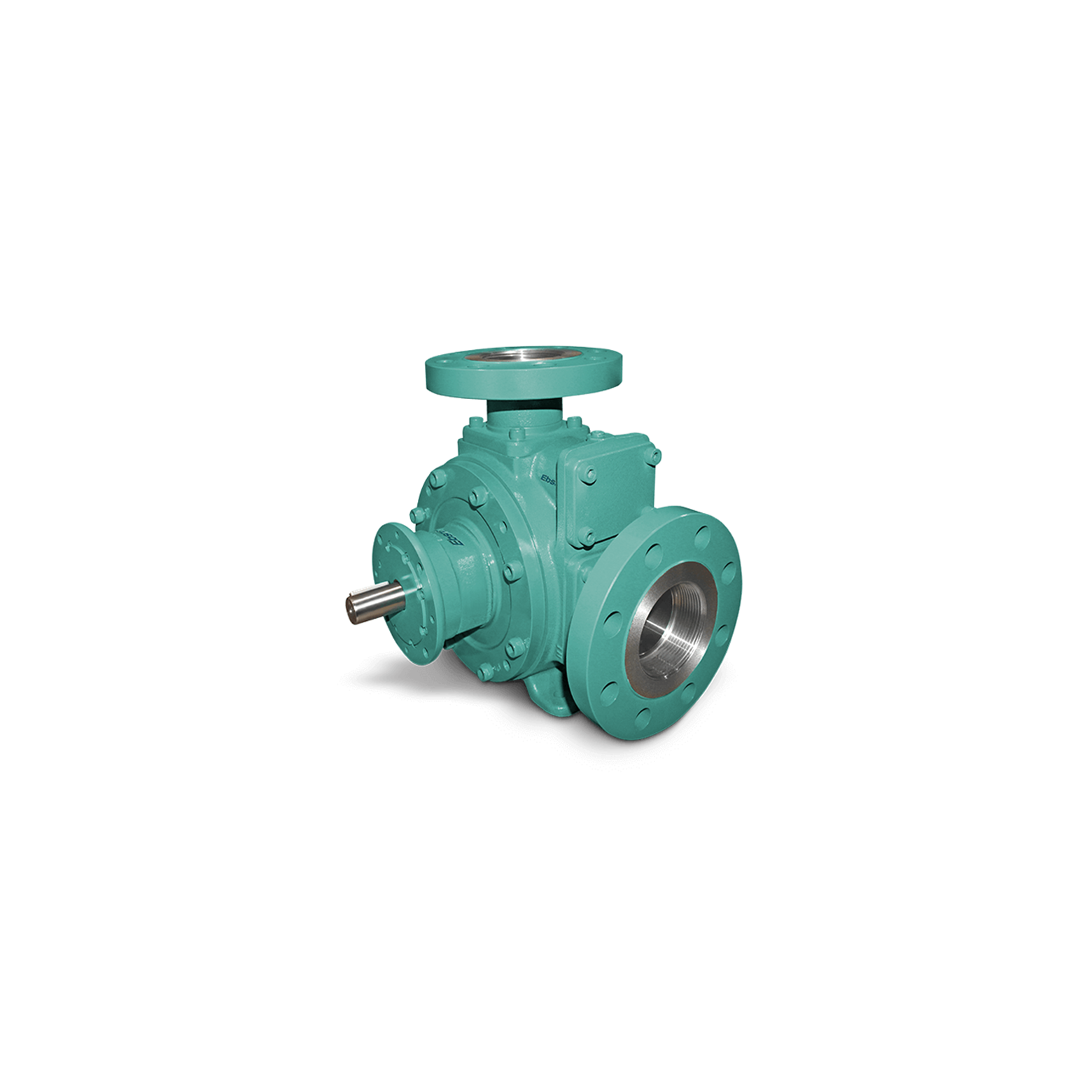

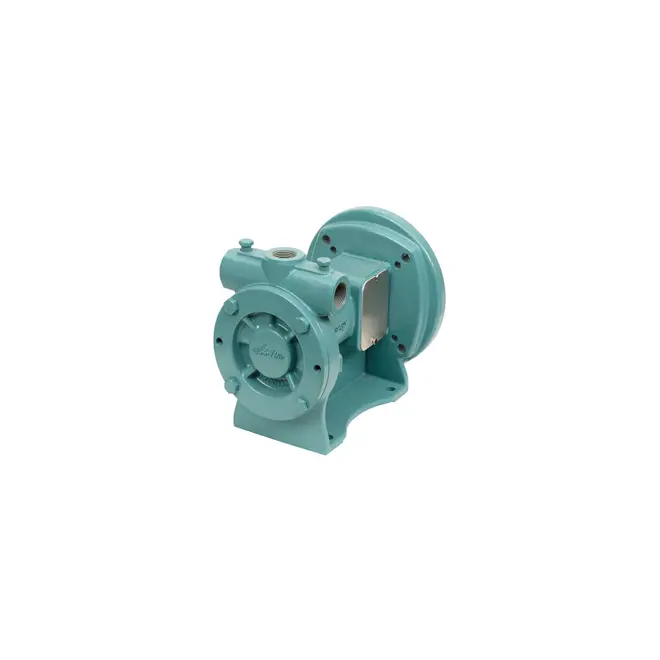

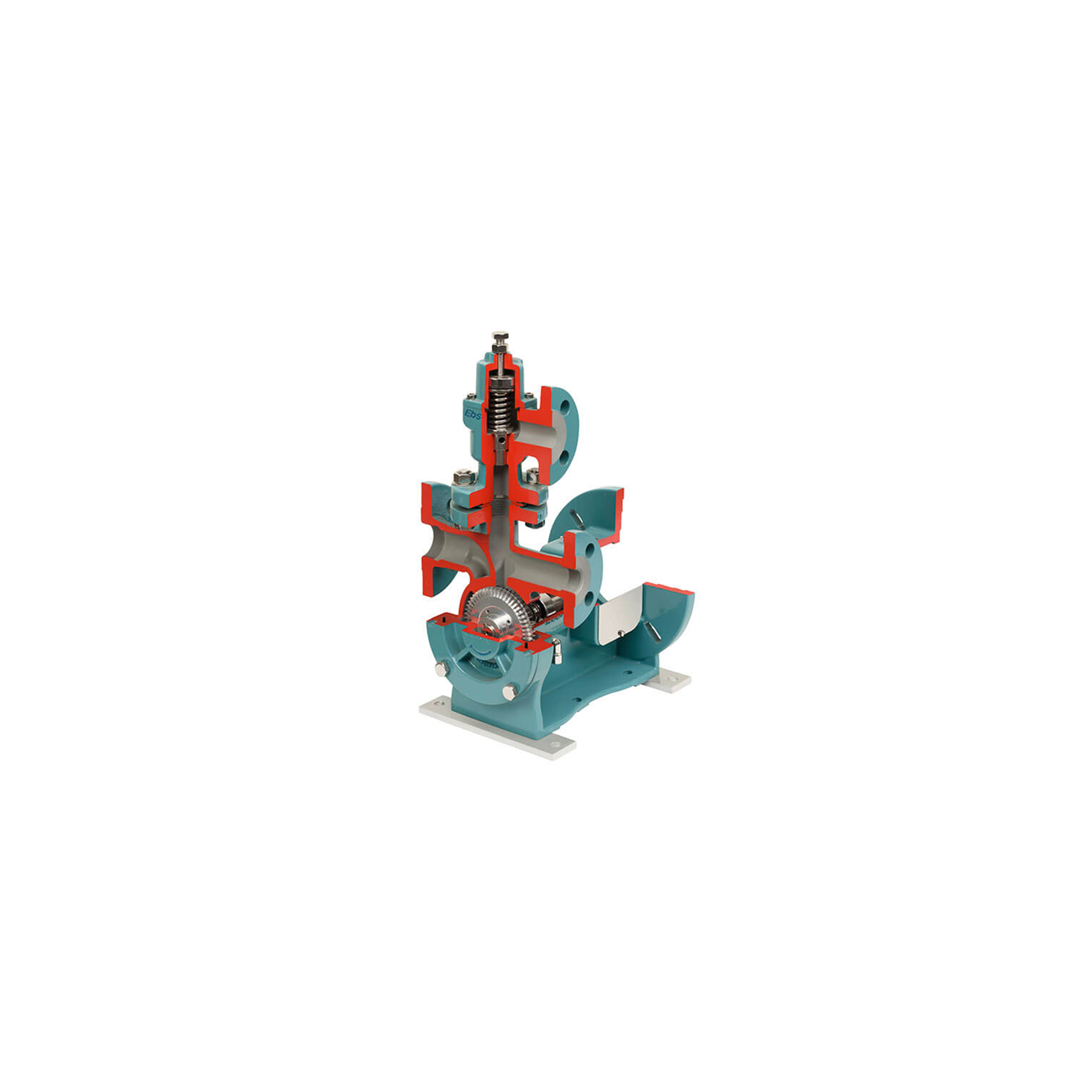

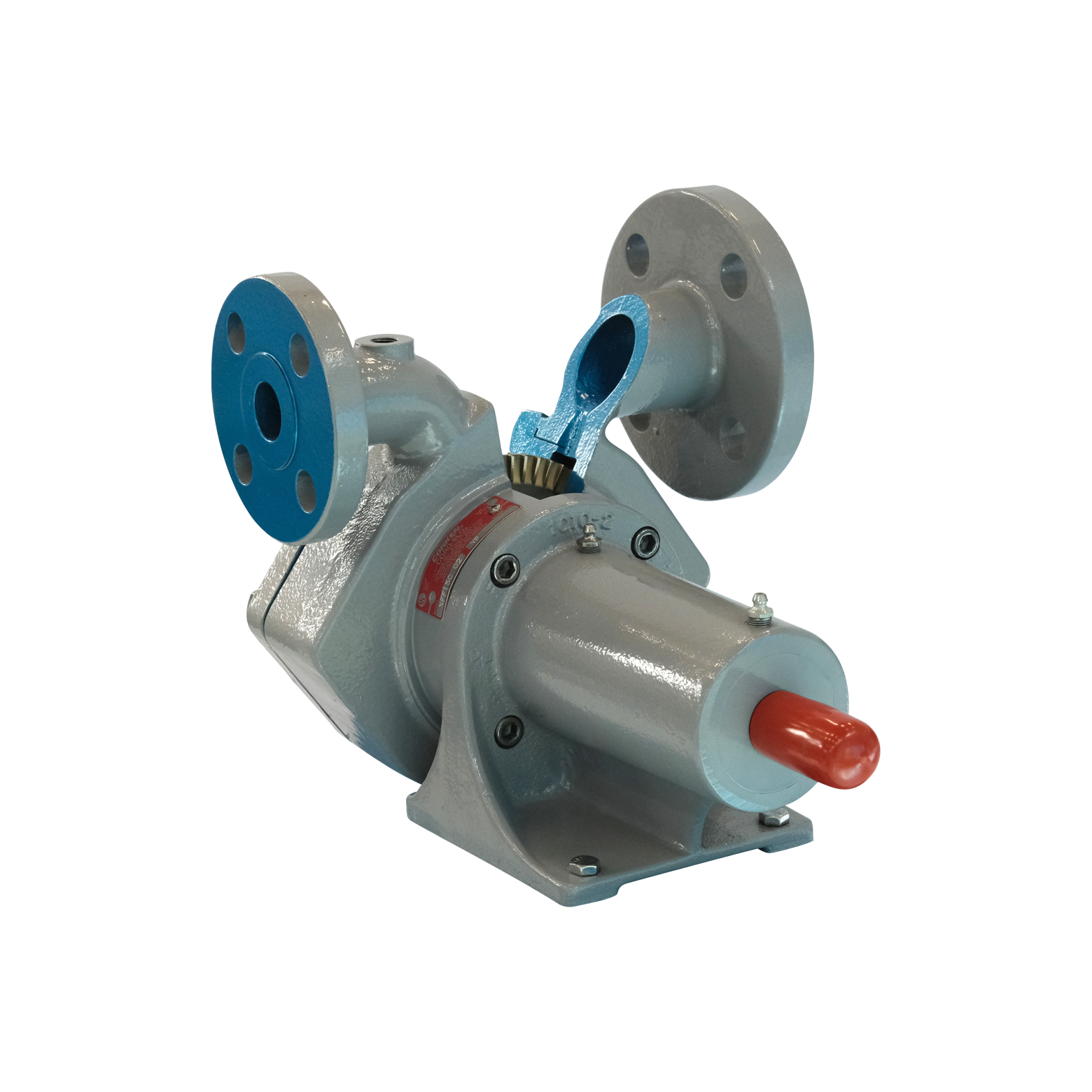

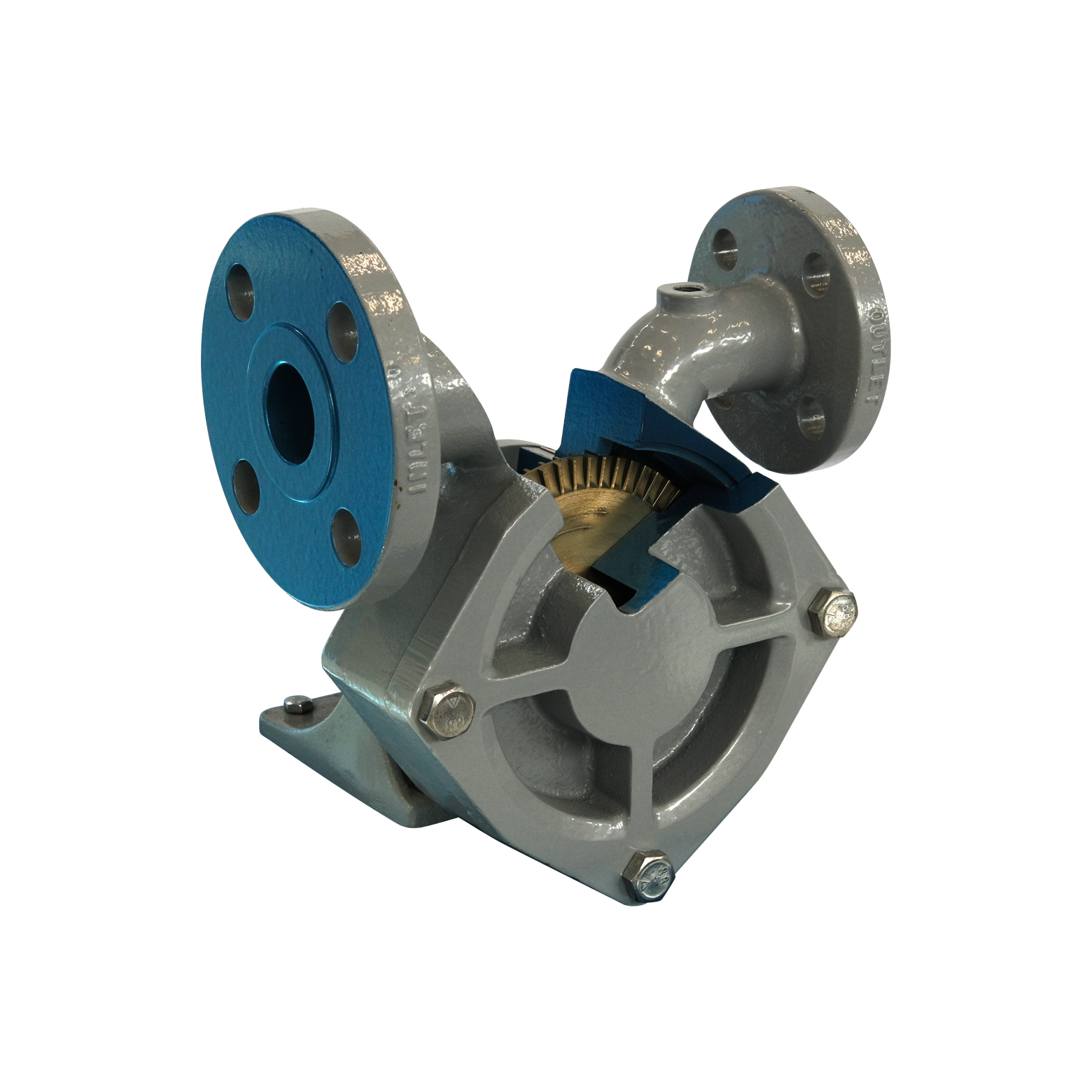

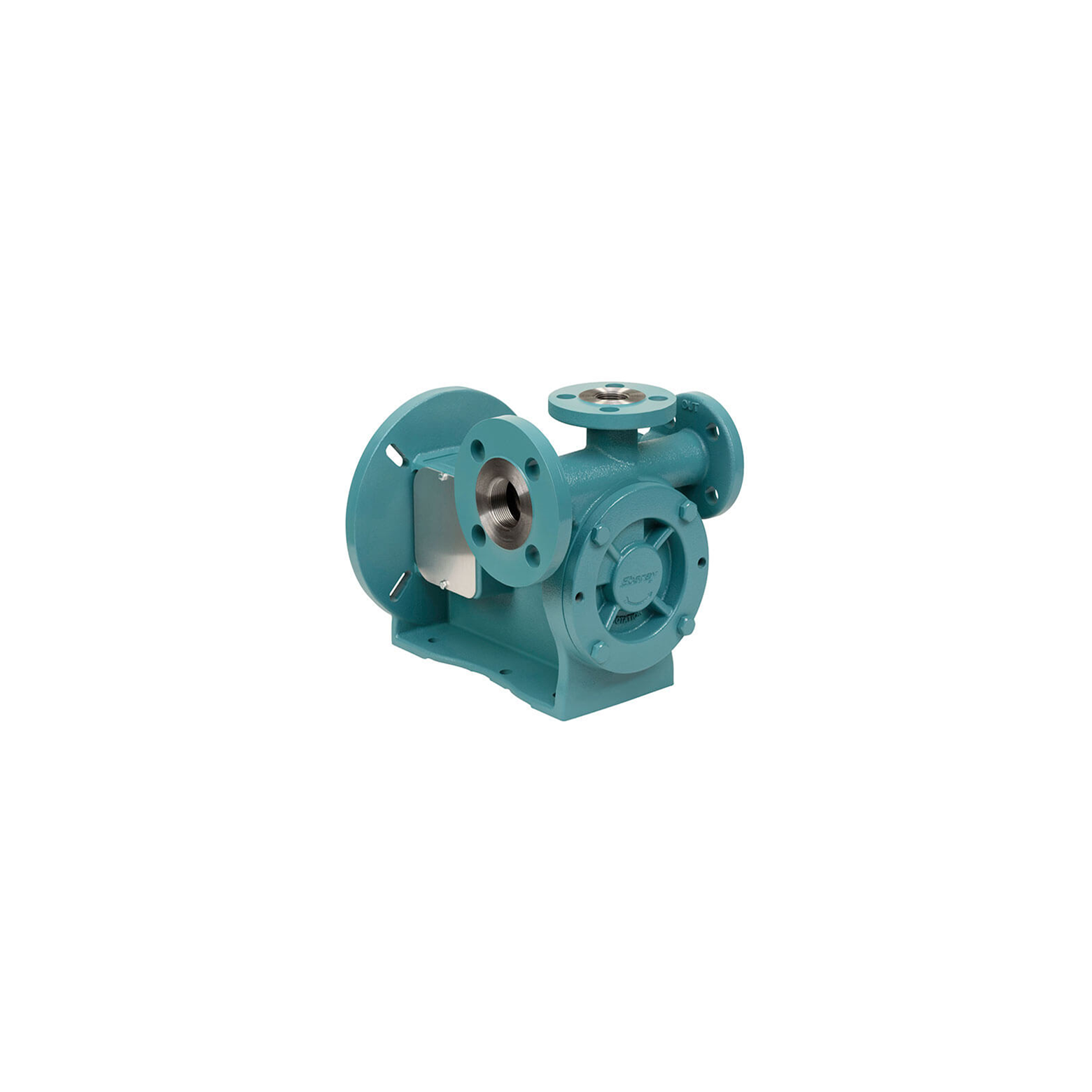

Turbine pumps for low flow/high head LPG applications

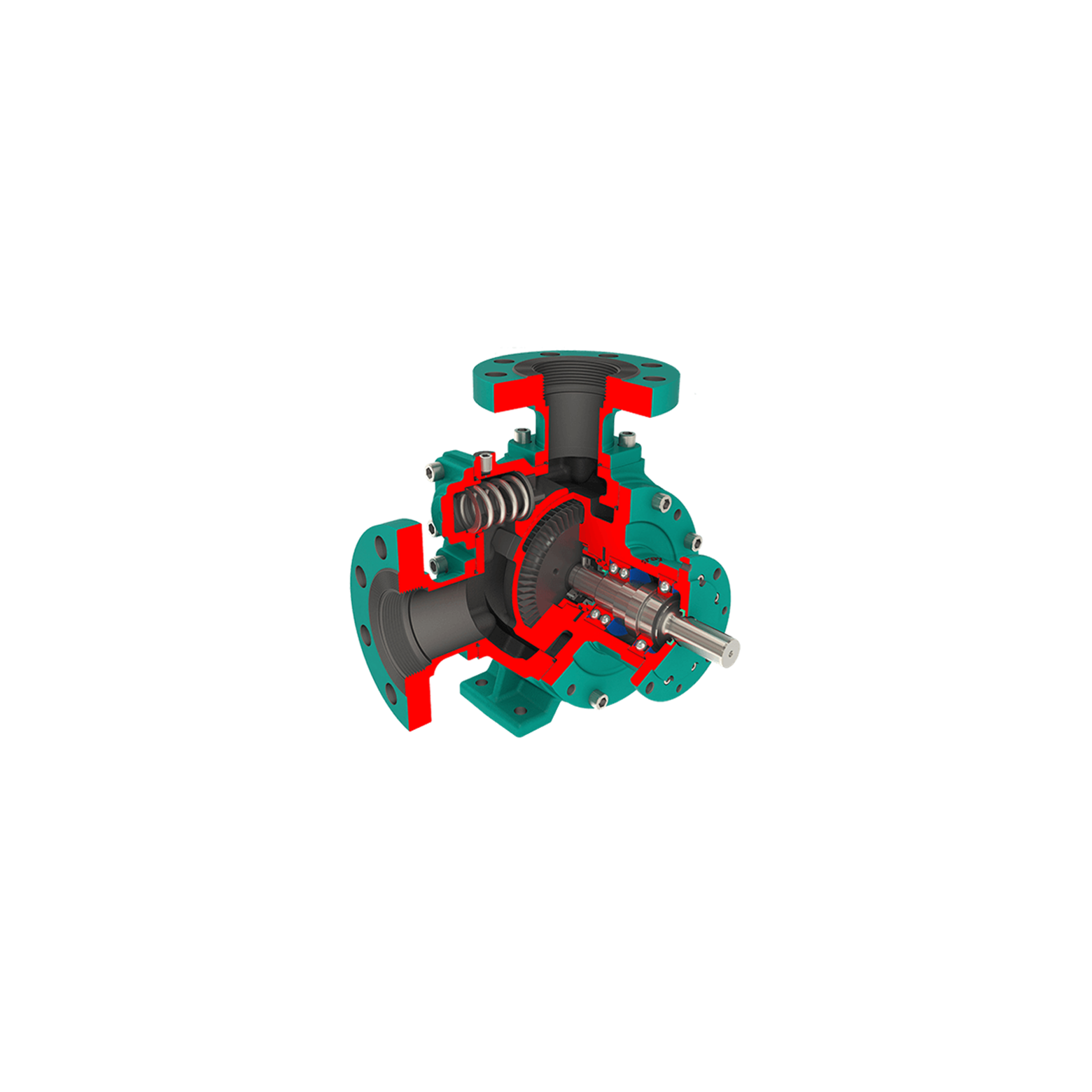

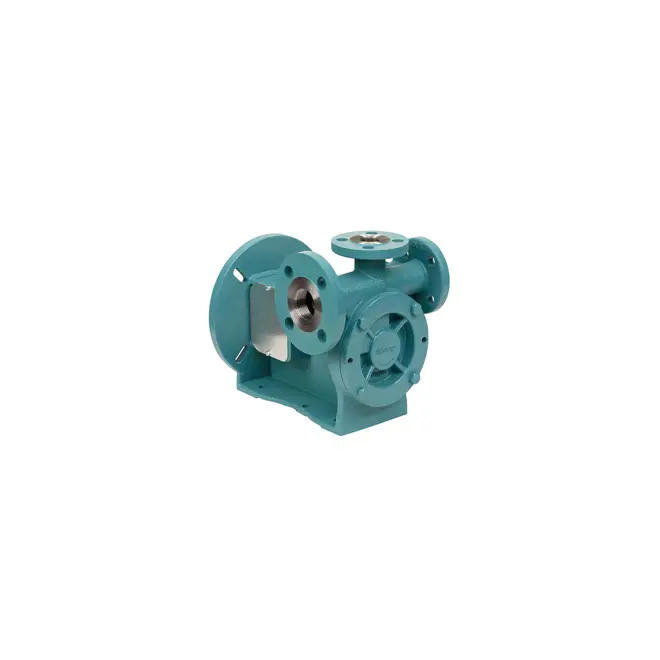

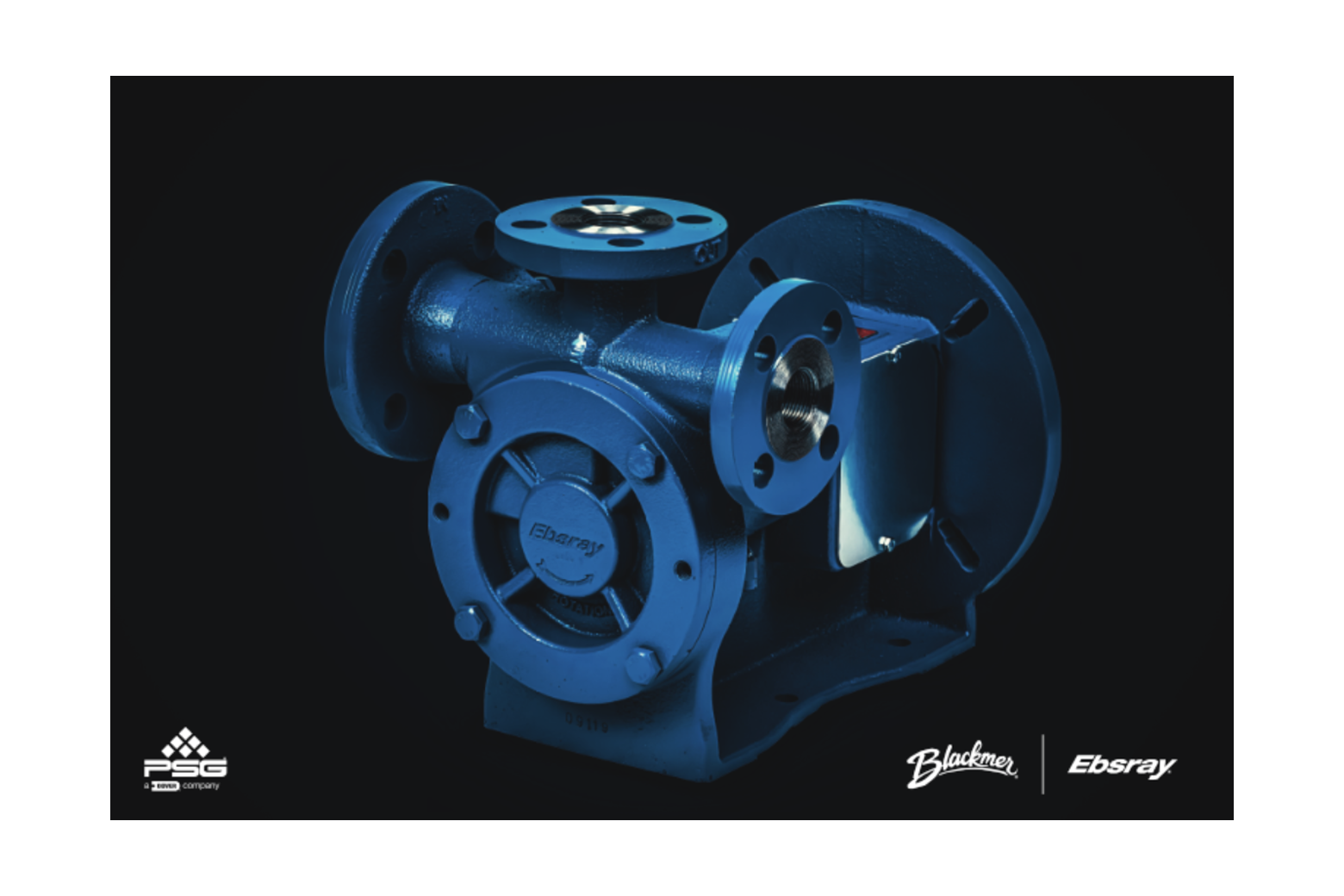

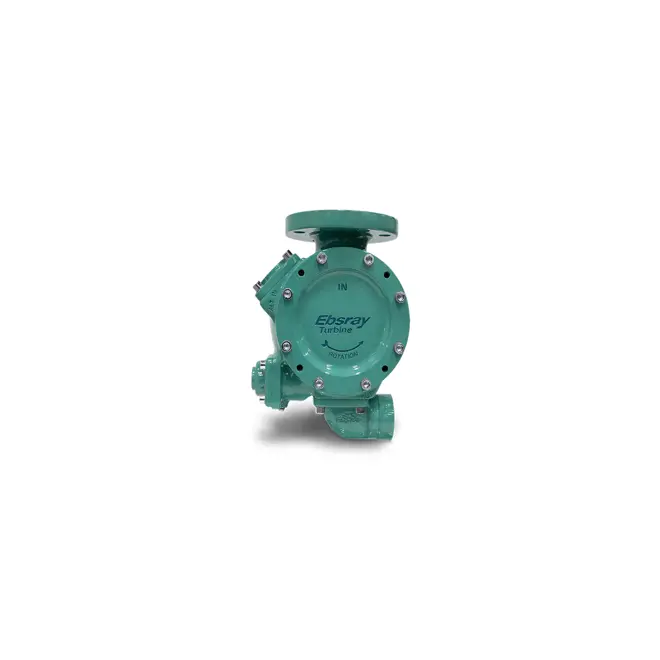

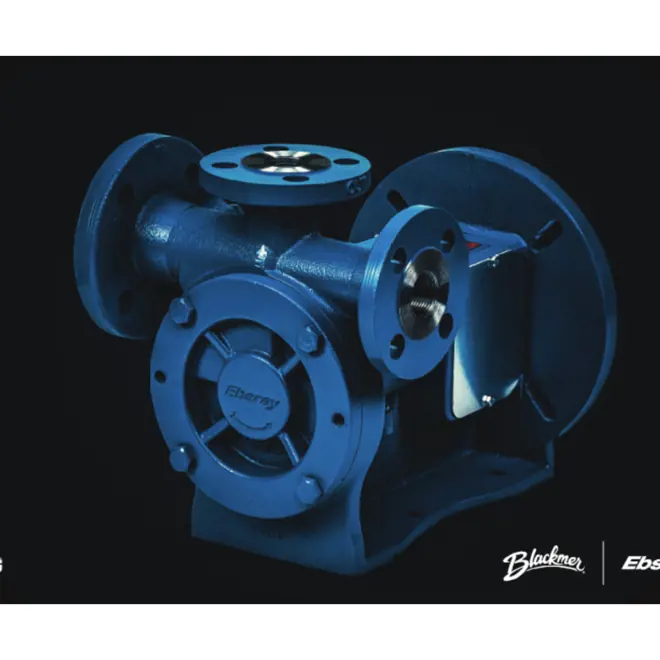

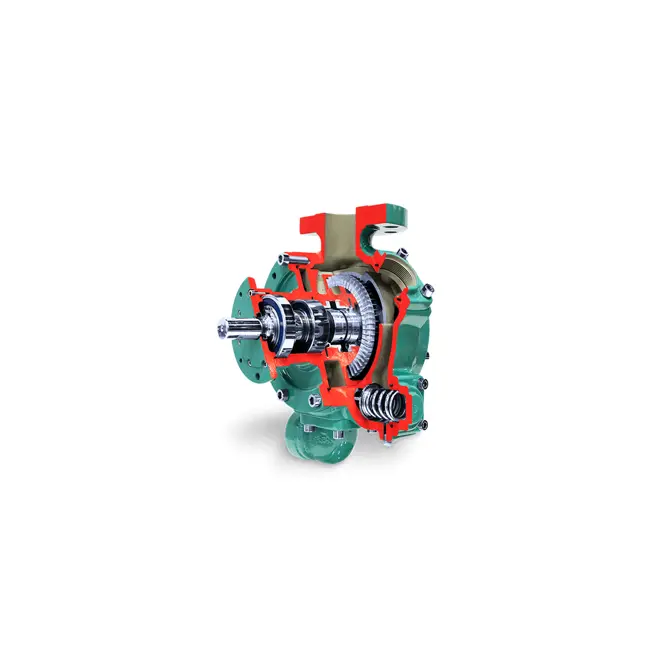

Turbine pumps, or regenerative turbine pumps, are units where liquid circulates several times before being discharged at an increased pressure. They are great for low-flow/high head applications with high differential pressures like LPG filling and loading and unloading.

Product description

Turbine pumps have hybrid characteristics with mechanical resemblance of centrifugal pumps with performance corresponding more to a positive displacement pump. Turbine pumps do not, however, displace a fixed amount but use kinetic energy to create potential energy by acceleration that slightly increases per circulation and thereby increases the pressure.

icon 3 squares in front of eachother symbolising material

Material

All parts are LPG compatible.

More information can be provided upon request.

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane)
Connections: Thread, flange
Type: NPT, DIN, ANSI
Pressure range: 30 bar (435 psi)
Temperature range: -32˚C to +107˚C (-40˚F to +225˚F)
Flow rate: Up to 600 lpm (158.5 gpm)
Sizes and range: 1" to 2" (NPT/DIN), 1" to 3" (ANSI)
Series available: Close-Coupled C-Model, F/FF/FD-Model, DS/DSF model, DL/DLD/DLF model, RC20, RC25, RC40, RB10, R75/R77 and R80/R82
Standards: UL-listed, CE-ATEX

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Single stage impeller ensuring easy maintenance
  • Great for applications with low capacity and medium to high head requirements
  • Free-floating with no metal-to-metal contact
  • Enhanced sealing performance
  • Vibration and pulsation free
  • Removeable pump cover for easy replacement of parts
  • Bypass and pressure gauge connections on the outlet nozzle of most models
  • Continuous, trouble-free service
  • Economical
  • High efficiency

Did you know?

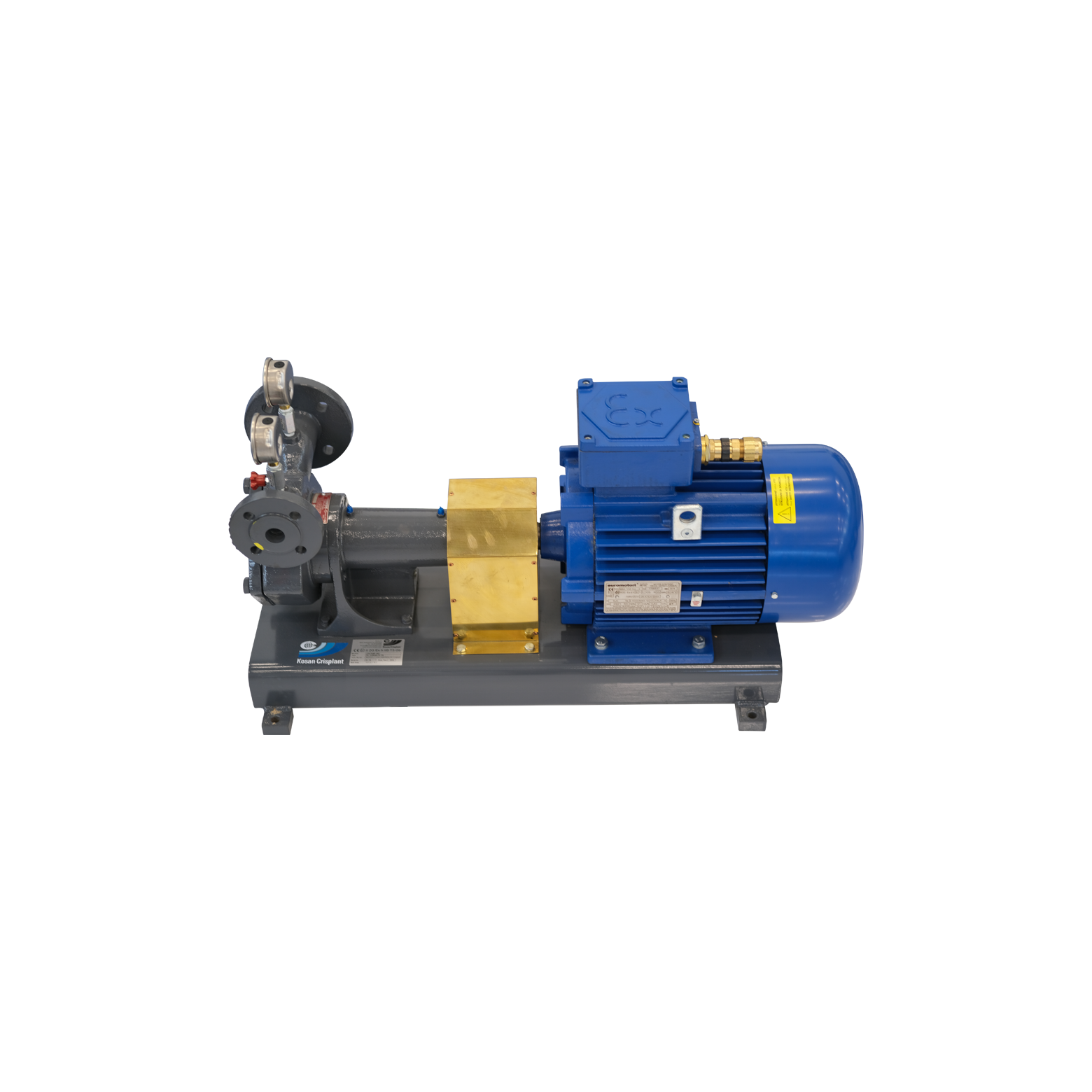

MAKEEN Gas Equipment can provide a complete pump skid, fully assembled with motor, coupling, guard, baseplate, complying with ATEX – remember to also ask about truck turbine pumps!

We can provide several models of regenerative turbine pumps with a wide range of differential pressures and capacities

Alternative products

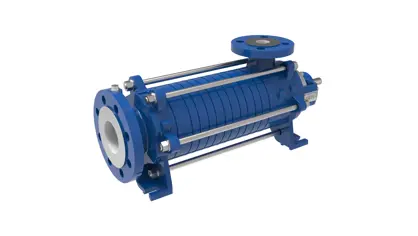

  • Blue side channel pump

    Side channel pumps

    For long-distance transfers of LPG through narrow pipes, side channel pumps are highly suitable. Multi-stage configuration allows for higher differential pressure.

    See our Side channel pumps

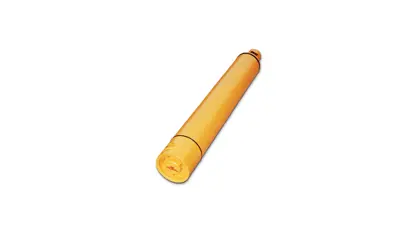

  • Yellow submersible pump

    Submersible pumps

    This type of pump can be fully inserted into tanks and push liquid upwards. They are very useful for autogas stations where they can supply LPG to several dispensers with guaranteed flow rates.

    See our Submersible pumps
