Turbine gas meters suitable for LPG and NH3 flow measuring

Turbine meters are volume measuring devices used in the gas industry to accurately determine consumption by the sensed flow velocity. They are commonly used in industrial applications where a continued flow is of high importance and to adjust burners in gas-using equipment.

A turbine meter

Product description

The by-pass level indicator enables monitoring of liquid levels by using a display with fitted plastic rollers. The rollers will rotate corresponding to the magnetic field and display either red or white depending on the current location of the magnet, thus indicating the liquid level inside the vessel.

icon 3 squares in front of eachother symbolising material


All parts are LPG and NH3 compatible.

More information can be provided upon request.

icon a gear with lines going up down left and right symbolising specifications


Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous Ammonia), CNG, NG (Natural Gas), cryogenics, CO2, Biogas
Connections: Thread, flange
Sizes and range: DN25 to DN300, 1" to 1½"
Pressure range: 14.5 to 41 bar (10 to 600 psi)
Capacity: 1.6 to 10,000 m3/h
Series: DN, DE, EMS
Standards: CE-MID, CE-ATEX, MID

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features


  • Accuracy of 1%
  • Removable cartridges
  • Light aluminium body for DN 200
  • Provided with a mechanical and digital reader
  • Wafer type between two flanges
  • Pulse generator version available
  • Mounting horizontally or vertically
  • Oil flushing and lubrication system

Did you know?

Turbine meters can be customised to individual needs and purposes

Alternative products

  • Gas filter component

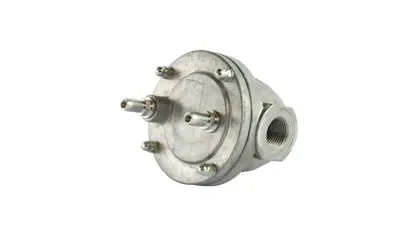

    Gas filters

    Gas filters are great assistants in pipework that ensure debris retainment and a clean vapour or liquid flow. They ensure the performance of your pressure regulators, meters and much more.

    See our Gas filters
