LPG
Effectively filtering out mechanical impurities and condensate from pipework is crucial to protect equipment from blockage and damage. Gas filters are greatly used where extra filtration is needed and ensure performance safeguarding for pressure regulators, meters and control units, among others.

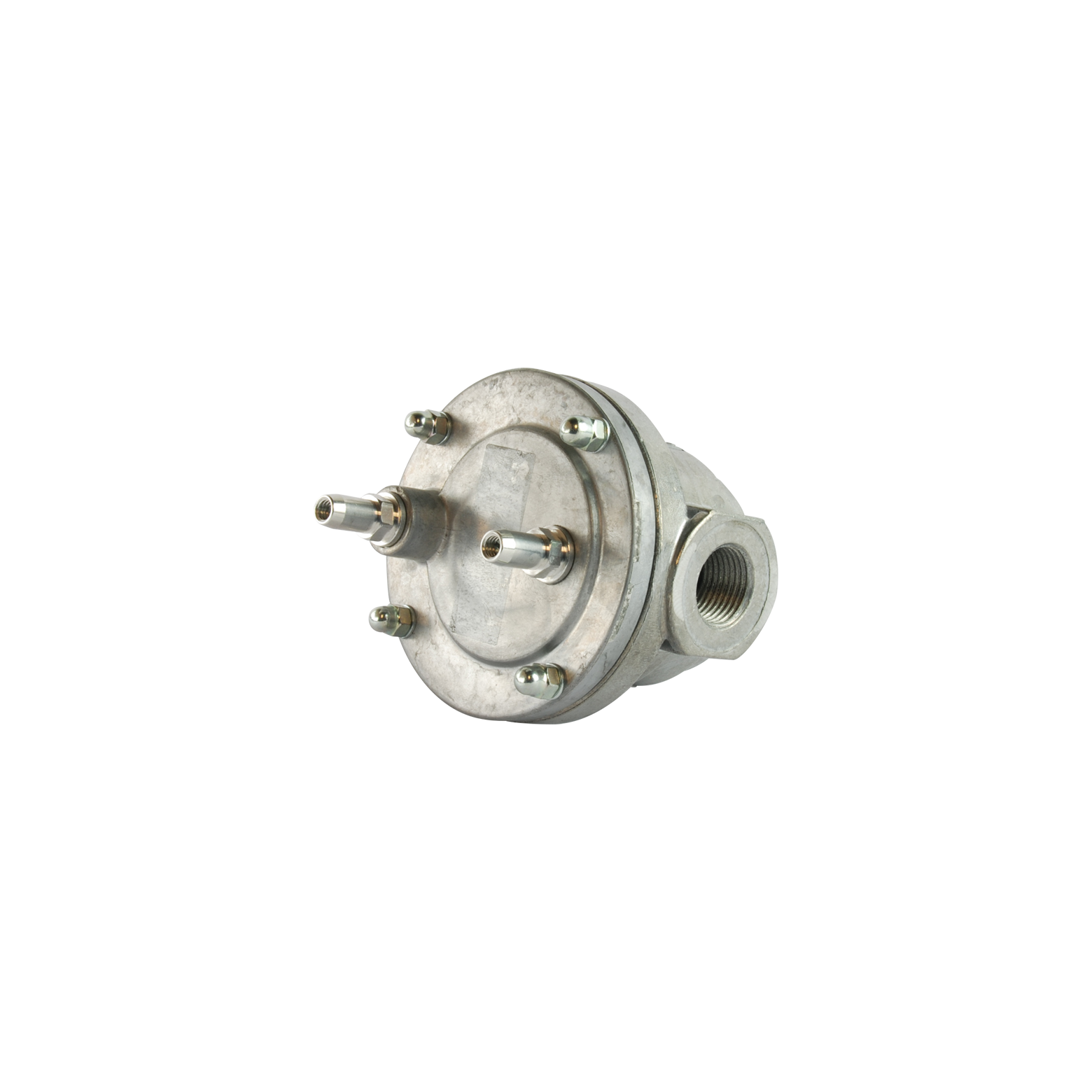

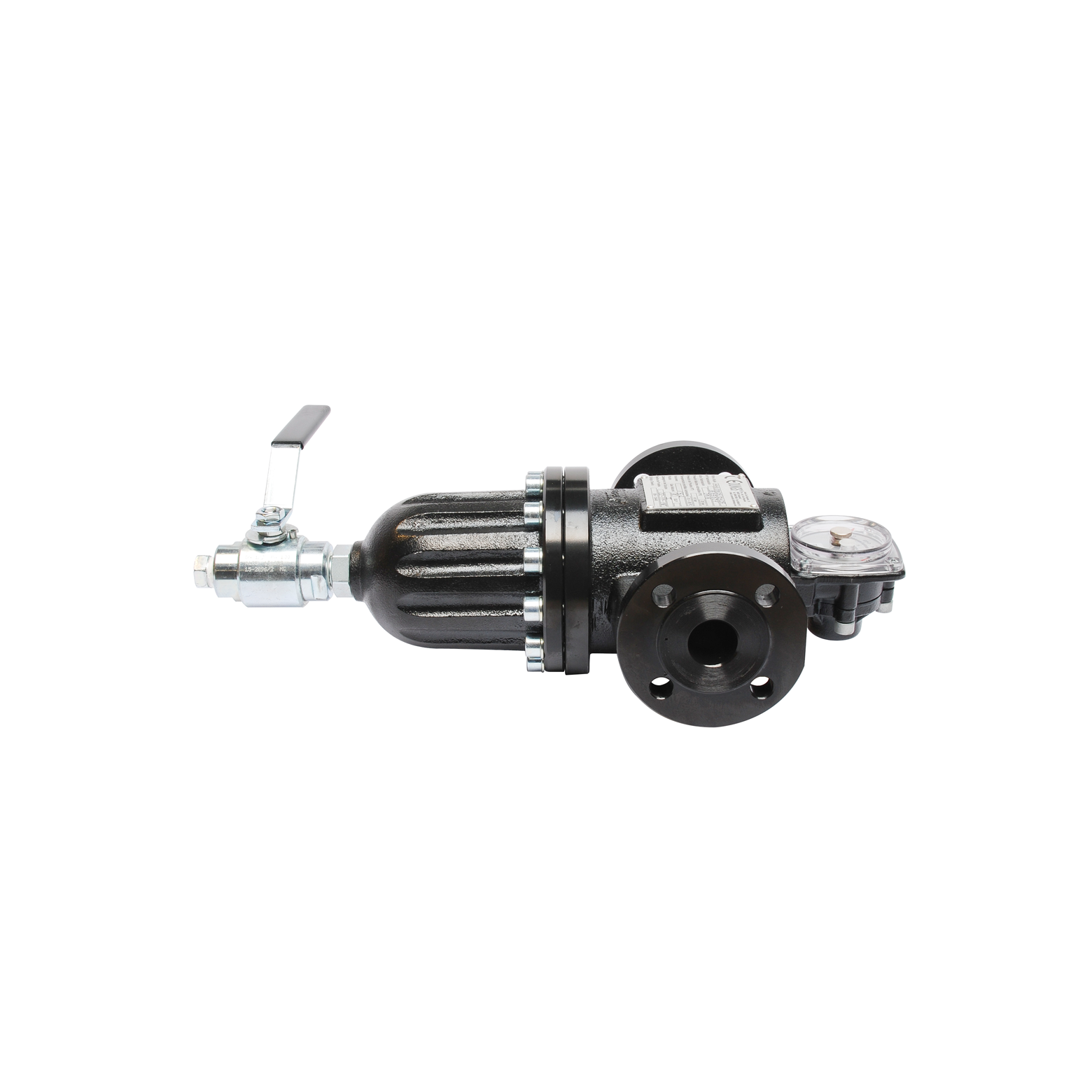

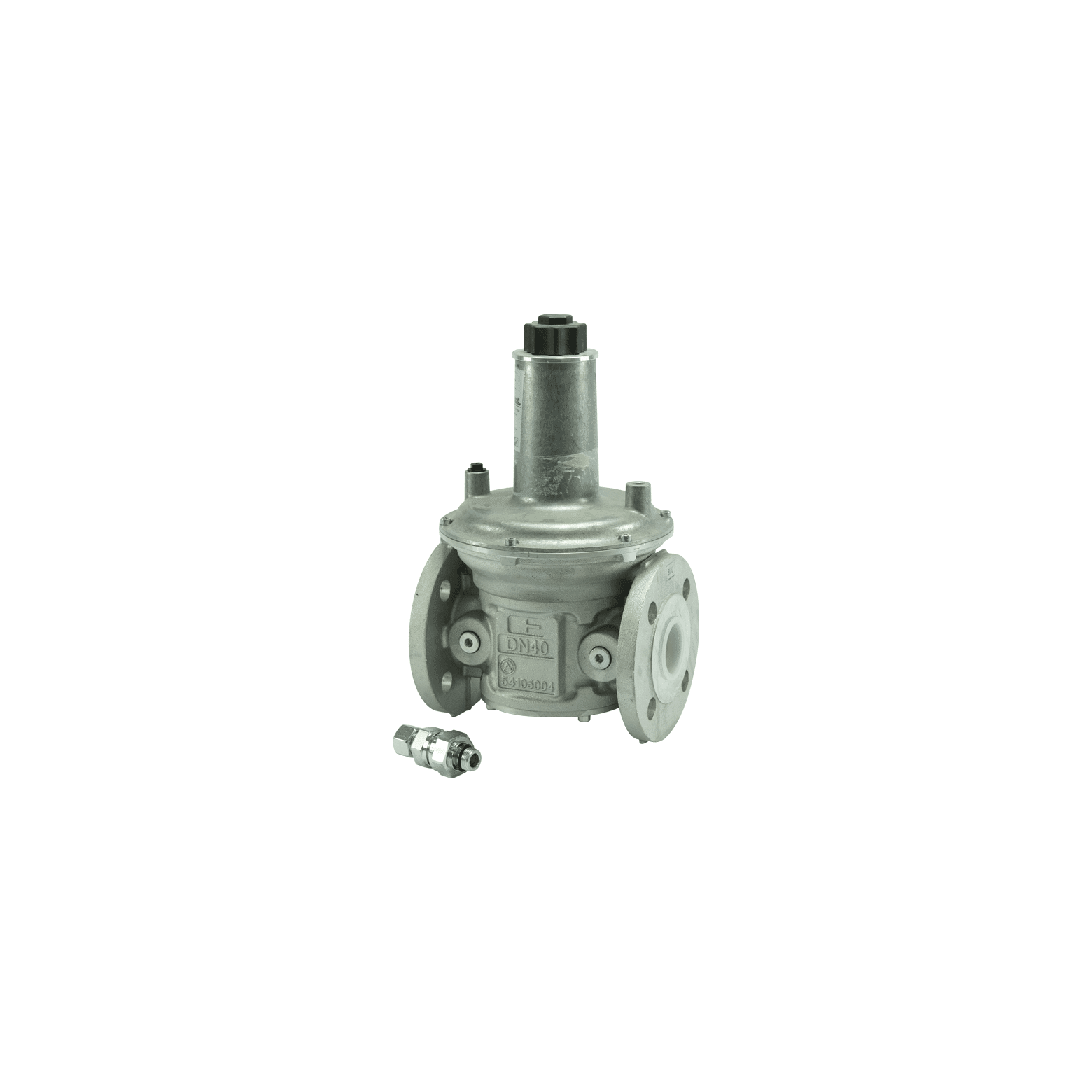

Gas filters are great assistants in pipework to ensure debris retainment and a clean gas or liquid flow. Depending on the pressure tolerance required, there are simple Aluminium/AlSi versions with filter pads, and for high-pressure installations there are larger casted versions with filter cartridges and a differential manometer available.
Body: Steel, stainless steel, aluminium
Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous Ammonia)
Connections: Thread, flange
Types: G, DIN
Sizes and range: ½" to 2½" (NPT), DN15 to DN200 (DIN)
Pressure range: Max. 25 bar (362.5 psi)
Capacity: 0 to 3000 m3/h
Standards: EAC, CE, EU, PED, GAR, EN 13611:2015+AC:2016
*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

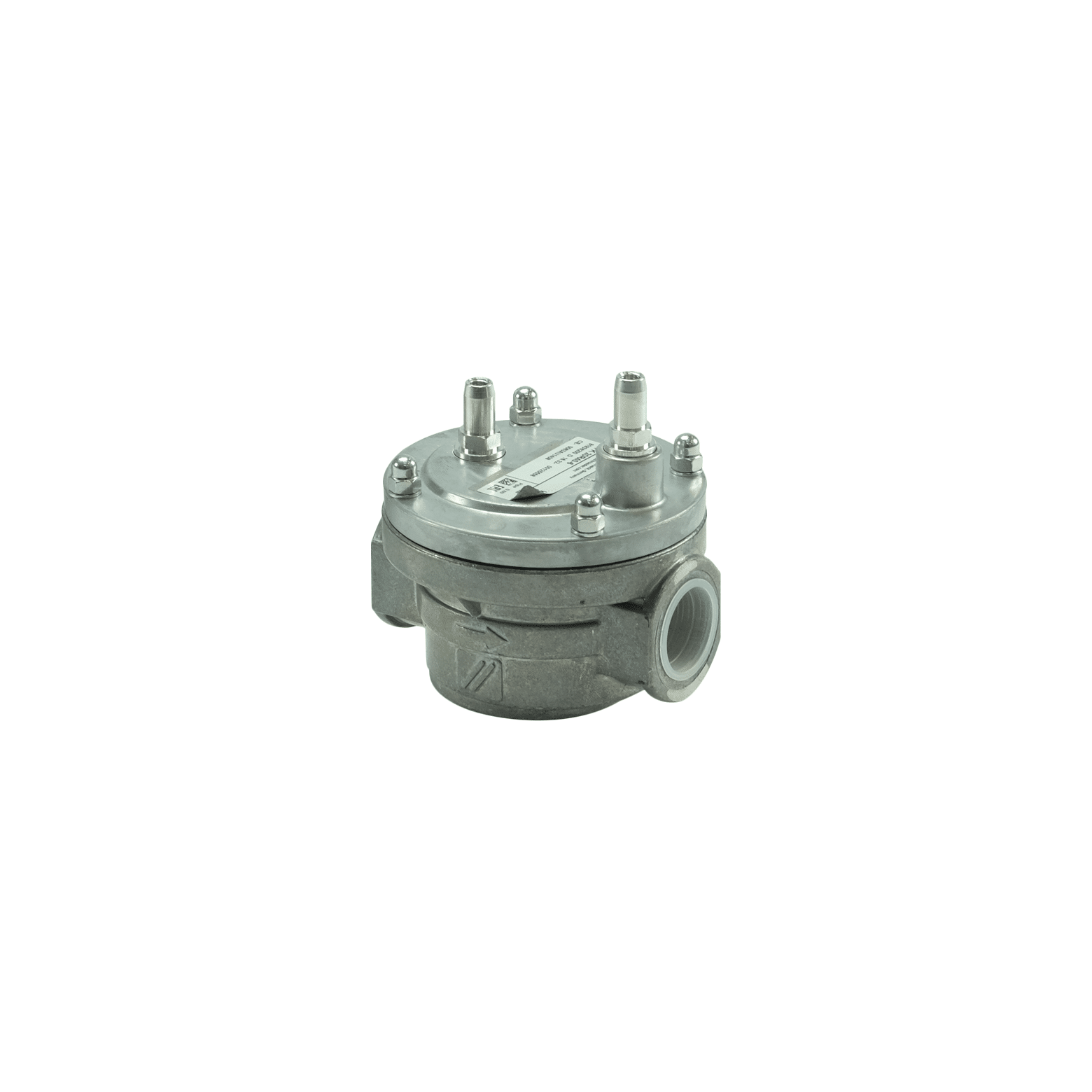

Aluminium filters come with test nipples
Whether you already know what you need, or you would like the opinion of an expert, we are always ready to help you out.
