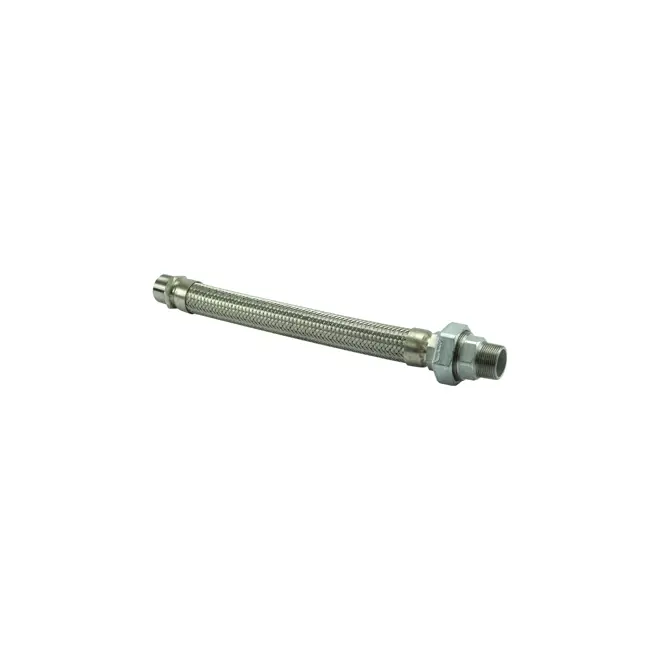

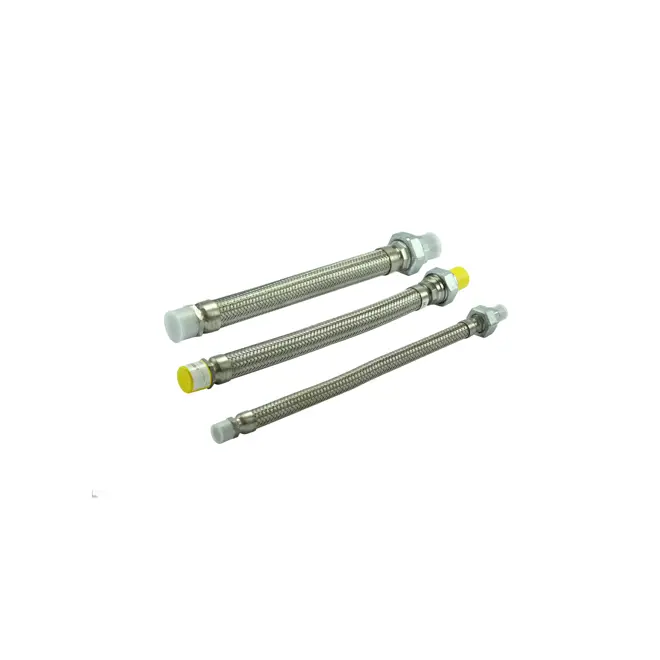

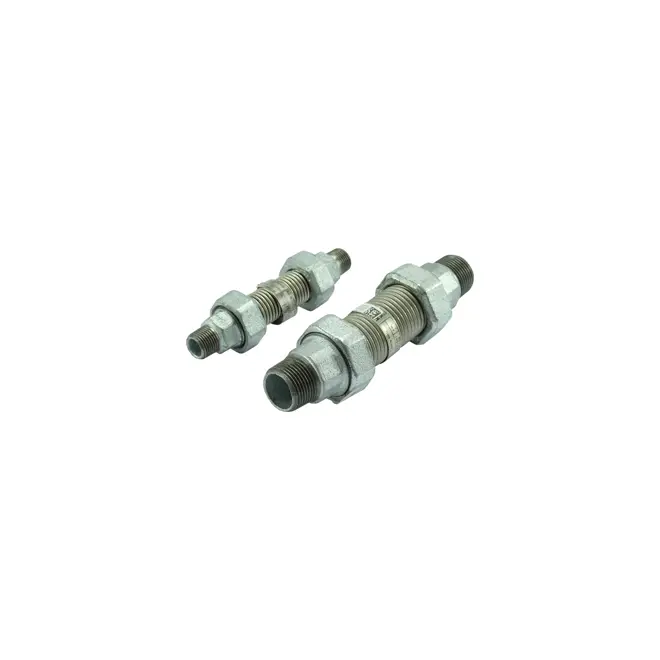

Stainless steel flex hoses for flexible connections in LPG, LNG and NH3 installations

Stainless steel flex tubes or hoses are flexible and reliable pipework and assembly connectors with high pressure bearing capabilities, making them well suited for LPG and NH3 installations that are either static or where only slight movement occurs.

Product description

The flexibility of the stainless-steel flex tube makes them perfect vibration-absorbing and cost-effective joints for machinery and pipework that are subject to misalignments during installation.

icon 3 squares in front of eachother symbolising material

Material

Tube: Stainless steel corrugated (1.45451)
Colour: Metal
Hose: Stainless steel (AISI316L)
Braid: Stainless steel sheathing (AISI-304.4301)

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous Ammonia), CNG, NG (Natural Gas), cryogenics, CO2, Biogas, LNG, industrial gasses, Hydrogen, BioLPG
Connections: Thread, flange
Types: NPT, BSP, G, ANSI, DIN
Sizes and range: 10 to 150 (ANSI/DIN) and 1/4" to 6" (others)
Pressure range: Max. 128 bar (1856 psi)
Temperature range: -260˚C to +600˚C (-436˚F to +1112˚F)
Series: ES
Standards: UL listed, CE-PED, EC, EAC, DVGW

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Angular and lateral movement absorbing
  • High physical strength - pressure resistant
  • Fire and corrosion resistant
  • Simple installation
  • Delivery according to PED up to category II

Alternative products

  • A rubber hose with two orange stripes

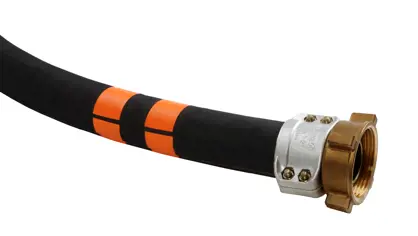

    Rubber hoses

    Flexible, abrasive resistant hoses with textile braided reinforcement. Used in pumping, bulk loading and un-loading of LPG, and natural gas, in the industrial and domestic sector.

    See our Rubber hoses

  • Composite hose

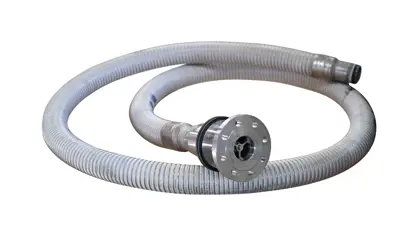

    Composite hoses
