Product description

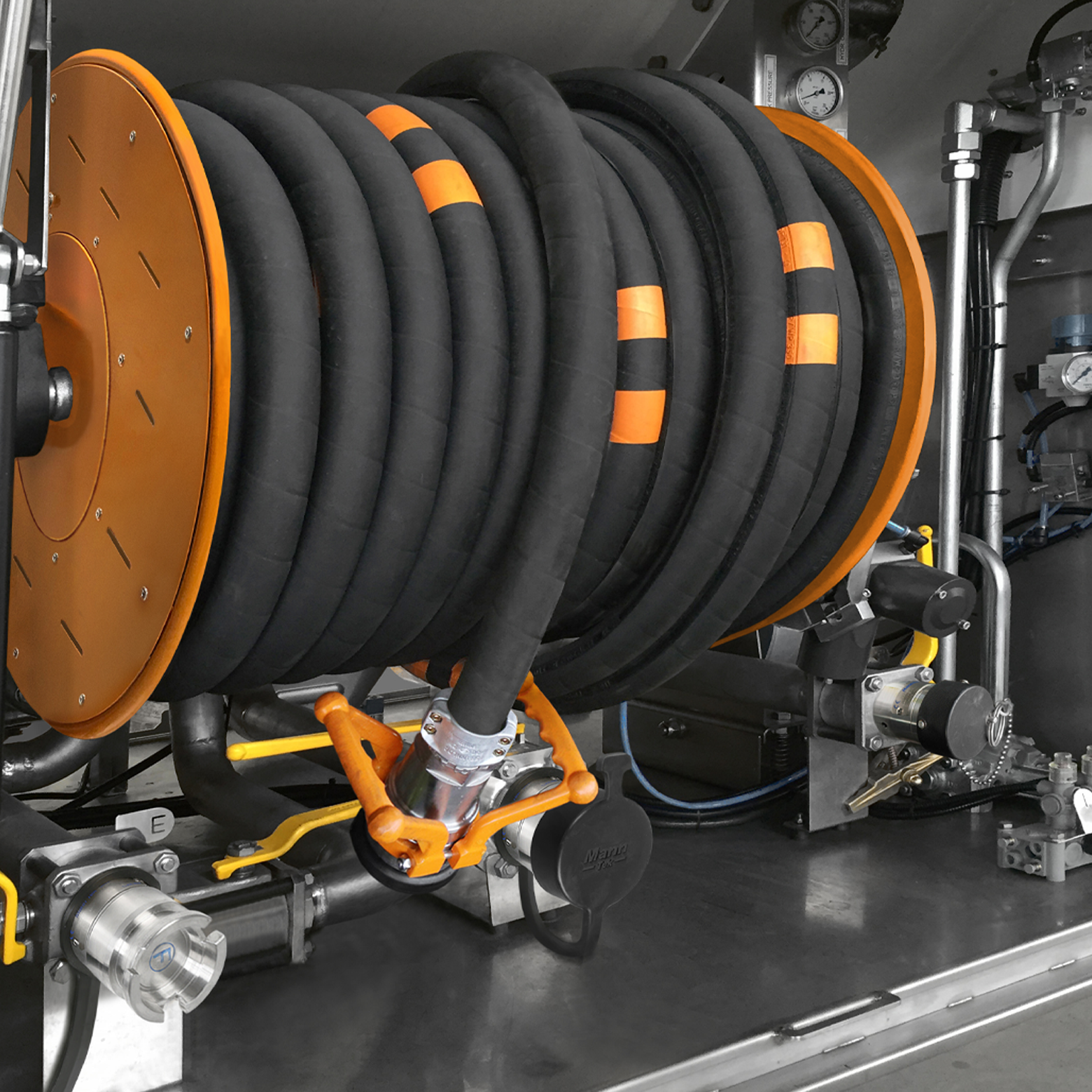

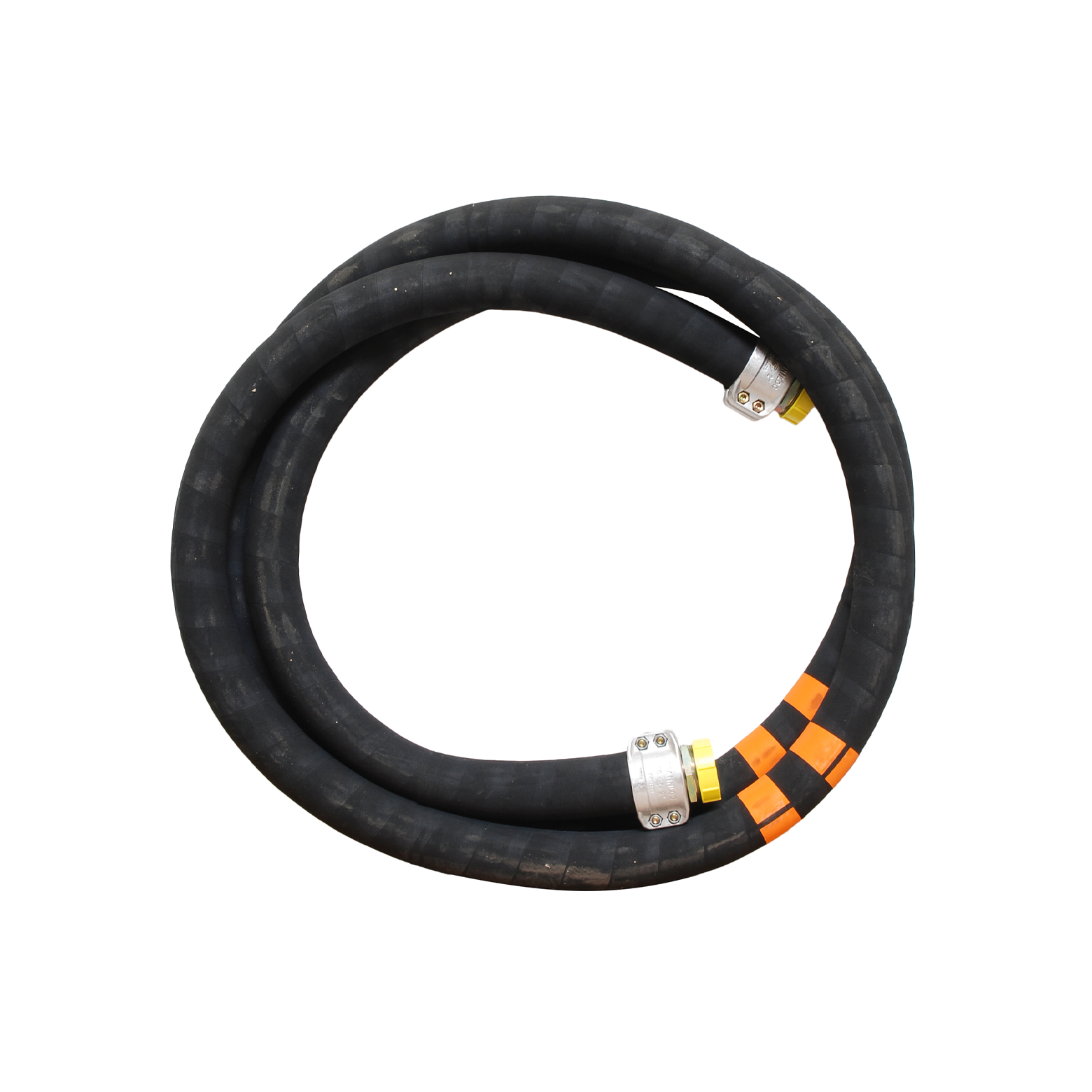

Rubber hoses are crafted to handle vehicle refuelling, bulk loading and unloading rail tankers, road tankers and ships etc. Depending on the types of gasses that are going to be transferred through the hoses it is paramount to ensure suitability and compatibility with the individual system. The hoses come as raw hoses or configured with the needed end connections.

icon 3 squares in front of eachother symbolising material

Material

Lining: Nitrile rubber
Reinforcements: Textile braids with 2 crossed tinned copper strands
Cover: Chloroprene

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NG (natural gas)
Connections: Thread, flange, ACME, dry coupling
Type: Fixed, swivel, NPT, BSP, ACME, dry coupling
Working pressure: 25 bar (362.5 psi)
Burst pressure: Above 100 bar (1450 psi)
Temperature range: -40˚C up to +70˚C (-40˚F to +158˚F)
Sizes and ranges: 3/8" to 8"
Series available: "Orange Band"/type LPG
Standards: EN1762, EN589, DVG

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • "Orange band" Liquid Petroleum Gas hoses comply with standard EN1762
  • Propane, Butane and other L.P Gas hoses comply with standard EN589
  • Suitable for Natural Gas due to diffusion safe hose lining
  • Rugged and long-lasting construction with low tensile textile braids
  • Electrically conductive and diffusion resistant
  • Flame, abrasion, wear and o-zone resistant
  • 5 year replacement cycle
  • Safe handling

Did you know?

Hose assemblies must include a mandatory pressure and conductivity test

Special type LPG-LT handle temperatures as low as -50˚C (-58˚F)

MAKEEN Gas Equipment can provide LPG stainless steel helices for special suction/pressure operations
