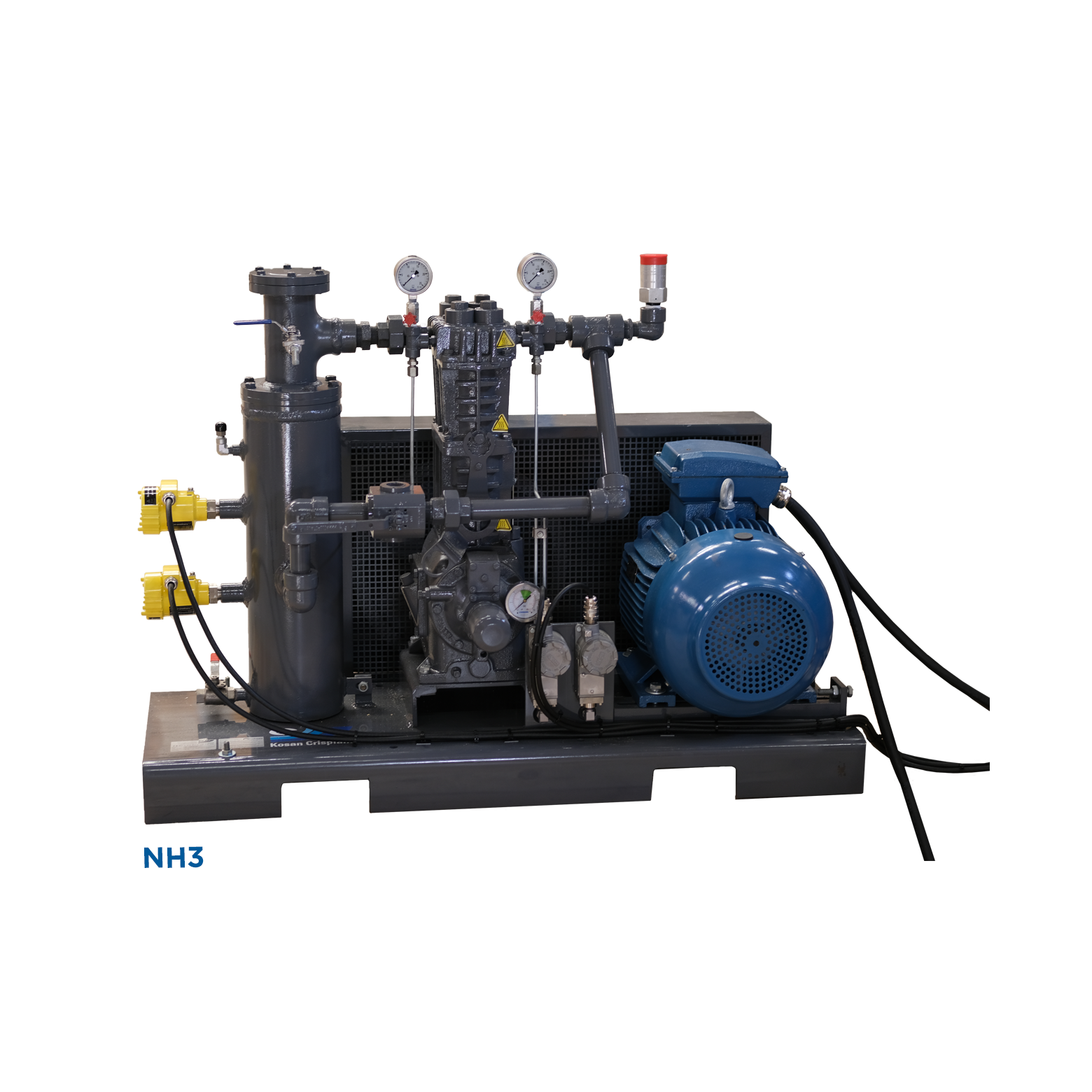

NH3

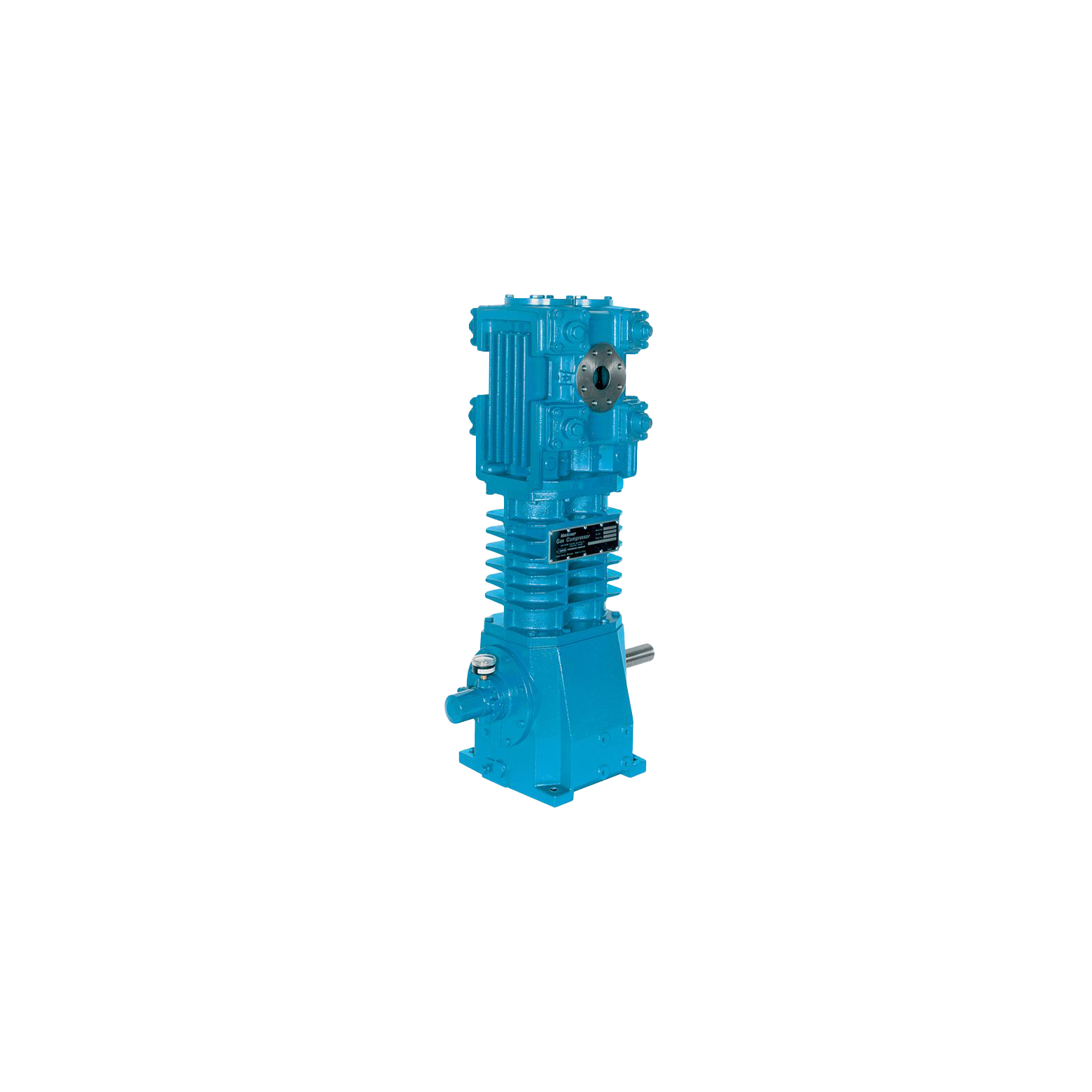

Vertical compressors for optimal LPG and NH3 transfers

Vertical compressors are designed for liquid tank-to-tank transfers with minimal residue due to the vapour recovery functionality. They are frequently used for rail car loading and unloading, liquefied gas transfers, pressure boosting and vapour recovery.

Product description

Working only with the vapour phase in a liquefied storage, vertical compressors are great for tank-to-tank transfers, preferable of larger sizes. Vertical compressors are not affected by NPSH related effects and are therefore usable for tanks at any height or position.

icon 3 squares in front of eachother symbolising material

Material

Body: Ductile iron
Seals: PTFE

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous Ammonia), NG (Natural Gas)
Connections: Thread, flange, weld
Type: ANSI #300, NPT, welded, flanged
Pressure range: Up to 31 bar (450 psi)
Flow rate: Up to 212 m3/h (125 cfm)
Brake horsepower: 37 kW (50 HP)
Temperature range: +177˚C (350˚F)
Sizes and range: 3/4" to 2" (NPT and ANSI), 2" (weld)
Series: LB080, LB360, LB360, LB600, LB940, 91 s, 291 , 491 , 691 and 891 series
Standards: UL listed, CE-ATEX

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • High-efficiency valves moving larger volumes of gas
  • Positive self-adjusting seals and seating
  • Mechanical and thermal shock resistance
  • Heavy-duty crank shaft
  • Wear resistant crosshead assemblies

Did you know?

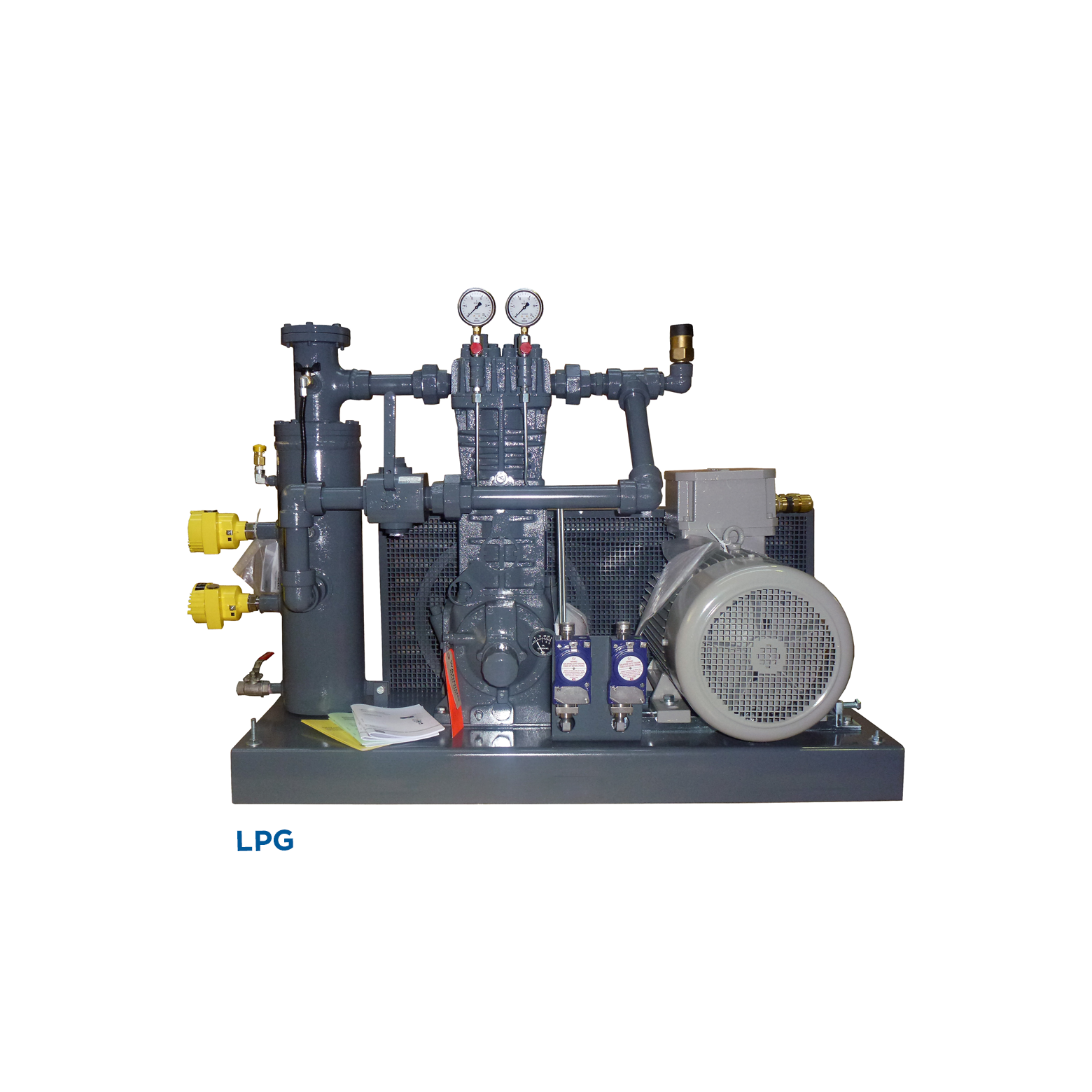

MAKEEN Gas Equipment can provide custom engineered compressor skids, including electric motor, coupling, liquid trap, instrumentation, flexible hoses amongst many other features

Double and triple piston rod seals with distance piece chambers are available
