Horizontal compressors for pressurised LPG and NH3 transfers

Horizontal compressors are used for transfers of liquefied gas from one vessel to another by forcing the media through a pressure increase in the gas phase with following vapour recovery to maximise the transferred volume. They are used in bulk transfers, barge and rail loading and unloading, pressure boosting and many more.

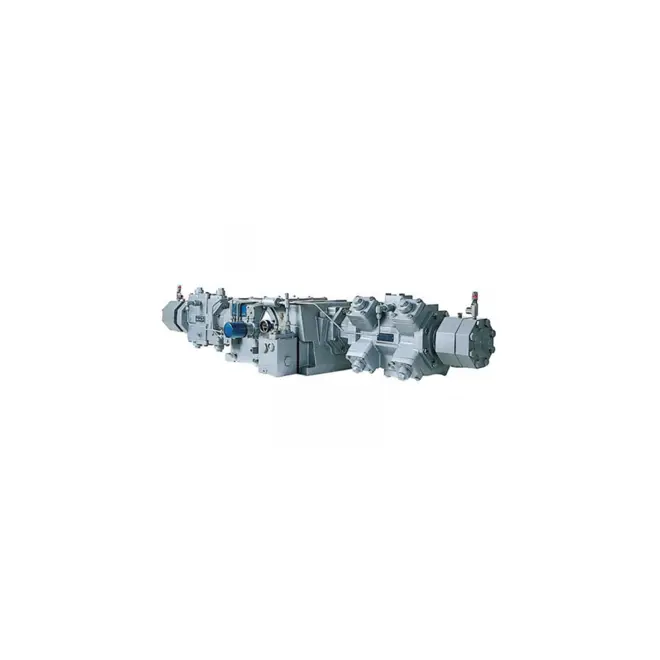

Horizontal compressor

Product description

As the capacity of a vertical compressor may not always be sufficient for all tasks, the horizontal compressor is the ultimate alternative as it provides the largest liquid transfer capacity.

icon 3 squares in front of eachother symbolising material

Material

Body: Ductile iron
Cylinders: Ductile iron
Pistons: Steel, aluminium
Retainer rings: Carbon steel
Main bearings: Tapered roller
Valve seat: Stainless steel
O-rings: Buna-N, PTFE, Viton, Neoprene

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous Ammonia), NG (Natural gas), Biogas, CO2 (Carbon dioxide), DME (Dimethyl Ether), refrigerants
Connections: Flange
Type: ANSI, slip-on
Pressure range: Up to 113.8 bar (1,650 psi)
Flow rate: Max. 704 m3/h (414 cfm)
Brake horsepower: 75 HP (55.9 kW)
Temperature outlet: +177˚C (+350˚F)
Sizes and range: 1½" to 3" (ANSI), 2" to 3" (slip-on)
Series available: NGH series, HG series and THG series
Standards: UL-listed, EU

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Sustained high-level performance
  • Energy-efficient
  • Low maintenance costs
  • Multiple mounting positions

Plain style:

  • One set of purge packing pr. piston
  • Ideal for LPG handling
  • Available in single-stage model only
  • Minimum leakage containment
  • Non-corrosive and non-toxic media approved

T-style:

  • Purge or pad packing
  • Packing eliminates oil-over contamination of process gas stream
  • Single or two-stage model
  • Three sets of packing offering oil-free compression
  • Highest level of leakage containment
  • For toxic and corrosive applications
  • Large capacity

Did you know?

MAKEEN Gas Equipment can provide complete compressor skids, fully assembled with motor, liquid trap, all instrumentation, coupling, guard, baseplate (complying with ATEX)

We have single or two-stage design in a lubricated, non-lubricated, single or double-acting configuration available

Horizontal compressors can be used to provide an artificial lift for Natural Gas

Alternative products

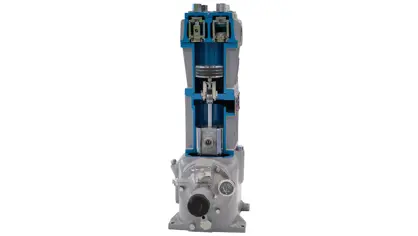

  • Picture of vertical compressor

    Vertical compressors

    Designed for liquid NH3 tank-to-tank transfers, with a vapour recovery functionality that leaves minimal residue. Can be used for tanks at any height or position.
