NH3

Gas strainers for filtering out impurities in LPG and NH3 lines

Filtering out unwanted debris or particles from LPG and NH3 lines is important to ensure the continued efficiency of pumps, valves, engines and nozzles. Gas strainer provide this functionality and are frequently used in pressurised lines and gas, steam and liquid suction-type systems where the need for protection remains constant.

Product description

'Y' type strainers are the most commonly used as they are more cost-effective and simpler to install and maintain. They can operate under high temperatures and pressures, and their internal wire-meshed filters prevent dirt from ruining expensive equipment.

Material

Body: Steel, stainless steel, brass

Specifications

Gas types: LPG (Propane, Butane), NH3(Ammonia, Anhydrous Ammonia)
Connections: Thread, flange
Types: NPT, ANSI, DIN
Pressure range : Max. 64 bar (928 psi)
Sizes and range: ½" to 3" (NPT), DN15 to DN200 (DIN), ½" to 8" (ANSI)
Standards: UL listed, CE-PED, CE

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Features

Steel or stainless steel body
Down to 25 micron filtrations
Low cost and ease of maintenance
Horizontal or vertical installation possible

Did you know?

Gas strainers are available in four shapes: simplex, duplex, Y and automatic

Alternative products

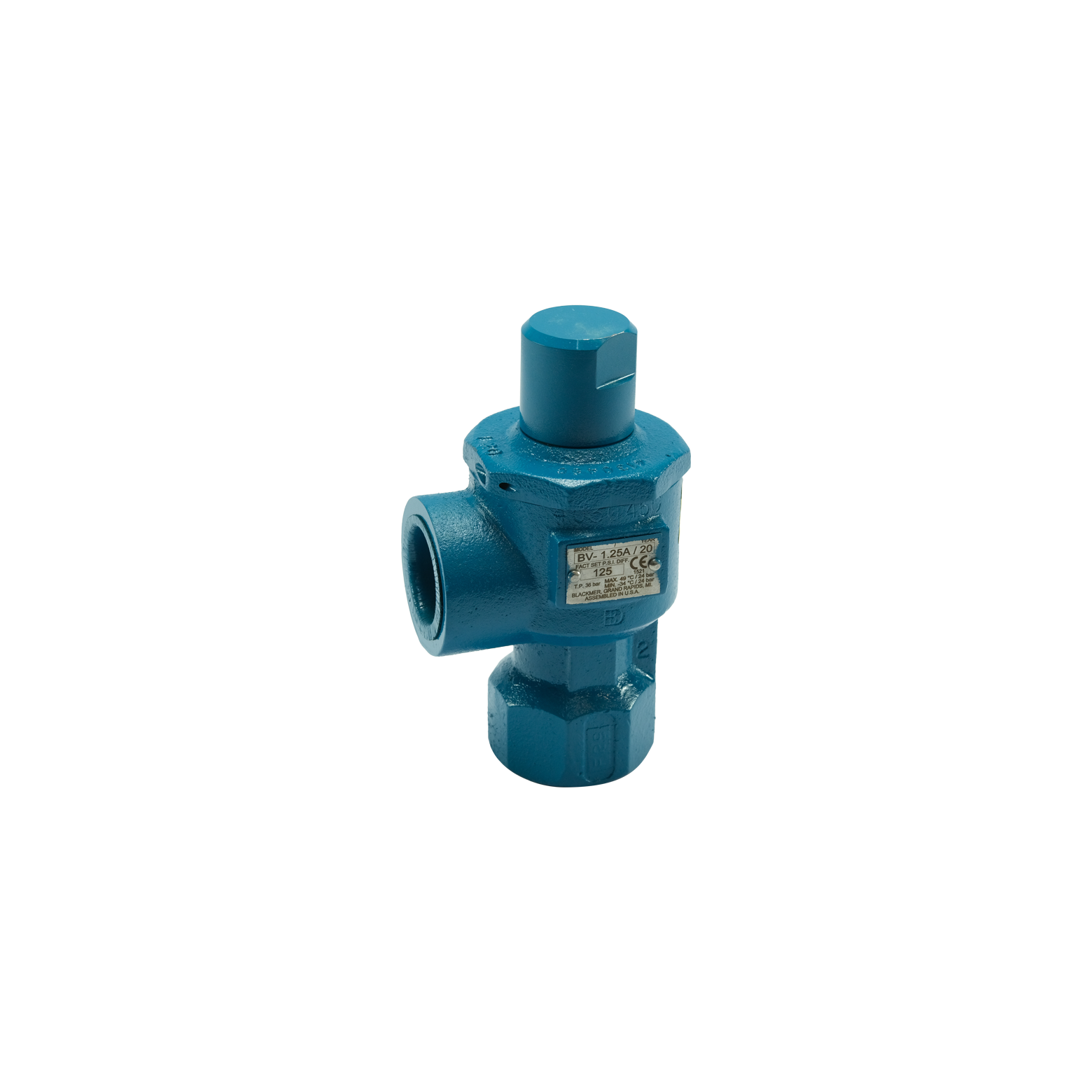

Bypass valves

To prevent pumps and installation components from damage caused by a build-up of overpressure, bypass valves allow the pressure to be equalised and allow easy maintenance.

See our Bypass valves

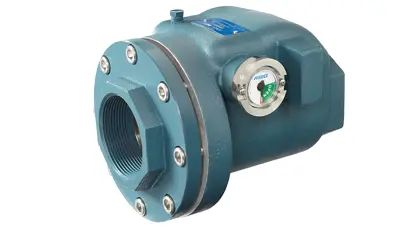

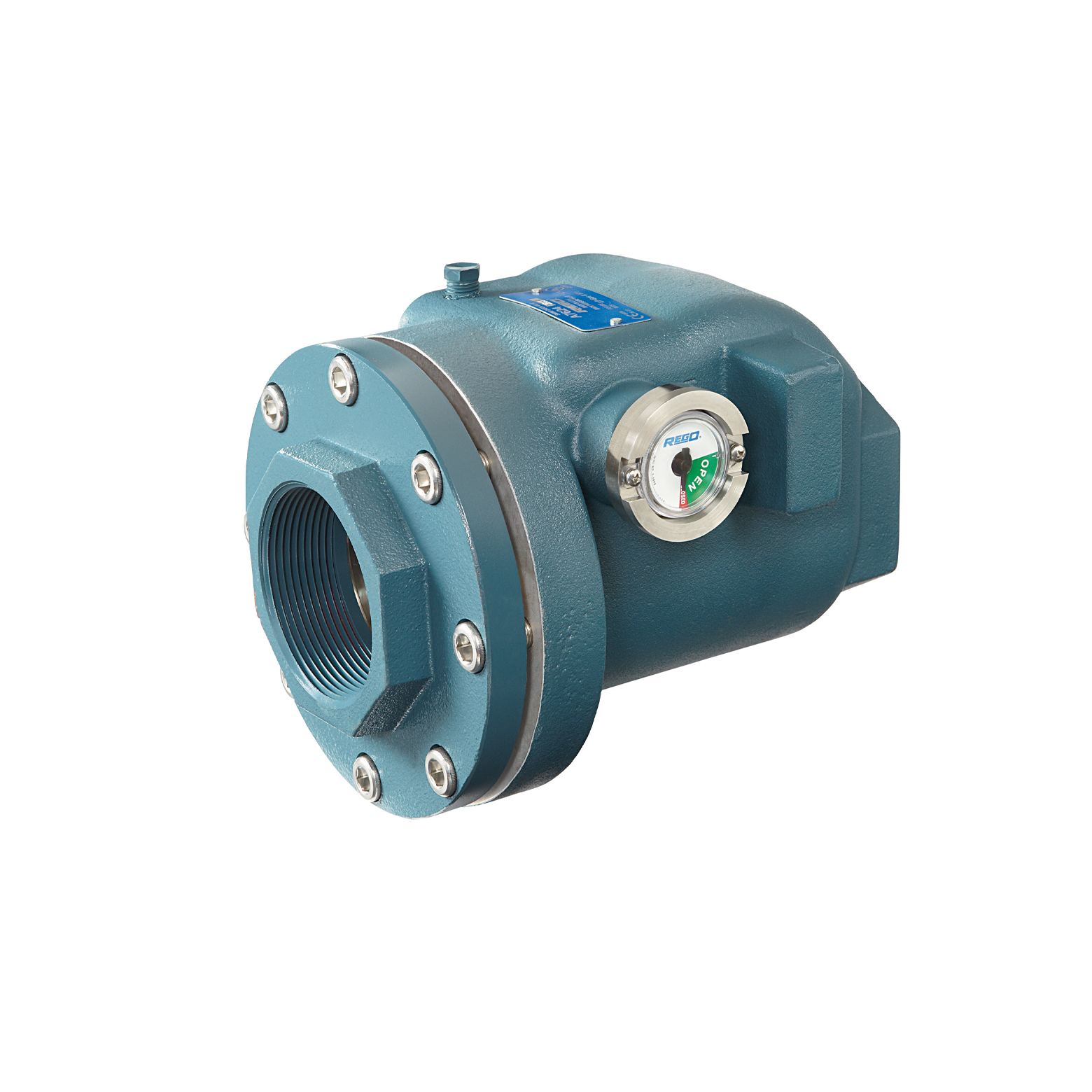

Flow indicators

An important piece of equipment that allow plant operators to visually observe the liquid NH3 flow conditions to ensure safe operations in the plant or station.

See our Flow indicators

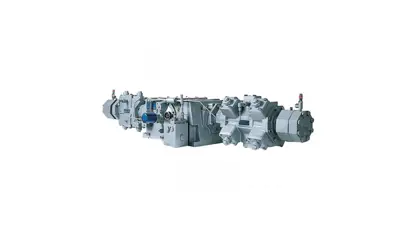

Horizontal compressors

These are our largest liquid transfer capacity compressors, used in bulk transfers, barge and rail loading and unloading, pressure boosting and much more.

See our Horizontal compressors
