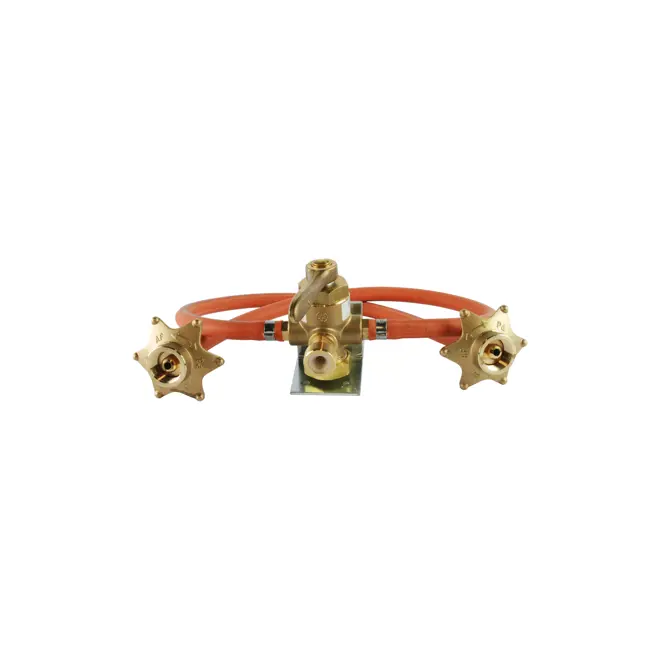

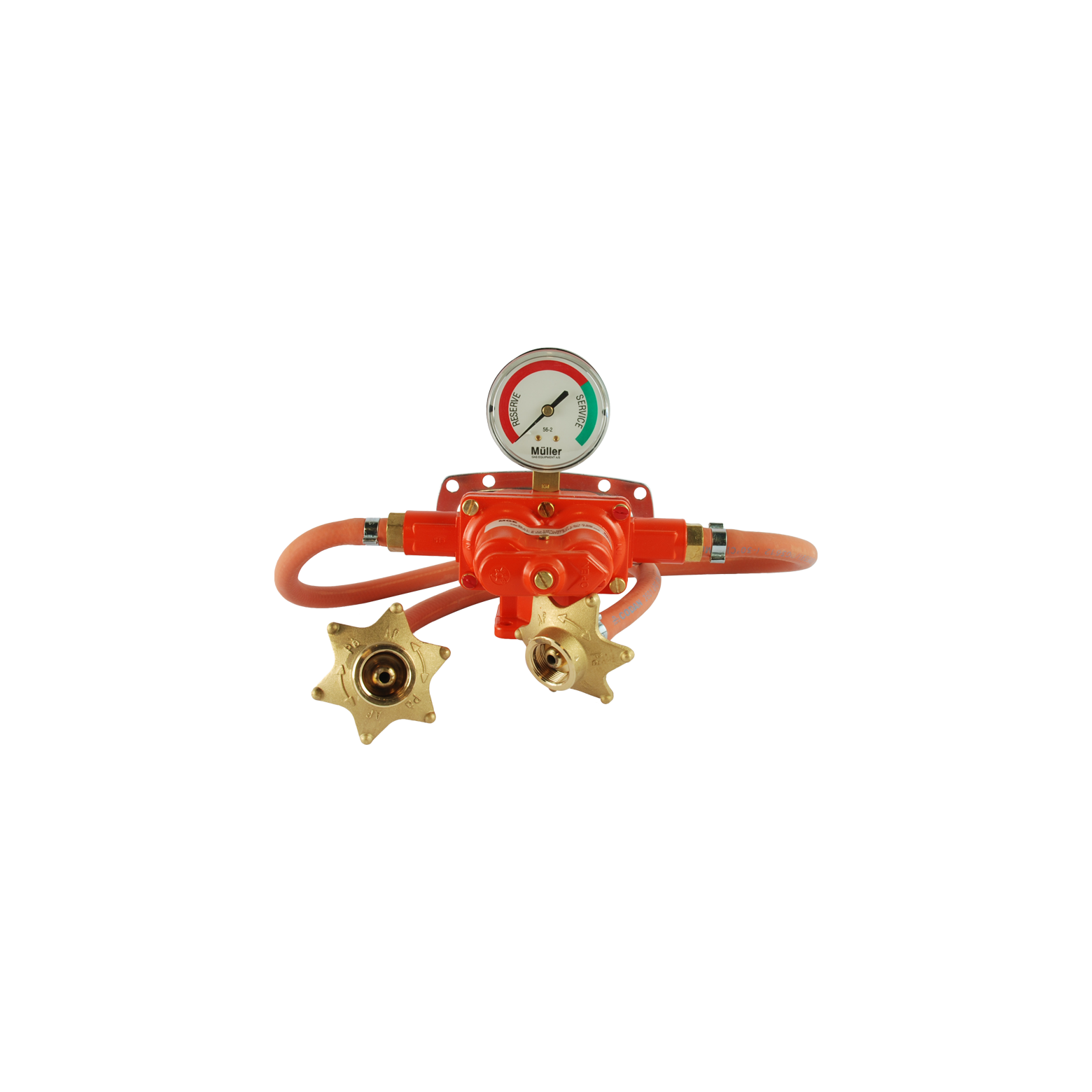

Switchover valves for flawless change between LPG supplies

Switchover valves, also known as changeover valves, allow flawless switching between gas supplies in dual-cylindrical or pipeline gas system while maintaining a continuous flow and ensuring minimal pressure loss.

Product description

Switchover valves operate according to a pre-set pressure limit, by changing from one supply line to another once pressure drops below the defined point. The switching can happen automatically or manually by a switching valve lever and sustains continued operation.

icon 3 squares in front of eachother symbolising material


Body: Steel

icon a gear with lines going up down left and right symbolising specifications


Gas types: LPG (Propane, Butane)
Connections: Thread, flange
Inlet pressure range: 1.2 to 25 bar (17.4 to 362.5  psi)
Outlet pressure range: 0.4 to 2.5 bar (5.8 to 36.2 psi)
Capacity: 0 to 60 kg/h
Standards: DVGW (EN16129), CE

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features


  • Automatic or manually controlled
  • Differential pressure manometer
  • Provided with hose connections
  • Easy operation
  • Suitable for cylinder and high-pressure applications

Did you know?

Automatic and manual types are available
