LPG

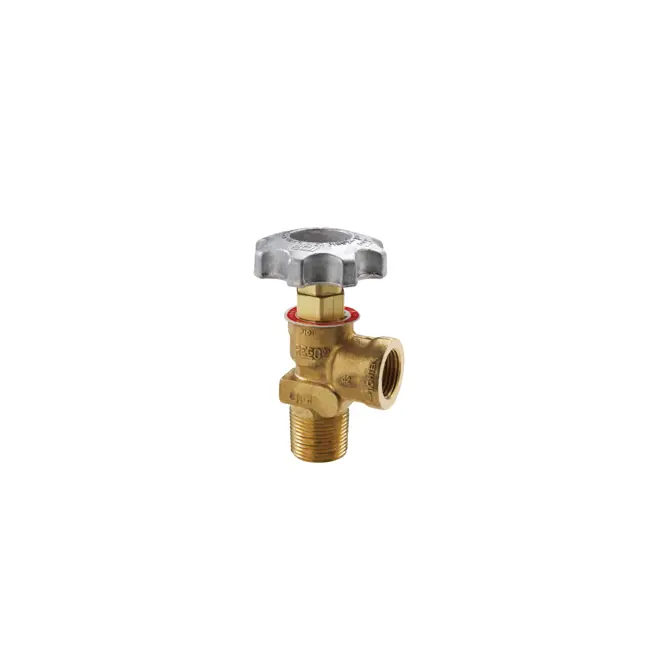

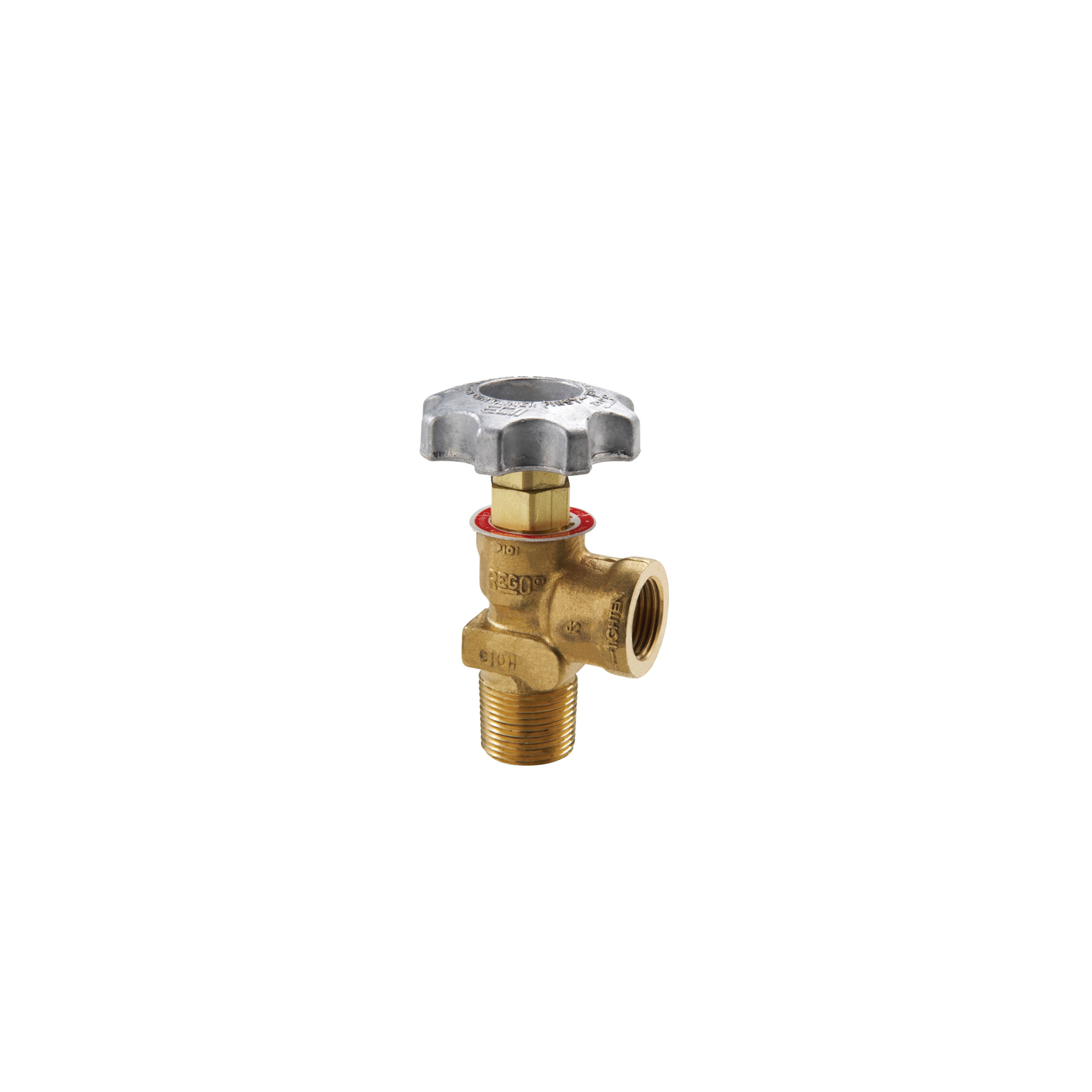

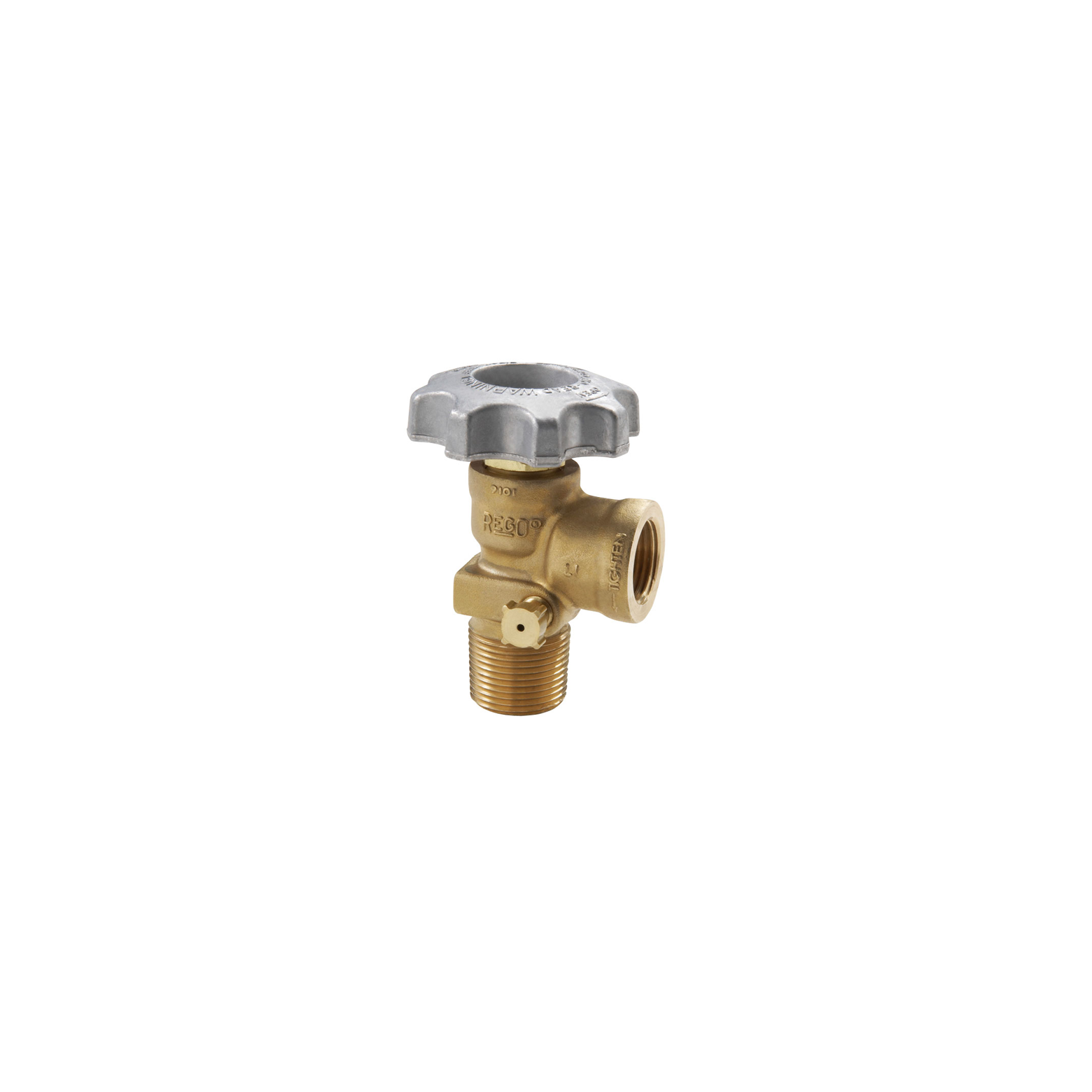

Service valves for LPG vapour withdrawal

Service valves in vapour systems function as primary shut-off devices as well as they are designed to withdraw vapour from DOT cylinders up to 100 lbs and small ASME containers. They are suitable for domestic use and in industrial commercial installations.

Product description

Valve features differ depending on the application requirements of the unit the service valves are installed into. Whether it is heavy-duty, domestic usage or if relief valves are separately installed into the container or not, the service valves can provide primary functionality or be accessories to the withdrawal of media.

icon 3 squares in front of eachother symbolising material

Material

Handwheel: Aluminium die cast
Stem: Brass
Seat disc: Nylon
O-rings: Resilient rubber
Relief spring: Stainless steel
Plug: Brass

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane)
Connections: Thread, F.POL (service connection)
Type: NPT
Pressure range: 25.8 bar (375 psi)
Capacity: 45.3 kg (100 lbs)
Sizes and ranges: 3/4"
Standards: UL listed

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Fast filling throat
  • Nylon seal for positive closing
  • Can be fitted with a fixed liquid level gauge
  • Handwheel security to reduce loosening due to vibrations of transit
  • Removable POL outlet and check mechanism (easy maintenance)
  • Excess flow protection integrated
  • Heavy-duty chained, outlet seal plug
  • Tamper-proof one-piece relief valve forged to body

Did you know?

It is necessary to install a male POL connection to open the outlet check to withdraw vapor from the valve
