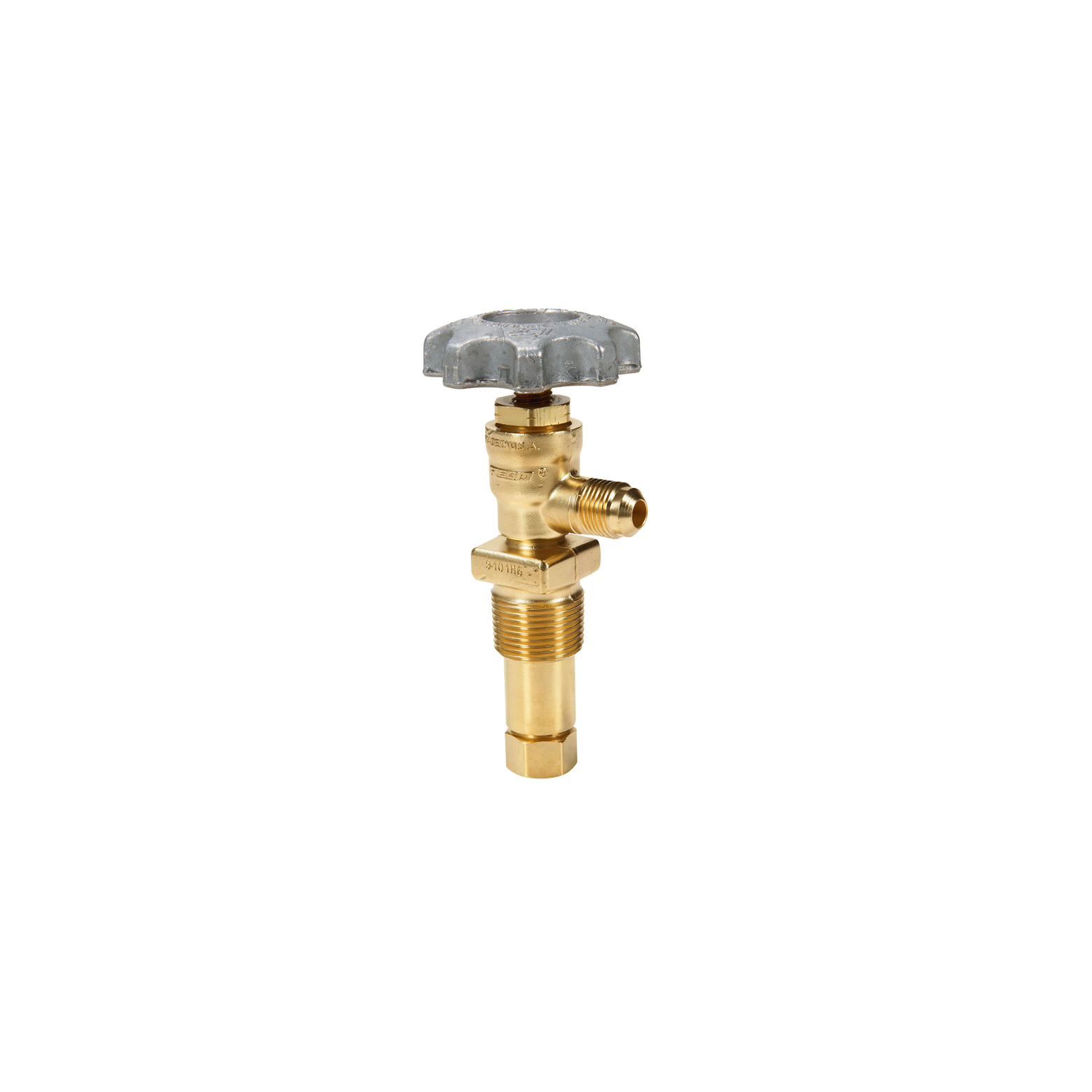

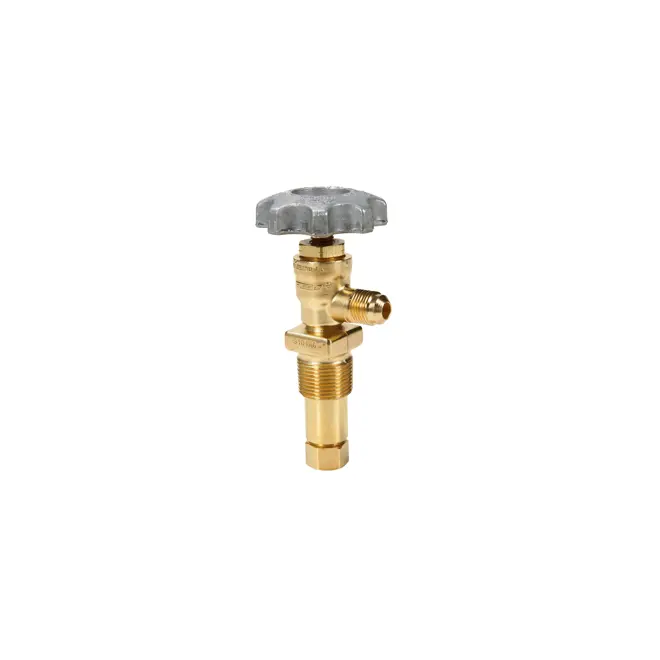

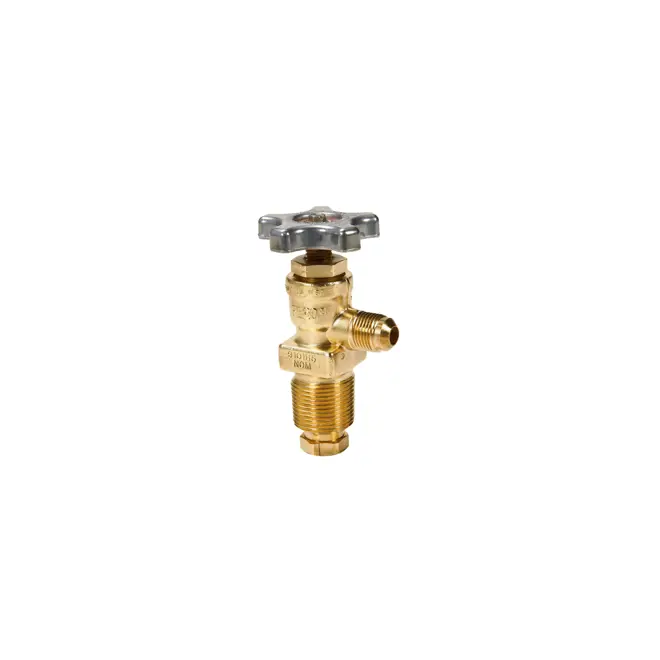

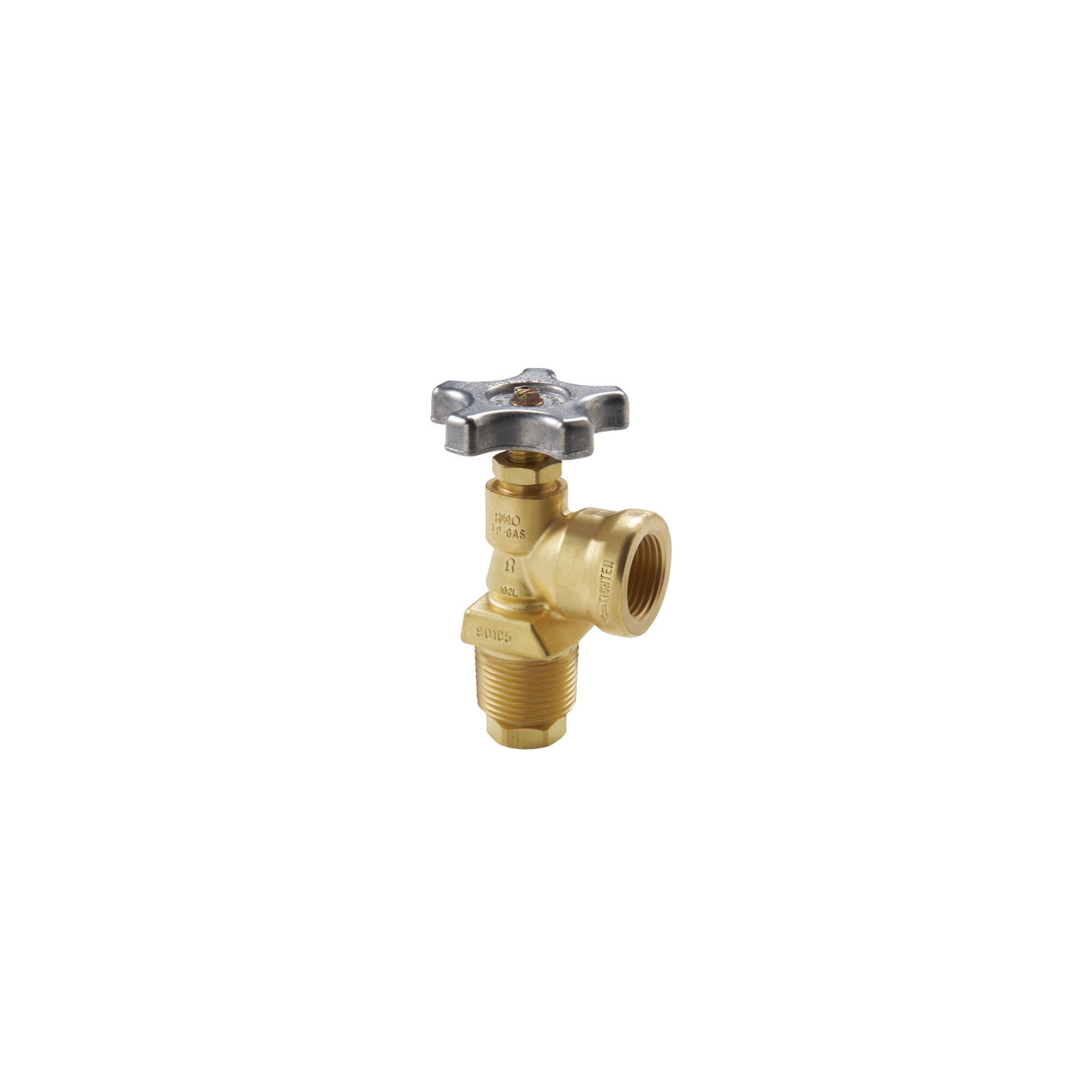

Service valves for withdrawing liquids from LPG storage units

Service valves for liquid operations are designed to withdraw liquids from the bottom of a tank or a cylinder. They are suitable for DOT cylinders, DOT forklift containers, ASME motor fuel containers and other heavy industrial BTU usages.

Product description

Valve features are tailorable to the given system they are installed into, whether that requires relief valves, weep holes, excess flow valves or increased durability for heavy-duty service. When used for liquid withdrawal the service valves will be accessorised with a dip tube to by-pass the gas and only extract the liquid from the bottom of the container.

icon 3 squares in front of eachother symbolising material

Material

Body: Forged brass
Handwheel: Aluminium die cast
Stem: Brass
Seat disc: Nylon
O-rings: Resilient rubber

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane)
Connections: Thread, M.POL (service connection)
Type: NPT
Pressure range: 25.8 bar (375 psi)
Capacity: 45.3 kg (100 lbs)
Sizes and ranges: 3/4"
Standards: UL listed, ASME

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Integrated excess flow valve
  • Faster opening and closing due to double lead thread
  • Positive sealing and shut-off
  • Metal-to-metal back seat minimises leakage when valve is open

Did you know?

Some valves are equipped with a ¼” NPT internal thread for the addition of a liquid withdrawal tube

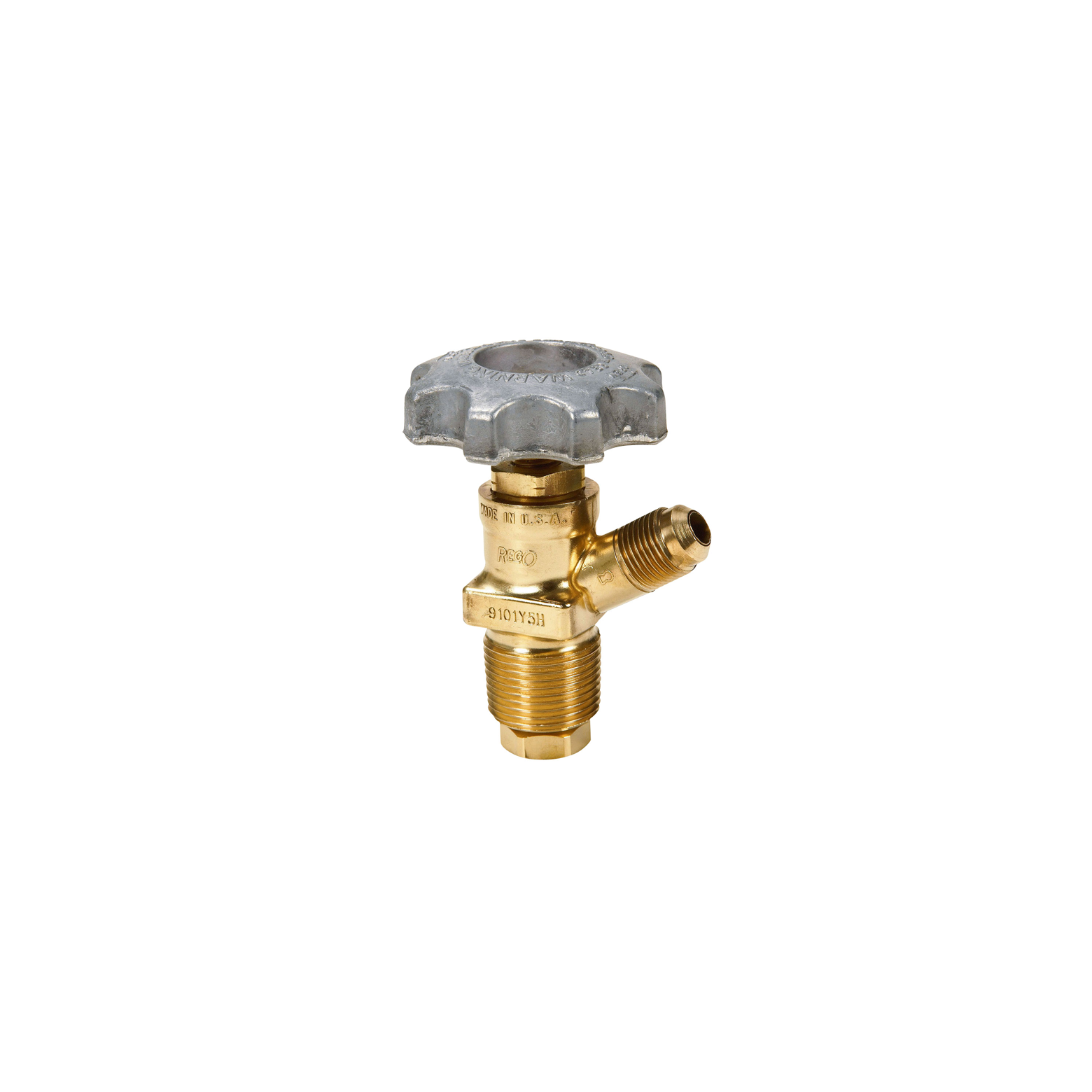

9101Y Series features a 60˚ angled outlet connection to facilitate easier and simpler fuel line make-up
