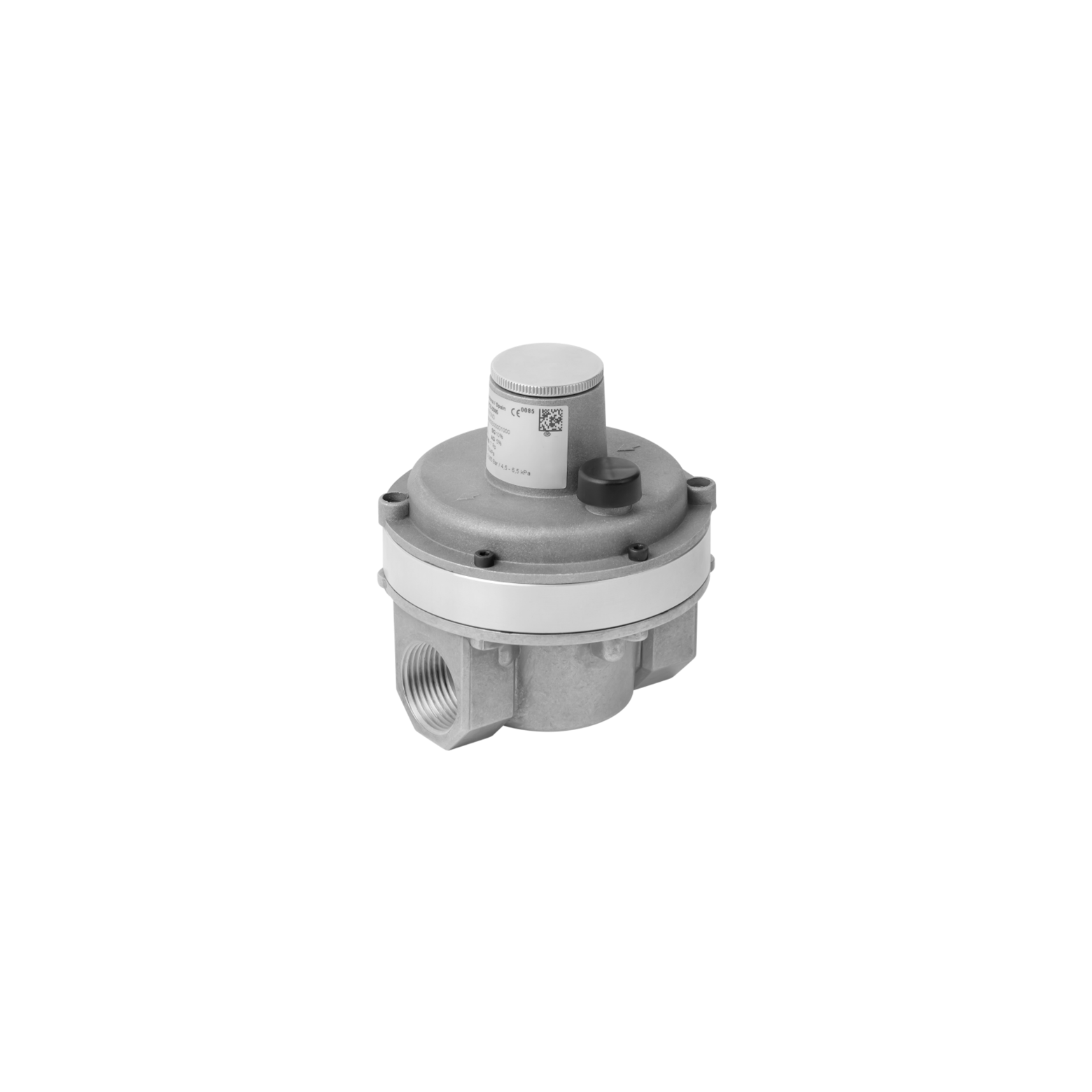

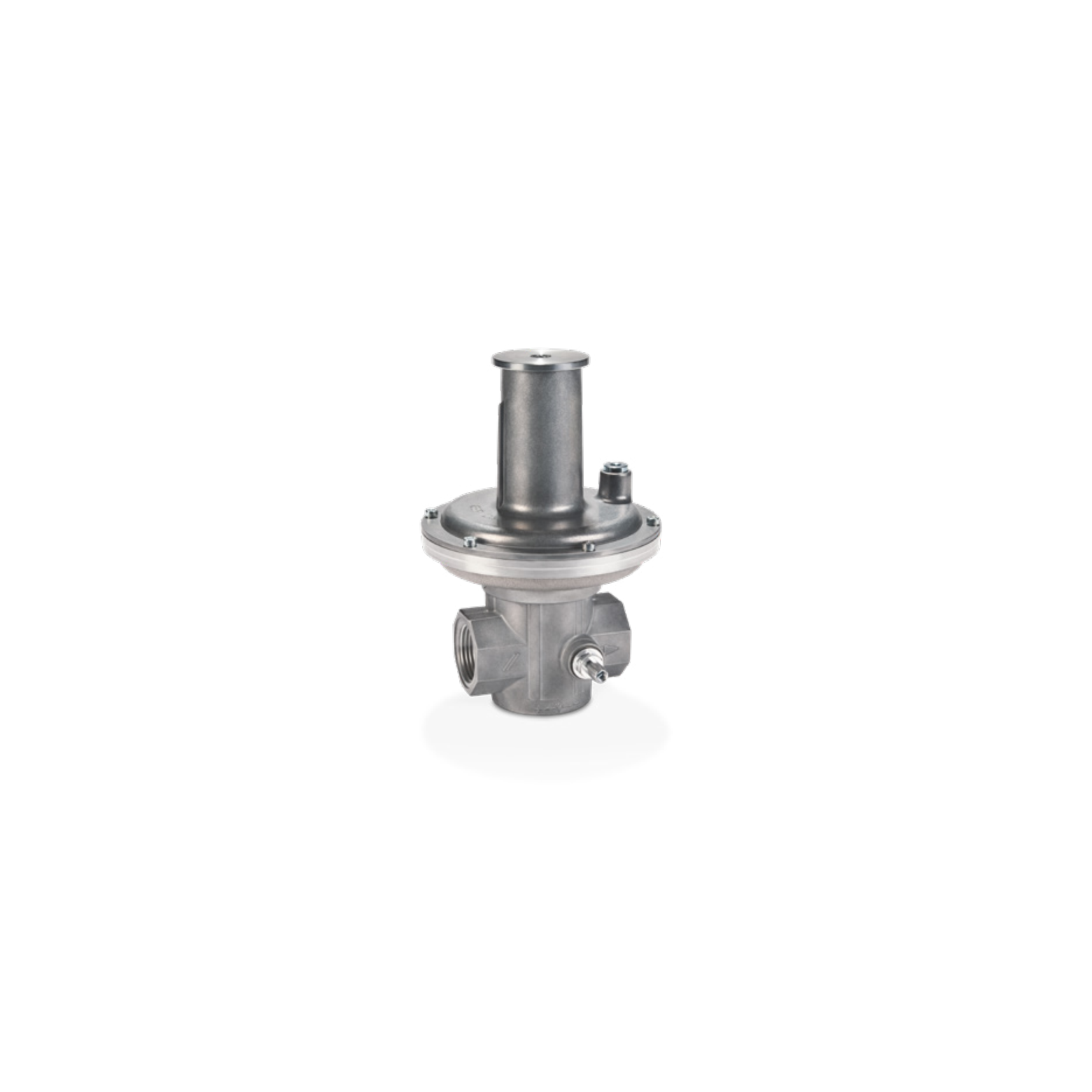

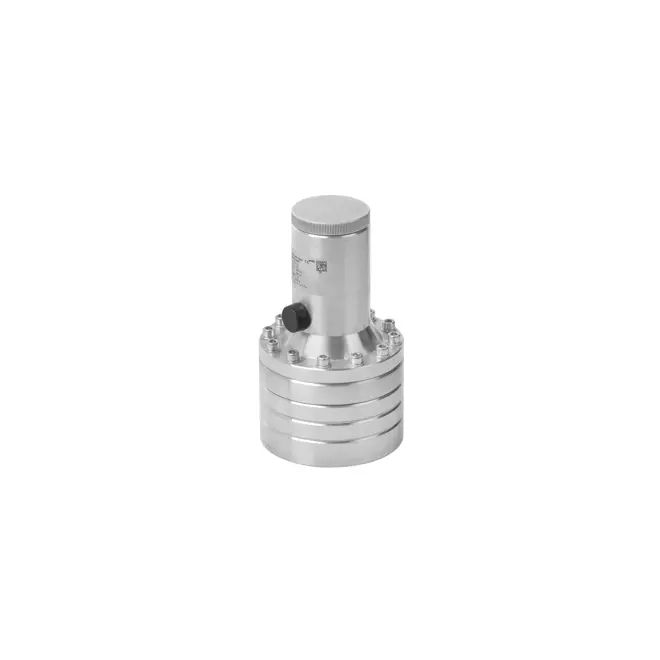

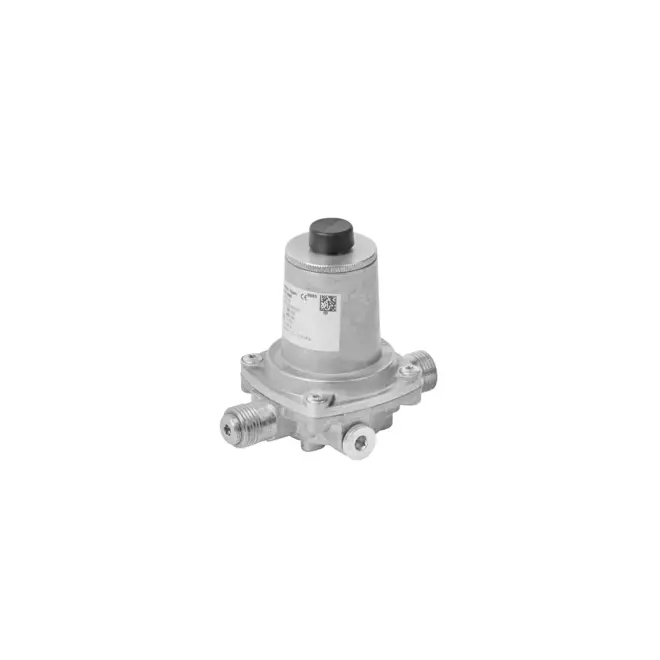

Safety relief valves for instant LPG pressure relief

Safety relief valves are last-in-line defense devices against unintentional activation of shut-off valves and prevent overpressures that can put people and the environment at risk in case of an explosion. They are usually found upstream on gas burners and other gas equipment.

Product description

In the event of a sudden pressure surge, the safety relief valve will ensure fast relief by its pop-open functionality, unlike the gradual relief of the pressure relief valve. These valves are required to be used together with safety shut-off valves (SAV).

icon 3 squares in front of eachother symbolising material


Body: Aluminium, steel
Stem and seat: Aluminium
Diaphragm: Perbunan
Disc: NBR

icon a gear with lines going up down left and right symbolising specifications


Gas types: LPG (Propane, Butane), NG (Natural Gas)
Connections: Thread
Type: G
Pressure range: Max. 20 bar (290 psi)
Capacity: Max. 1800 m3/h
Sizes and range: ½" to 1"
Standards: UL listed, CE, EAC

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features


  • High flow rates
  • Internal pulsation
  • Safety diaphragms

Did you know?

MAKEEN Gas Equipment has its own certified and approved factory for setting the pressure in safety valves
