LPG

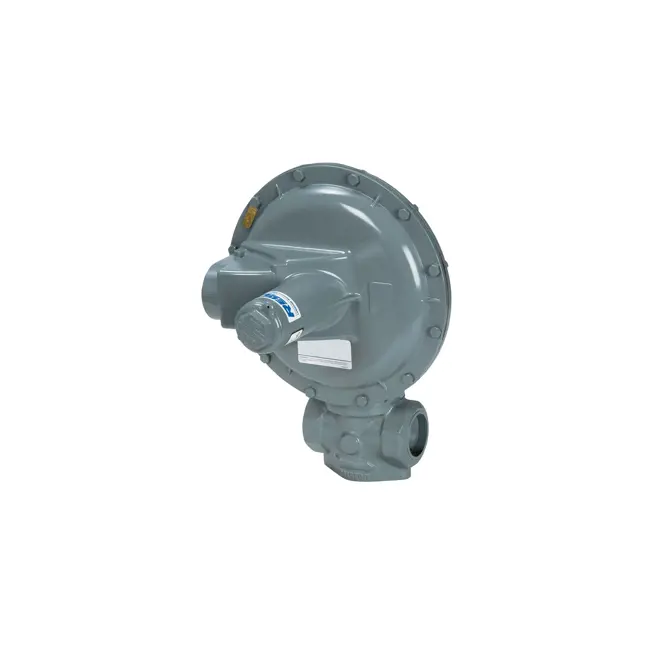

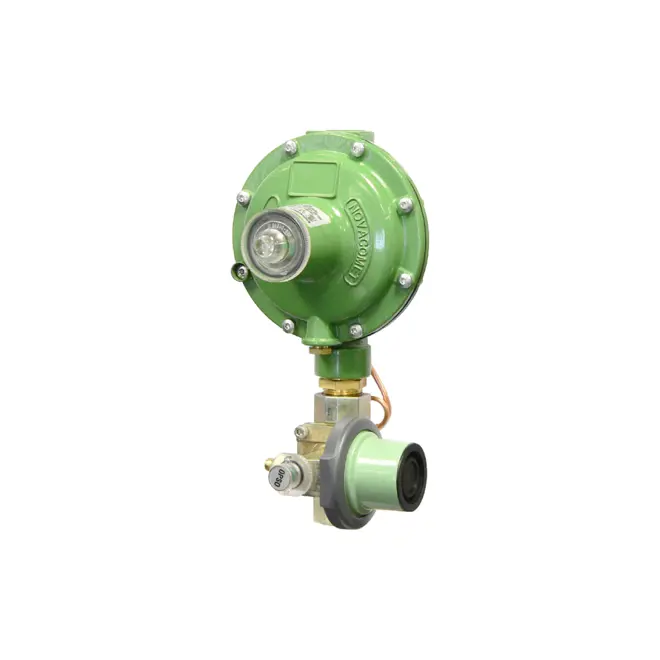

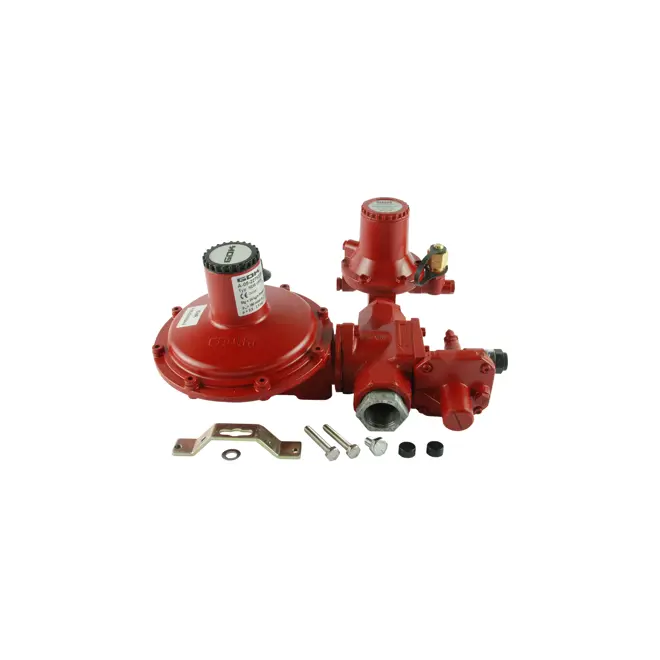

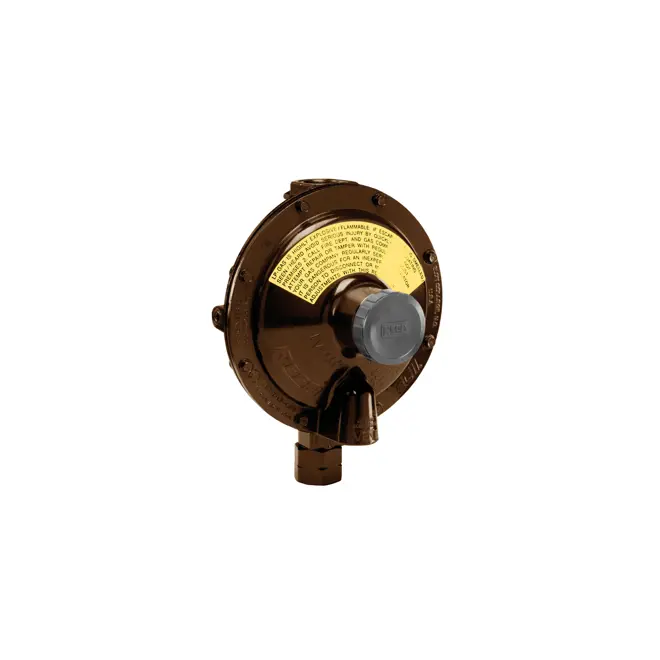

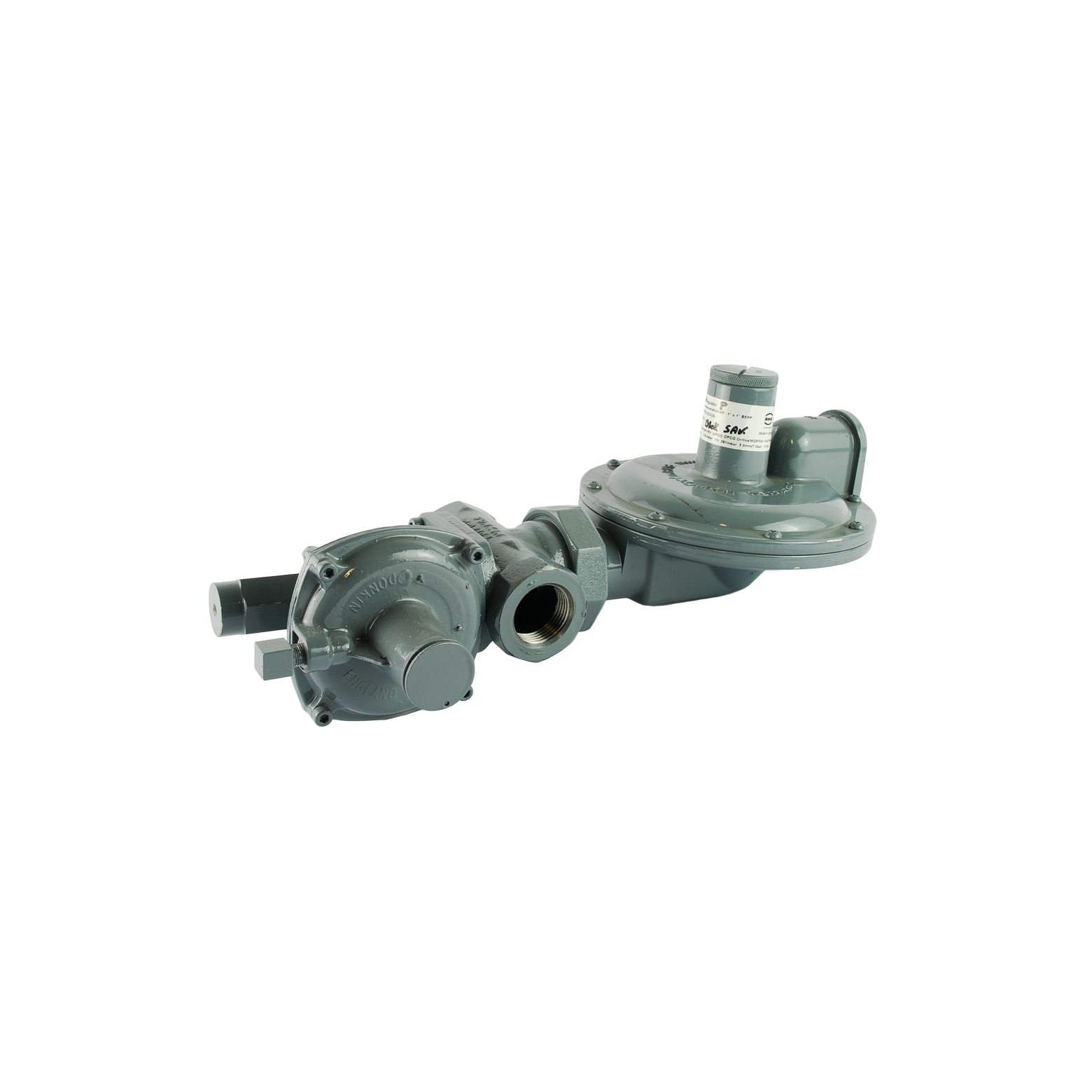

2nd stage regulators for usable LPG pressure

Second stage regulators, also known as medium pressure regulators, transform the inlet pressure level to intermediate with high accuracy and efficiency. They are suitable for systems like industrial gas burners, gas burning appliances and where quick response to flow changes are required.

Product description

2nd stage regulators collaborate with 1st stage regulators from where the inlet pressure is provided before it is further reduced downstream to match the required pressure for the appliance or machine using it.

Did you know?

Suitable for liquified petroleum and manufactured gas operations

icon 3 squares in front of eachother symbolising material

Material

Body: Aluminium, steel, zamak

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane)
Connections: Thread, flange
Type: NPT, DIN, G, ANSI
Pressure range: Max. 10 mbar (0.14 psi)
Capacity: Max. 5,000 m3/h
Sizes and range: ½" to 1" (NPT), DN25 to DN50 (DIN), 1" to 1-1/4" (G)
Standards: UL-listed, CE, EAC

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Compact design
  • Versions available with OPSO/SAV
  • Full or limited capacity relief valve options
  • Internal impulse
  • Spring loaded or pilot operated

Get in touch!

Whether you already know what you need, or you would like the opinion of an expert, we are always ready to help you out.
