Product description

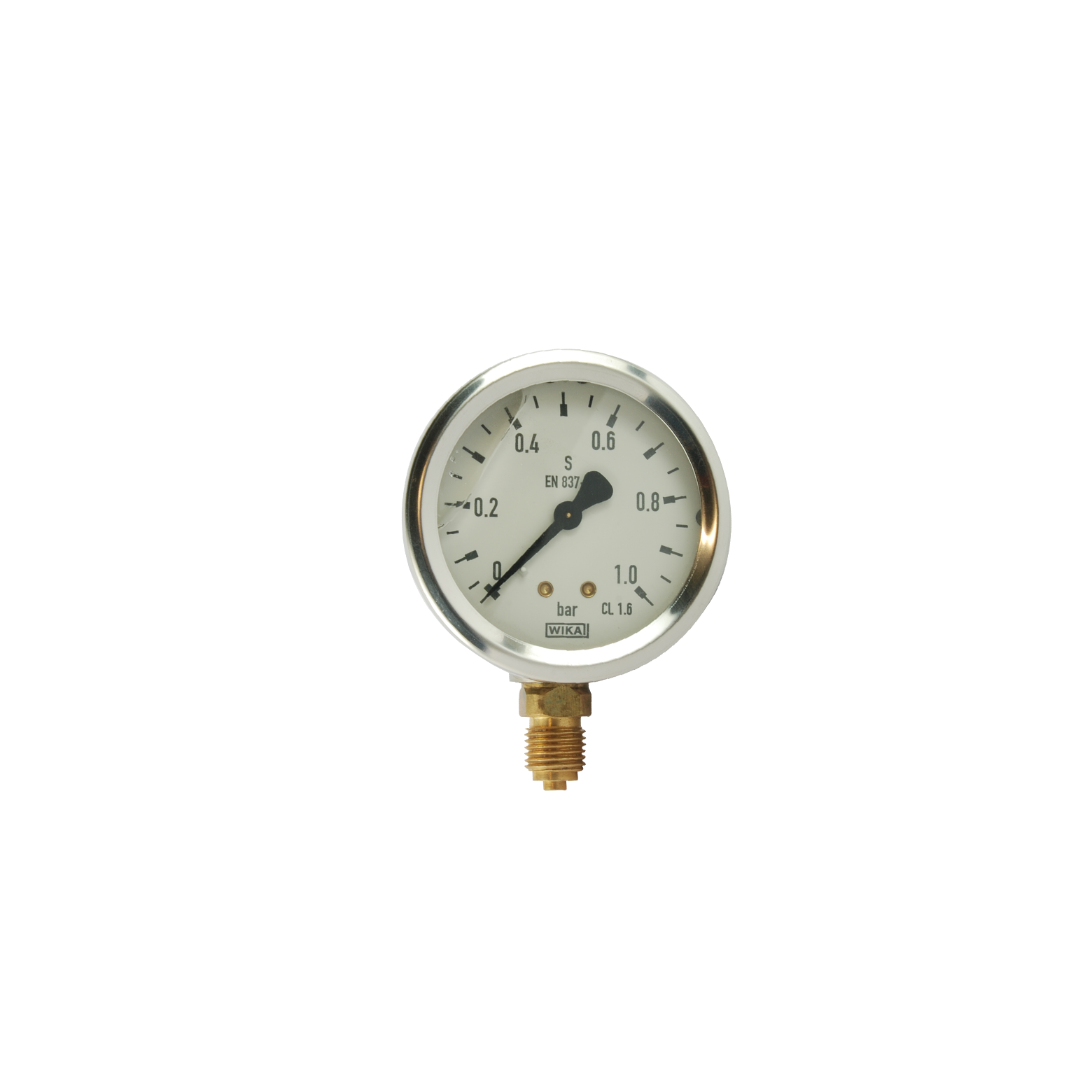

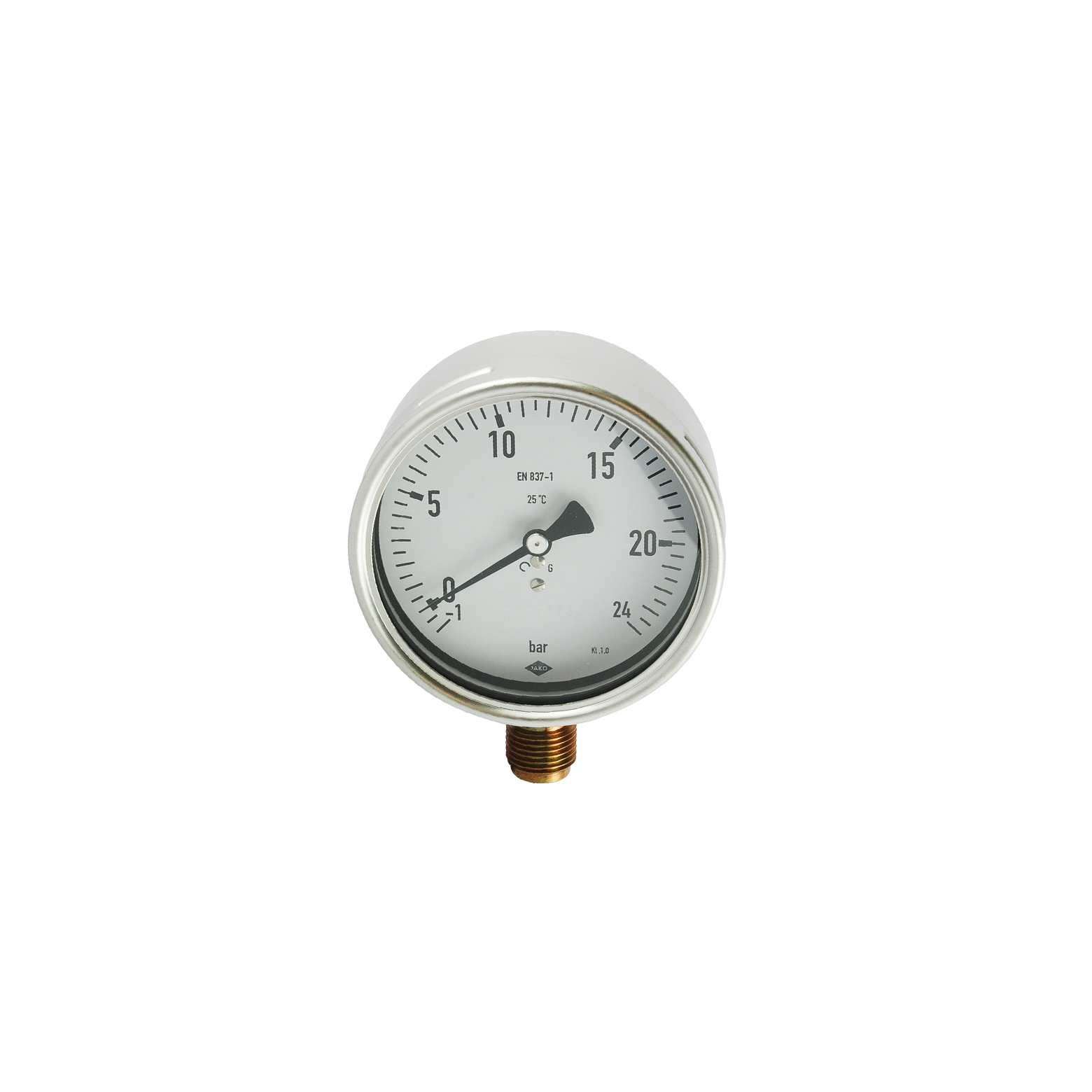

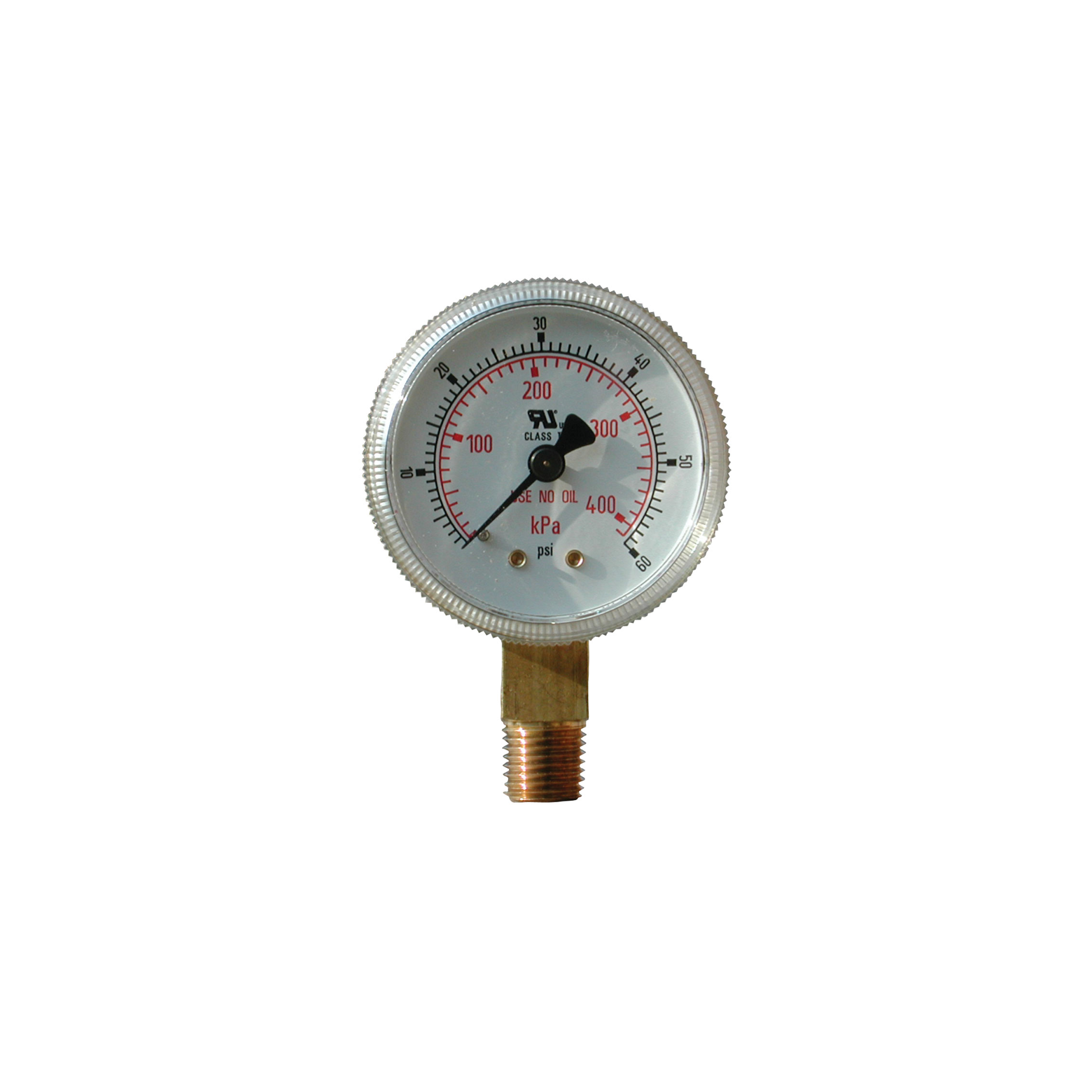

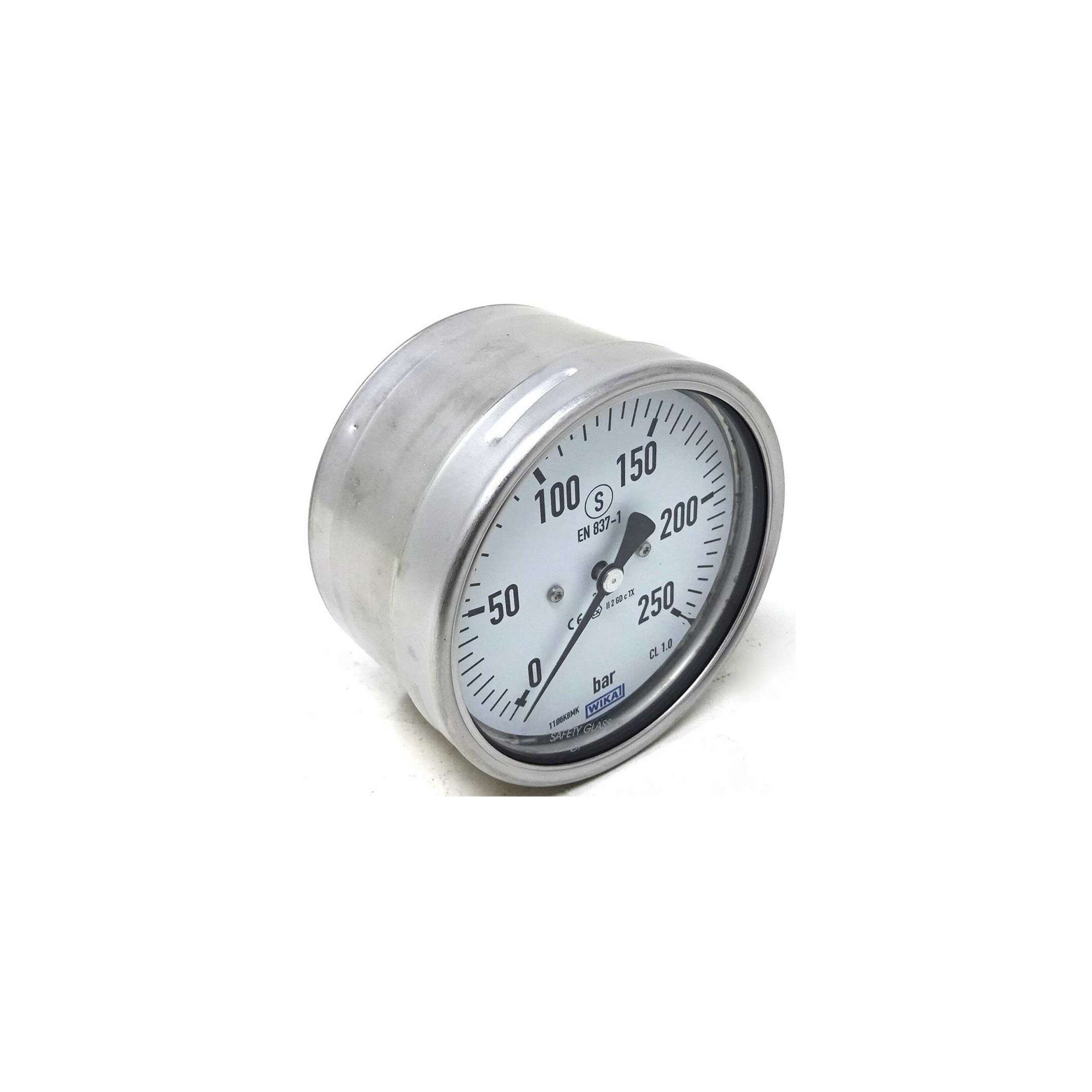

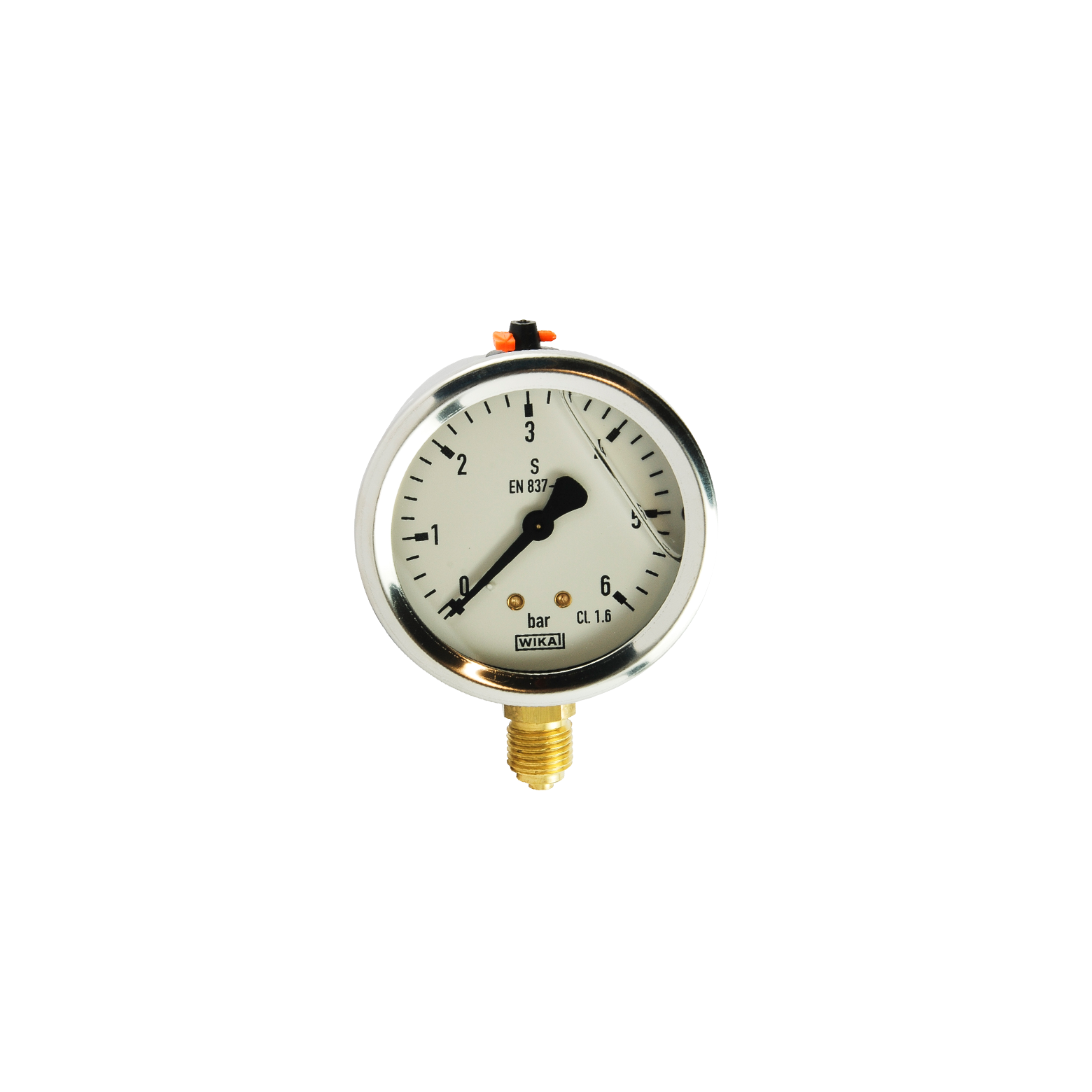

The Bourdon tube pressure gauges are capable of transforming product pressure into mechanical energy and thereby move a dial to accurately display the pressure at the current location. Gauges are often used in gas system connections where reducers are installed and a pressure drop is expected. However, monitoring is necessary to ensure the pressure is not dropping too low.

icon 3 squares in front of eachother symbolising material

Material

Body: Brass, steel, stainless steel, safety glass

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous ammonia), NG (natural gas), manufactured gasses, water and oil
Connections: Thread, flange
Type: G, NPT
Pressure range: -1 to 1600 bar (-14.5 to 23206 psi)
Dial size: 63 mm, 100 mm, 160 mm
Size and range: 1/4" to ½"
Series available: KFM, RPM and 232.30
Standards: CE, ATEX, EAC, GOST

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Increased safety in hard operating conditions
  • Helps reduce costly downtime
  • Accurate readings of pressure
  • Robust design in a high-quality material
  • Shock resistant and impeccable load-cycle stability
  • Blow-out back protects the operator in case of failure
  • Ideal for aggressive environments -and products with lower viscosity or crystallisation

Did you know?

It is recommended that pull-away valves are maintained and safety-tested periodically to confirm that they will separate properly in the event of a pull-away. Lubrication every six months is essential to the pull-away’s operation. Dry nitrogen or other inert gas is suggested as a source of pressure for pull-away tests

  • Pressure transmitter

    Pressure transmitters

    Continuously emitting electrical signals to indicate pressure levels in a system, pressure transmitters help adjust flow pressure or enable quick reaction to prevent potential accidents.
