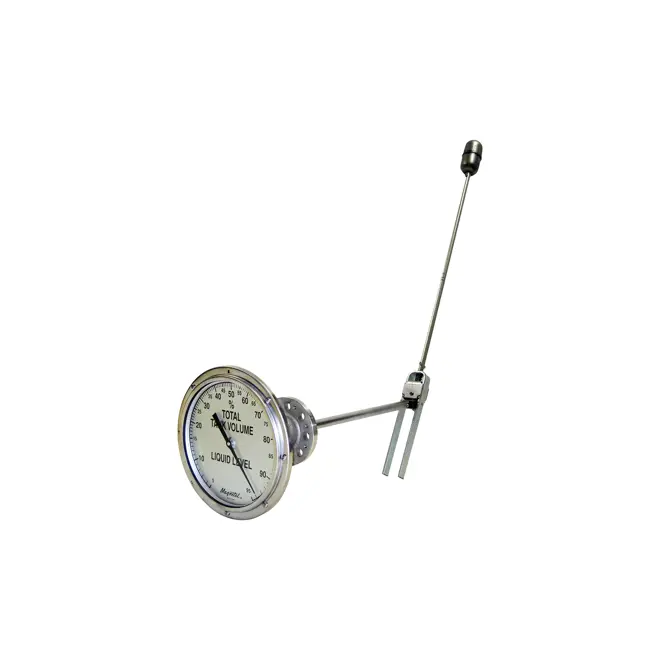

Float level gauges to measure levels in LPG and NH3 tanks and containers

Float level gauges are simple devices that measure liquid content in the likes of ISO containers, domestic tanks, bottles, storage tanks, trucks and trailers. A float level gauge is also greatly used in compressors, generators and agricultural and construction machinery.

Product description

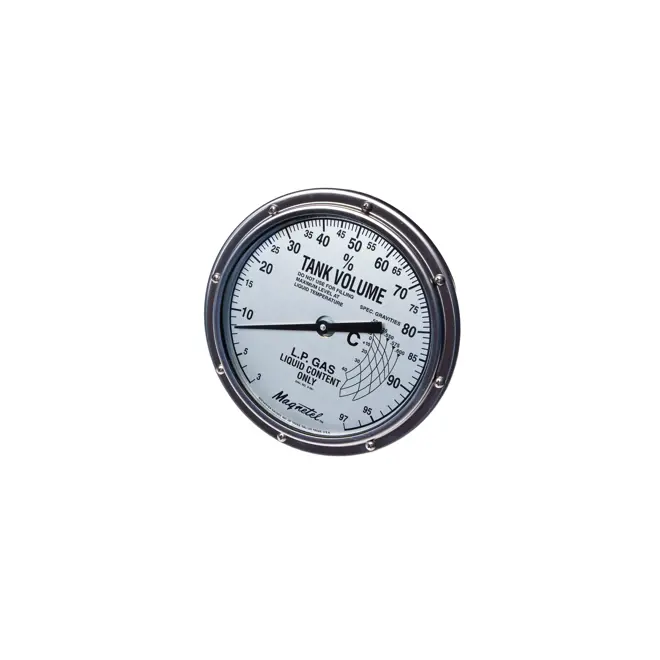

How does a float level indicator work? As the content levels of the container changes, the float level gauge's floatable device actuates a magnet to move a dial needle that displays the content levels. To choose the right float level gauge for your situation, you need to look at mounting position, liquid viscosity and the size and position of your tank. All these factors highly influence the right choice of float level gauge.

icon 3 squares in front of eachother symbolising material


Body: Aluminium, stainless steel, brass, plastic
Float: Aluminium, stainless steel, nitrile rubber, plastic
Head: Aluminium, stainless steel, brass, plastic, zinc

icon a gear with lines going up down left and right symbolising specifications


Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous Ammonia)
Connections: Thread, flange
Type: NPT
Pressure range: 40 bar (580 psi)
Temperature range: -20˚C to +60˚C (-4˚F to +140˚F)
Sizes and ranges: 3/4" to 1½"

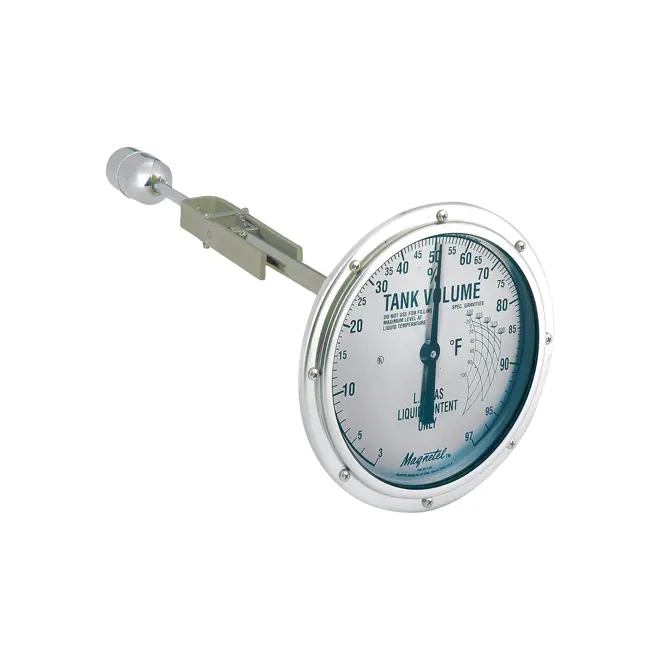

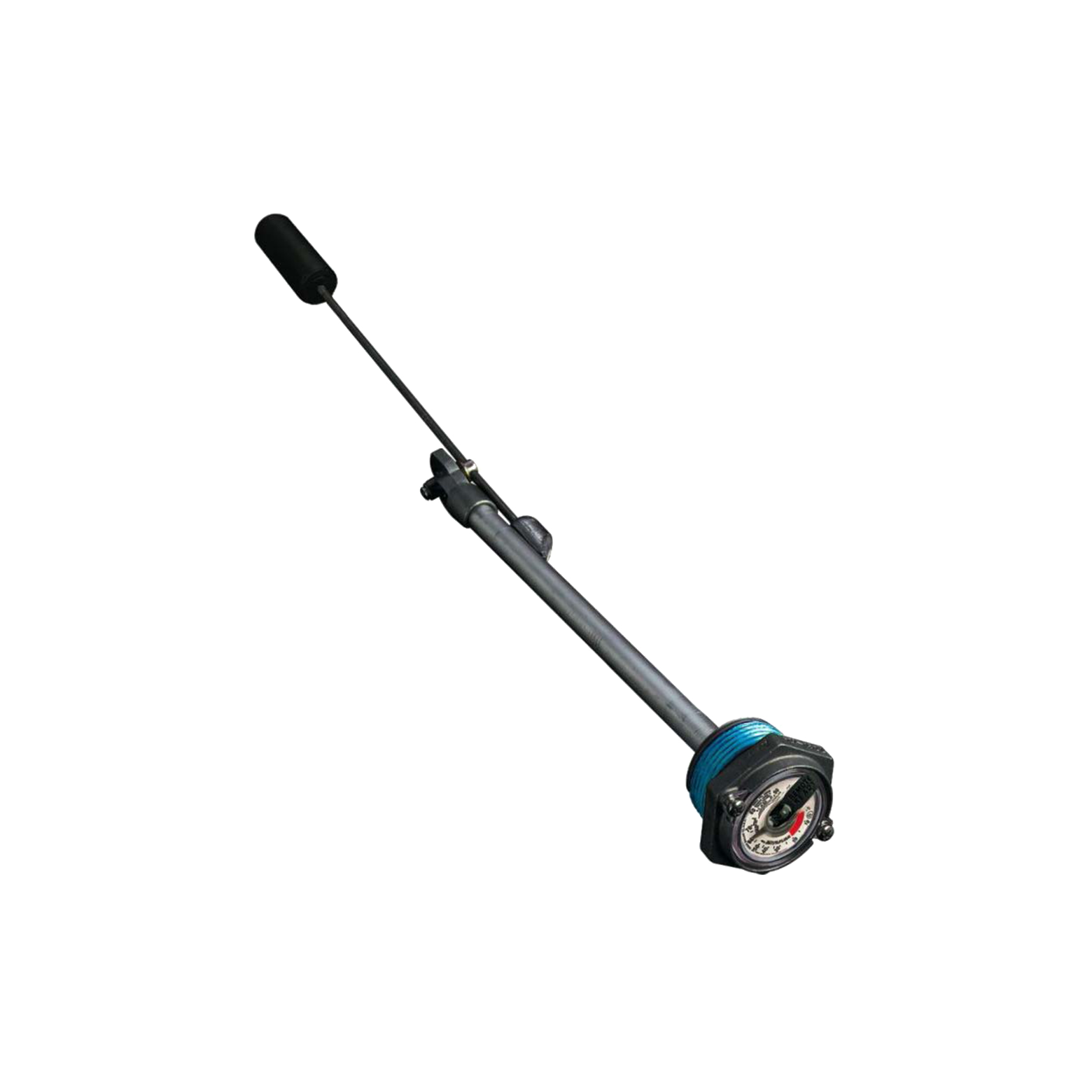

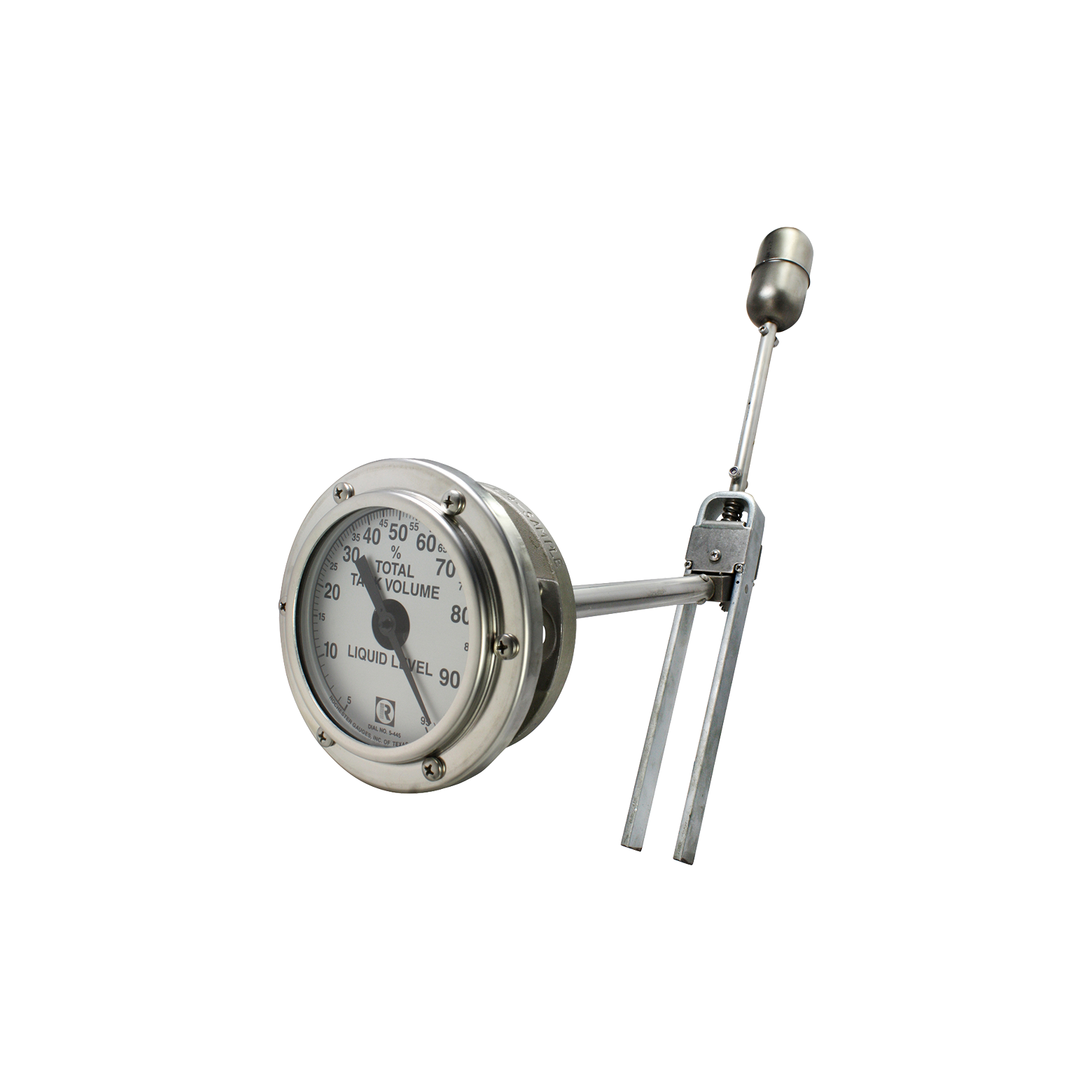

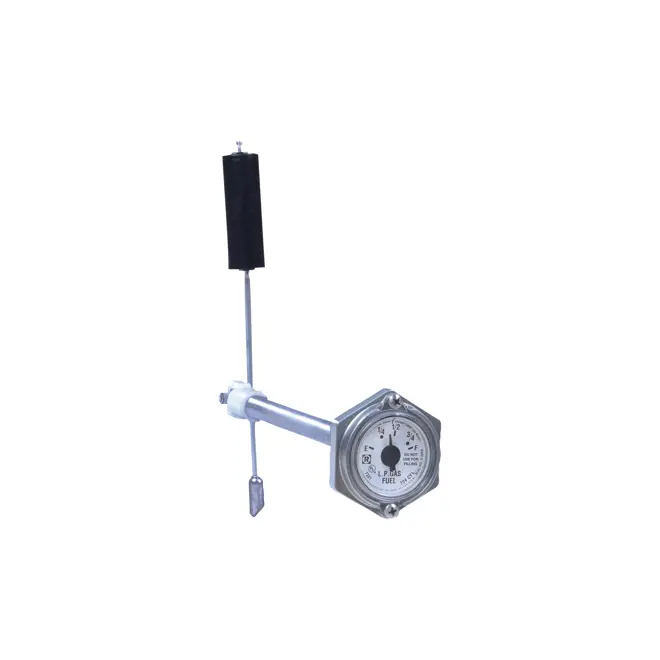

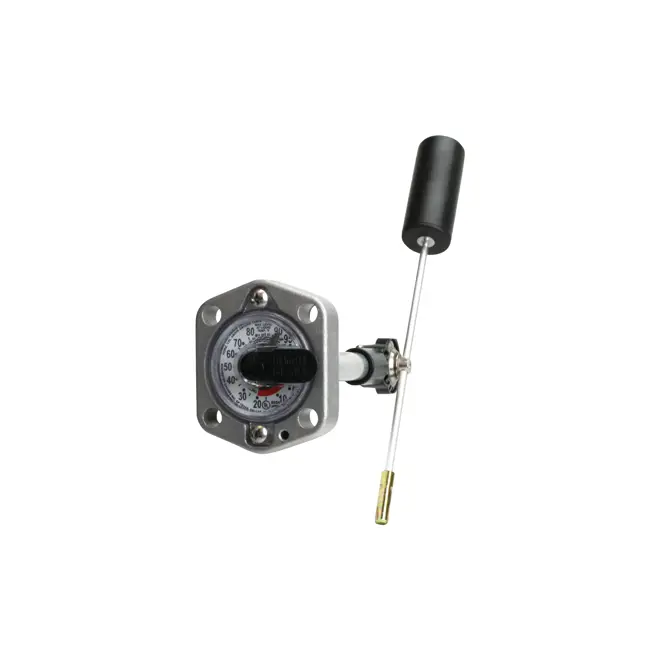

Series available: 6200, R3G, M6300, 6300, P6293 - P6493, 7200 and 7300
Standards: CE-ATEX, CE-PED

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features


  • Geared: versatile mounting options
  • Levered: Horizontal mounting
  • Spiral: vertical mounting (top of tank)
  • Remote reading possibilities - additional equipment needed
  • CSU-unit providing alarms
  • Flange range: Junior, senior, magnetel

Did you know?

Float level gauges can also be used for: fuel, diesel fuel, gasoline, hydraulic oil, lubricating oil, water, chemicals, refrigerants, liquefied gases such as Freon, CO2, Sulphur dioxide etc.

Alternative products

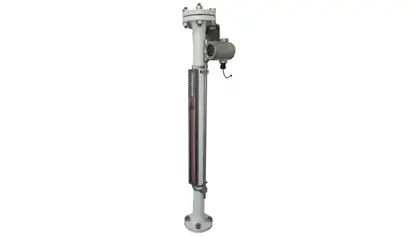

  • Image of bypass level indicator

    Bypass level indicators

    Using a built-in magnetic system, these simple devices indicate a tank's liquid or vapour content level. They can be used in all industrial situations, enabling easy monitoring of gas levels.

    See our Bypass level indicators

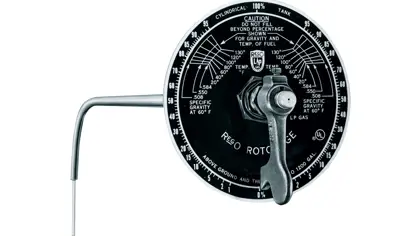

  • Rotogage A9091


    Simple liquid level readings of tanks by use of a dip tube and a dial. Rotogages indicate the percentage of liquid in a tank by measuring where vapour exits the vent.

    See our Rotogages
