Product description

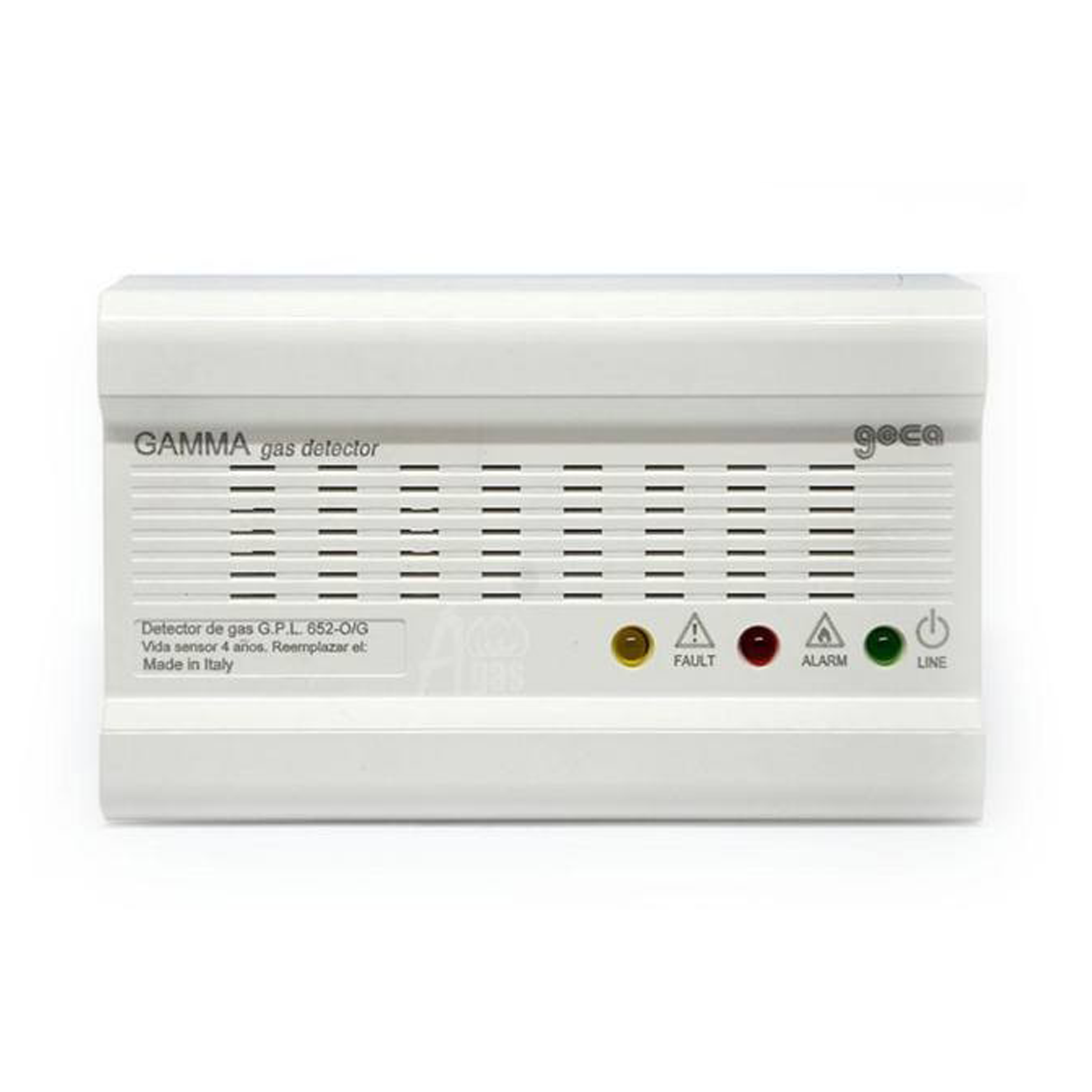

The all-in-one solution includes all necessary functionality to detect and properly alarm if gas leakage occurs in domestic gas applications.

icon 3 squares in front of eachother symbolising material

Material

All parts are LPG and NH3 compatible.

More information can be provided upon request.

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NG (Natural Gas), CO, CO2
Power supply: 230 Vac, 50 to 60 Hz and 12Vdc
Absorption: 4.5VA max (230Vac) to 2.5W (12Vdc)
Alarm level: 10% L.E.L. - Measuring range: 0÷20% LEL
Sensor: Catalytic
Alarms: Optical (red LED) and acoustic (buzzer 85dB/1m) IP42
Standards: CE, EN 50194

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Compact all-in-one design
  • Inbuilt panel
  • Flashing LED
  • Acoustic alarm sound
  • Replaceable sensor

Did you know?

The domestic gas detectors are available as a kit which includes a solenoid valve for easy installation

Some of the models allow for simple maintenance with only a change of the sensor as opposed to changing the entire detector unit

  • Gas control panel

    Gas control panels

    Essential in a gas leak detection system, these devices can be programmed for different reactions in the event of a leak, such as sounding a siren, stopping flow of gas or starting sprinklers.

    See our Gas control panels

  • Ex. proof gas detector

    Gas detector (ex. proof)

    Invaluable sensors for industrial gas detection, able to sense if the gas levels in their surroundings exceed a safe level. In explosion-proof design that prevents ignition of gas.

    See our Ex-proof gas detector
