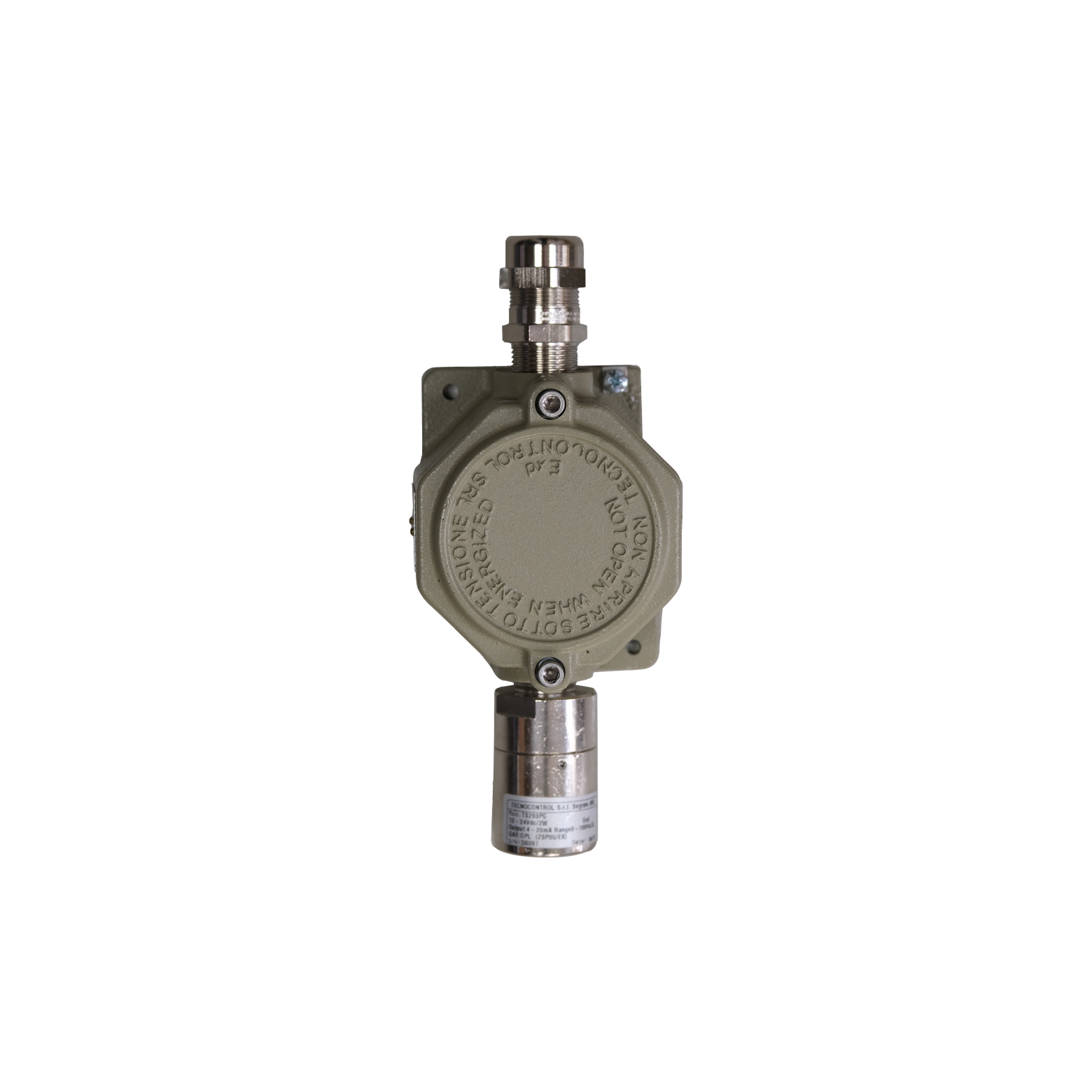

Ex. proof gas detector

Product description

The gas detectors are sensors that are part of a system with a receiver and usually also an alarm. They rely on the control panel to react to the gas level inputs provided by them. As they are explosion proof devices, they prevent dangerous ignition of leaked or internal gas.

icon 3 squares in front of eachother symbolising material

Material

All parts are LPG and NH3 compatible.

More information can be provided upon request.

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous Ammonia), NG (Natural Gas), CO2, Oxygen, Nitrogen
Power supply: 12 to 24 Vdc (-10/+15%) 2W
Output: 4 to 20 mA
Standard range: 0 to 20% lower explosion level (LEL)
Limits: 35% LEL (32 mA)
Temperature range: -20˚C to + 55˚C (-4˚F to +131˚F)
Humidity: 5 to 95%, RH non condensed
Standards: CE, ATEX

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Life span of 5 years
  • Accuracy of ± 10 %
  • Pre-calibrated cartridges
  • Replaceable cartridge sensor
  • Polarised terminals
  • Automatic calibration simplified by 'F1' and 'F2'

Did you know?

The gas detectors can be calibrated for all kinds of gases and different temperatures

The devices can be equipped with sensory elements: catalytic, pellistor, electrochemical and infrared

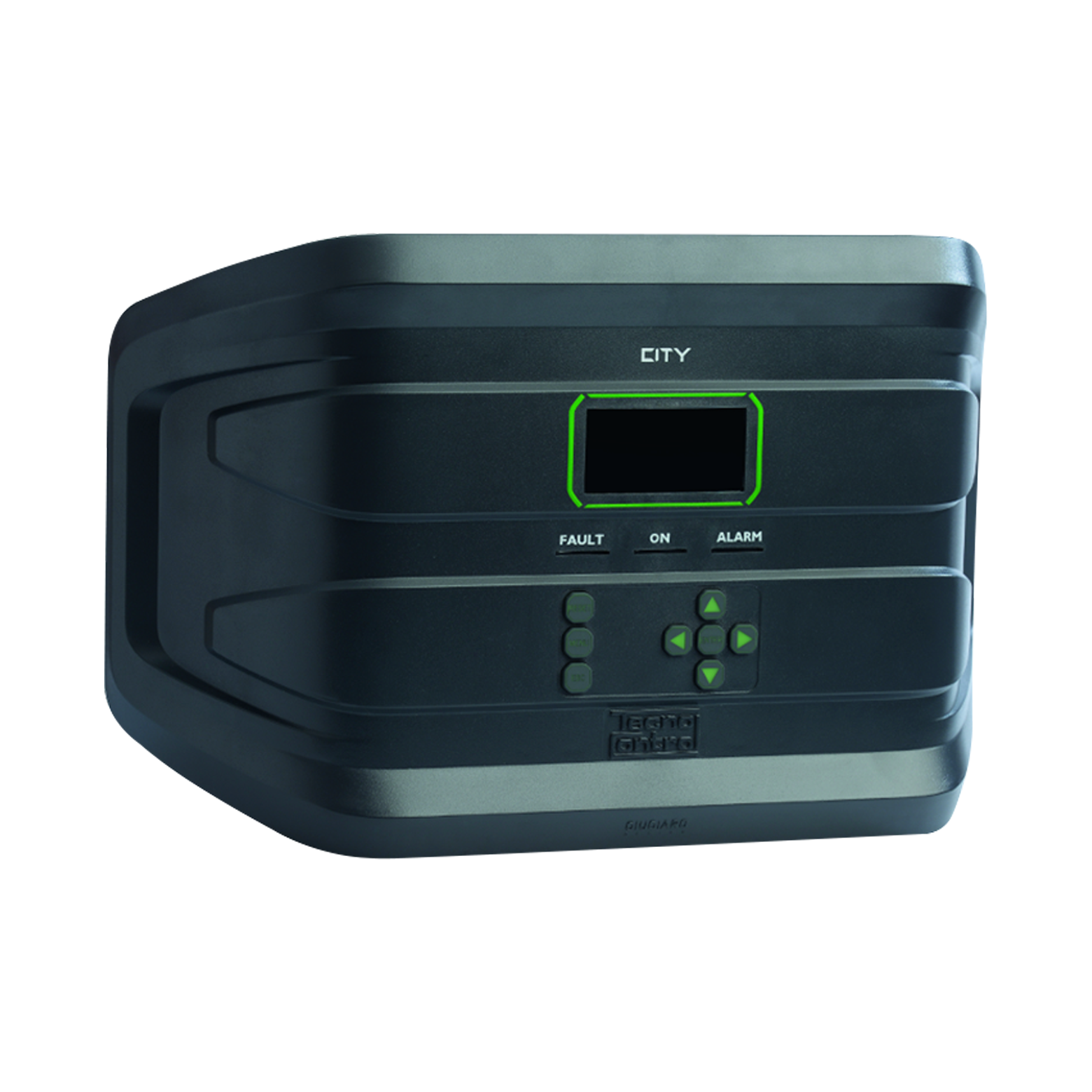

  • Gas control panel

    Gas control panels

    Essential in a gas leak detection system, these devices can be programmed for different reactions in the event of a leak, such as sounding a siren, stopping flow of gas or starting sprinklers.

    See our Gas control panels

  • A domestic gas detector

    Gas detectors (domestic)

    Indispensable, all-in-one solutions for domestic gas application safety - able to detect gas, sound alarms and cut off gas flow to ensure the safety of residents.

    See our Domestic gas detectors
