CRYO

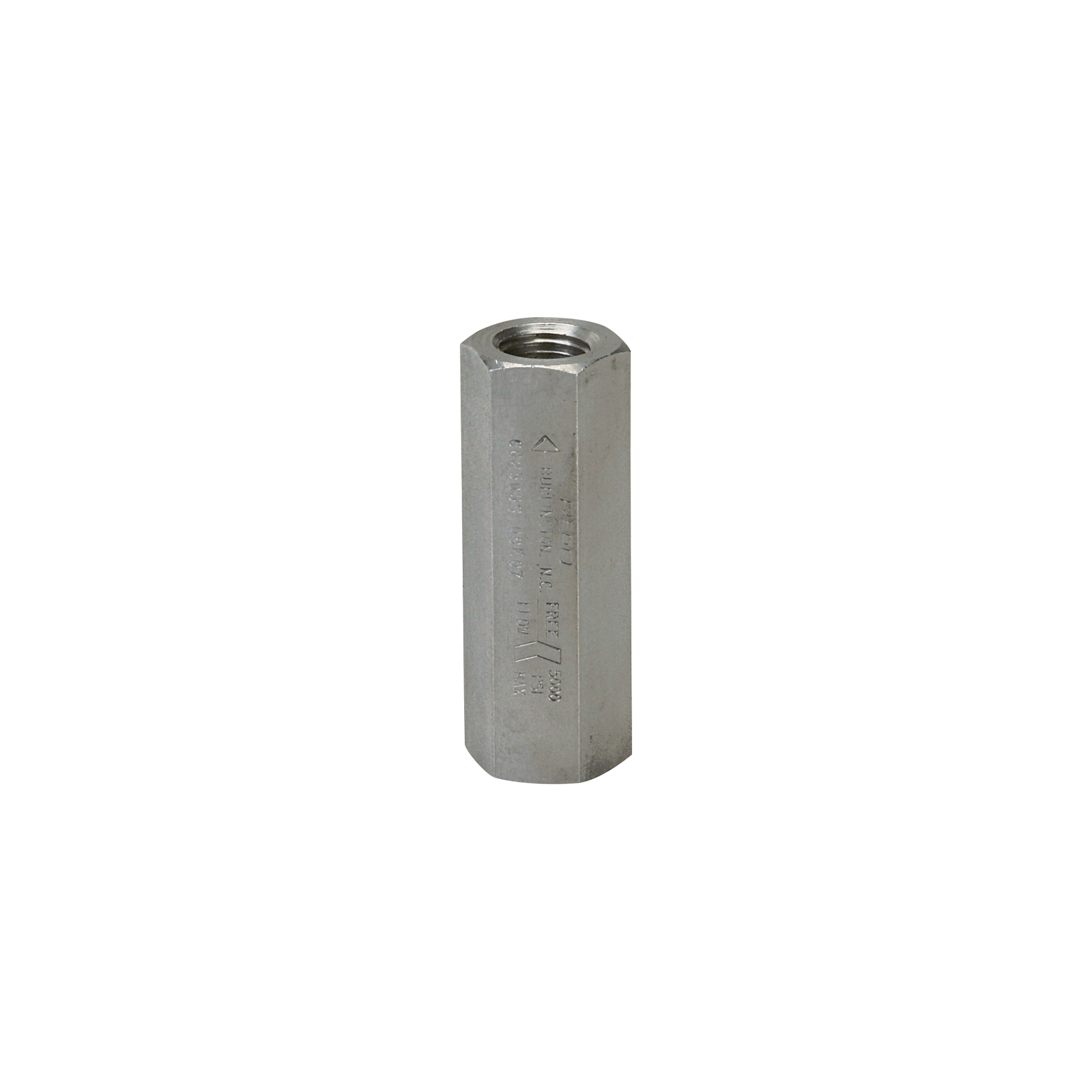

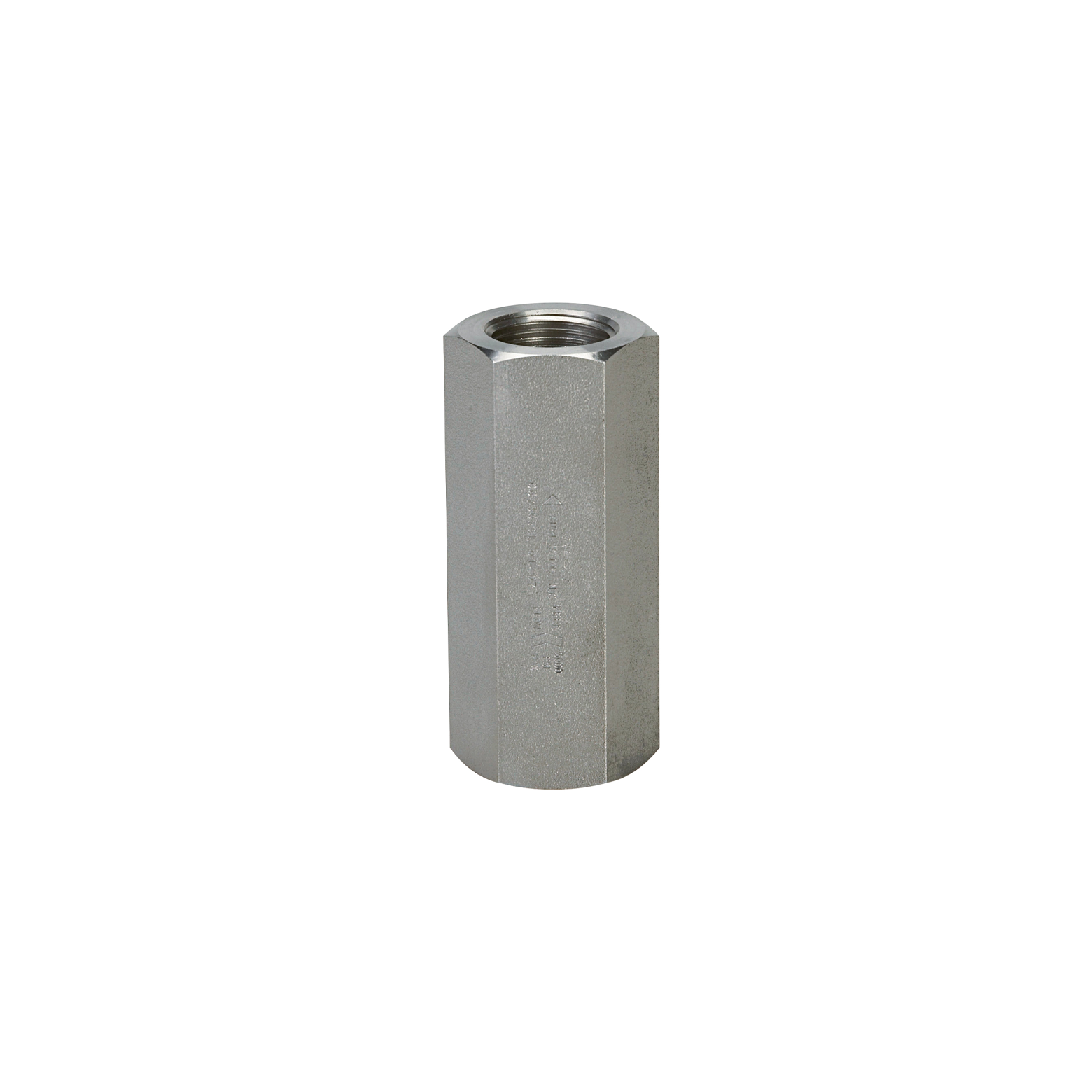

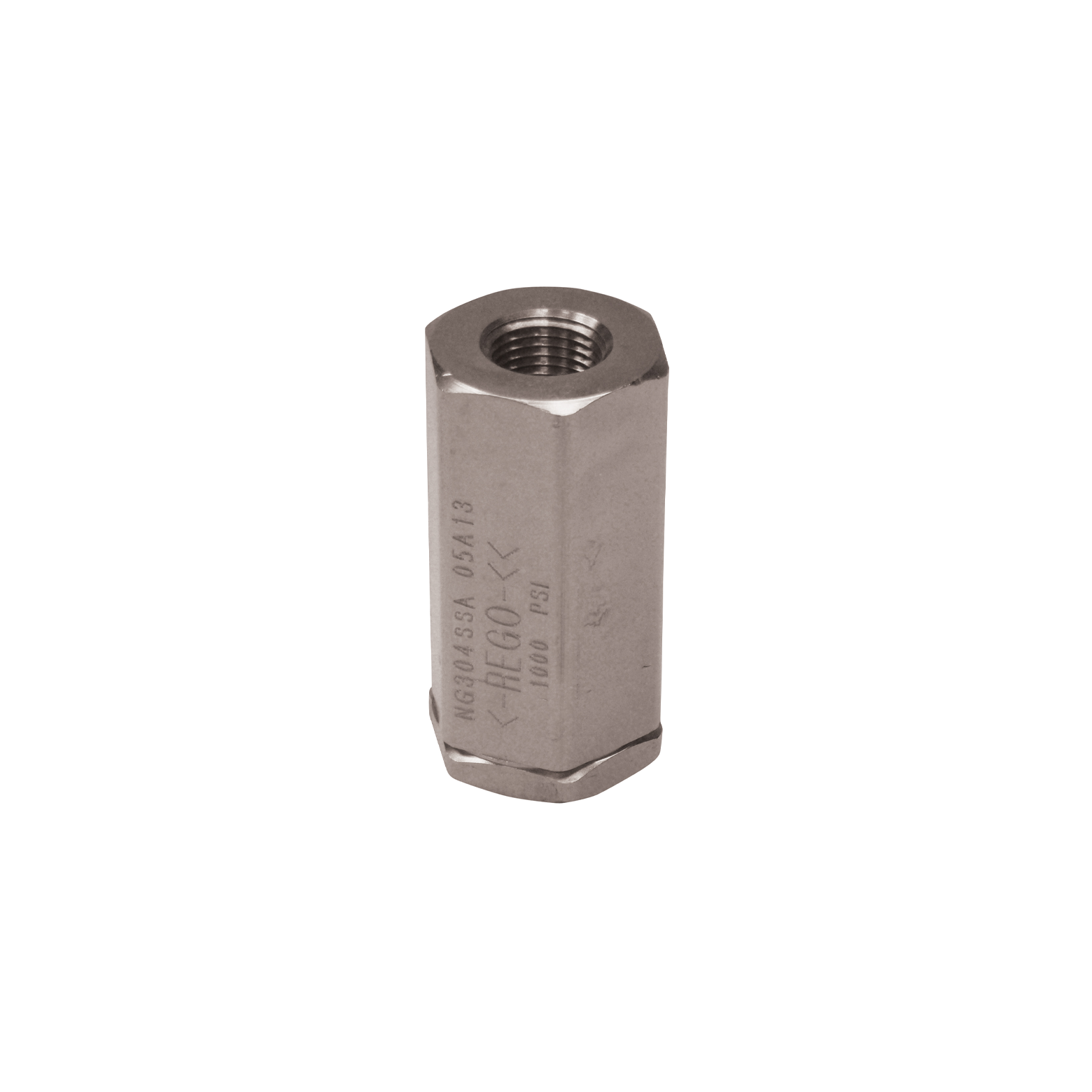

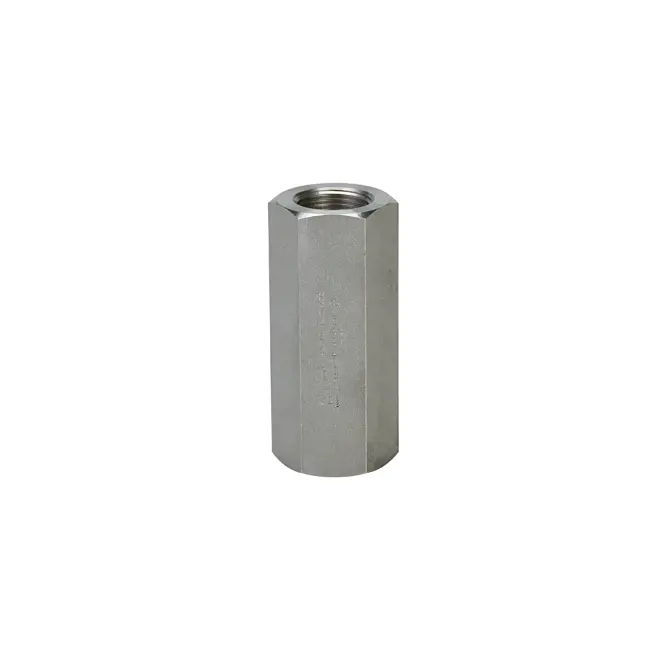

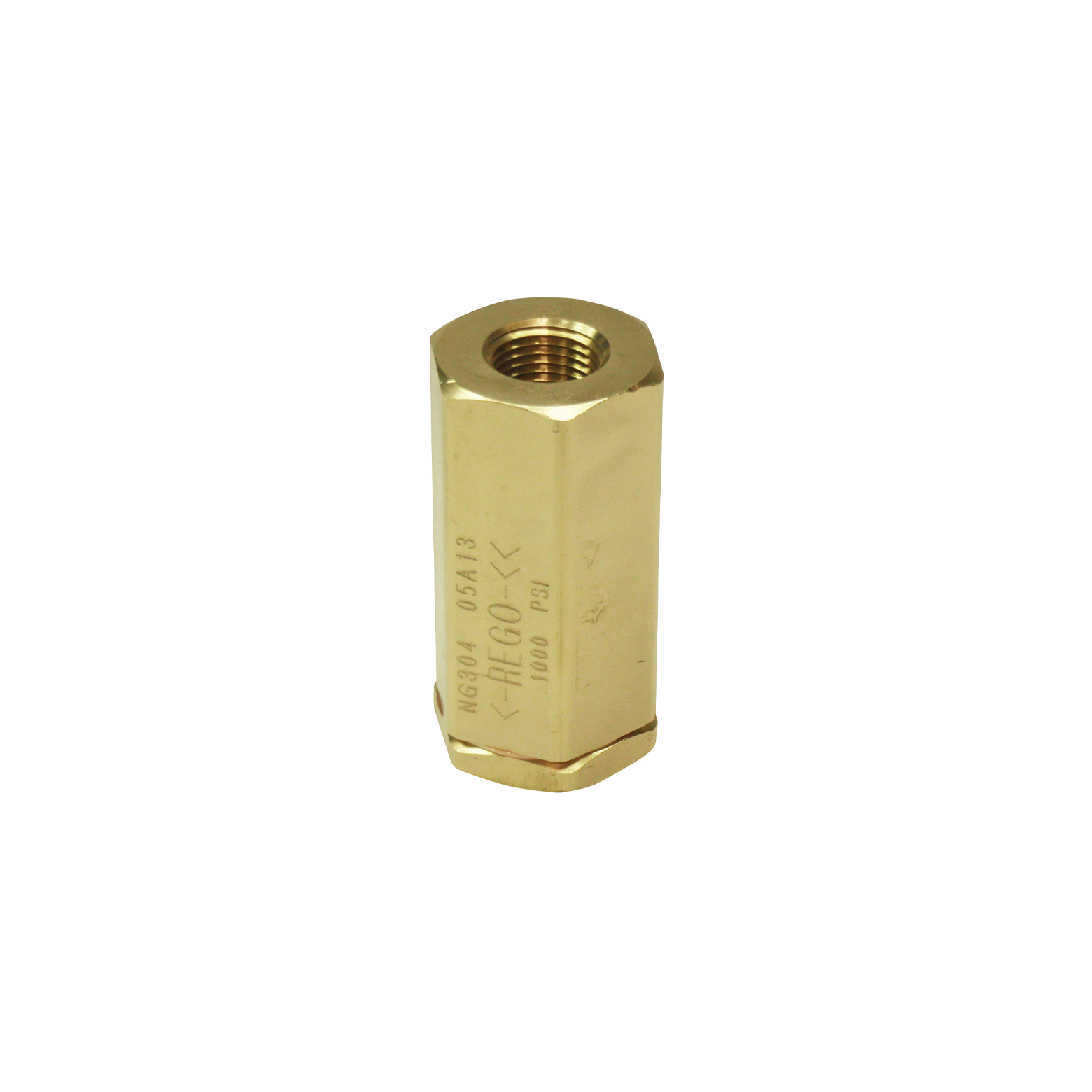

Spring check valves for in-line use in cryogenic applications

Spring check valves are smaller check valves that are some of the most commonly used supplemental units for a fluid system. Their smaller frames make them suitable for horizontal in-line installation, after a pump, to prevent damage from reversed transmission of pressure and flow.

Product description

Compared to other types of check valves, these tolerate higher pressures with the same back-flow prevention functionality.

icon 3 squares in front of eachother symbolising material

Material

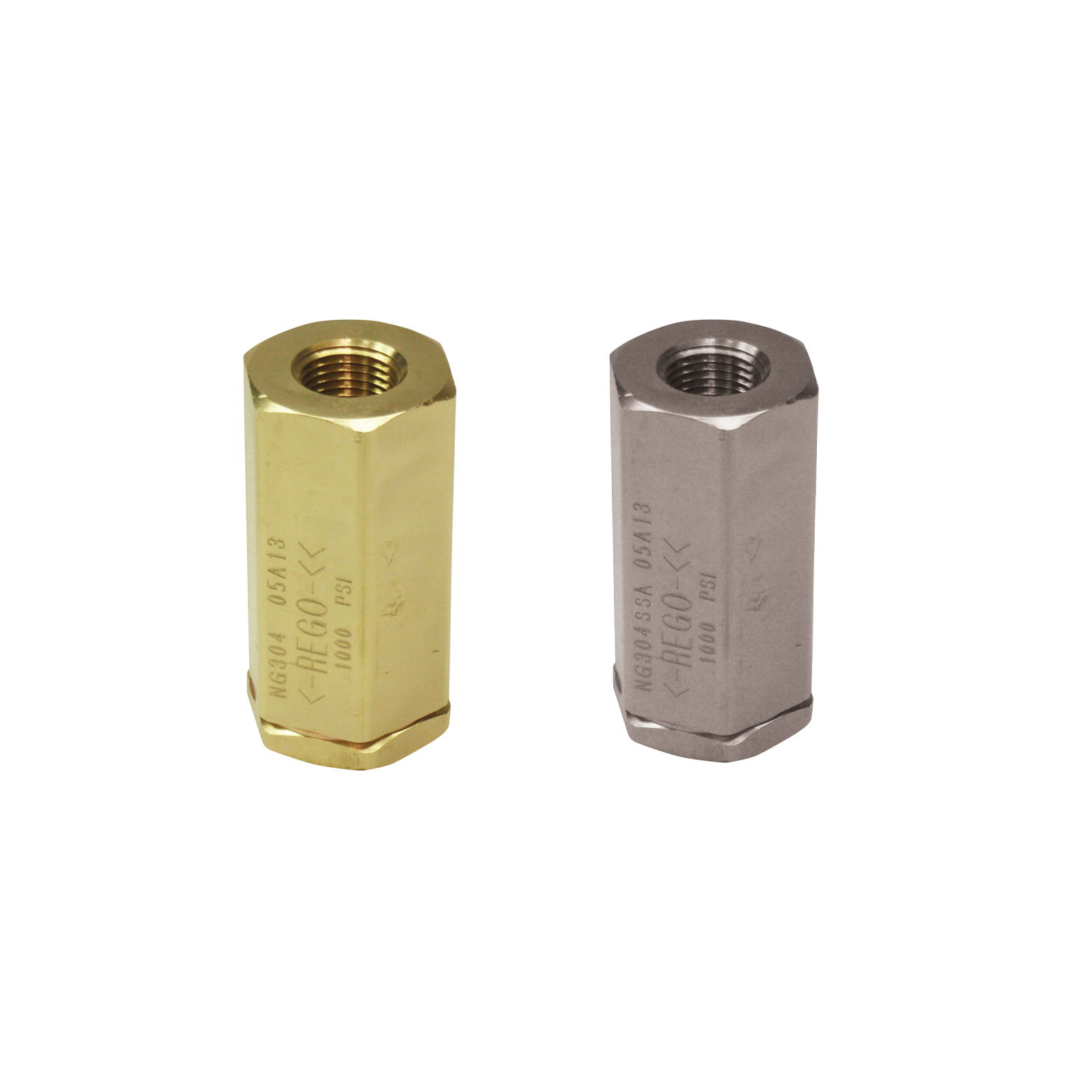

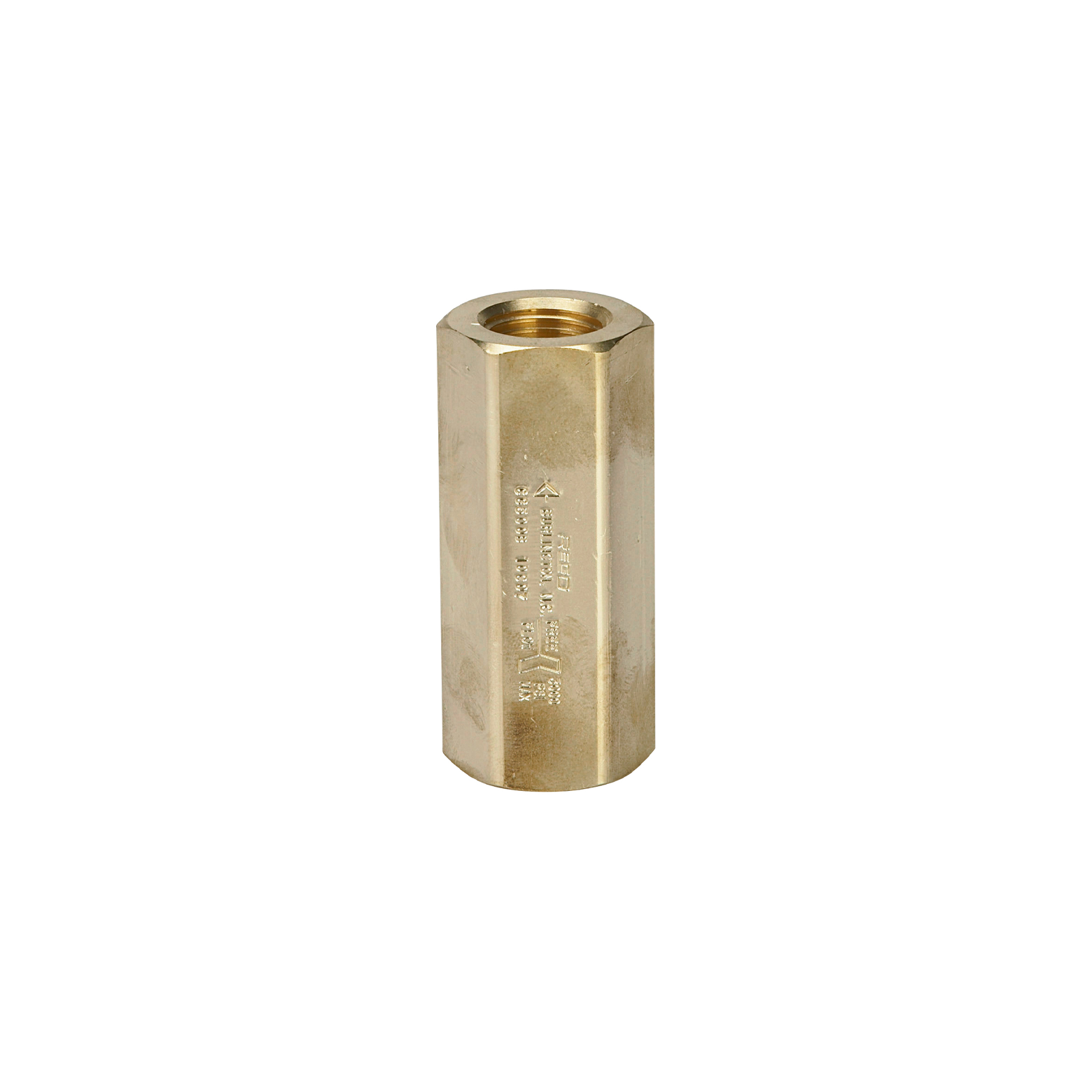

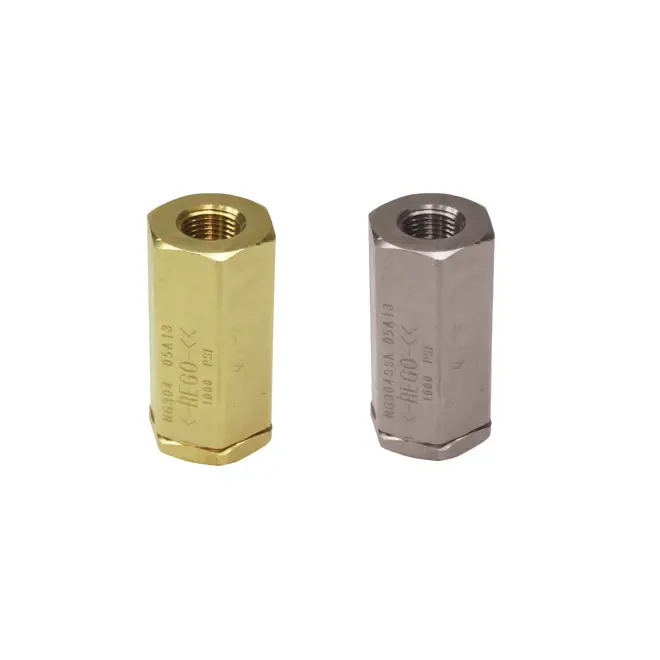

Body: Brass, stainless steel
Spring: Stainless steel
Piston: Stainless steel
O-ring (soft seat type): Viton
Metal seat: Stainless steel

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LNG (liquefied natural gas), Oxygen, Nitrogen, CO2, Argon
Connections: Thread
Type: NPT
Pressure range: 17.2 to 138 bar (250 to 2000 psi)
Opening pressure: 60 mbar (1 psi)
Temperature range: -196˚C to +74˚C (-320˚F to +165˚F)

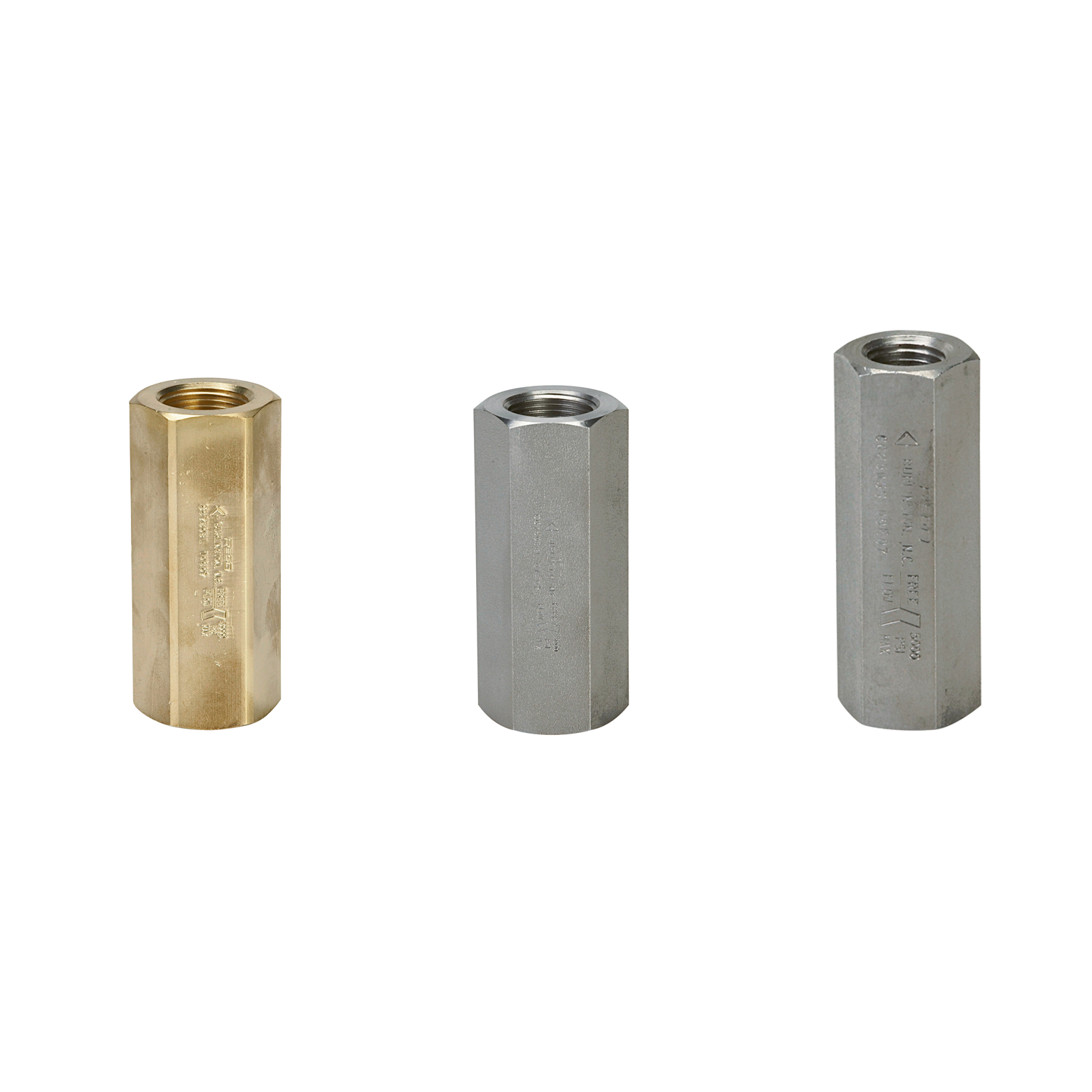

Sizes and range: 1/4" to 3/4"
Series: CG and CV series
Standards: PED, ASME, CRN

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Single-directional flow
  • Flow direction indicator on body
  • High flow capacity
  • Low pressure drop
  • Cleaned for Oxygen use per CGA G-4.1

Did you know?

The valves are available with soft or metal seat
