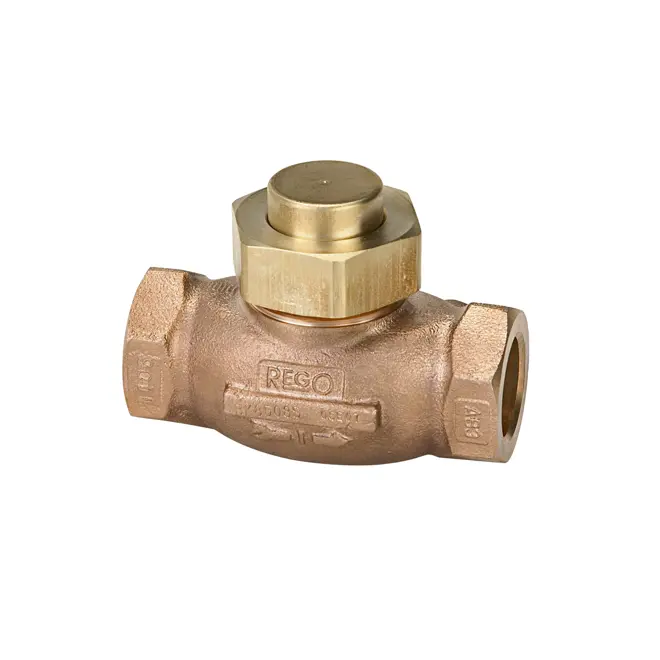

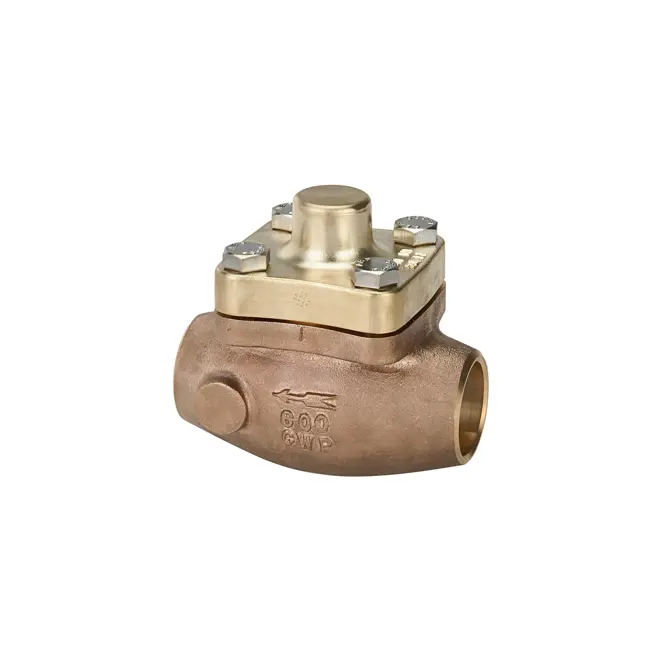

Plunger check valves for cryogenic applications with frequent directional changes

Plunger or lift check valves are designed to prevent backflow of fluids and are commonly used on cryogenic bulk stations and pipelines. Their close-off ability prevents compressors and centrifugal pumps from operating in reverse if power is lost which is why they are usually installed next to those devices.

Product description

Self-actuated valves like lift check valves use gravity and the pressure of the product to operate. This feature ensures the valve closing off when undesired back-flow occurs.

icon 3 squares in front of eachother symbolising material

Material

Body: Bronze
Cap: Brass
Plunger: Brass
Seat: PCTFE

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: NG (Natural Gas), Oxygen, Nitrogen, Hydrogen, CO2, Argon
Connections: Thread, braze
Type: NPT
Pressure range: 41 bar (600 psi)
Opening pressure: 140 mbar (2 psi)
Temperature range: -196˚C to +74˚C (-320˚F to +165˚F)
Sizes and range: 1" to 1½"
Series: 8500, 05412 and 05413 series
Standards: TPED, EN1626

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Replaceable Kel-F seat discs
  • Cleaned for Oxygen use per CGA G-4.1
  • Can be installed horizontally or vertically
  • Low flow rate

Did you know?

Self-centering cap keeps plunger in position

Installed vertically, make sure that the flow runs from bottom to top
