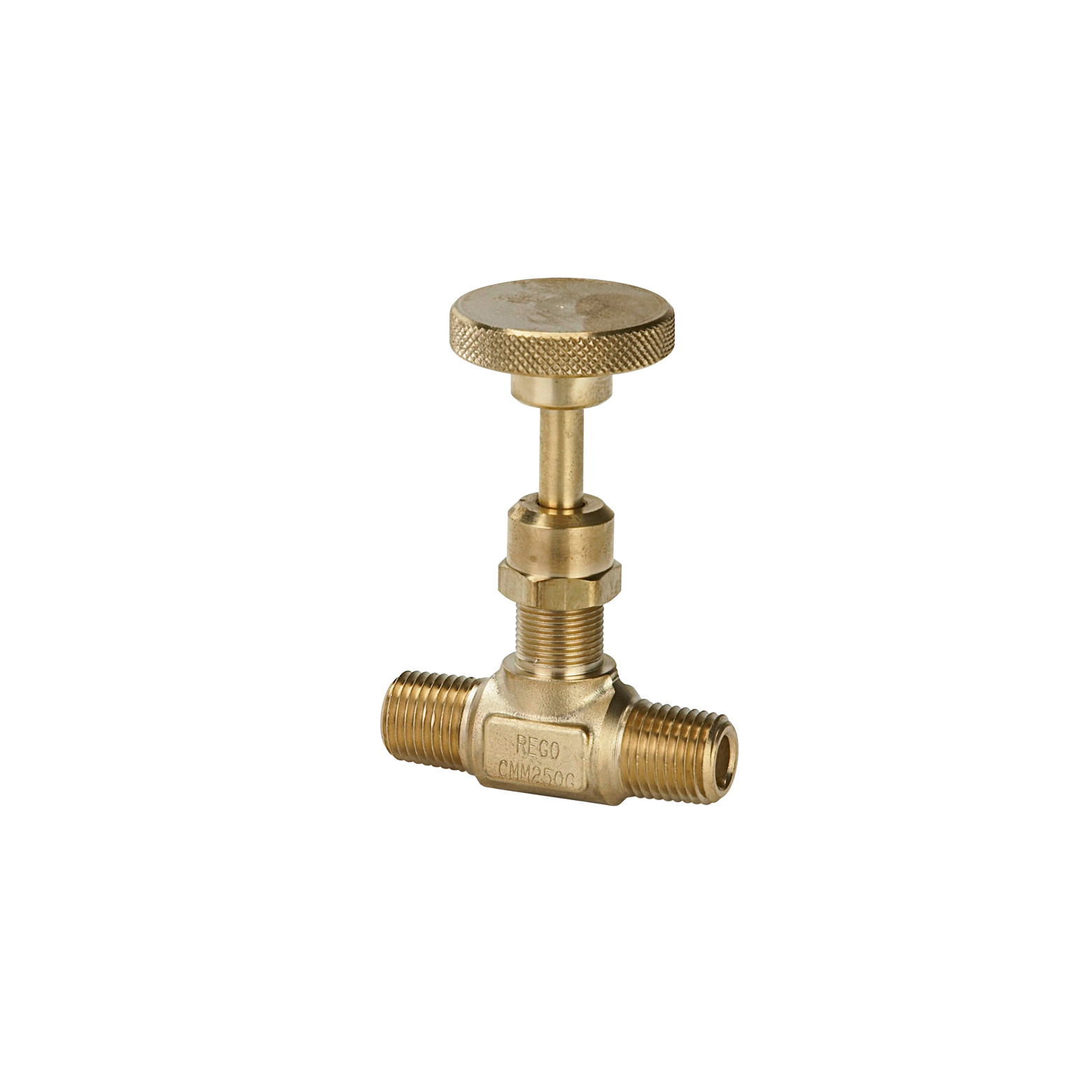

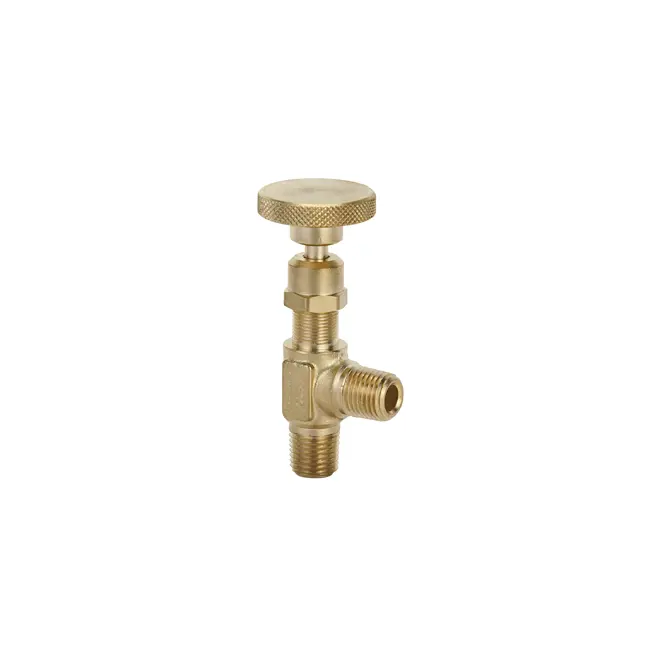

Needle valves for accurate flow and pressure regulation

Needle valves are regulating devices that allow precise flow and pressure control, making them highly functional as gauge isolation valves to protect from pressure surges damaging the gauges. They are commonly used in low flow-rate processes that require accurate throttling of pressure or in bulk tank gauging lines, trailers and other similar applications.

Product description

Pressures in appliances using cryogenics are usually sensitive to higher pressures and the needle valves help regulate the pressure to a desired output. Pressure regulation is manually actuated by using the handwheel that require multiple turns for a small regulation of gas and fluid flow/stop.

icon 3 squares in front of eachother symbolising material


Body: AATM B283 brass
Stem: Brass
Knob: Brass
Bonnet nut: Brass
Panel mount nut (optional): Brass
Set screw: Steel
Stem packing: PTFE with brass gland

icon a gear with lines going up down left and right symbolising specifications


Gas types: Nitrogen, Oxygen, Argon
Connections: Solder, braze
Type: Silver
Pressure range: 137.9 bar (2000 psi)
Temperature range: -40˚C to +74˚C (-40˚F to +165˚F)
Sizes and range: 1/4"
Series: CMM250, CFF250, CRM
Standards: PED, ASME, CRN

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features


  • Easy installation
  • Precise metering and leak-free shut-off
  • Internal locking nut to prevent unscrewing stem from body
  • Construction allowing higher pressures
  • Unbreakable handwheel
  • Equipped for panel mounting
  • Cleaned for oxygen service per CGA G-4.1

Did you know?

Female ports are available upon request
