Internal valves for added cryogenic tank spillage protection

Internal valves are primarily designed for loading and unloading of CO2 and are found in delivery trucks and stationary storage tanks with flanged connections where they reduce the risk of spillage in case of broken pipe connections or truck accidents. They are frequently installed in conjunction with compressors and/or pumps and enhance the tanks safety.

Product description

The combined inner functionality of an excess flow valve and a ball valve provides a dual security for shutting off the flow in case of emergency – either manually by use of the lever or automatically if pressure changes dramatically.

icon 3 squares in front of eachother symbolising material


Body and valve cage: Cadmium plated ductile iron
Seat: Nickel chrome plated steel
Strainer: Stainless steel
Shaft: Stainless steel
Pilot valve stem: Stainless steel
Springs: Stainless steel
Actuator cam: Stainless steel
Level: Cadmium plated carbon steel
Seat disc: Resilient synthetic rubber

icon a gear with lines going up down left and right symbolising specifications


Gas types: CO2
Connections: RF modified flange (inlet), RF flange (outlet)
Type: ANSI #300
Pressure range: Max. 27.5 bar (400 psi)
Flow rate: Up to 567.8 lpm (150 gpm)
Temperature range: -40˚C to +74˚C (-40˚F to +165.2˚F)
Sizes and range: 3"
Series: TA3217, TA3217DA
Standards: PED, ASME, CRN

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features


  • Built-in excess flow valve and ball valve
  • Maximum flow provider
  • Gas tight seal
  • Easy and quick installation

Did you know?

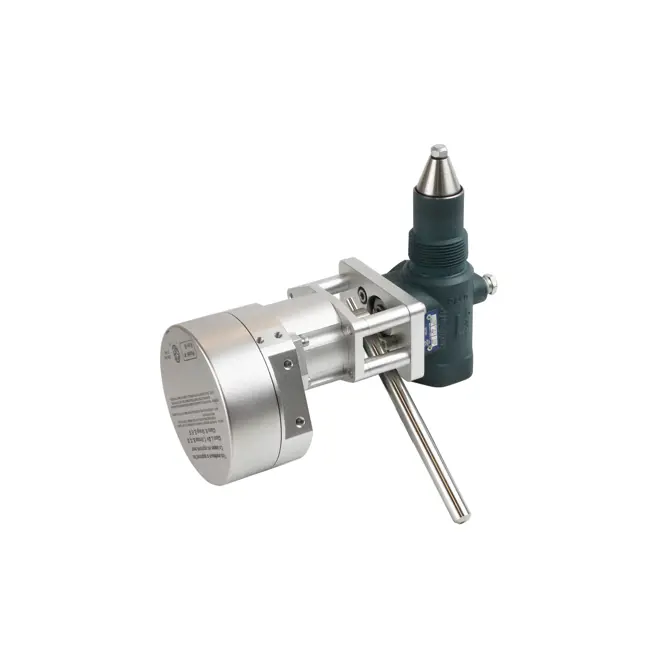

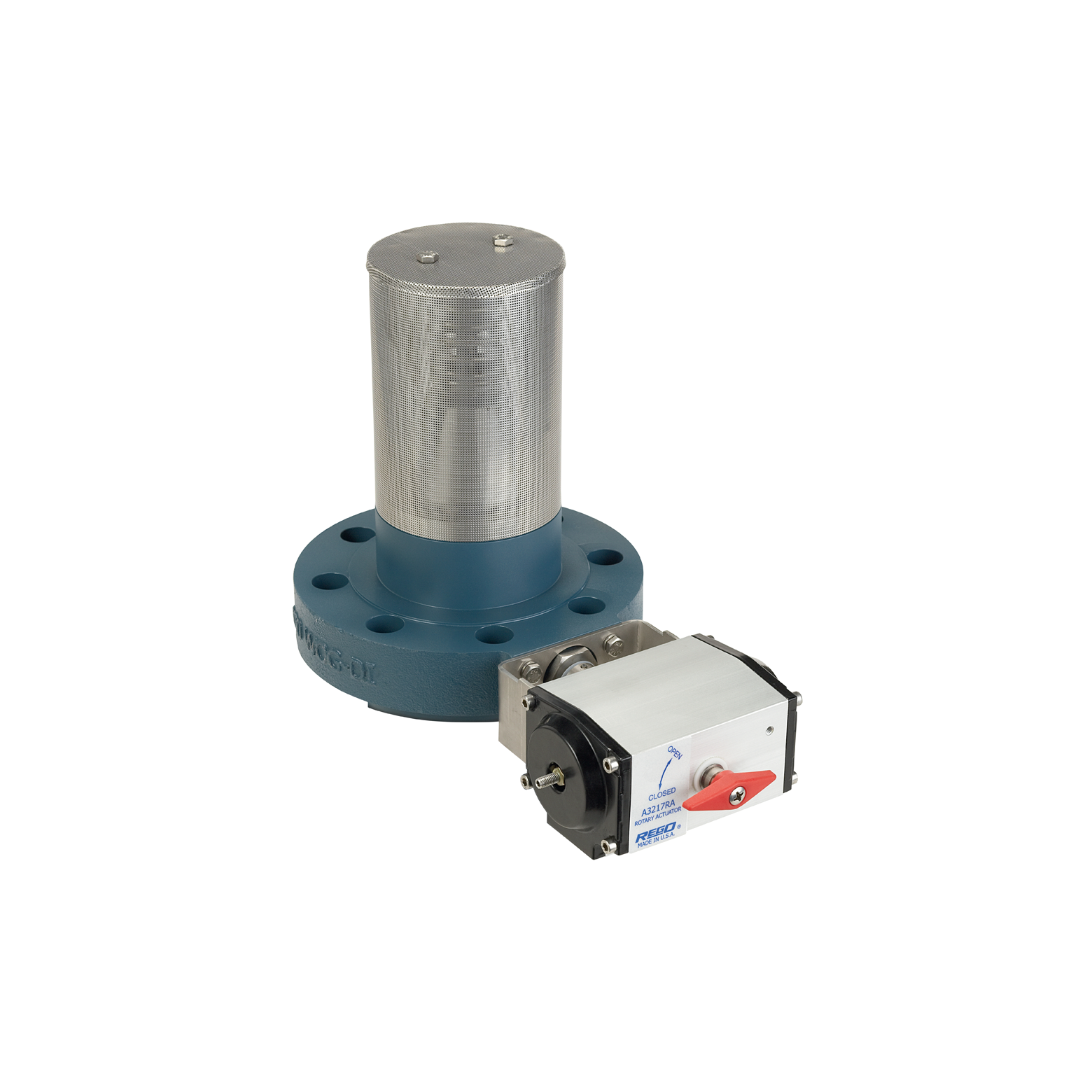

Available in right or left manual operation and can also be pneumatically or cable operated
