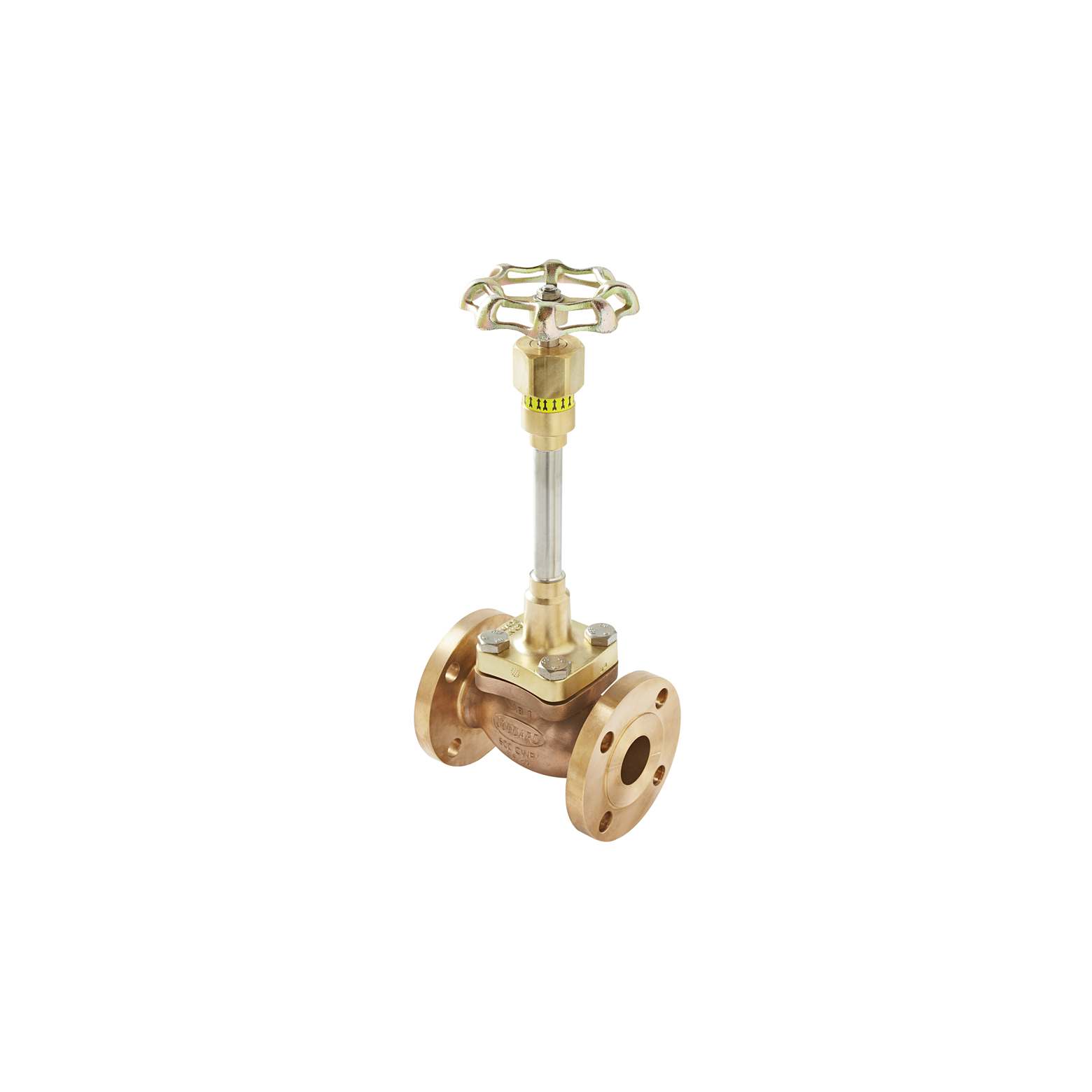

Pressure regulating bronze globe valves for LNG and other cryogenic applications

These globe valves are designed for cryogenic liquid operations through bulk tanks, trucks, trailers, ISO-containers and piping configurations. The bronze casting provides thermal conductivity perfectly suited for most components in low pressure cryogenic plants.

Product description

Globe valves can be acquired in a 'T','Y' and angle shape, to match most spatial limitations of installations. The designs feature differences in pressure drop yet are all capable of regulating the flow along with opening and closing it. Given the internal change in flow direction, they are restricted to use in single-directional flow operations and are suitable for isolation or throttling of a product.

icon 3 squares in front of eachother symbolising material


Body: Cast bronze, stainless steel
Bonnet: Cast bronze, stainless steel
Tube: Stainless steel
Seat: PTFE

icon a gear with lines going up down left and right symbolising specifications


Gas types: Cryogenic liquids, LNG (Liquefied natural gas) and vaporised atmospheric gasses
Connections: Thread, weld
Type: NPT, socket
Sizes and range: 1/4” to 3" (8mm to 80mm)
Pressure range (cold, non-shock): 41 bar (600 psi)
Temperature range: -198°C to +65°C (-325°F to +150°F)
Series: BB 222, BB 226, 01311, 9412, 01322, 01315SS
Standards: UL listed, PED

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features


  • Cleaned for oxygen service
  • Easy service access to valve internals by bolted bonnet
  • Proven Kold-Seal technology - live loaded PTFE

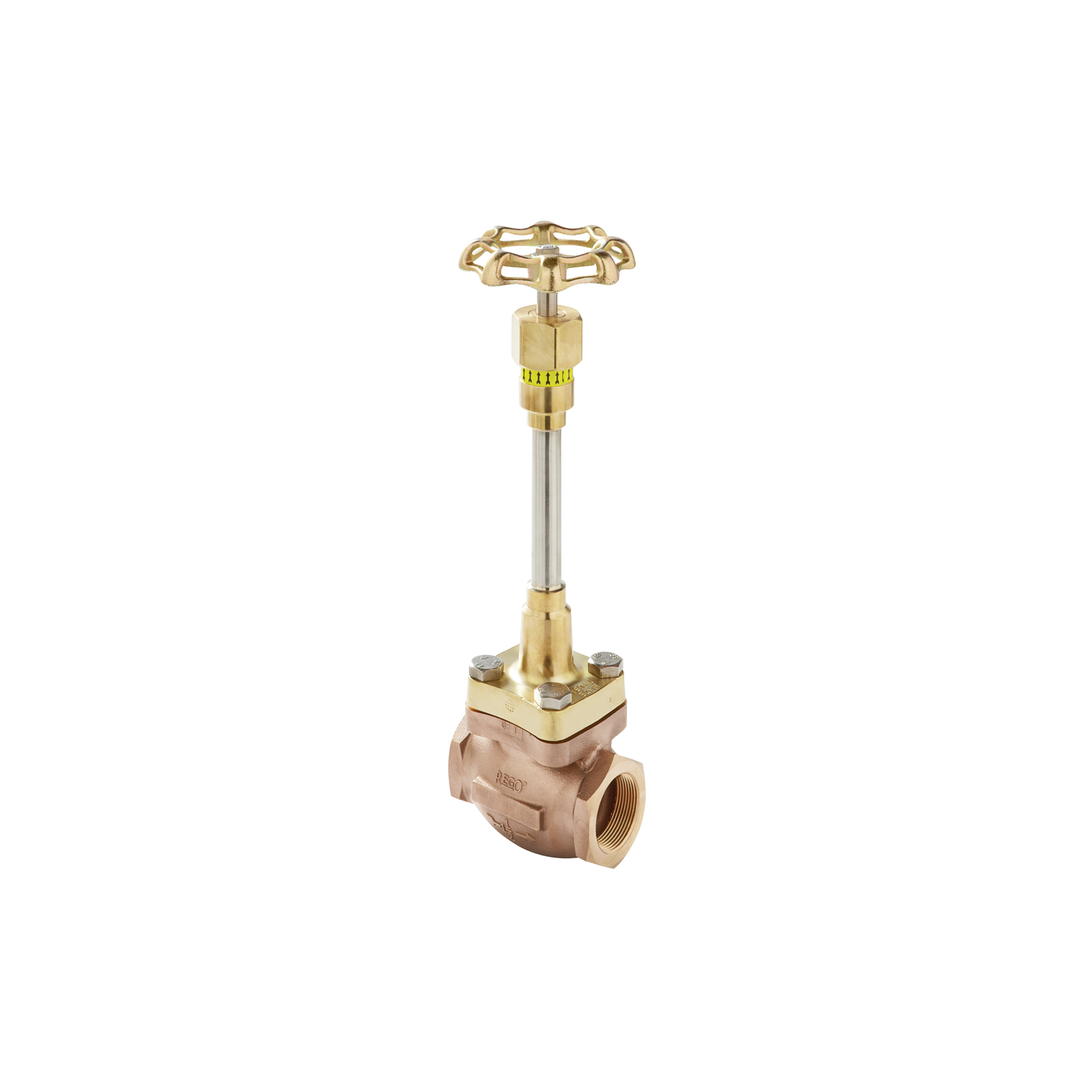

  • Multiple stem length options
  • Simple maintenance

Did you know?

Bubble tight seat provides 100% shut off when reseating or in static mode

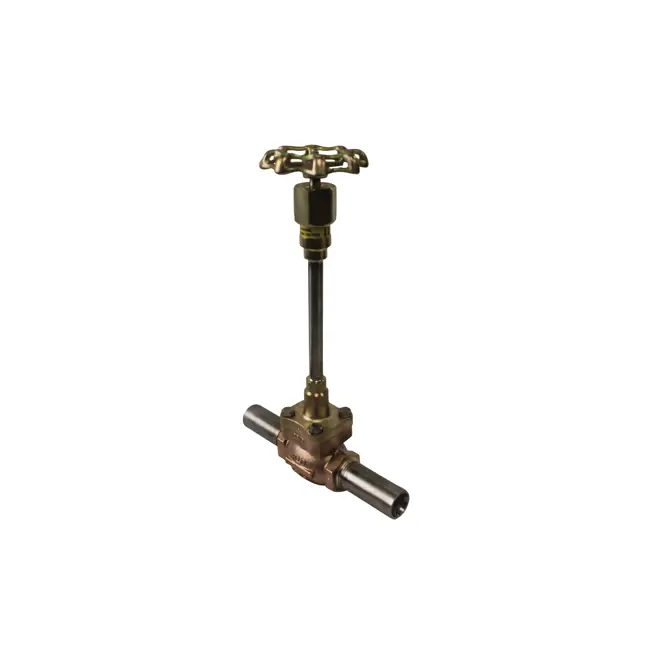

The BB Series globe valves are offered with brazed-in schedule 10 and 40 stainless steel pipe stubs

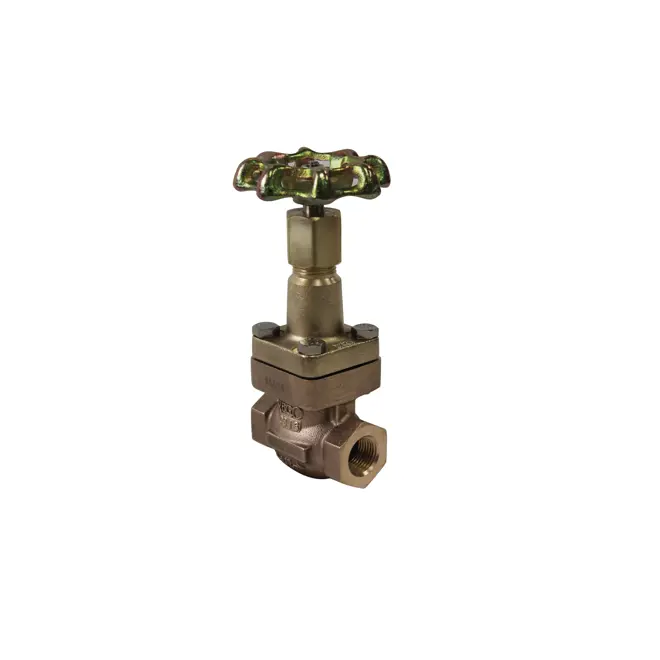

The globe valves are available in short stemmed versions or bolted bonnet configurations

The stainless steel tube prevents stem distortion

Internal components are identical with the SKB Series
