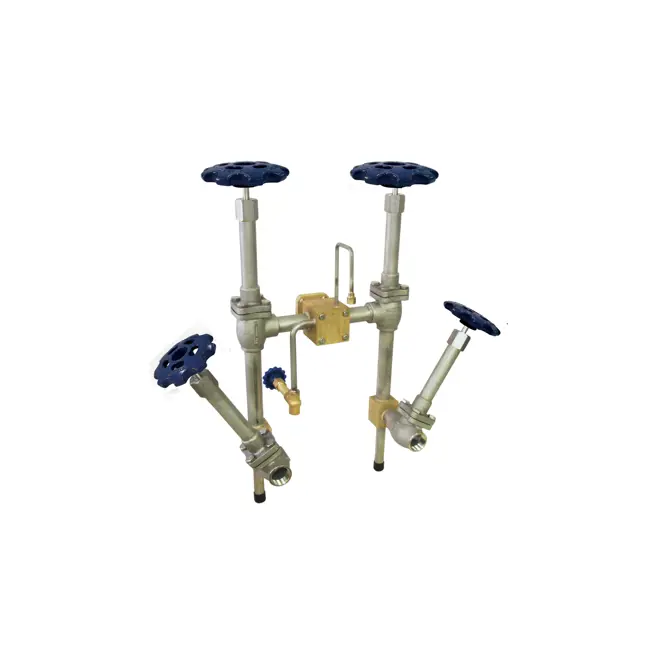

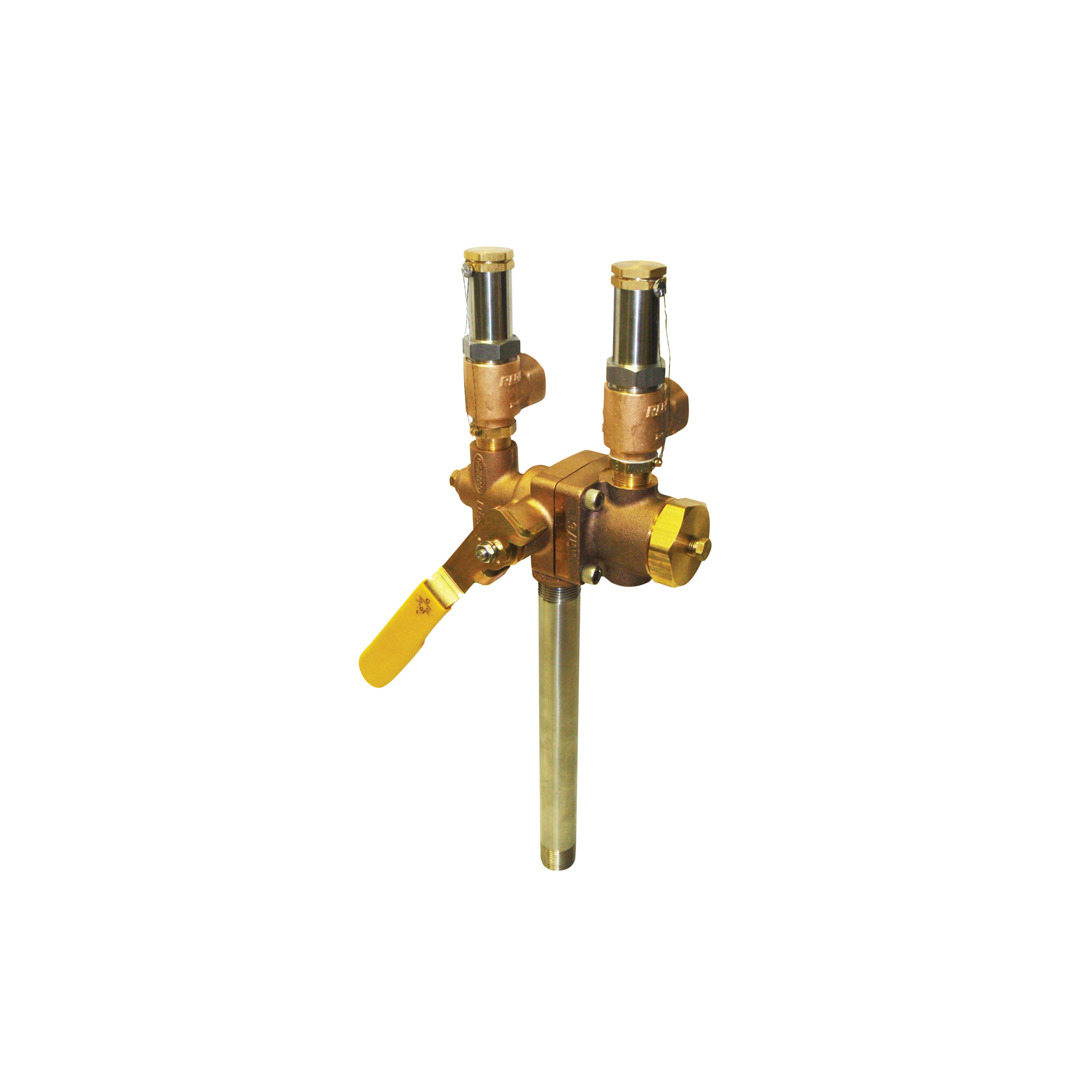

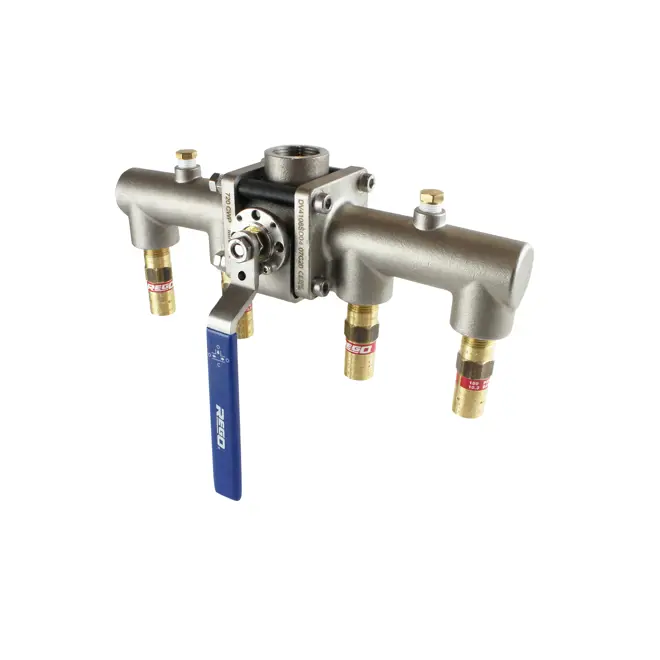

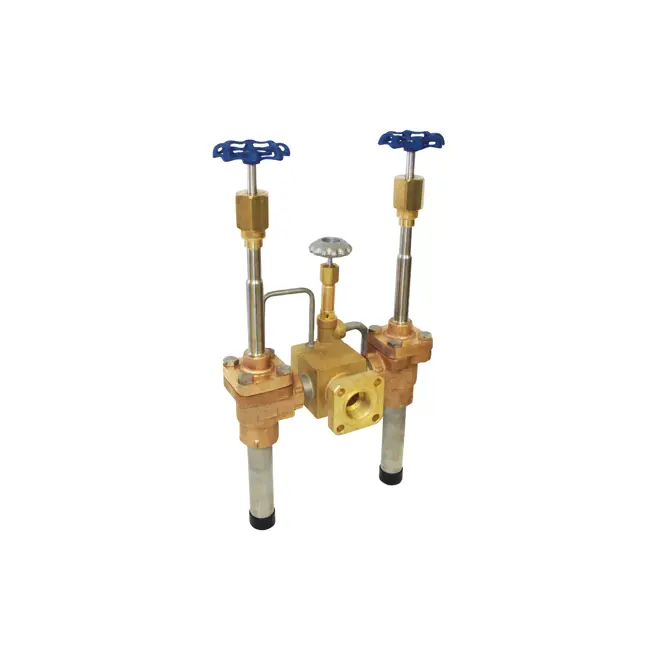

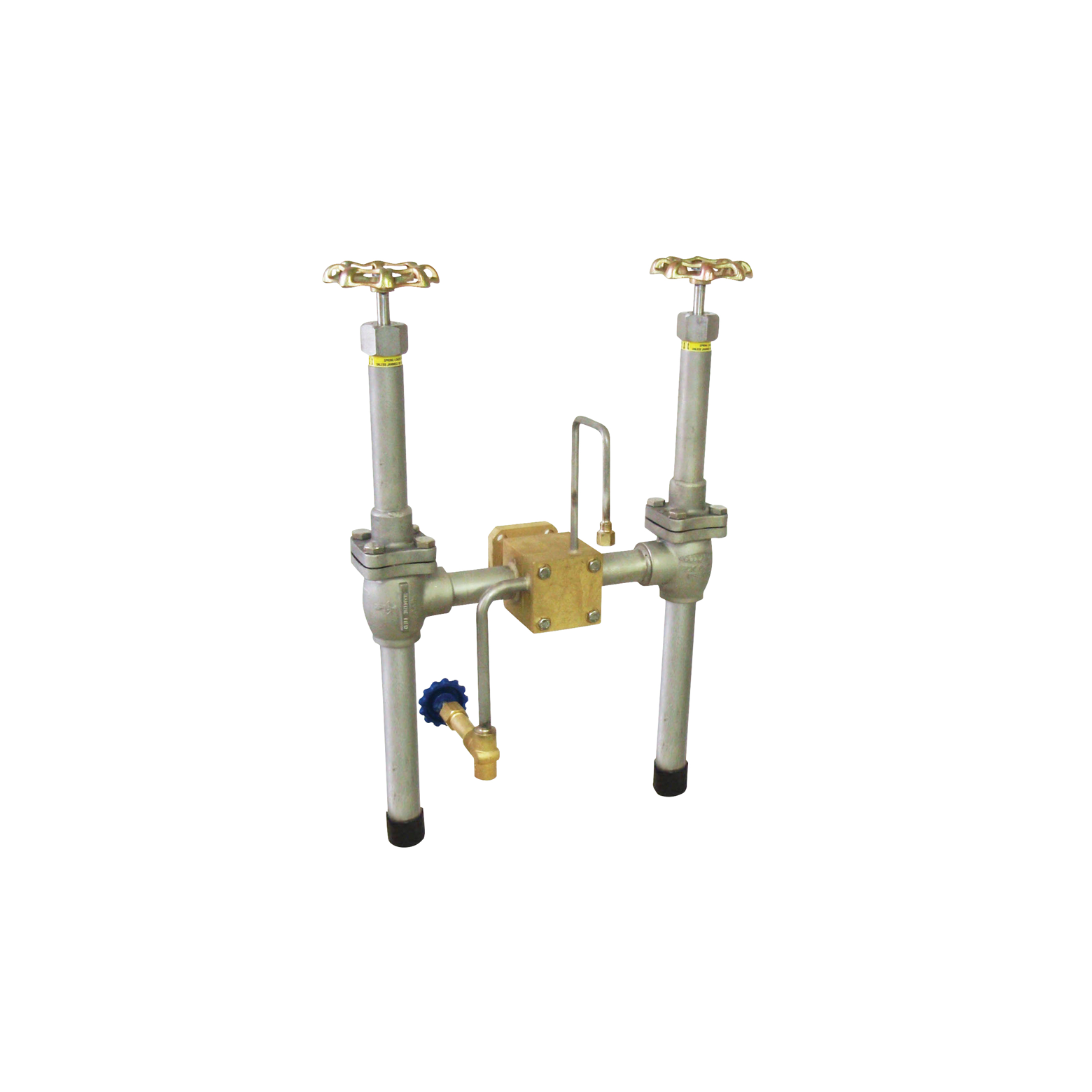

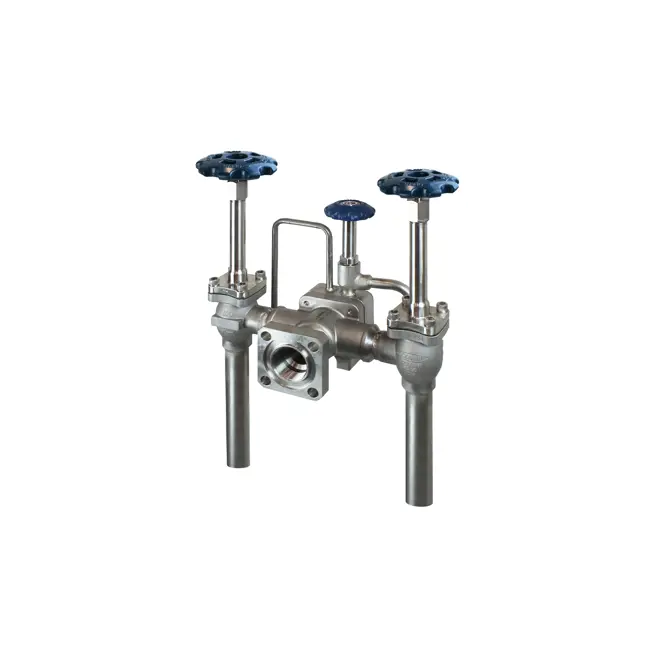

Fill manifold for cryogenic application optimisation

Fill manifolds connect liquid supply and return into one unit. Designed to replace the traditional lot of valves linked to pipes, they minimise welding needs and are used on stationary cryogenic storage tanks, transport, processing and bulk vessels

Product description

Fill manifolds are cost-efficient and system optimising filling devices for cryogenic liquid tanks in which the most common valves are combined in one device, minimising maintenance and replacement costs and reducing time spent on installation.

icon 3 squares in front of eachother symbolising material

Material

Globe valve: Bronze, stainless steel
Check valve: Brass
Bleed valve: Brass
Tube: 304L stainless steel, copper

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: Liquefied Nitrogen, Oxygen and Argon
Connections: Flange, silver soldering, braze
Type: ANSI
Pressure range: Up to 41 bar (600 psi)
Temperature range: -196˚C to +74˚C (-320˚F to +165˚F)
Sizes and range: 1" to 1 1/2" (25 to 40 mm)
Series: CFM, AFM, PFM, SFM, 07017, 07003, 07004
Standards: PED, ASME, CRN

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Easy fitting to tank piping
  • Simple, user-friendly operation
  • Leak-proof construction
  • Most models include bottom fill valves, fill check with strainer, hose bleed and relief valve
  • No field adjustment of valve packing required
  • Handles high cycle environments
  • Repeatable performance and geometry
  • Precision silver brazed and welded assembly
  • Cleaned for Oxygen service per CGA G-4.1

Did you know?

Safe and reliable for use in LNG Systems

ProSupply can supply custom designed configurations that are welded and brazed in a factory setting

Many options are available which can include specific end user dimensions and specifications

Fill manifolds are available alone or as a unitized welded assembly for bulk tank filling
