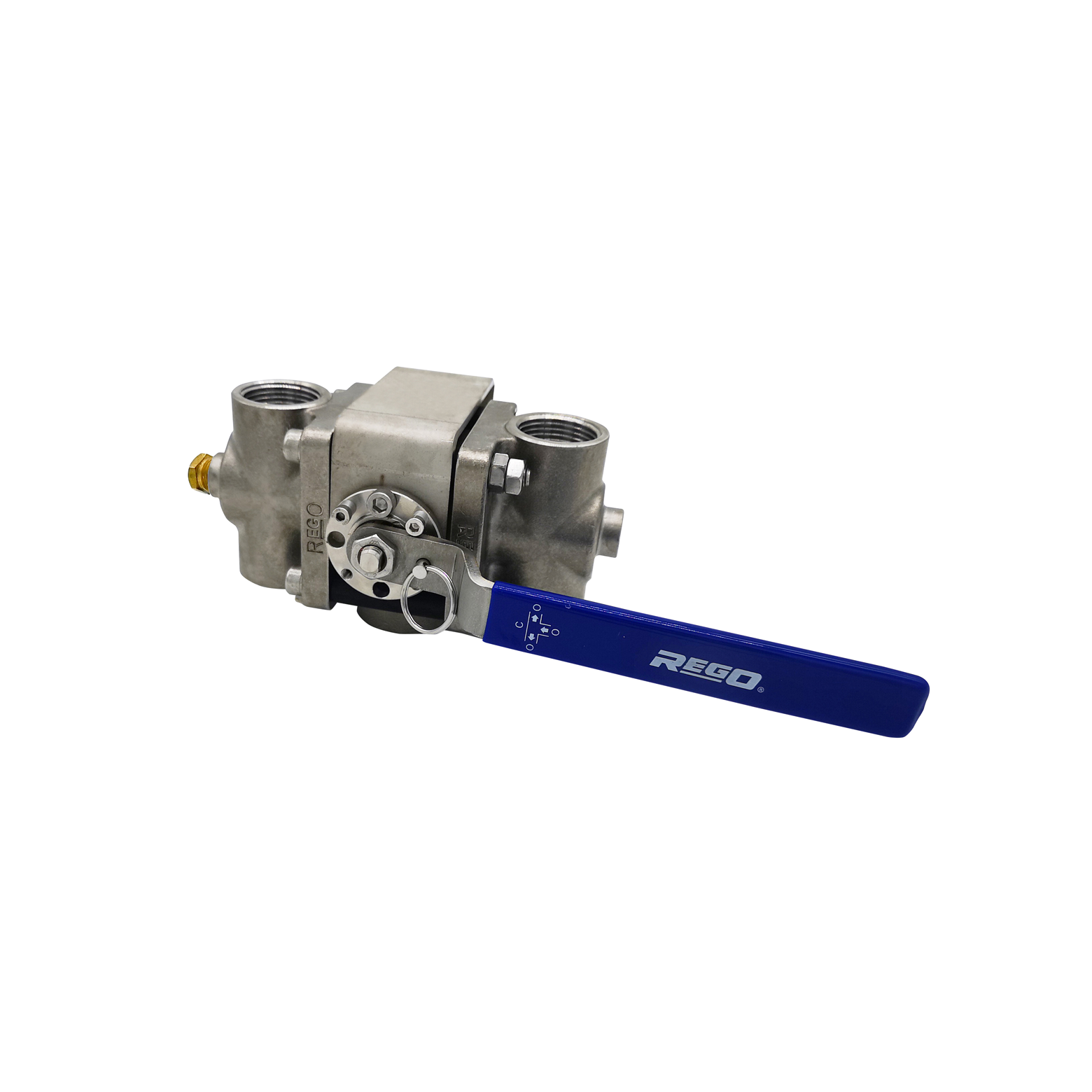

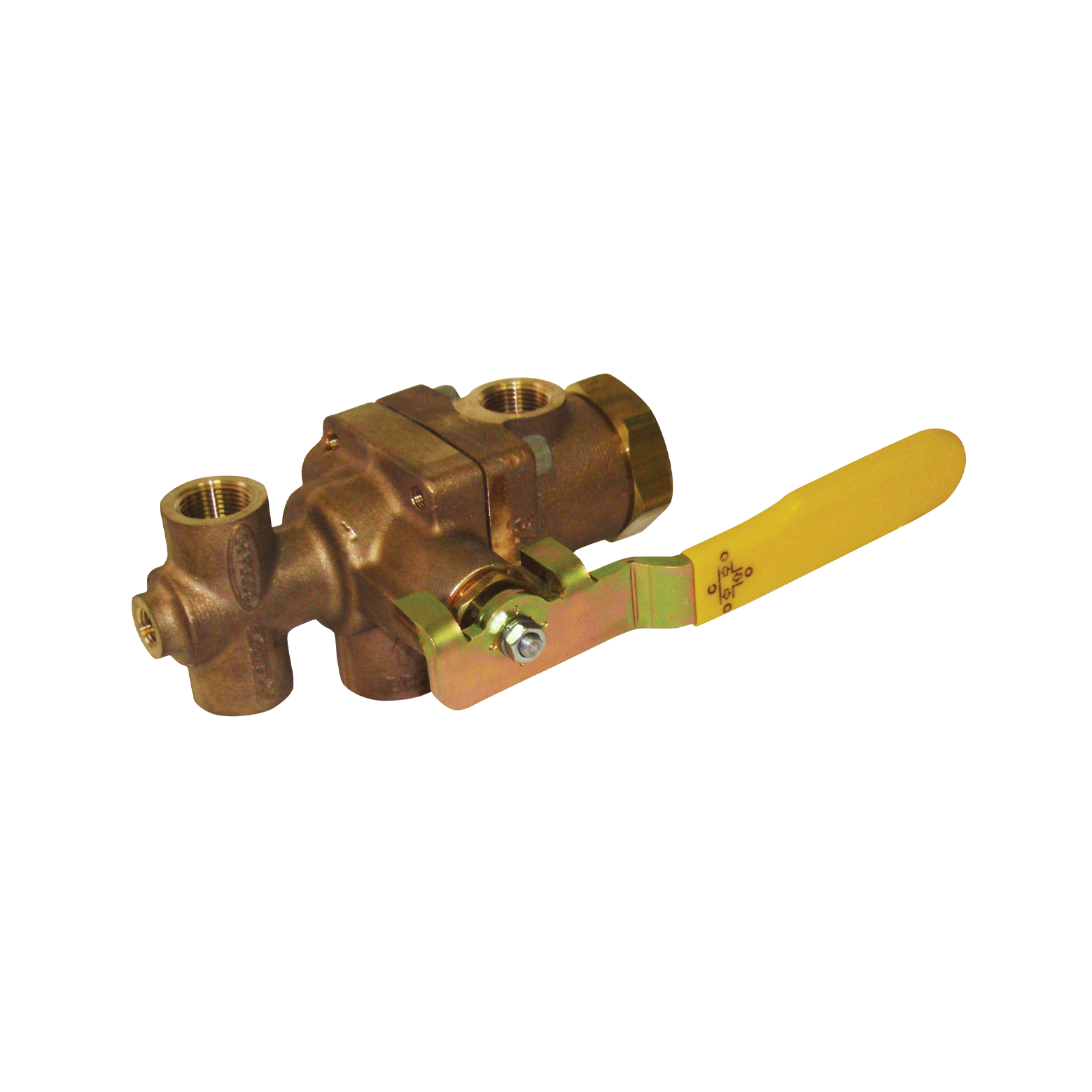

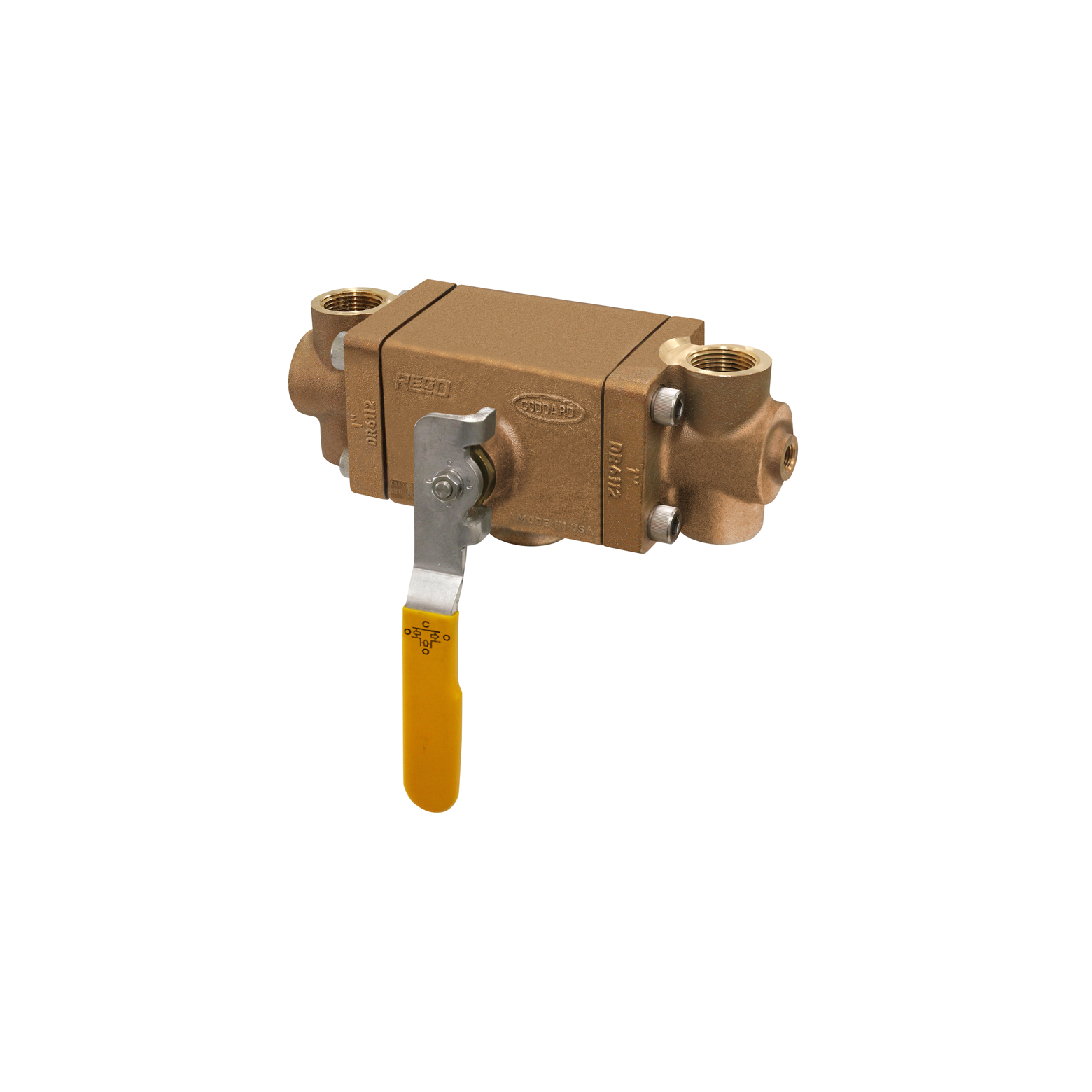

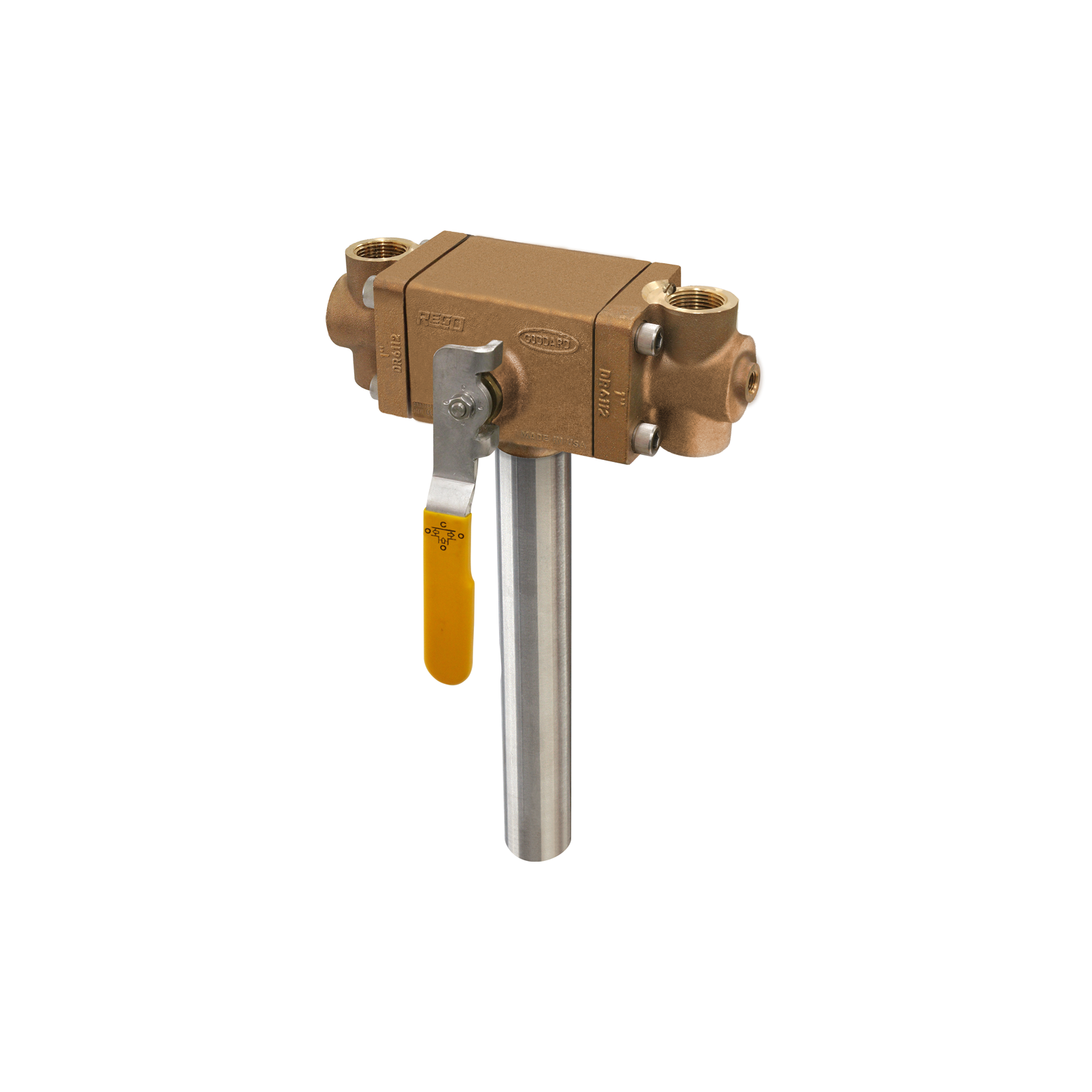

Diverter valves for LNG vessel safety

Flow diverter valves provide overpressure protection of LNG storage vessels by their dual relief valve insertions for increased safety. They are commonly found and required in stationary LNG tanks, bulk vessels, manifold process systems and other LNG and cryogenic applications

Product description

Working in conjunction with two relief valves, the diverter valves retain continued performance without sacrificing safety when a valve undergoes maintenance and is disconnected.

icon 3 squares in front of eachother symbolising material


Body: Bronze ASTM B61 UNS C92200
Bushing, end-cap: Brass B16 C36000
Seat rings: PCTFE ASTM D1430
Gasket: PTFE
Ball: 316 stainless steel
Lever: Cadmium plated steel
Packing: PTFE
Stem: Stainless steel ASTM A582 UNS S30300

icon a gear with lines going up down left and right symbolising specifications


Gas types: LNG (Liquefied Natural Gas) and cryogenics
Connections: Thread, solder
Type: NPT
Pressure range: Max. 41 bar (600 psi)
Temperature range: -196˚C to +74˚C (-320˚F to +165˚F)
Sizes and range: 3/4" to 1½"
Series available: DR6100 and DA6200 Series
Standards: PED, ASME, CRN

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features


  • Top pressure relief valves
  • High flow rate
  • Valve side selection with positive shut-off
  • Needle valves to bleed gas
  • Bottom burst disc connections
  • 100% factory tested
  • Cleaned for Oxygen per CGA G-4.1
  • Low maintenance
  • Reliable and safe operation
  • Full flow manifold ends

Did you know?

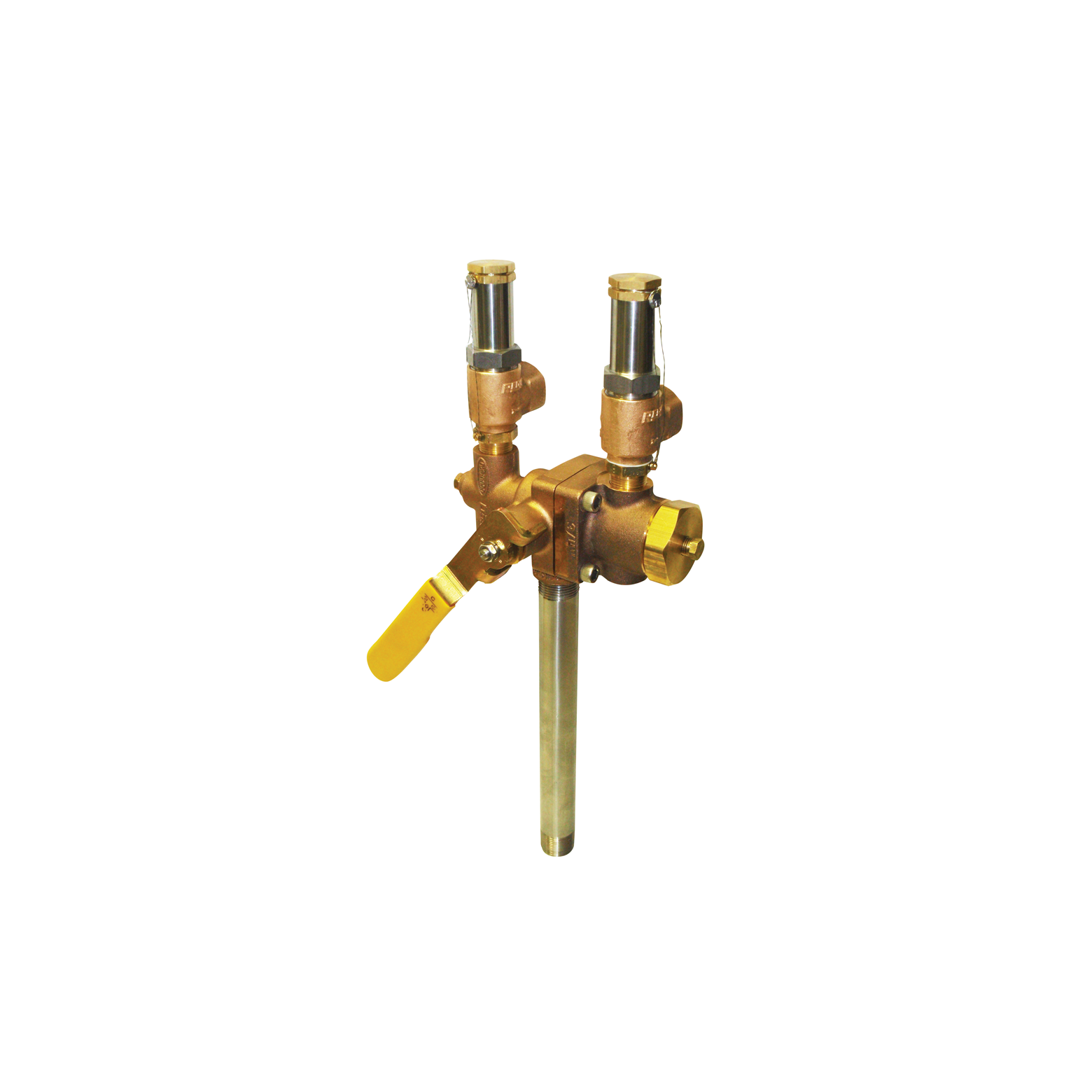

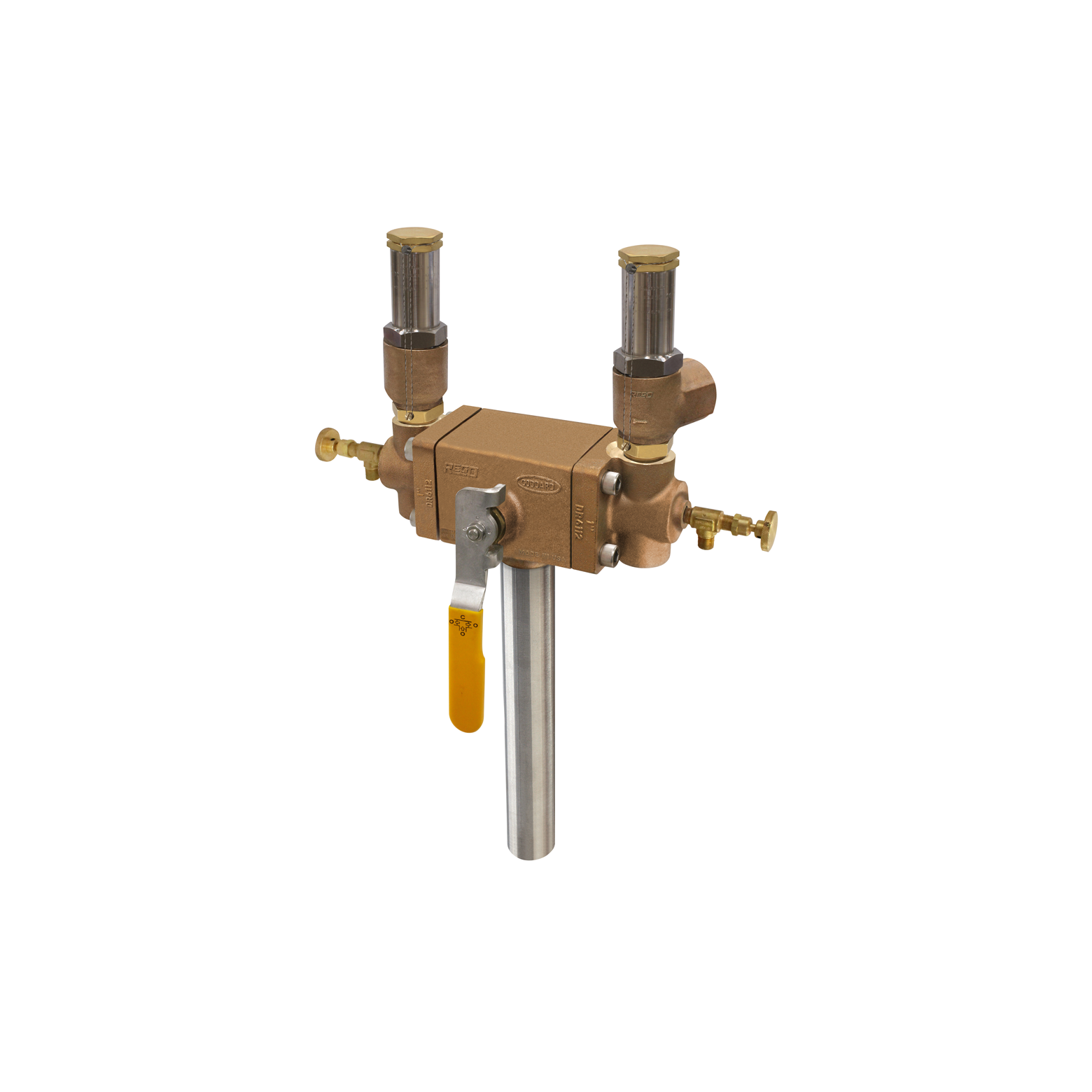

Diverter valves come in a 3-way option for simpler applications and a unitized assembly solution (relief valve, diverter, burst disc) for bulk vessels
