Product description

Cryogenic applications with specific requirements relying on high precision pressure control and flow capacity will benefit from the use of a pressure builder. The building of pressure happens by extracting liquid from the tank bottom and transferring it through a coil that is soldered to the outside of the tank.

icon 3 squares in front of eachother symbolising material

Material

Body: Brass
Spring: Seamless steel
Bonnet: Brass
Diaphragm: Bronze
Diaphragm gasket: PTFE
Back-cap gasket: PTFE
Seat: PTFE

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: Oxygen, Nitrogen, Argon, Hydrogen, CO2, NG (Natural Gas)
Connections: Thread
Types: NPT
Pressure range:
Inlet: Max. 37.9 bar (550 psi)
Outlet: 0 to 24.2 bar (0 to 350 psi)
Temperature: Down to -196˚C (+320˚F)
Size and range: 1/4" to 3/8"

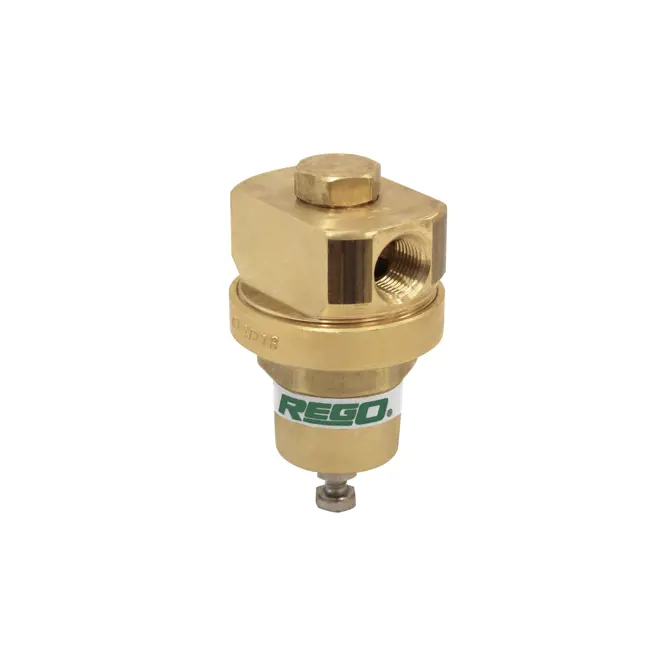

Series: RG series
Standards: PED, ASME, CRN

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Cryogenic temperature resistant materials
  • Positive shut-off due to PTFE seal
  • Locknut is provided to maintain adjusting screw setting
  • Cleaned for oxygen service per CGA G-4.1
  • 100% Factory Tested
  • Inlet filter to prevent debris from entering the regulator

Did you know?

High and low pressure regulators are the same compact size— designed to fit in close quarters

Pressure builders are interchangeable with existing cryogenic regulator units

The RG125C and RG175C series are available with flat inlet screen

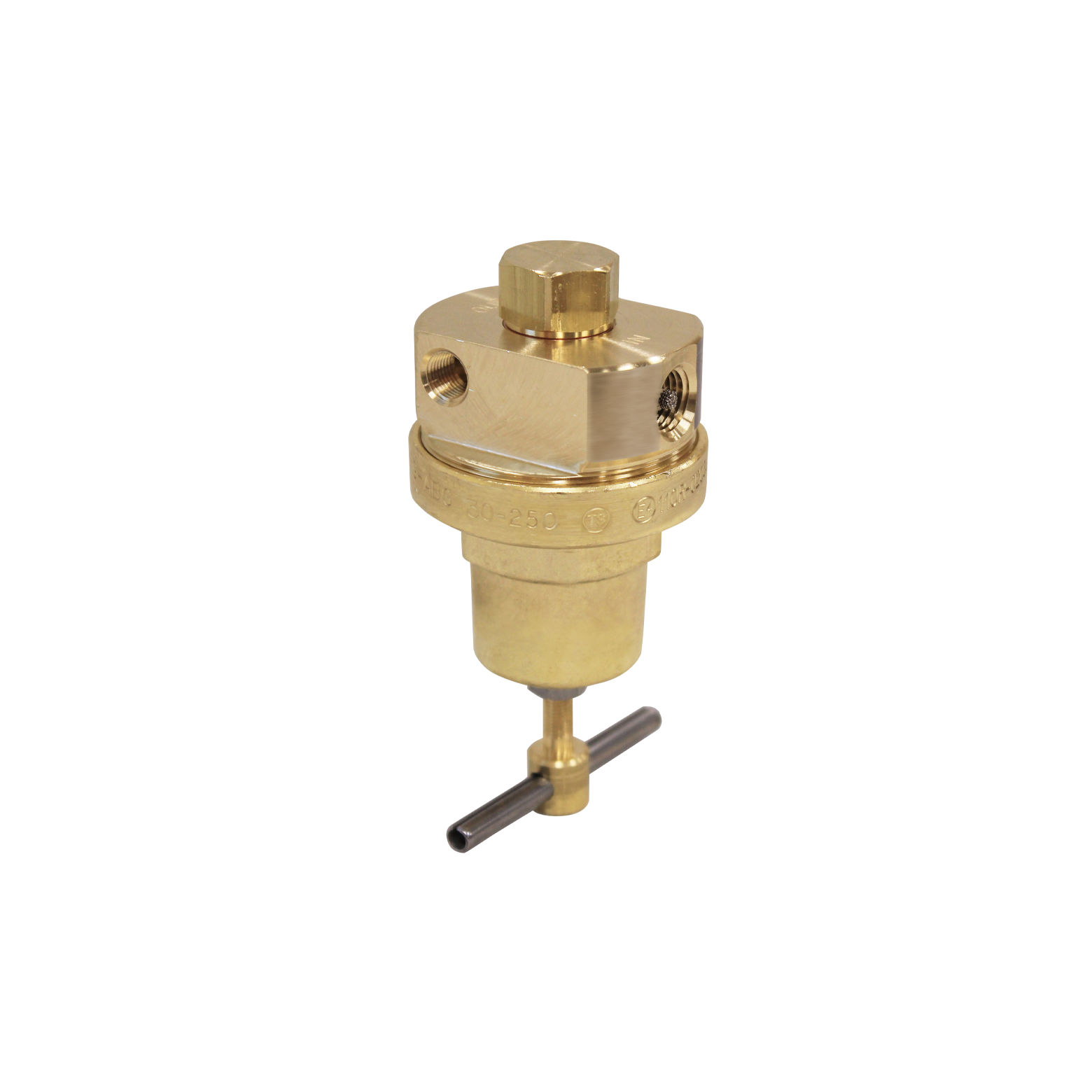

The RG000090AG is available with T-handle adjustment screw and gauge ports

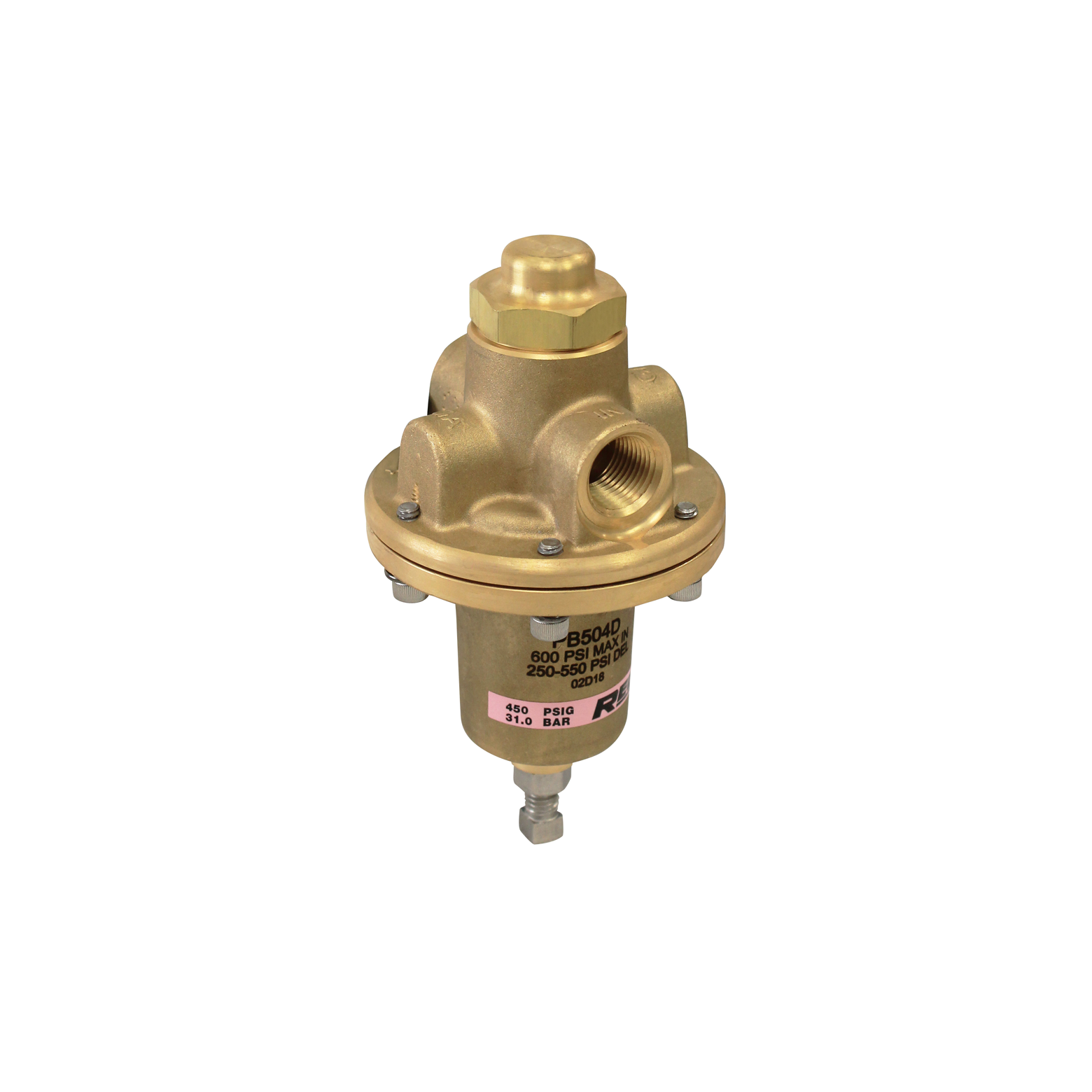

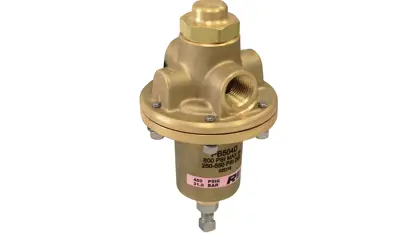

  • Rego PB series pressure builder, brass

    Pressure builders (PB series)

    Builds pressure if the demand is above the naturally produced volume. The PB series is great for microbulk tanks larger than 1,600 L, bulk tanks larger than 2,000 L to 60,000 L and manifolds.
