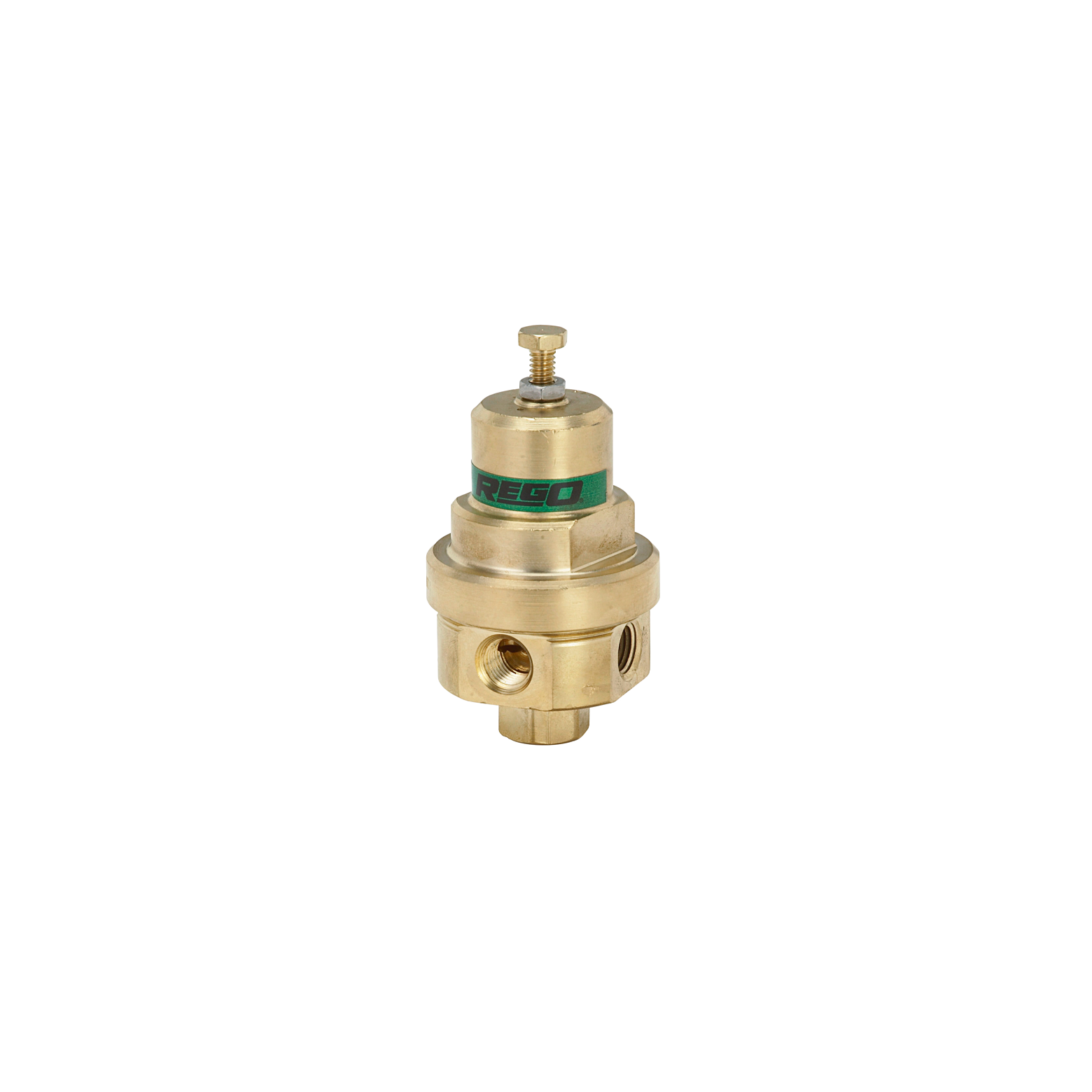

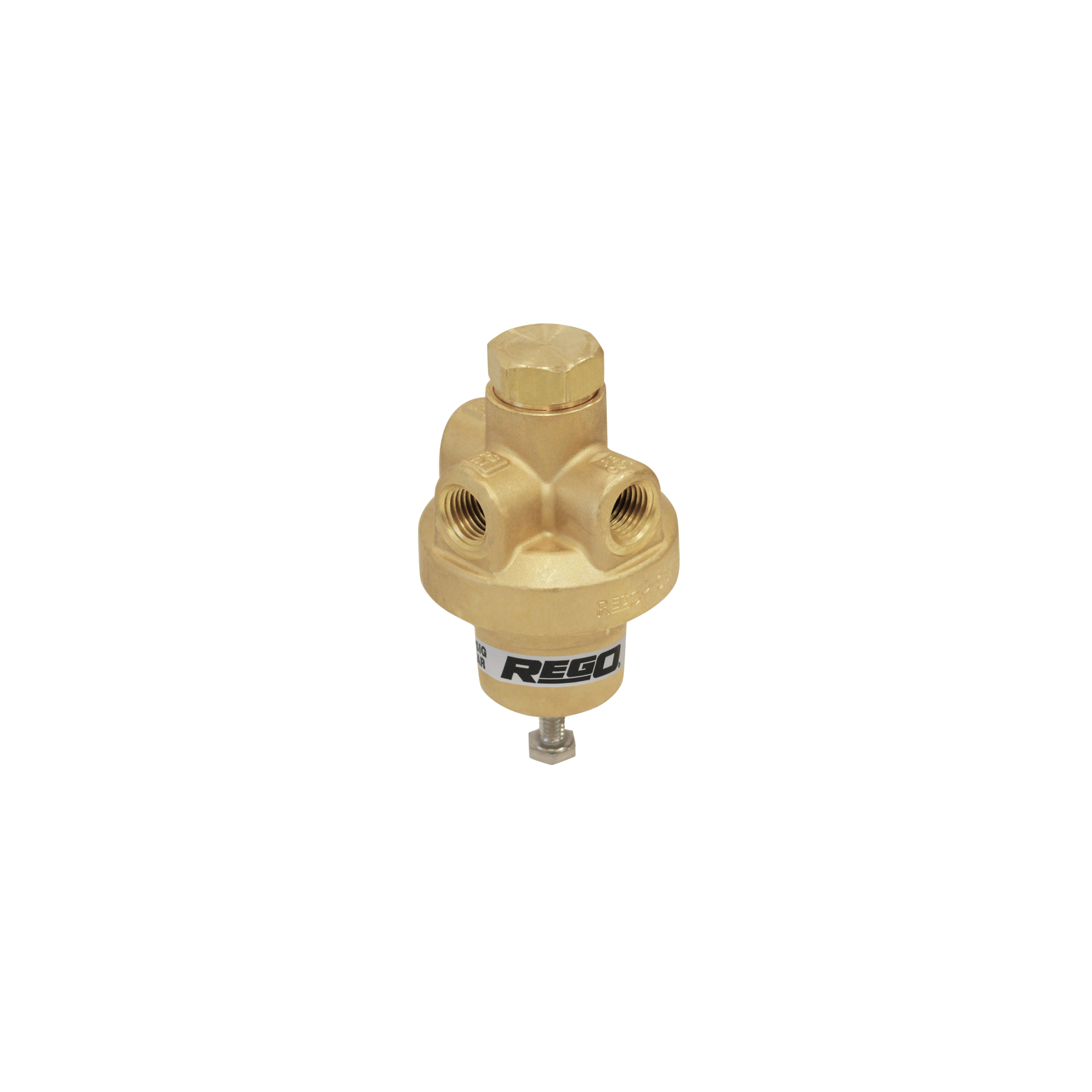

Combination pressure builder/economisers for better performance

Combination pressure builder/economisers are designed to ensure more effective operations during low withdrawal from cryogenic applications such as liquid cylinders.

Product description

Combining the functionalities of a pressure builder and economiser increases the performance efficiency, enables better gas maintenance and provides cost-effective prevention of gas loss by diverting vapours back into the use-line for optimal consumption.

icon 3 squares in front of eachother symbolising material


Body: Brass
Bonnet: Brass
Seat disc: PTFE
Springs: Stainless steel
Gaskets: PTFE, copper
Diaphragm: Bronze

icon a gear with lines going up down left and right symbolising specifications


Gas types: Oxygen, Nitrogen, Argon, NG (Natural Gas), CO2
Connections: Thread
Type: NPT
Pressure range: 0.69 to 22.1 bar (10 to 350 psi)
Max. inlet pressure: 37.9 bar (550 psi)
Temperature range:  Down to -196˚C (-320˚F)
Sizes and range: 1/4"
Series: CBH502 series, CBC502 Series and CRM
Standards: PED, ASME, CRN

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features


  • Positive shutoff at cryogenic temperatures
  • Compact and fits in close quarters
  • Interchangeable with other regulators for cryogenic operations
  • Screen on inlet to block debris
  • Adjusting screw setting possible by lock nut
  • Cleaned for oxygen service per CGA G-4.1
  • Leak-free
  • Long-lasting performance
  • Easy in-field adjustments

Did you know?

Also suitable for liquid applications: LOX, LN2, LAR, LNG, LC02

The combination pressure builder/economiser is available in Chart and Taylor-Wharton piping geometries and a variety of pressure ratings
