NH3

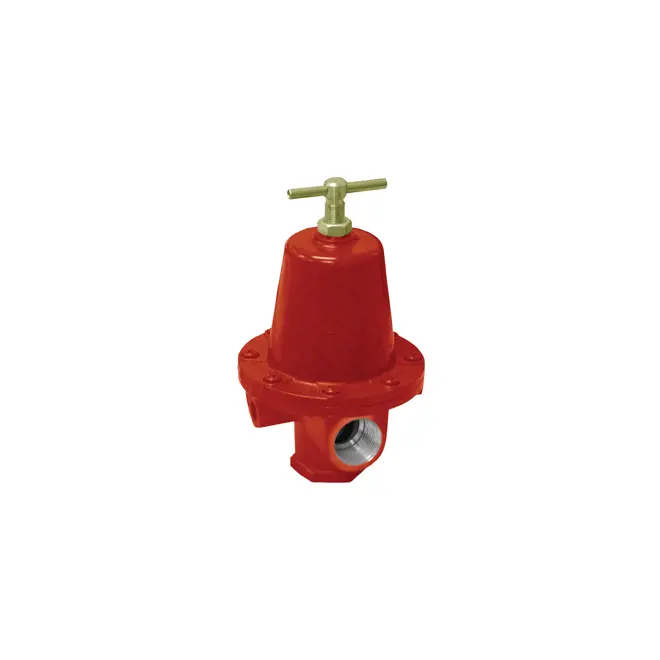

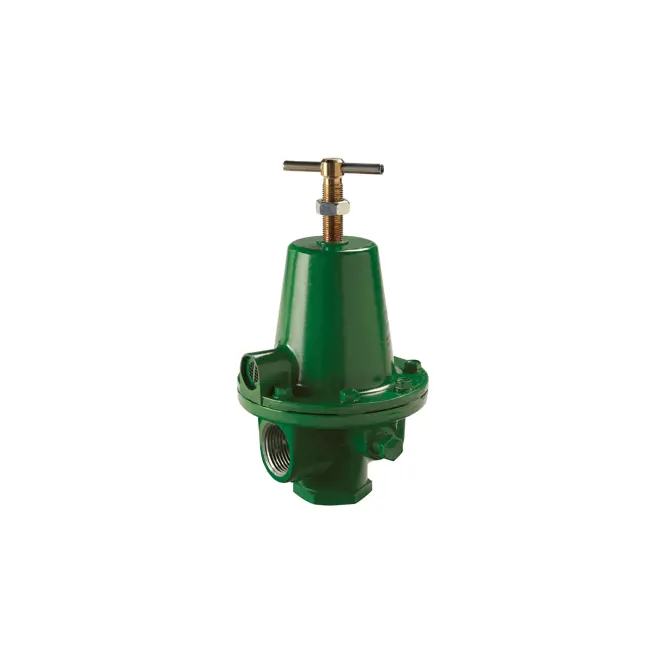

High-pressure regulators for NH3

High-pressure regulators, most commonly defined as single or first stage regulators, are perfect for demanding industrial and commercial tasks. They are perfectly suitable for blue-print machines and other tasks like heat treating that require a high heat output.

Product description

High Pressure regulators are designed to reduce and stabilise the pressure in NH3 and LPG containers to a safe and usable level. On high pressure regulators the output minimum is relatively high and remains around 500 mbar (7.2 psi). Each pressure regulator is precision-built with a multi-million BTU capacity and is therefore well-suited for tough jobs that require powerful and reliable equipment.

icon 3 squares in front of eachother symbolising material

Material

Body: Forged aluminium
Bonnet: Die cast aluminium
Spring: Steel
Seat disc: Resilient rubber
Diaphragms: Integrated fabric and resilient rubber

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: NH3 (Ammonia, Anhydrous ammonia)
Connections: FNPT
Pressure range: 0.21 to 8.6 bar (3 to 125 psi)
Capacity: 4,500 CFH to 8,900 CFH (127 to 253 SCMH)
Sizes and range: 1/2" to 3/4"
Series: AA1580V series, 64 series and 627 series
Standards: UL-listed

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • High capacity and resistance to freezing due to the large nozzle and straight throughflow
  • Reduced vibration from the dampening O-ring
  • Suitable for both liquid and vapour service
  • Can be fitted with pressure gauge in ¼’’F. NPT port

Did you know?

ProSupply can provide regulators for most applications

Related products

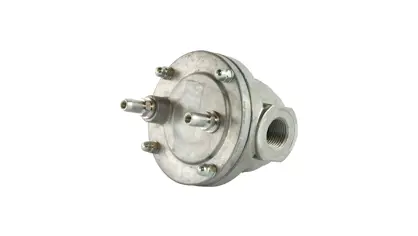

  • Gas Filter

    Gas filters

    These filters provide effective filtering and protection against mechanical impurities and condensate from pipework that may otherwise cause blockage and damage in equipment.

    See our gas filters

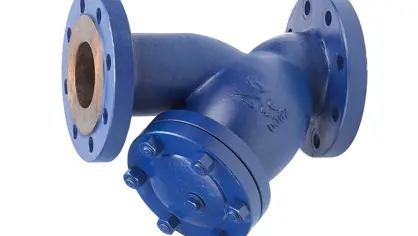

  • Image of a gas strainer
