Pressure gauges for monitoring LPG and NH3 systems

Pressure gauges are indispensable instruments in LPG and other gas or liquid applications to ensure reliable and predictable operation. They are designed to measure fluid intensity and to identify changes in pressure and leaks that can negatively impact an operation.

Product description

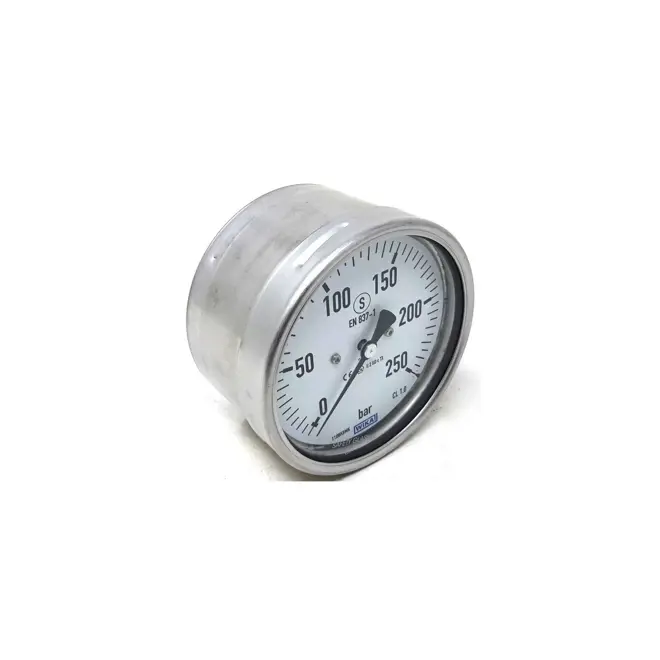

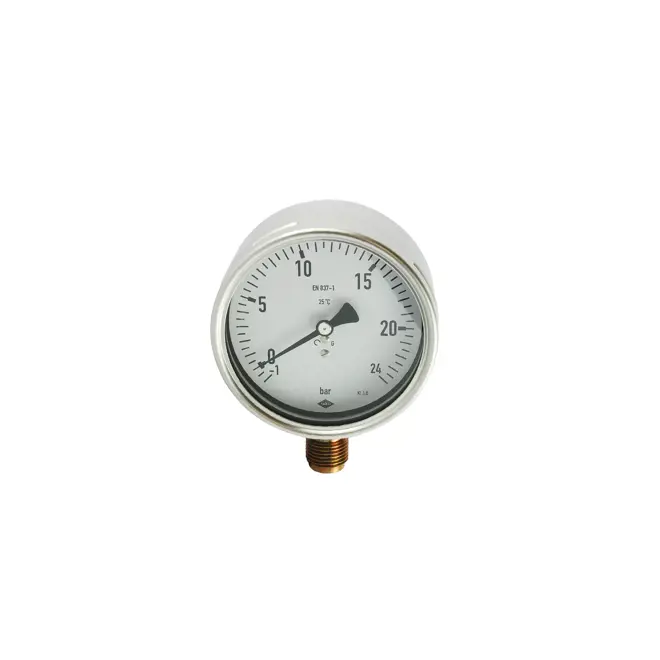

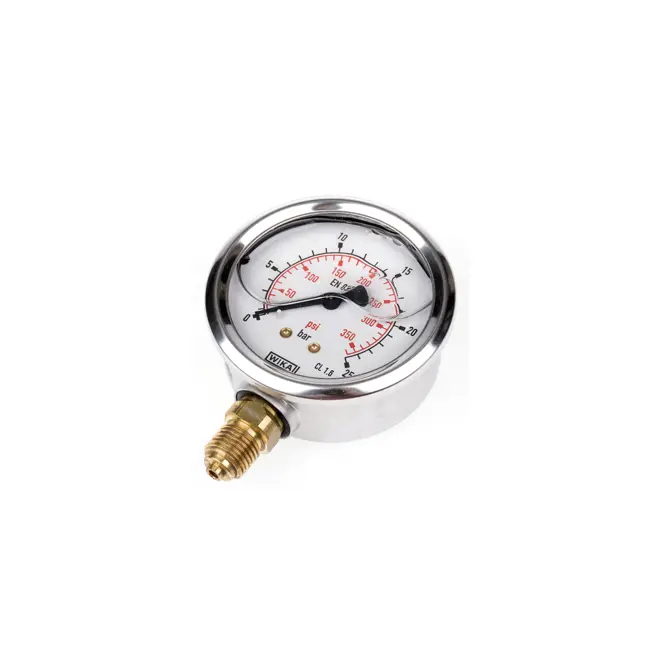

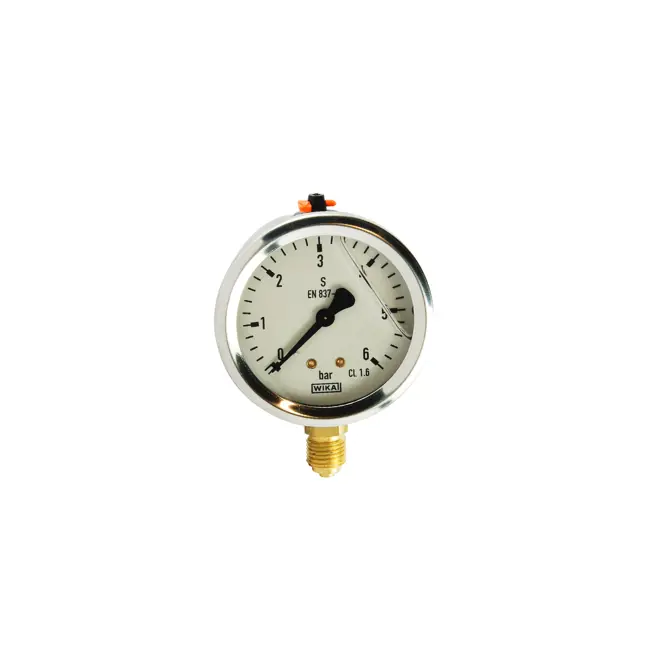

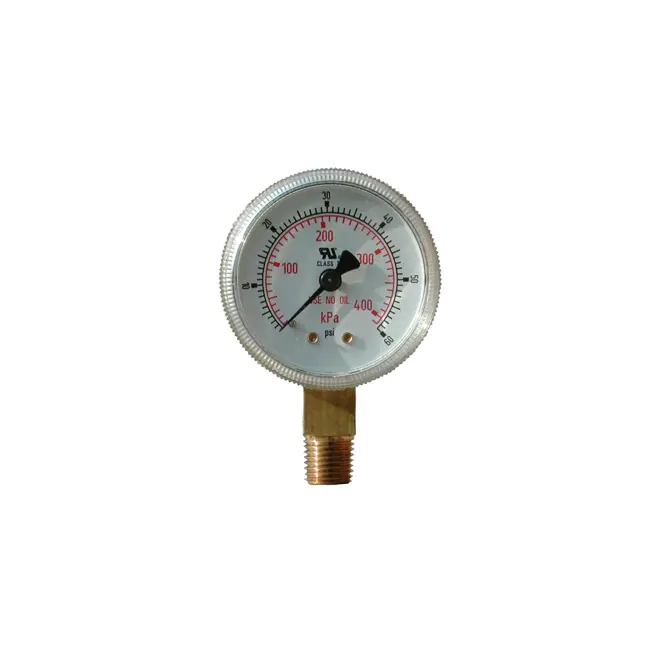

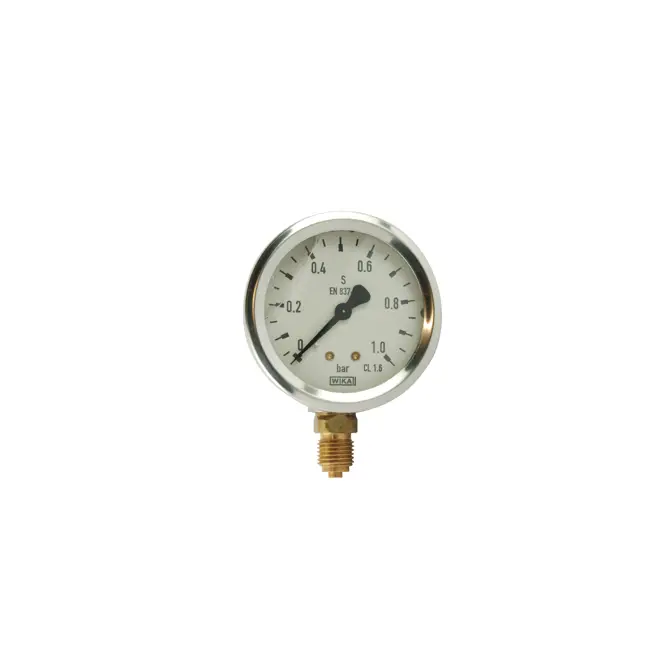

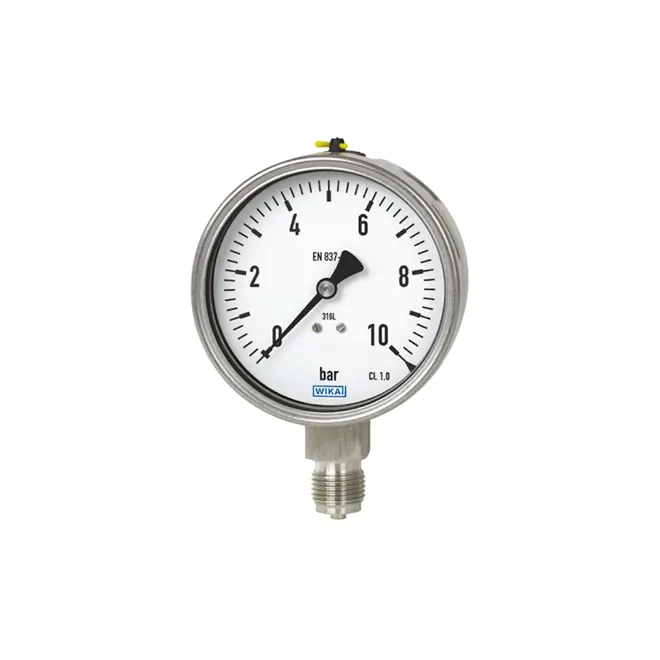

The Bourdon tube pressure gauges are capable of transforming product pressure into mechanical energy and thereby move a dial to accurately display the pressure at the current location. Gauges are often used in gas system connections where reducers are installed and a pressure drop is expected. However, monitoring is necessary to ensure the pressure is not dropping too low.

icon 3 squares in front of eachother symbolising material


Body: Brass, steel, stainless steel, safety glass

icon a gear with lines going up down left and right symbolising specifications


Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous ammonia), NG (natural gas), manufactured gasses, water and oil
Connections: Thread, flange
Type: G, NPT
Pressure range: -1 to 1600 bar (-14.5 to 23206 psi)
Dial size: 63 mm, 100 mm, 160 mm
Size and range: 1/4" to ½"
Series available: KFM, RPM and 232.30
Standards: CE, ATEX, EAC, GOST

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features


  • Increased safety in hard operating conditions
  • Helps reduce costly downtime
  • Accurate readings of pressure
  • Robust design in a high-quality material
  • Shock resistant and impeccable load-cycle stability
  • Blow-out back protects the operator in case of failure
  • Ideal for aggressive environments -and products with lower viscosity or crystallisation

Did you know?

The gauges come with several options: laminated safety glass, oil and grease free or Bourdon tube with electrical output

Alternative products

  • Pressure transmitter

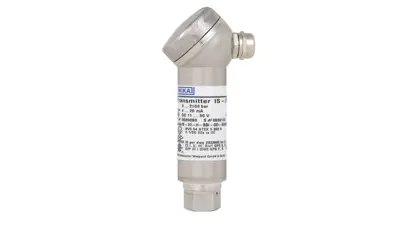

    Pressure transmitters

    These sensors emit a continuous electrical signal to indicate pressure level in a gas system. They alert an operator if the flow pressure is too high or low, so quick action is taken.

    See our Pressure transmitters
