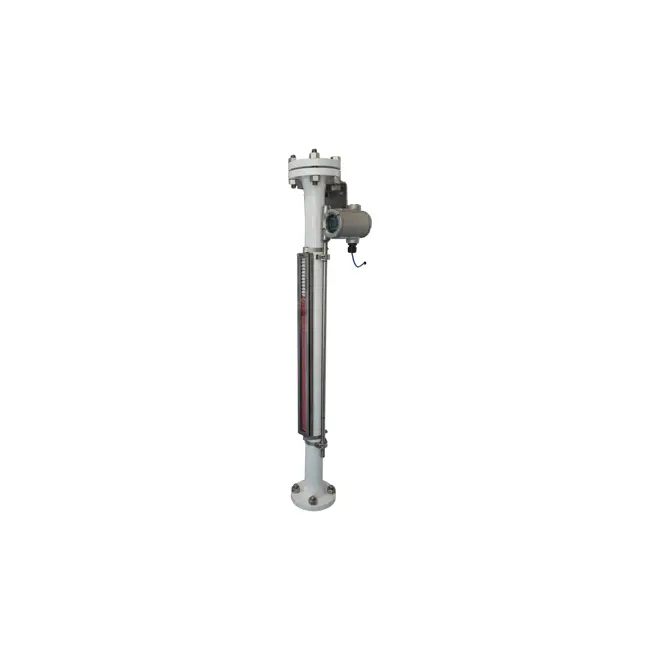

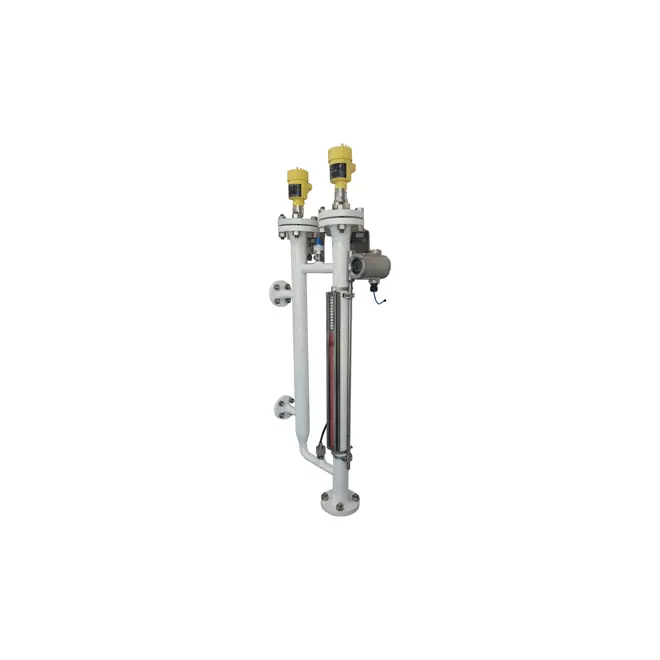

Bypass level indicators for LPG and NH3 level monitoring

By-pass level indicators are simple level monitoring devices with a built-in magnetic system to indicate the level of liquid inside a vessel. They are applicable for all industrial applications and are used in the gas industry amongst many others.

Product description

The by-pass level indicator enables monitoring of liquid levels by using a display with fitted plastic rollers. The rollers will rotate corresponding to the magnetic field and display either red or white depending on the current location of the magnet, thus indicating the liquid level inside the vessel.

icon 3 squares in front of eachother symbolising material


Body: Stainless steel

icon a gear with lines going up down left and right symbolising specifications


Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous Ammonia), Kerosene, BioLPG, gasoline, diesel, DME, cryogenics
Connections: Thread, flange, weld
Pressure range: Up to 400 bar (5,800 psi)
Temperature range: -196˚C to +450˚C (-320.8˚F to +842˚F)
Sizes and range: ½" to 1" (NPT/butt), ½" to 4" (ANSI), DN10 to DN100 (DIN)
Series: BNA model
Standards: CE-ATEX

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features


  • Robust design for a long-life span
  • Fail-safe magnetic display without a power supply
  • Explosion-proof versions available
  • Corrosion-resistant
  • Level measurement independent of media changes
  • Interface-layer level measurement from a density 100 kg/m3

Did you know?

Optional mounting of level transmitters and magnetic switches possible upon request

ProSupply can provide customised solutions upon request

The indicators can be supplied in other corrosion resistant materials

Alternative products

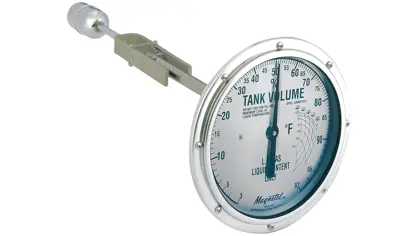

  • Float level gauge 6300

    Float level gauges

    Float level gauges are simple devices that measure liquid content in the likes of ISO containers, domestic tanks, bottles, storage tanks, trucks and trailers.

    See our Float level gauges

  • Rotogage A9091


    Consisting of a dip tube, dial gauge and a vent valve, rotogages provide a simple way to read the liquid level of tanks. They are often mounted to the end of the container at the halfway mark.

    See our Rotogages
