LPG

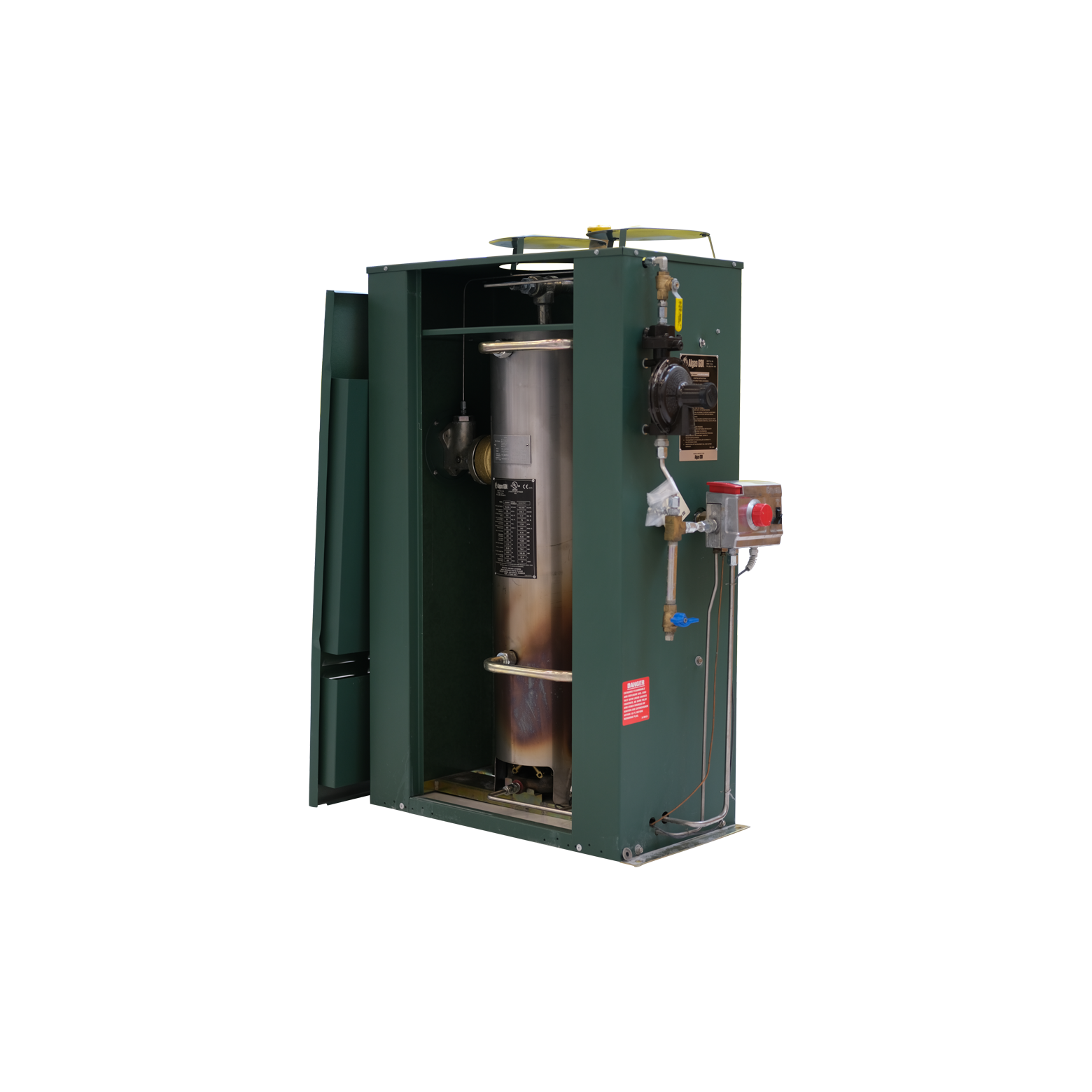

Direct fired vaporizers for LPG consumption in electrically scarce areas

Direct fired vaporizers are the most commonly used type of vaporizers in the world. Vapourisation is induced by adding heat using a burner underneath the pressurised LPG container. These vaporizers are primarily for 'low-duty' industrial applications and on sites with a shortage of electricity. They are commonly used in temporary heating applications at construction sites and are further used for crop drying and agricultural heating.

Product description

The undisputed popularity of direct fired vaporizers is due to their portability and ability to function without additional energy besides LPG.

icon 3 squares in front of eachother symbolising material

Material

All parts are LPG compatible.

More information can be provided upon request.

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane)
Connections: Thread
Type: NPT
Pressure range: Up to 25 bar (362.5 psi)
Capacity: 80 to 1535 kg/h
Sizes and range: 3/4" to 1"
Standards: CE, PED, UL, ASME, CRN

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Simple design
  • Easy installation and maintenance
  • Cost-efficient
  • Rain resistant combustion stack
  • No electricity requirements
  • Automatic re-ignition
  • Inlet strainer
  • Double liquid carry-over guard
  • Capacity control valve
  • Burner gas supply isolation valve
  • Thermostatic gas valve
  • Heavy gauge flue shroud in stainless steel
  • Indoor installation possible with flue ducted through roof

Did you know?

The vaporizers can be combined in multiples for larger capacity requirements.
