Gas detectors for LPG and NH3 leakage sensing

Gas detectors are crucial frontline safety devices to sense if surrounding gas levels exceed a safe level. They must be installed in all facilities that use gas in order to prevent harmful or fatal gas overexposure or explosions.

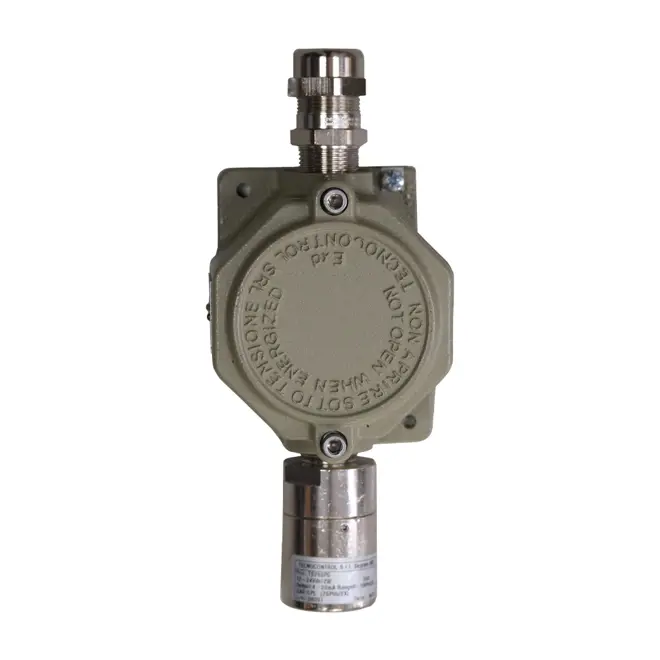

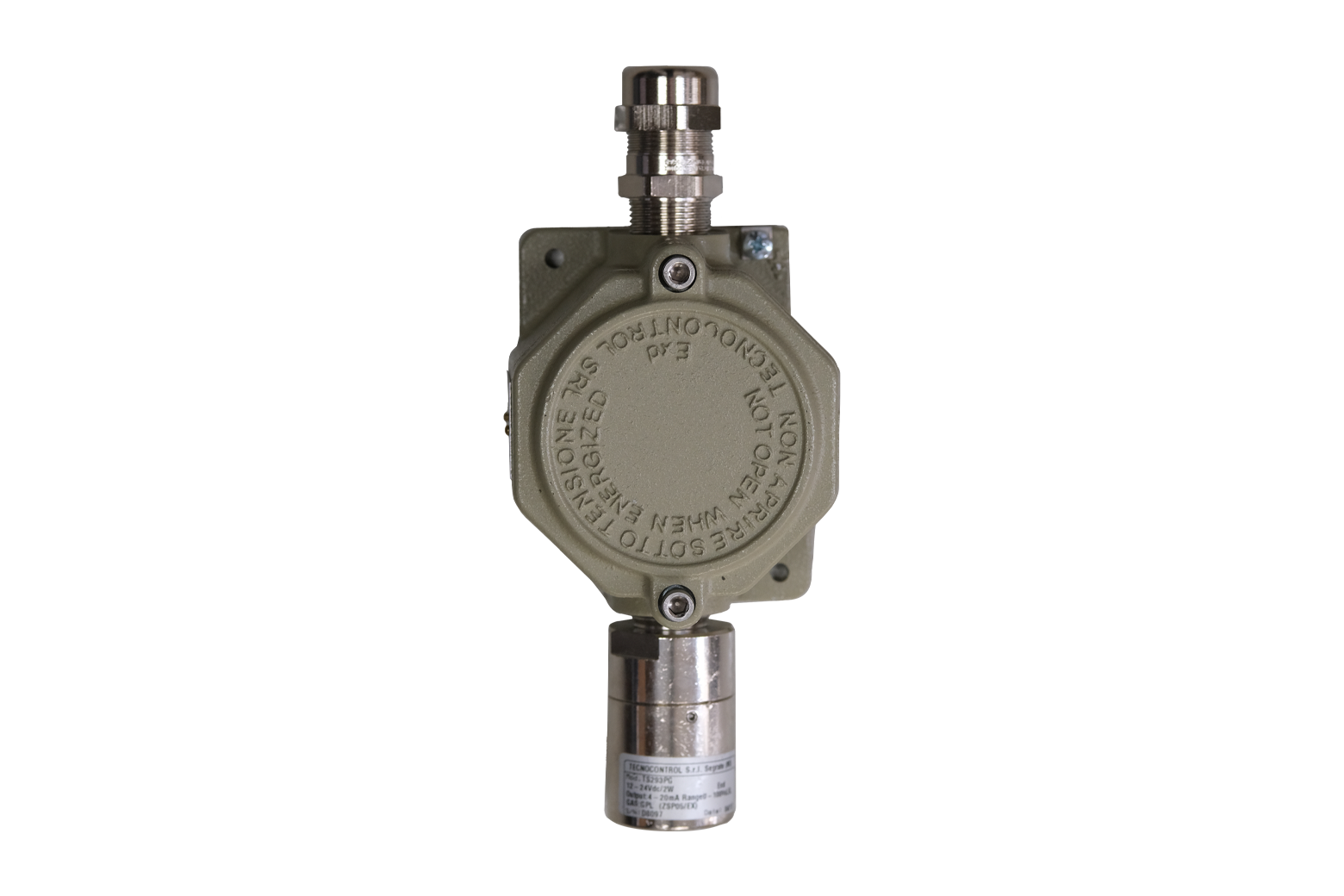

Gas Detector Ex.Proof

Product description

The gas detectors are sensors that are part of a system with a receiver and usually also an alarm. They rely on the control panel to react to the gas level inputs provided by them. As they are explosion proof devices, they prevent dangerous ignition of leaked or internal gas.

icon 3 squares in front of eachother symbolising material


All parts are LPG and NH3 compatible.

More information can be provided upon request.

icon a gear with lines going up down left and right symbolising specifications


Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous Ammonia), NG (Natural Gas), CO2, Oxygen, Nitrogen
Power supply: 12 to 24 Vdc (-10/+15%) 2W
Output: 4 to 20 mA
Standard range: 0 to 20% lower explosion level (LEL)
Limits: 35% LEL (32 mA)
Temperature range: -20˚C to + 55˚C (-4˚F to +131˚F)
Humidity: 5 to 95%, RH non condensed
Standards: CE, ATEX

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features


  • Life span of 5 years
  • Accuracy of ± 10 %
  • Pre-calibrated cartridges
  • Replaceable cartridge sensor
  • Polarised terminals
  • Automatic calibration simplified by 'F1' and 'F2'

Did you know?

The gas detectors can be calibrated for all kinds of gases and different temperatures

The devices can be equipped with sensory elements: catalytic, pellistor, electrochemical and infrared
