Product description

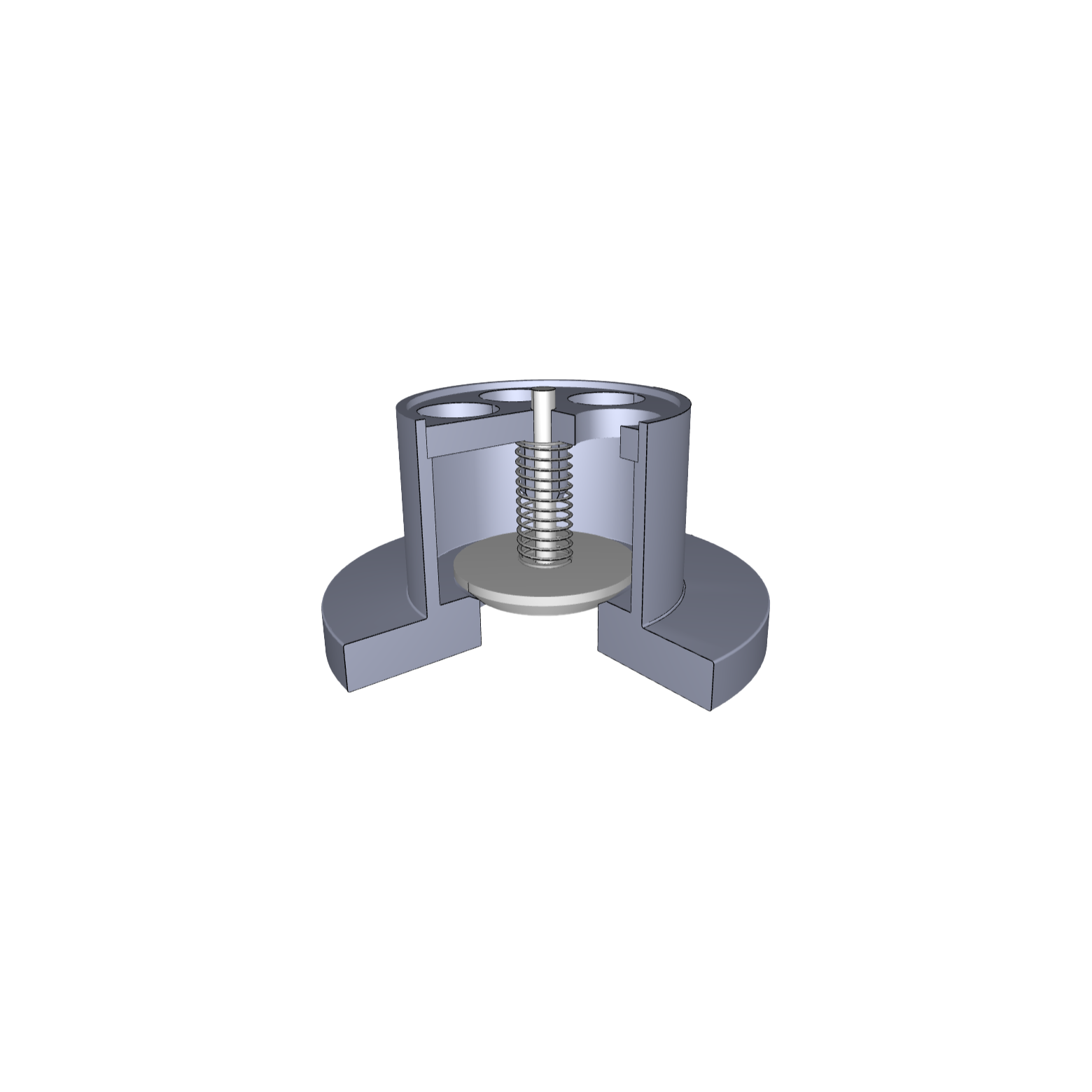

As back check valves provide a one-way flow security functionality, they are ideal for installation in pipelines flowing into pressure tanks and pump discharge lines as they will close off if the flow-direction changes or stops. The disc design requires a minimal installation space and is thereby suitable for many installations, also as a later modification.

icon 3 squares in front of eachother symbolising material

Material

Body: Carbon steel, stainless steel
Guide: Carbon steel, stainless steel
Spring: Stainless steel
Poppet: Stainless steel

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous Ammonia)
Connections: Flange
Type: ANSI
Operating pressure: 50 bar (720 psi)
Internal pressure: Max. 137 bar (2000 psi)
Temperature range: -45˚C to +148˚C (-50˚F to +300˚F)
Sizes and range: 1" to 10"
Series: 167, 218 and 230 models
Standards: UL listed, CE-PED

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Wafer Type is designed to fit inside Schedule 160, 80 or less steel pipe
  • Wafer type: Fits inside the bolts of 150 or 300-pound American Standard steel pipe flanges
  • Flanged type is designed to fit between 150 or 300-pound American Standard steel pipe flanges
  • Flanged type. Ring groove flanges can be furnished if required
  • Generous flow channels provide minimal pressure drops
  • Available in carbon steel or stainless-steel

Did you know?

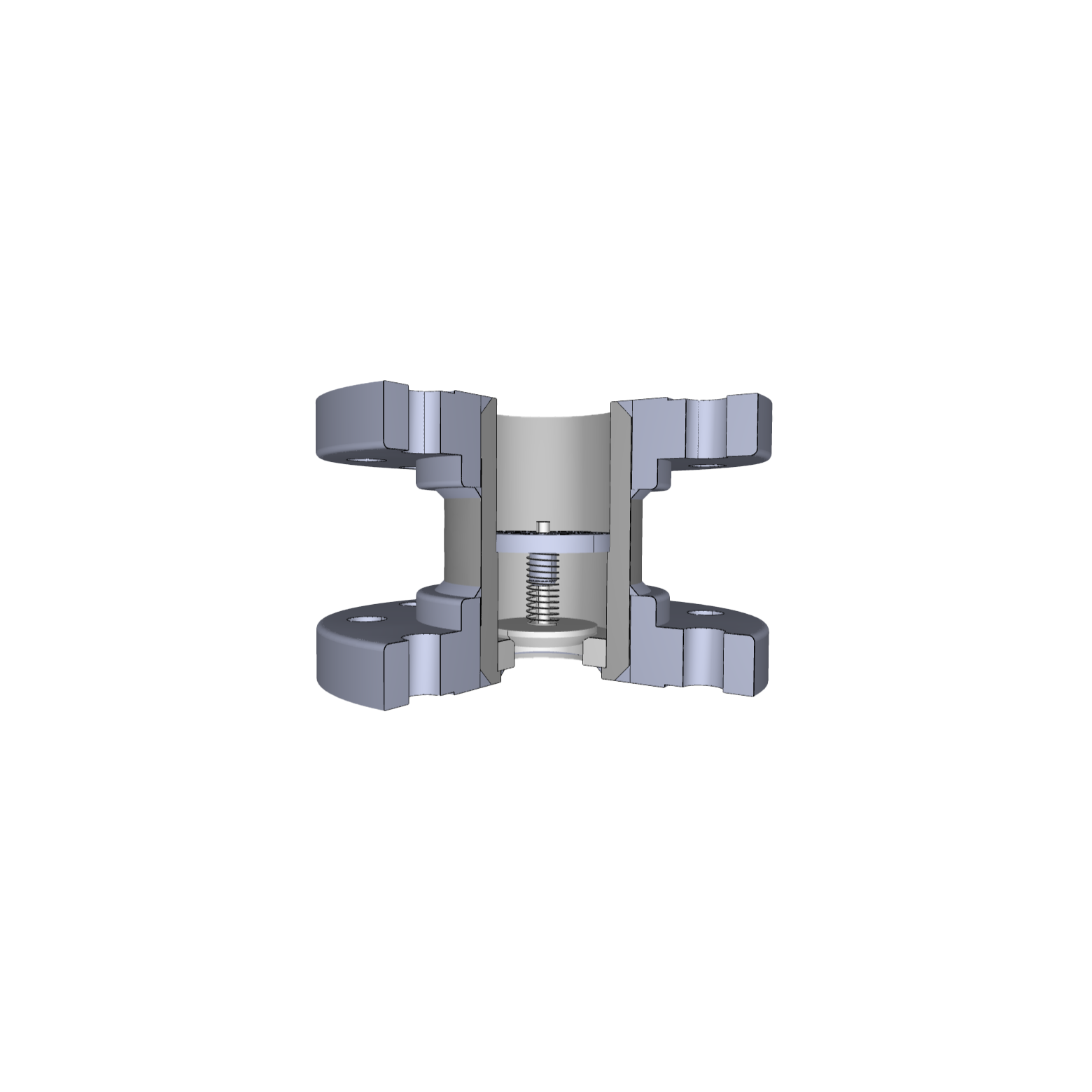

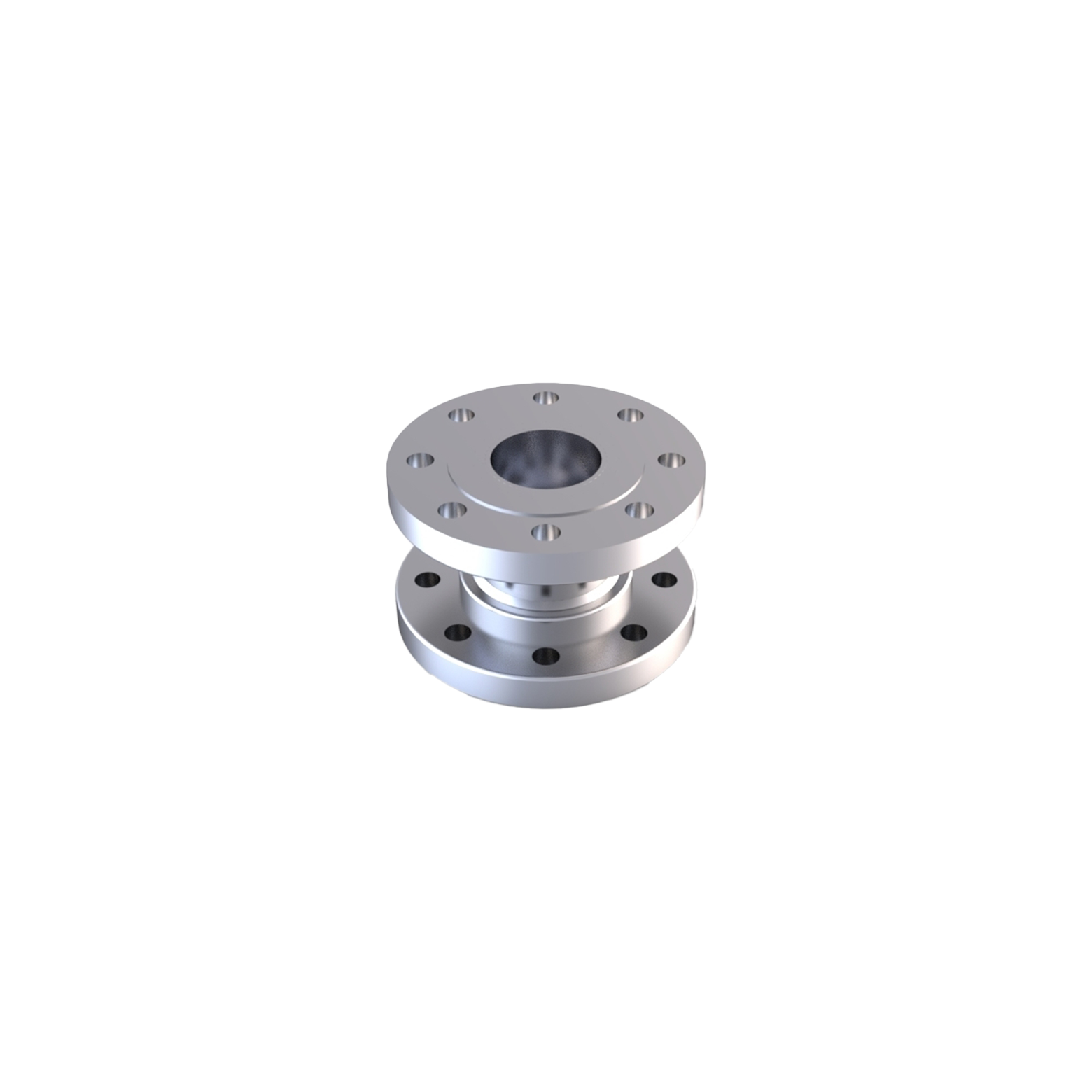

A disc type can be installed between two flanges

Flange back check valves can be specially requested in 12"

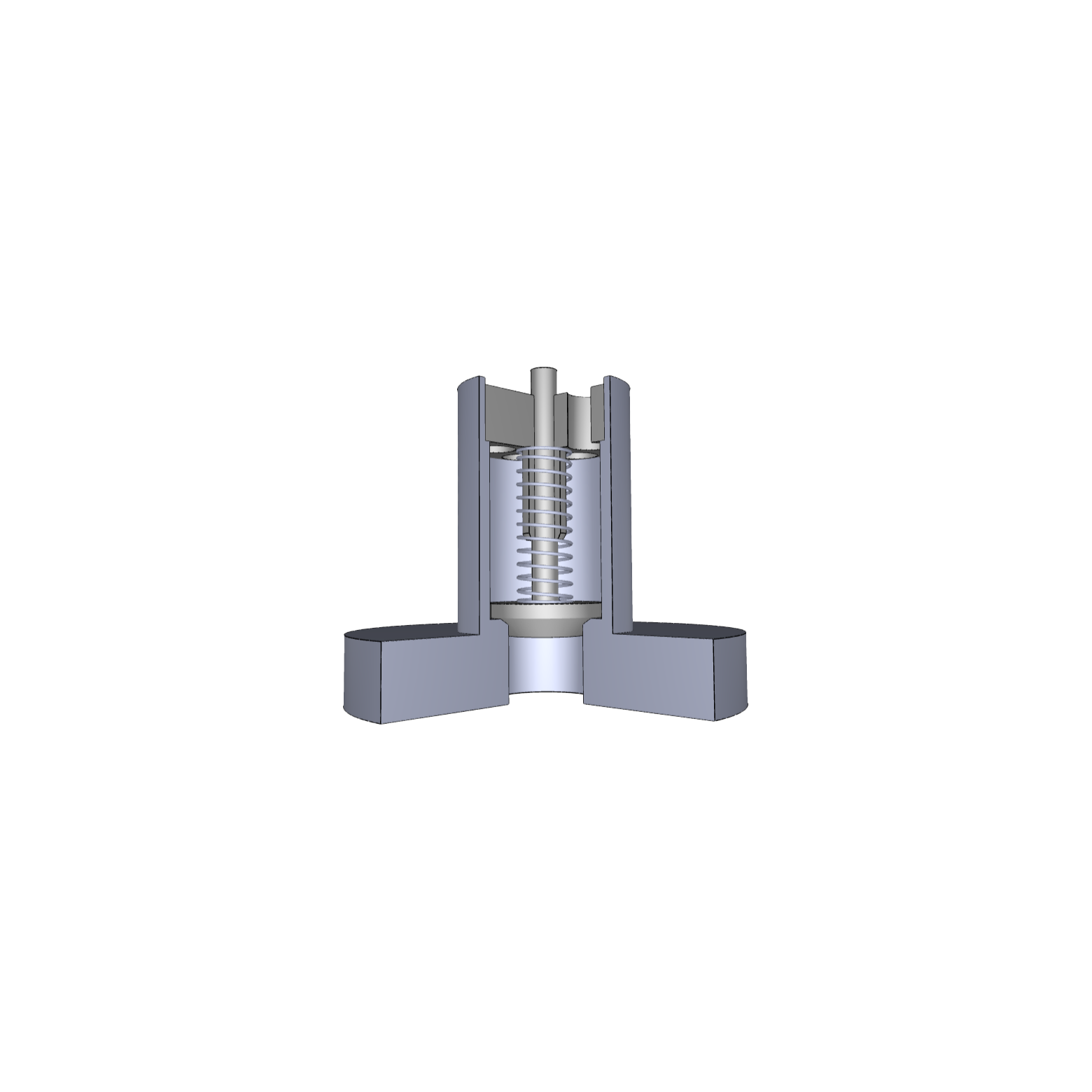

A threaded back check valve can be installed inside a threaded flange

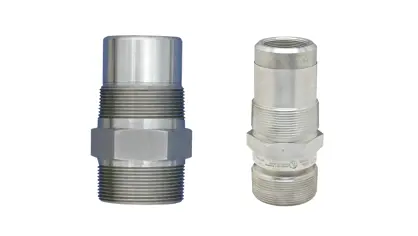

  • Photos of Threaded Back Check Valves

    Back check valves (threaded)

    One-way valves that keep container contents from escaping if piping or fittings accidentally break. Often found in gas installations that require a high, single directional flow.
