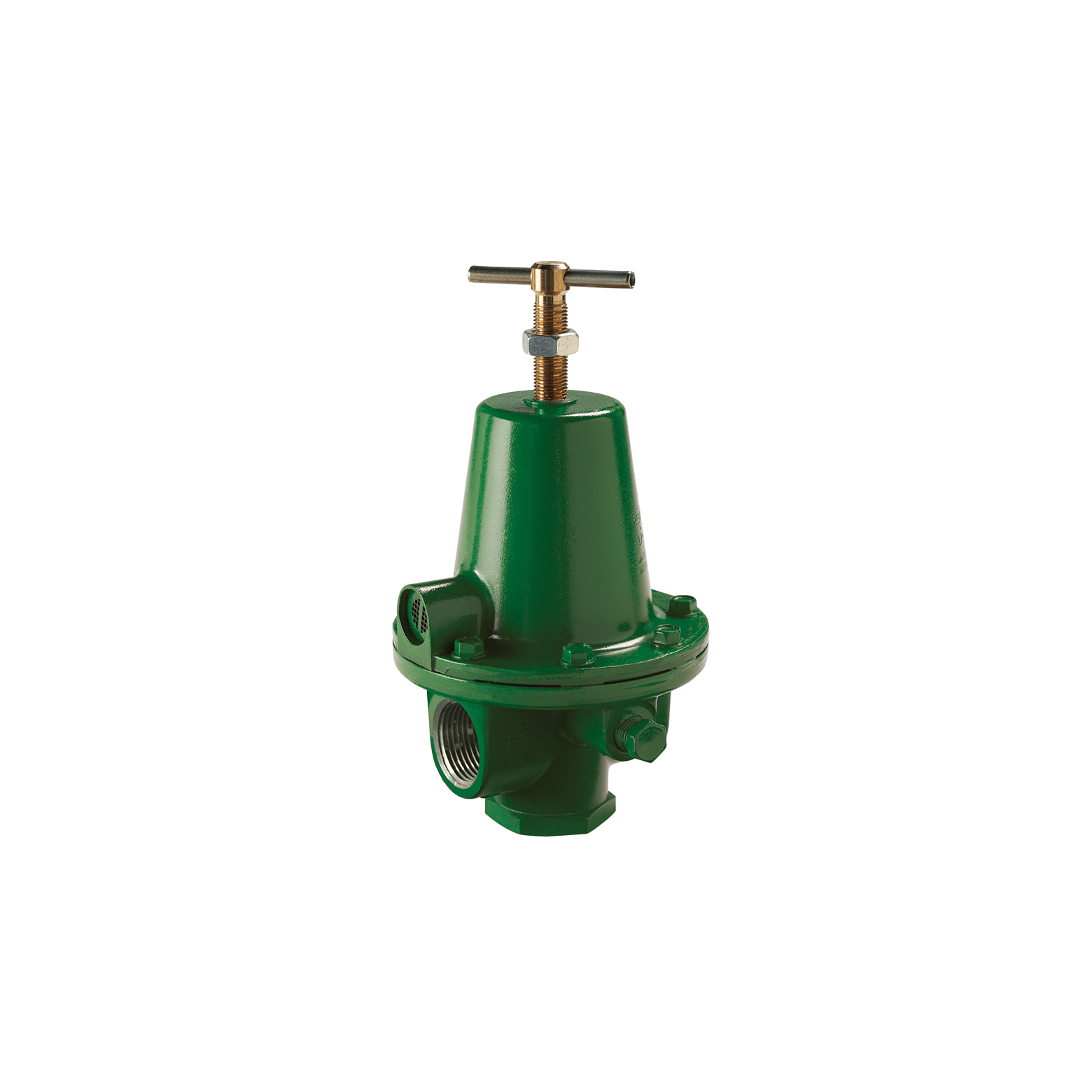

Picture of green high pressure regulator
Picture of green high pressure regulator

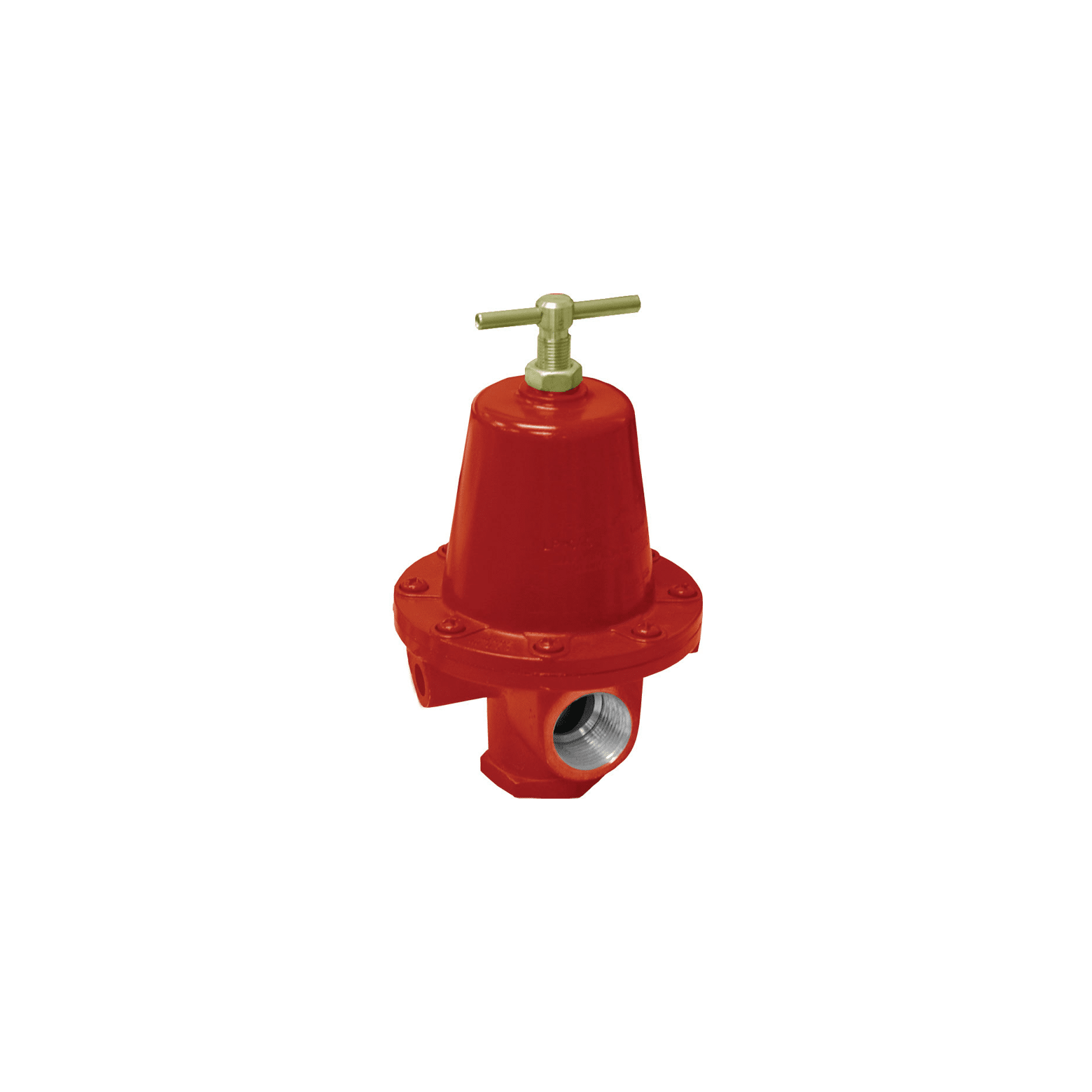

Image of red high pressure regulator

High-pressure regulators for NH3

  • High capacity and resistance to freezing due to the large nozzle and straight throughflow
  • Reduced vibration from the dampening O-ring
  • Suitable for both liquid and vapour service
  • Can be fitted with pressure gauge in ¼’’F. NPT port
High-pressure regulators, most commonly defined as single or first stage regulators, are perfect for demanding industrial and commercial tasks. They are perfectly suitable for blue-print machines and other tasks like heat treating that require a high heat output.
Body:
Forged aluminium
Bonnet:
Die cast aluminium
Spring:
Steel
Seat disc:
Resilient rubber
Diaphragm:
Integrated fabric, Resilient rubber
Gas types:
NH3 (Ammonia, Anhydrous Ammonia)
Connections:
FNPT
Pressure range:
0.21 to 8.6 bar (3 to 125 psi)
Sizes and range:
1/2" to 3/4
Series available:
627 series, 64 series, AA1580V series
Standards:
UL-listed

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

High-pressure regulators, most commonly defined as single or first stage regulators, are perfect for demanding industrial and commercial tasks. They are perfectly suitable for blue-print machines and other tasks like heat treating that require a high heat output.
Body:
Forged aluminium
Bonnet:
Die cast aluminium
Spring:
Steel
Seat disc:
Resilient rubber
Diaphragm:
Integrated fabric, Resilient rubber
Gas types:
NH3 (Ammonia, Anhydrous Ammonia)
Connections:
FNPT
Pressure range:
0.21 to 8.6 bar (3 to 125 psi)
Sizes and range:
1/2" to 3/4
Series available:
627 series, 64 series, AA1580V series
Standards:
UL-listed

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.
