LPG

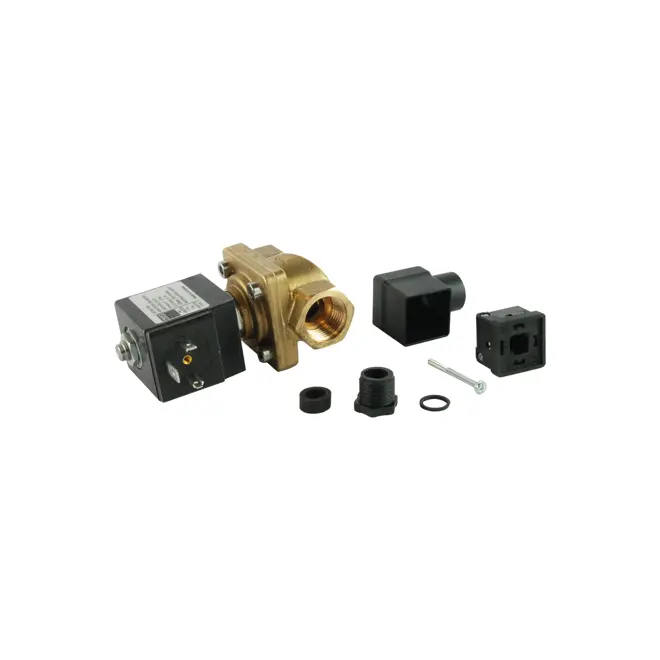

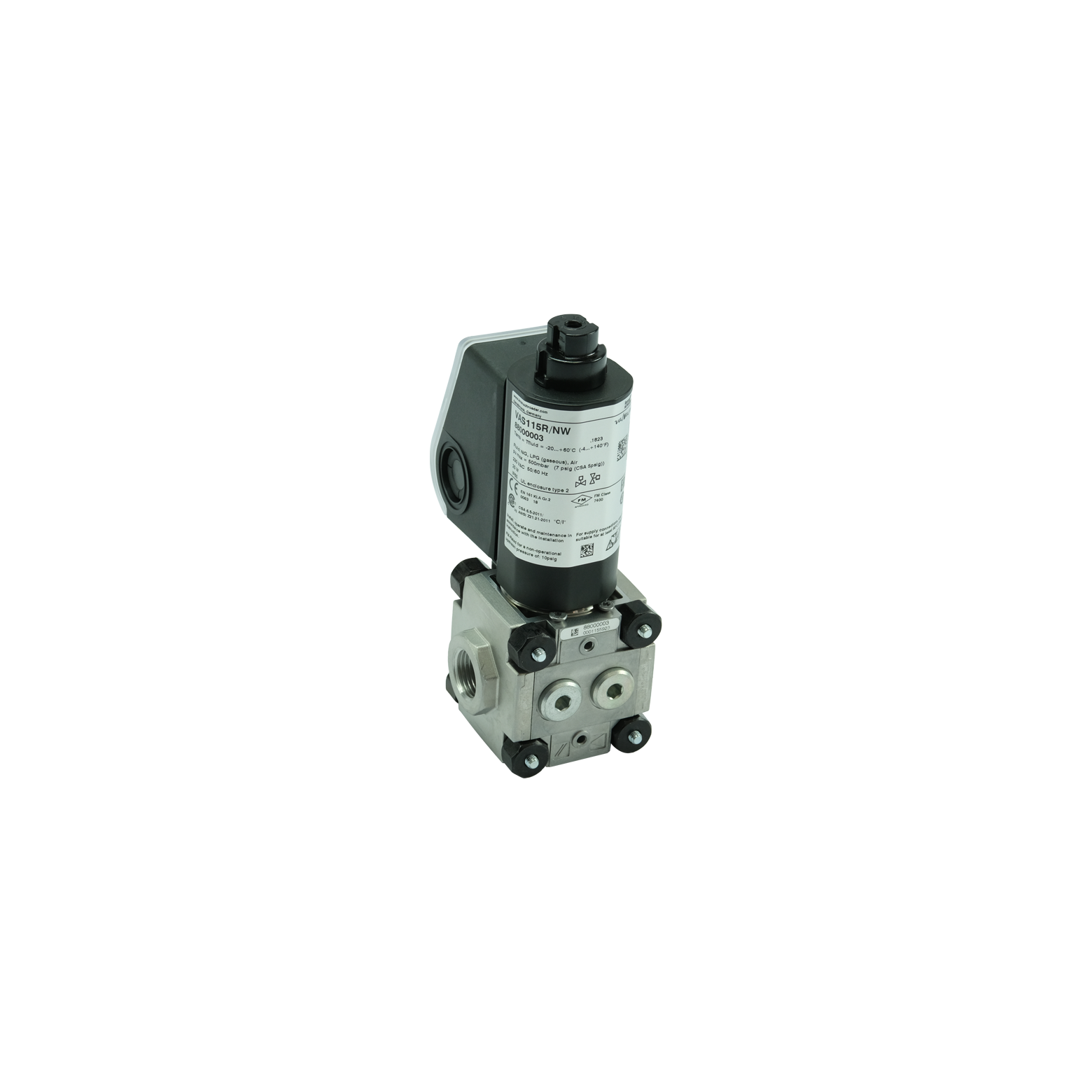

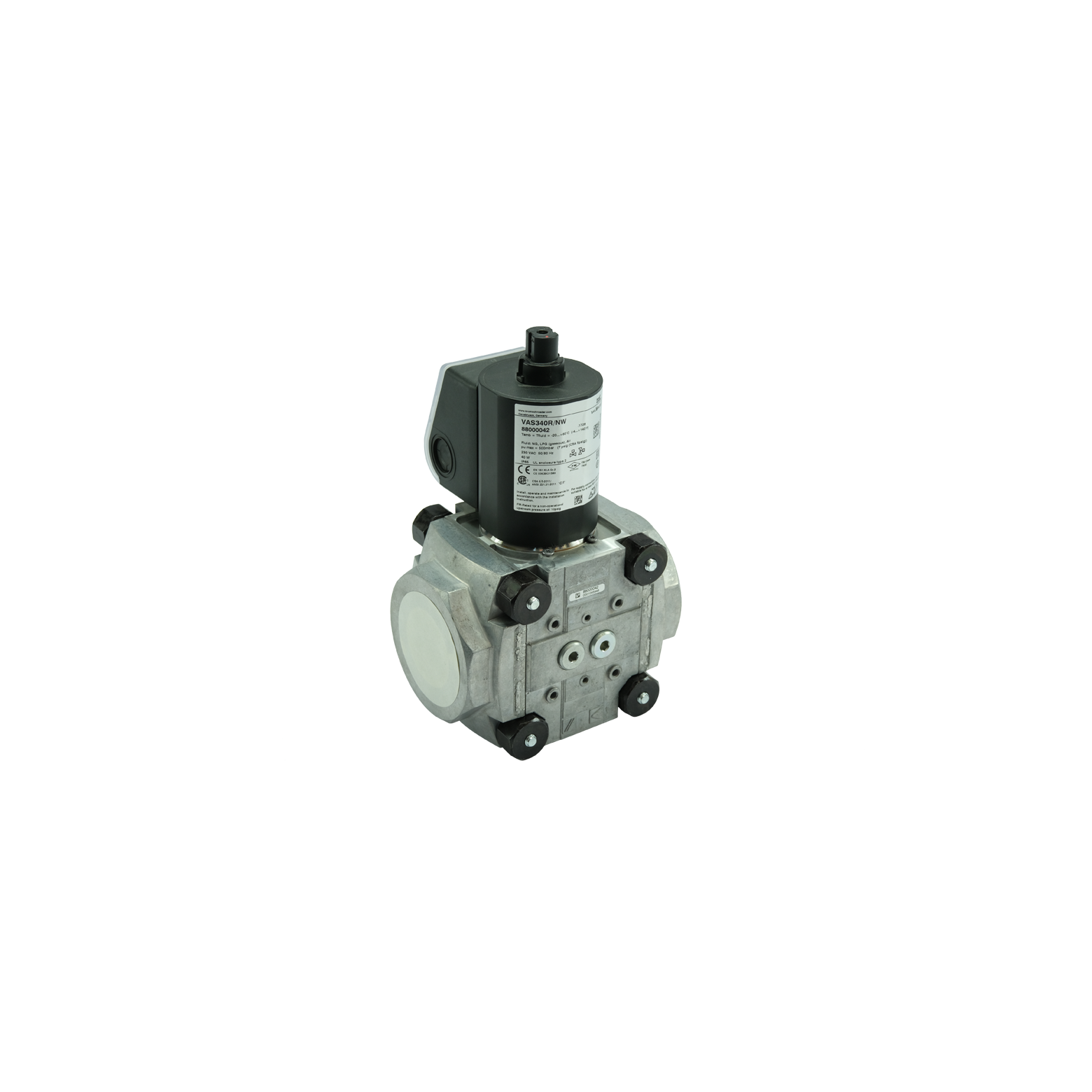

Solenoid valves for safer transfers of LPG, NH3 and LNG

Solenoid valves are electromechanically driven, quick-acting safety devices to control gas supply to appliances and pipework while reinforcing an efficient use of equipment. They are installed in LPG/NH3/NG pumping equipment, metering units, filling systems and gas and tank applications.

Product description

Solenoid valves convert electrical energy into mechanical energy, to control the flow of gas as its valves are opened or closed depending on the electrical signal they receive. Depending on the type of solenoid valve, autonomous and remote control of a gas system can be achieved as the functionality can be controlled by a computer.

icon 3 squares in front of eachother symbolising material

Material

Body: Brass, steel, stainless steel

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous Ammonia), CNG, NG (Natural Gas), Cryogenics, CO2, Biogas, LNG, BioLPG, Hydrogen, industrial gasses
Connections: Thread, Flange
Types: NPT, BSP, ANSI, DIN
Sizes and range: 1/4" to 3" and DN15 to DN200
Pressure range: 0.1 to 300 bar (1.4 to 4,351.1 psi)
Electrical power: 12, 24 (VDC) and 120, 230, 400 (VAC)
Series: GSR, VAS, VG
Standards: CE-ATEX, IECEx, SIL 2, UL listed, AGA, EAC, CSA

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Adjustable start gas rate for quick/slow opening
  • Option for restricted flow rate
  • Robust and compact valve design for long-term operation
  • Suitable for high-duty cycling
  • No pressure difference required
  • Sealing in a reliable and sturdy material
  • Long-term availability of spare parts
  • Comes with a signal feedback
  • Visual indicators with LED lights
  • Available in brass, aluminium, steel and stainless-steel body
  • Approved for all weather conditions

Did you know?

The valves come with slow opening and fast closing actuators

Solenoid valves can be configured to be normally opened or closed

Alternative products

  • A ball valve with yellow handle

    Ball valves

    Operated by a simple 90˚ turn of a lever, ball valves can either fully permit or restrict flow. They are simple and fast acting valves for on/off operations.

    See our Ball valves

Didn't find what you were looking for? Contact our engineers who are happy to assist.
