Product description

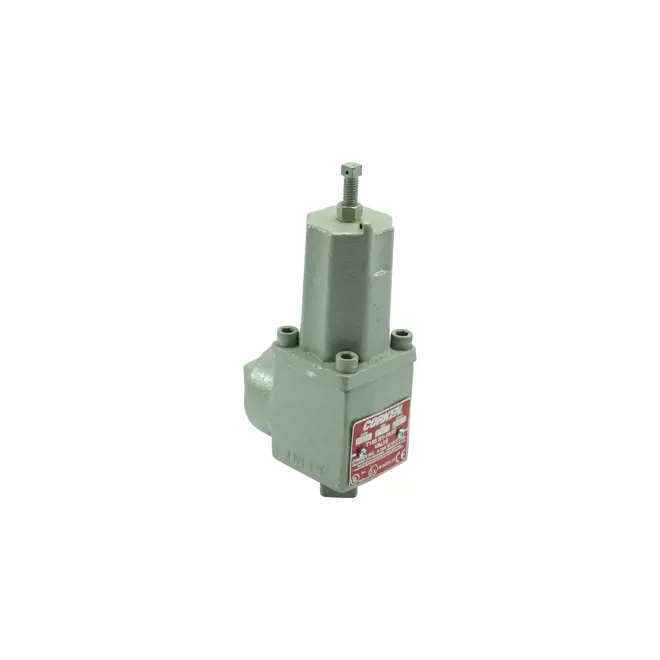

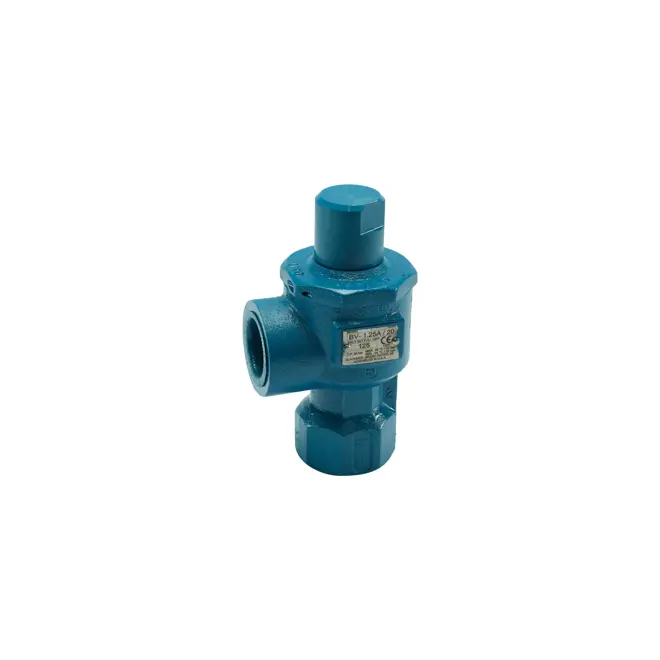

Bypass valves allow pressure build-up to be equalised within LPG applications to minimise wear on pump units and ensure easy maintenance on sections while bypassing the product.

icon 3 squares in front of eachother symbolising material

Material

Body: Steel, stainless steel

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NH3 (Ammonia, Anhydrous Ammonia)
Connections: Thread, flange
Types: NPT, ANSI, DIN
Pressure range (differential setting): Max. 196 psi (13.5 bar)
Capacity: 151 to 1476 lpm (40 to 390 gpm)
Sizes and range: 3/4" to 2½" (NPT), DN25 (ANSI)
Series: BV0, BV1, BV.25 BV1.5. B177, ZV200, T166
Standards: UL listed, CE, PED

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Simple and compact design for reliable operation
  • Fits different applications with pressure building devices
  • Horizontal and vertical installation options
  • Differential pressure control

Did you know?

Bypass valves can be used where pumps are utilized in the application
