LPG

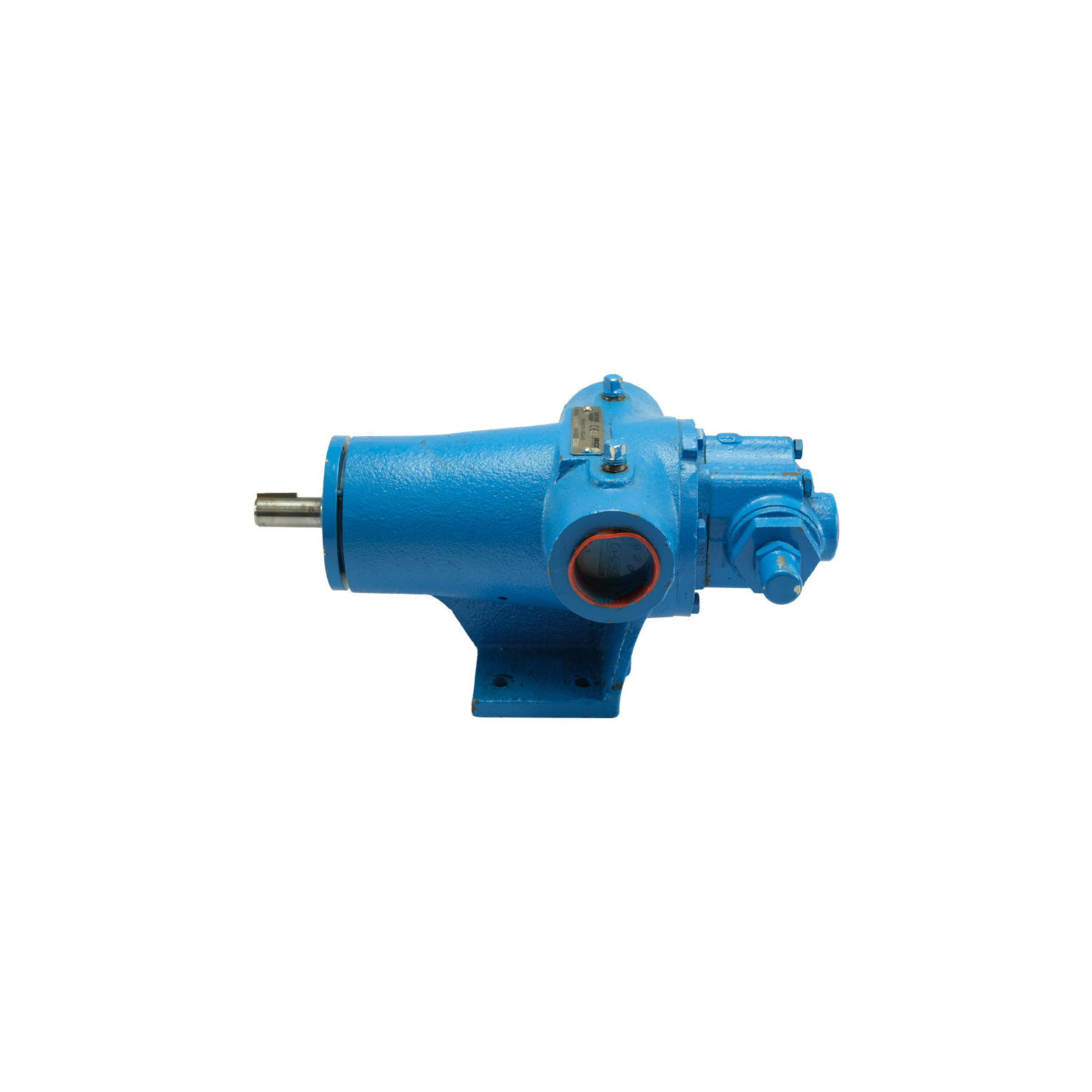

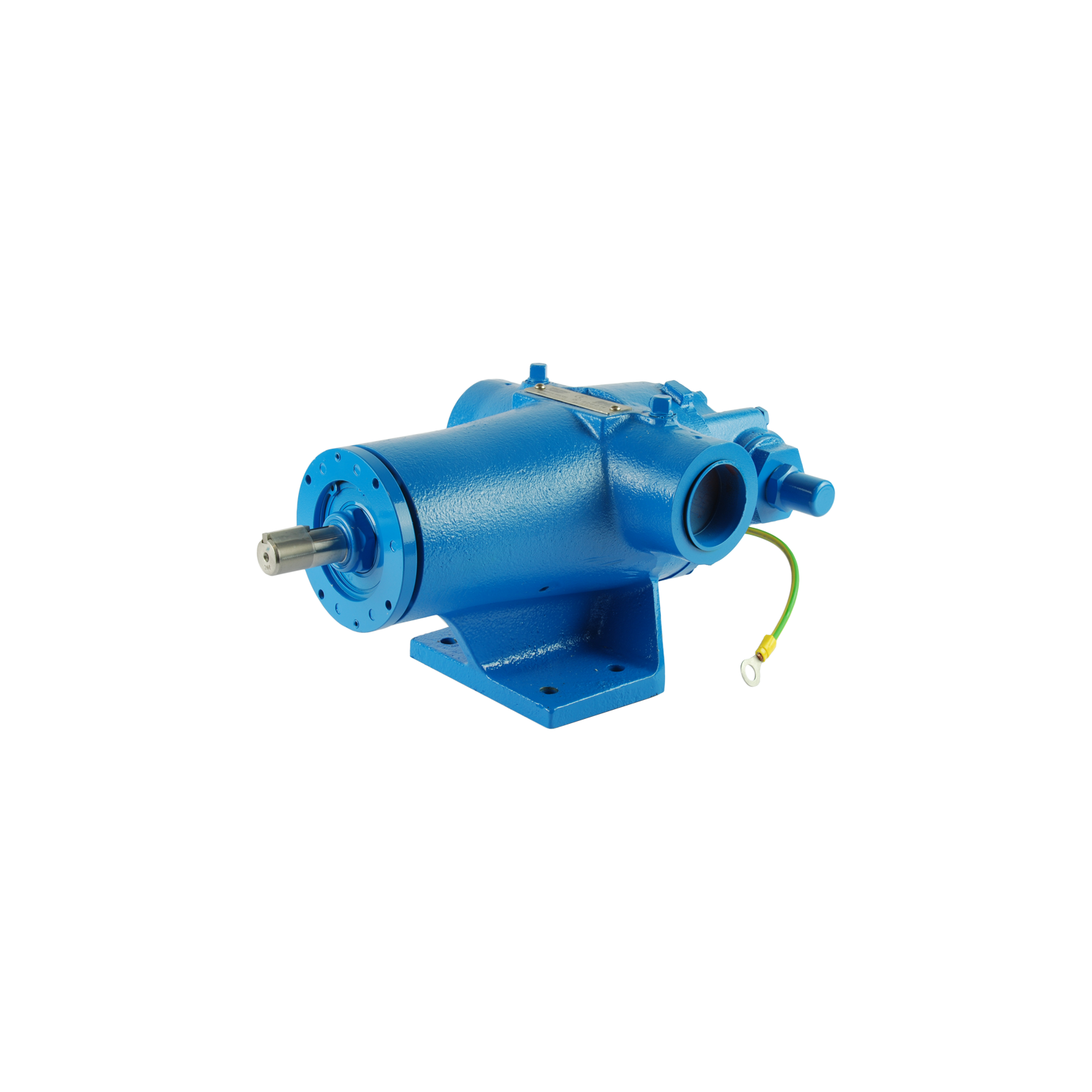

Gear pumps for high-pressure delivery of LPG

Gear pumps are positive displacement (PD) pumps that can deliver a high pressure of LPG in accurate dosing with each gear revolution and are commonly used for loading and unloading of trucks, small bulks and other transfer or fuelling operations.

Product description

The unique design of the meters makes them impervious to changes in viscosity or flow obstructions with guaranteed minimal pressure drop. The meters divide the gas flow into fixed volumes and count them to determine the total flow and flow rate.

Material

Body: Cast iron, ductile iron, steel, stainless steel, alloy 20

Specifications

Gas types: LPG (Propane, Butane)
Connections: Thread, flange
Type: NPT, ANSI
Pressure range: Max. 20 bar (290 psi)
Capacity: 2 to 300 m³/h
Sizes and range: 1" to 1-1/4" (NPT), 1" to 3" (ANSI)
Standards: UL-listed, CE

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

Features

Heavy duty design
Standard gauge ports on all sizes
Piping adaptors not necessary to conform to local standards
In-built pass valves
Pressure lubricated idler pin
Max. O-ring sealing with thin liquids
Easy in-line installation due to opposite porting
Vertical mounting and spatially convenient
High speed and pressure
Quiet operation

Did you know?

Some models have hardened steel idlers to provide maximum service life and help protect against cavitation wear on low NPSH applications

External gear pumps are also suitable for hydraulic power applications

Some gear pumps have dual functionality, working as a pump or a motor
