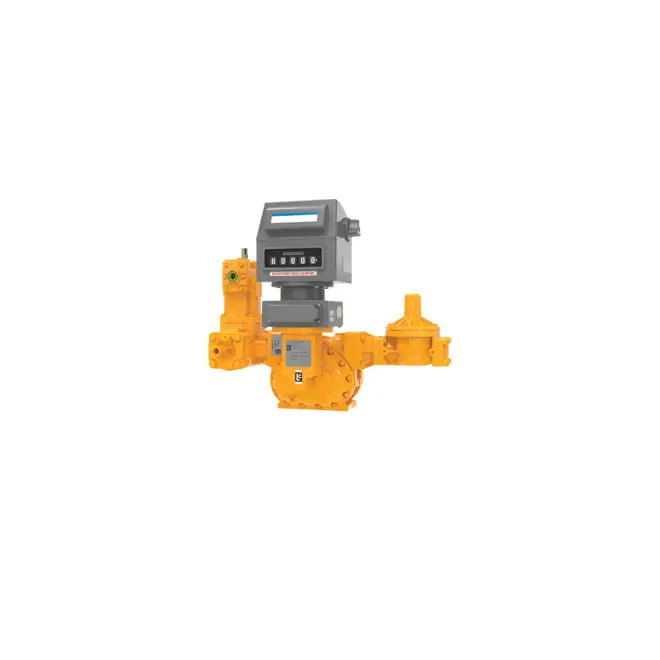

Positive displacement meters for LPG flow readings

Positive displacement meters, or PD's, are the single most accurate devices for measuring direct liquid flow in LP custody transfers. PD's are frequently used for LPG truck metering and stationary plant systems as well as for loading and unloading applications.

Product description

The unique design of the meters makes them impervious to changes in viscosity or flow obstructions with guaranteed minimal pressure drop. The meters divide the gas flow into fixed volumes and count them to determine the total flow and flow rate.

icon 3 squares in front of eachother symbolising material

Material

All parts are LPG compatible.

More information can be provided upon request.

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane)
Connections: Thread, flange
Types: NPT, BSP, ANSI, DIN
Pressure range: 10 to 24 bar (150 to 350 psi)
Flow rate: 19 to 3300 lpm (5 to 872 gpm)
Temperature range: -40˚C to +71˚C (-40˚F to +160˚F)

Sizes and ranges: 1½" to 6"
Series available: LC Series M and MA , Neptune type 4D and Neptune type 4D-MT
Standards: UL listed, CE-PED, CE-ATEX

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Low pressure drop
  • Sustained and reliable accuracy
  • Wide temperature and viscosity range
  • High adaptability
  • Easy installation and maintenance
  • Integrated systems

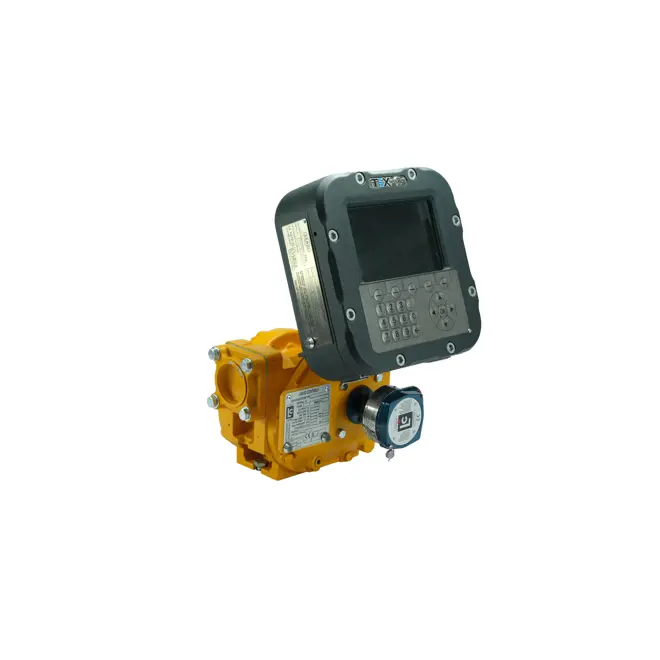

  • Electronic register

Did you know?

MAKEEN Gas Equipment can provide a complete package of metering systems that can include an automated pre-set delivery (batching system)

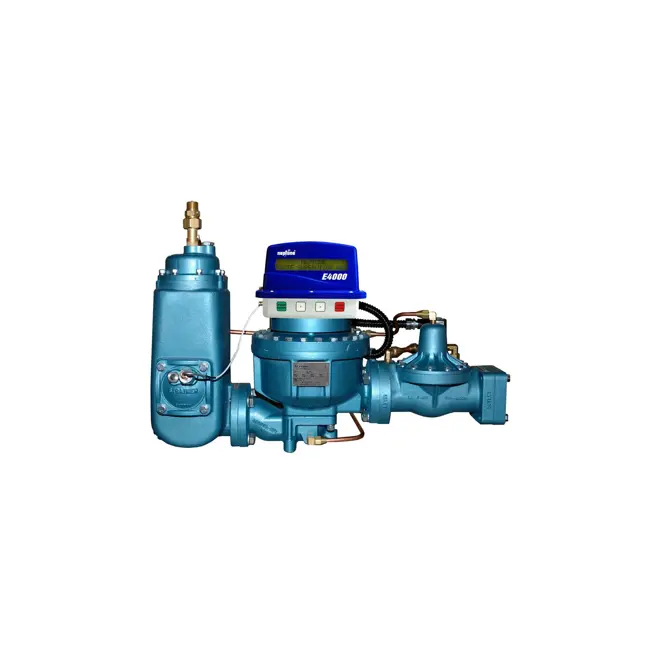

Meters are available with a selection of bolt-on strainers and air/vapor eliminators for inlet side and a selection of manual or solenoid actuated differential pressure control valves for the meter outlet

Mechanical and electronic registration equipment and printers are available

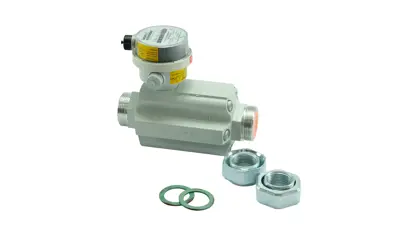

  • A turbine meter

    Turbine meters

    In industrial applications where continued flow is important, turbine meters are common measuring devises that can accurately determine consumption by sensing the flow velocity.

    See our Turbine meters
