LPG

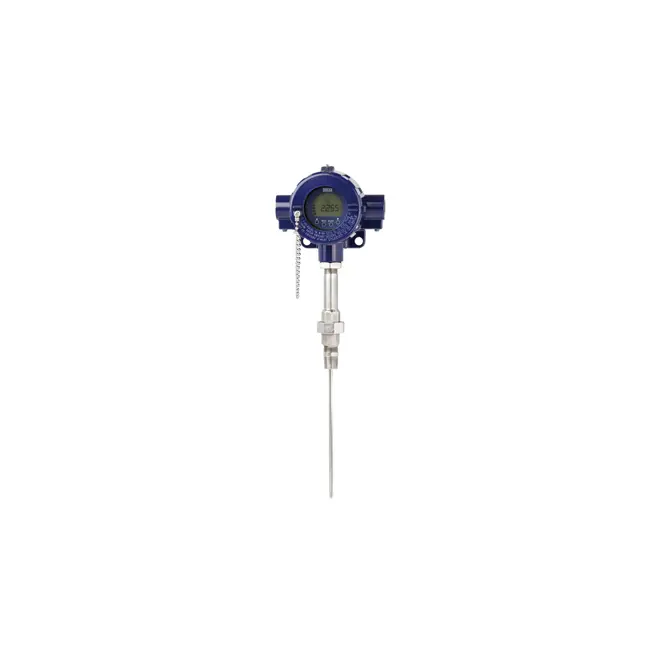

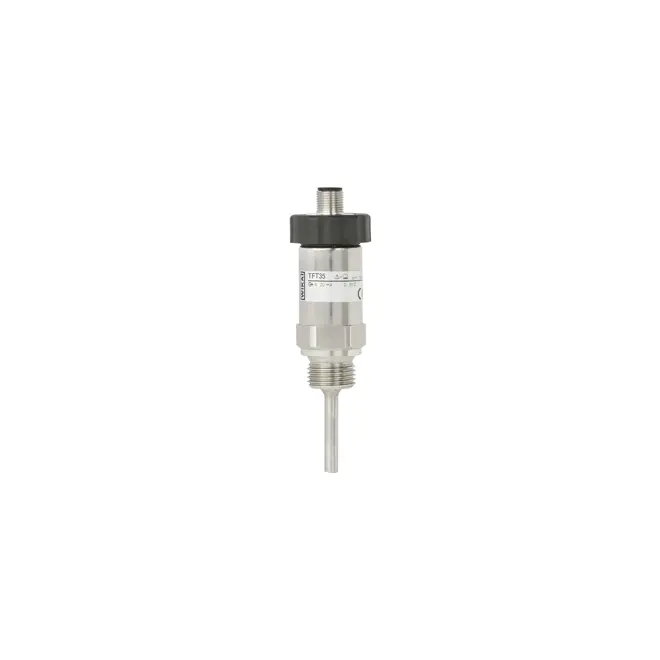

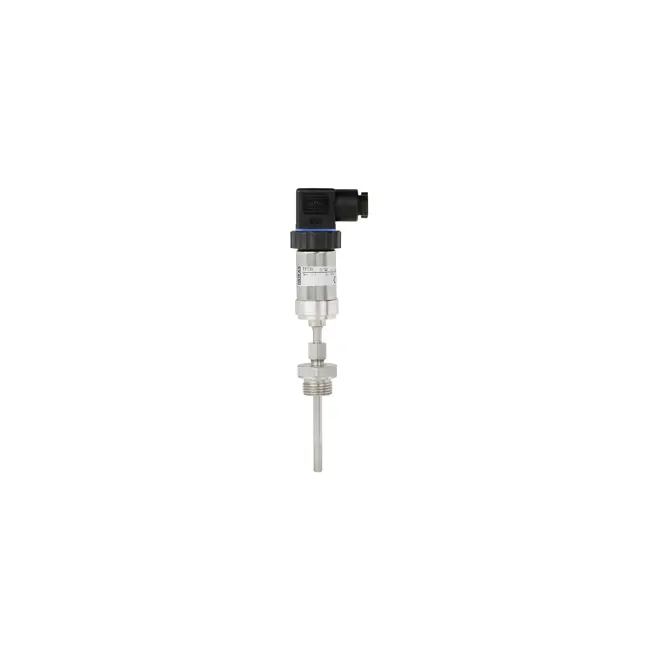

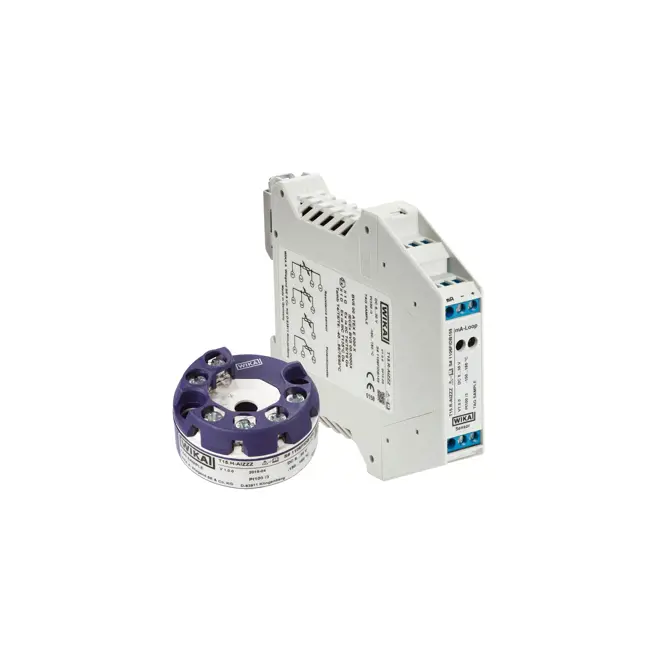

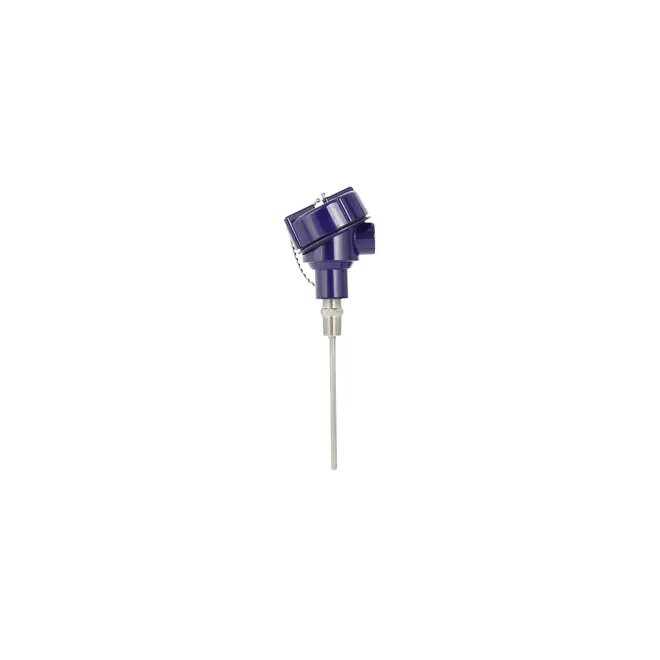

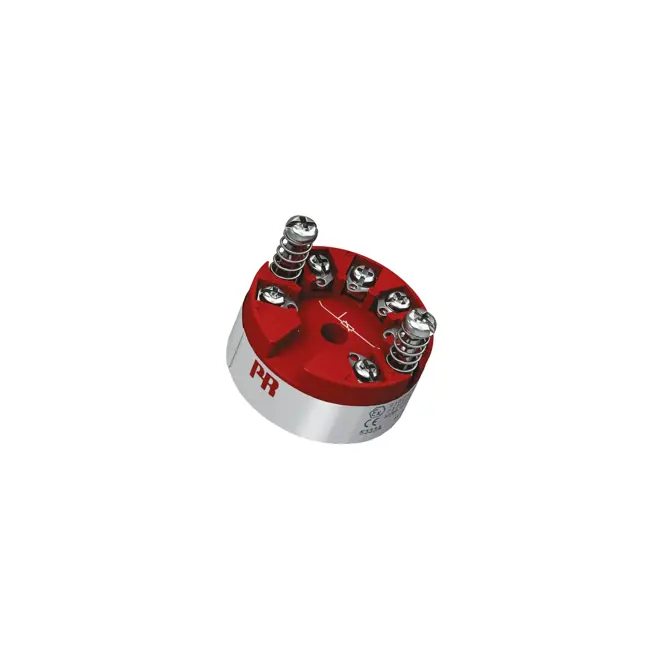

Temperature transmitters for LPG and NH3

Temperature transmitters are crucial elements in LPG applications to monitor temperatures in pipes and compressors in order to keep them within allowed limits. They are designed for universal use in the process industry and machine and plan building.

Product description

Transmitters receive and convert a signal from the temperature sensor and transmit it for monitoring and process control purposes to a control unit or system. This allows for a more autonomous operation as the functionality is conditioned by predetermined behaviours depending on the measured rise and fall in temperatures.

icon 3 squares in front of eachother symbolising material

Material

Body: Stainless steel

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NH3 (Anhydrous ammonia), NG (Natural Gas), manufactured gasses
Connections: Thread
Types: G, NPT
Temperature range: -70˚C to +600˚C (-94˚F to +1112˚F)
Length (standards): 25 to 500 mm
Series available: TFT35, 5333D
Signal: 4 to 20 mA
Standards: EMS, RoHS, ATEX, IECEx, EAC, FM. CSA, GOST

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Armour cover protection
  • Serial number included
  • 100% pressure tested
  • High working pressure tolerance
  • Maximum flexibility
  • Safe and easy handling
  • Long service life

Did you know?

Temperature transmitters can be used in many different applications

  • Pressure transmitter

    Pressure transmitters

    Continuously emitting electrical signals to indicate pressure levels in a system, pressure transmitters help adjust flow pressure or enable quick reaction to prevent potential accidents.
