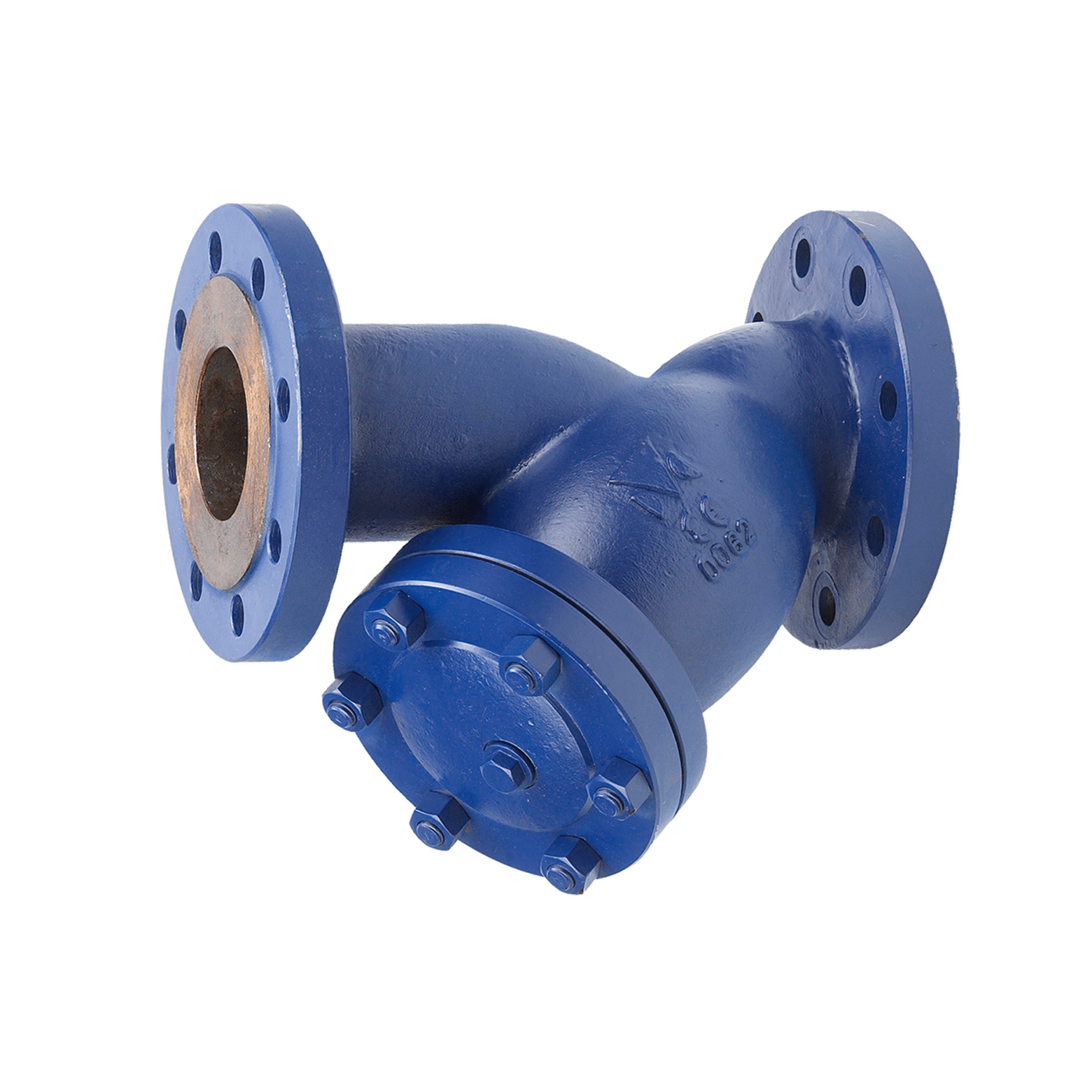

Image of a gas strainer

Product description

'Y' type strainers are the most commonly used as they are more cost-effective and simpler to install and maintain. They can operate under high temperatures and pressures, and their internal wire-meshed filters prevent dirt from ruining expensive equipment.

icon 3 squares in front of eachother symbolising material

Material

Body: Steel, stainless steel, brass

icon a gear with lines going up down left and right symbolising specifications

Specifications

Gas types: LPG (Propane, Butane), NH3(Ammonia, Anhydrous Ammonia)
Connections: Thread, flange
Types: NPT, ANSI, DIN
Pressure range : Max. 64 bar (928 psi)
Sizes and range: ½" to 3" (NPT), DN15 to DN200 (DIN), ½" to 8" (ANSI)
Standards: UL listed, CE-PED, CE

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.

icon a magnifying glass over a gear symbolising features

Features

  • Steel or stainless steel body
  • Down to 25 micron filtrations
  • Low cost and ease of maintenance
  • Horizontal or vertical installation possible

Did you know?

Gas strainers are available in four shapes: simplex, duplex, Y and automatic

  • A blue bypass valve

    Bypass valves

    Protect your pumps and other components from damage by a build-up of overpressure. Bypass valves minimise wear on other pipe units and ensure easy maintenance.

    See our Bypass valves
