MAKEEN Gas Equipment

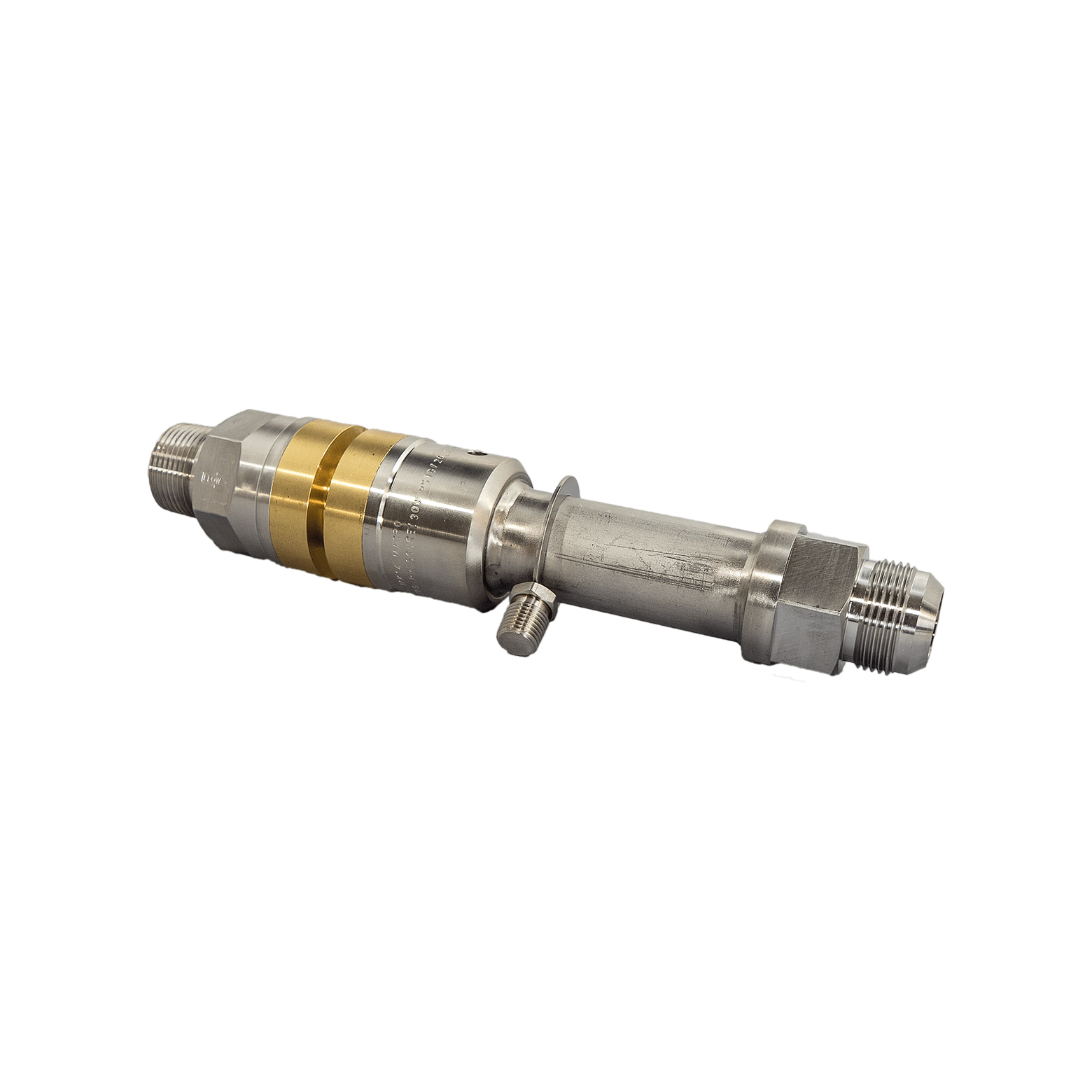

image of vent valve breakaway couplings

Vent valve/breakaway couplings

  • Internal relief system
  • Enhances safety
  • Positive automatic shut-off

The break-away couplings are designed to be the weak link in LNG dispensing systems with an engineered breaking point to minimise damage.

Housing:
304 stainless steel ASME SA479, Brass ASTM B16
Poppet:
Brass ASTM B16
Spring:
Stainless steel 302
Guide:
Brass ASTM B16
Hose adapter:
304 stainless steel ASME SA479
Gas types:
LNG (Liquefied Natural Gas)
Connections:
Thread
Types:
45˚ SAE (CGA440)
Internal pressure (during fueling):
Max. 20.7 bar (300 psi)
System pressure (static):
Max. 38 bar (550 psi)
Fill breakaway:
189.27 lpm (50 gpm)
Vent breakaway:
37.8 lpm (10 gpm)
Temperature range:
-206˚C to +60˚C (-340˚F to +140˚F)
Sizes and range:
⅝"
Series available:
LNG specific, VFL series
Standards:
ATEX, CE, ISO 12617, ISO 16924

*Materials and specifications are subject to generalisation. Our experienced people are ready to help you find the correct fit for your application.
